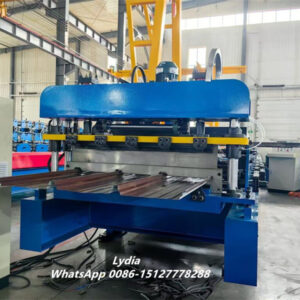

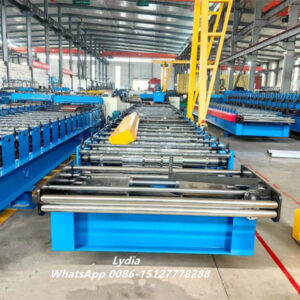

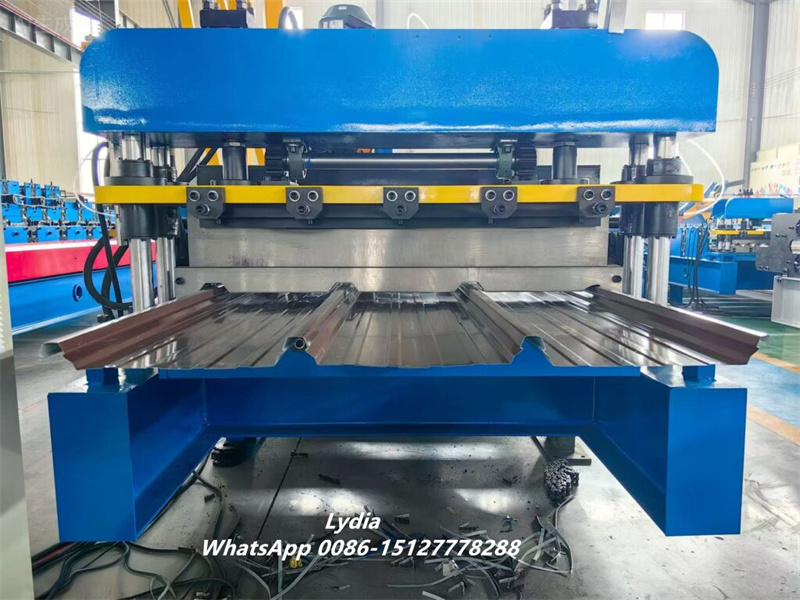

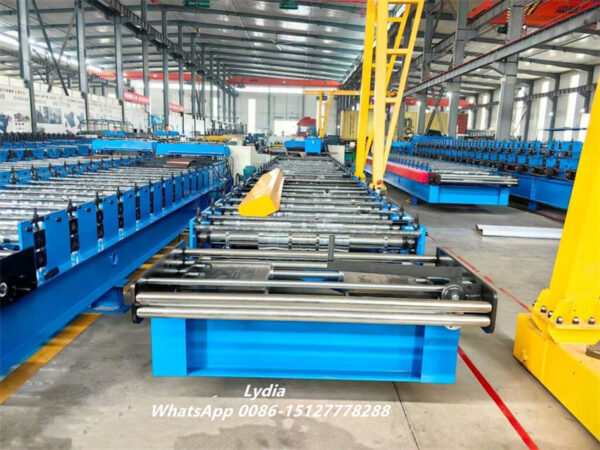

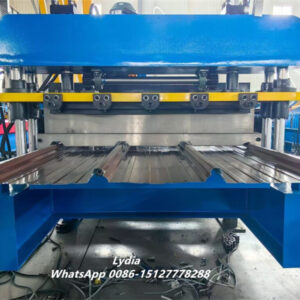

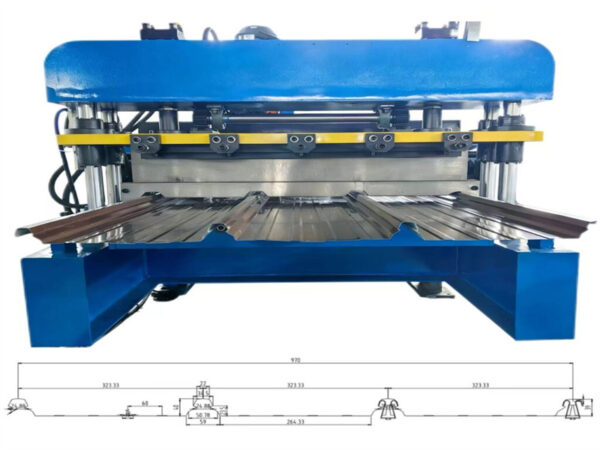

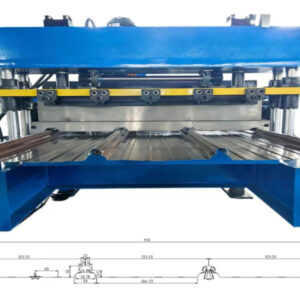

Photovoltaic Roof Panel Roll Forming Machine

Solar Glazed Tile & Trapezoidal Metal Roofing Sheet Production Line

As demand for metal roofing systems and solar-compatible roof panels continues to grow in the United States and Middle East markets, manufacturers require equipment that delivers speed, structural strength, and long-term durability.

Why This Machine Fits the US & Middle East Market

In regions such as the USA, UAE, Saudi Arabia, and Qatar, roofing systems must withstand:

• High wind loads
• Extreme heat exposure
• Sandstorms and dust
• Heavy seasonal rain

Therefore, panel precision and material strength become critical.

This roll forming machine produces roofing sheets with:

• Tight interlocking seams for waterproof performance
• High load-bearing trapezoidal structures
• Excellent corrosion resistance (PPGI / GI / PPGL compatible)
• Smooth surface finish suitable for solar mounting systems

As a result, manufacturers can confidently supply projects in industrial zones, logistics hubs, commercial buildings, and photovoltaic power stations.

Core Advantages of the Solar Roof Panel Forming Machine

1️⃣ High-Speed Roofing Sheet Production

The production speed reaches 30–60 m/min, making it ideal for:

• Large industrial roofing projects
• Steel structure factories
• EPC solar contractors
• Bulk export manufacturing

Daily output can exceed 5,000㎡ depending on panel length.

2️⃣ Precision Roll Forming System

We use:

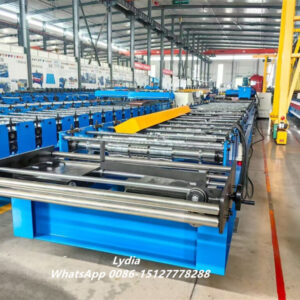

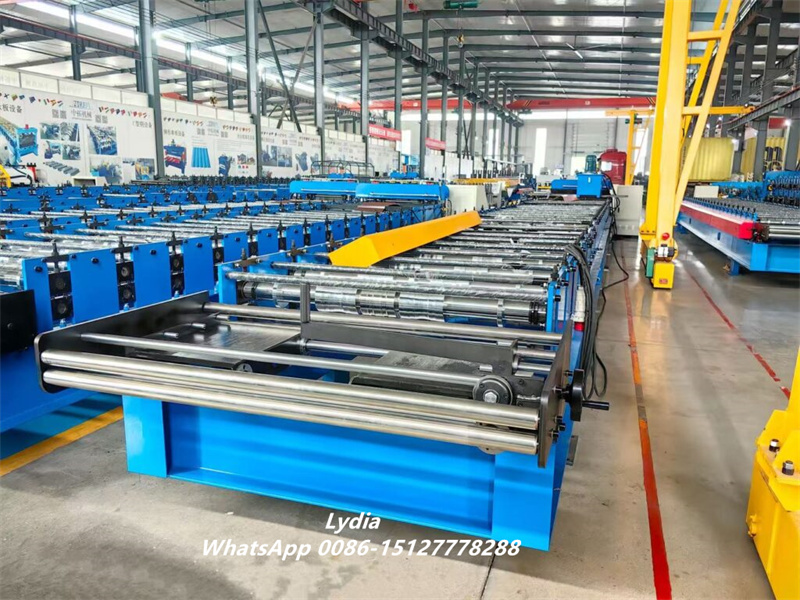

• Cr12 chrome-plated rollers
• 70–80 mm hardened shafts
• 350H heavy-duty steel frame

This ensures:

• Stable forming
• Minimal deformation
• ±1 mm cutting tolerance
• Long machine lifespan

Even under continuous operation in hot Middle Eastern climates, performance remains stable.

3️⃣ Intelligent PLC Control System

The system supports:

• Siemens or Delta PLC
• Touch screen operation
• Multi-language interface (6000+ language customization)
• Adjustable length & batch control

Operators can quickly adjust production parameters without technical complexity.

4️⃣ Flexible Customization for Global Projects

We provide:

• Customized tile profiles (based on client drawing)
• Coil width range: 300–1000 mm
• Hydraulic or manual decoiler options
• Voltage customization (380V / 415V / 480V / 60Hz available)
• Motor brand upgrade options

This flexibility allows the machine to comply with North American and Gulf standards.

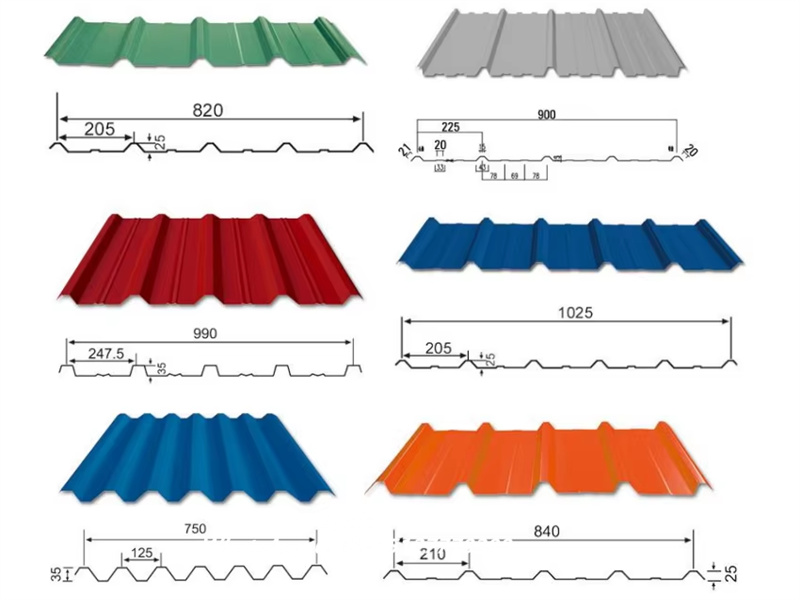

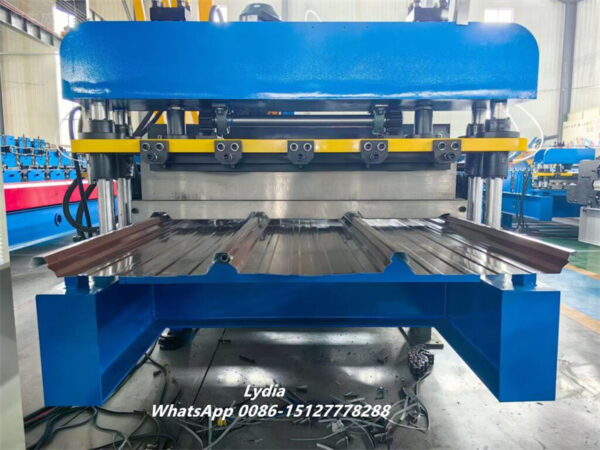

Our Photovoltaic Roof Panel Roll Forming Machine is designed to produce:

• Solar-glazed roofing tiles

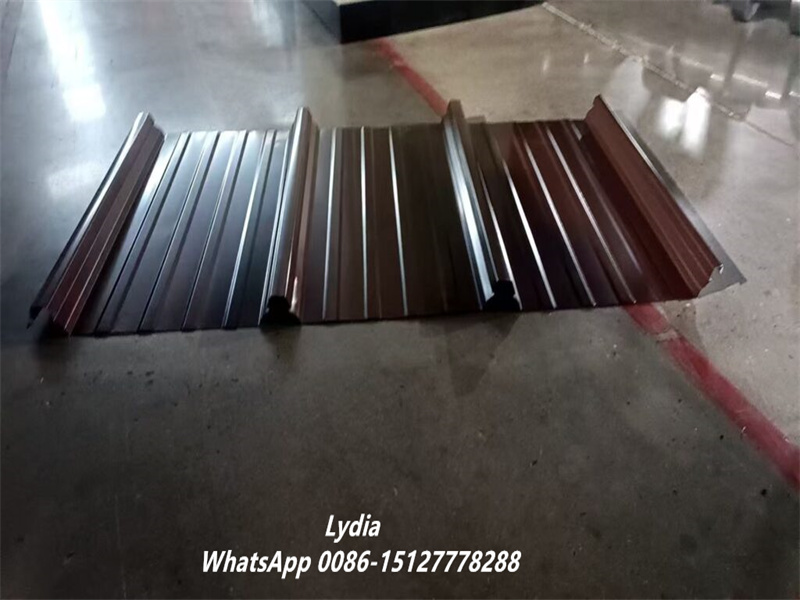

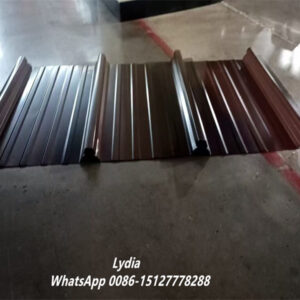

• Trapezoidal metal roof sheets
• Industrial roofing panels
• PPGI/GI corrugated roofing sheets

This fully automated production line ensures consistent panel quality while significantly reducing labor costs and material waste.

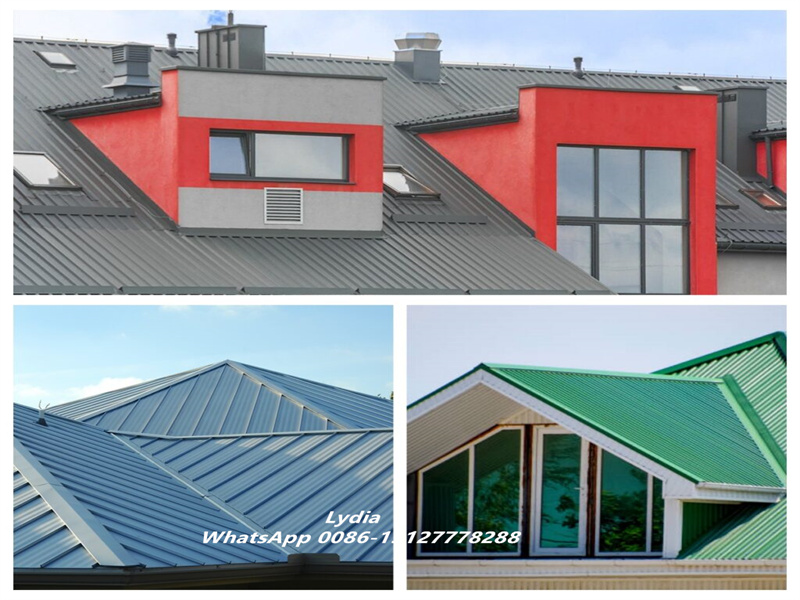

Application Scenarios

Industrial Steel Structure Factories

Large-span roofing systems require high-strength trapezoidal sheets. Our machine ensures seamless panel splicing and structural stability.

Warehouses & Logistics Centers

Ideal for e-commerce warehouses, cold storage, and distribution hubs. The produced panels provide high compressive strength and corrosion resistance.

Solar Energy & PV Roof Projects

Perfect for solar-compatible roofing structures used in photovoltaic power stations and industrial rooftop solar systems.

Agricultural Buildings & Greenhouses

Durable metal roofing is suitable for harsh environmental exposure.

Technical Specifications

Call to Action

If you are planning to start or expand your metal roofing sheet manufacturing business, this machine will help you:

Increase production efficiency
Reduce labor costs
Improve panel quality
Meet international roofing standards

Contact us today for profile drawings, layout design, and a customized quotation.
