The TRB Series Trapezoidal and Facade Roll Forming Machine is specially designed for producing modern architectural metal panels used for roofing, wall cladding, facade decoration, and steel soffit systems. These profiles feature elegant linear appearances, high installation efficiency, and excellent weather resistance, making them highly popular in industrial, commercial, residential, and agricultural construction projects.
The machine can manufacture multiple popular profiles, including:
- TRB-6/1200 Facade Profile
- TRB-8/1170 Facade Profile
- TRB-12/1120 Roof & Facade Profile
- TRB-14/1080 Roof & Facade Profile
These low-rib and medium-rib trapezoidal sheets are widely used in contemporary architectural projects where modern appearance and durable building envelopes are required.
Main Applications Of TRB Trapezoidal Panels
The finished products produced by the TRB Roll Forming Machine are widely used in:
- Steel structure building facades
- Commercial wall cladding systems
- Industrial warehouses
- Modern office buildings
The clean and symmetrical rib design creates a minimalist architectural effect highly favored in European and North American markets.

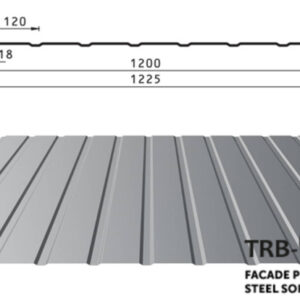

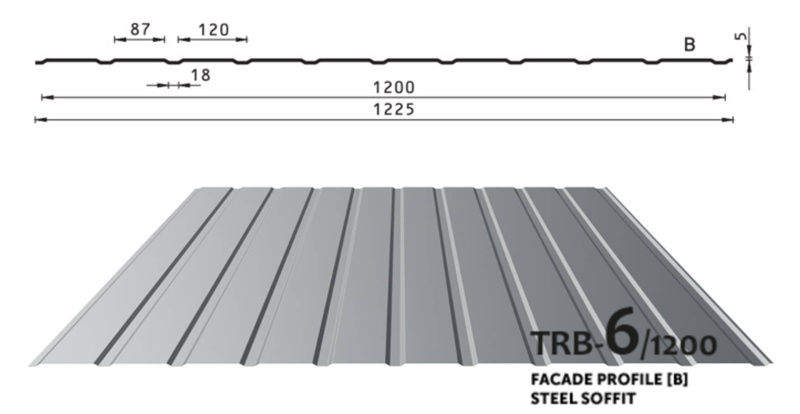

TRB-6/1200 Facade Profile Roll Forming Machine
The TRB-6/1200 Facade Profile Roll Forming Machine is designed for producing shallow-rib architectural panels with smooth visual lines and wide coverage width.TRB-6/1200 Profile Specifications
| Item | Specification |
|---|---|
| Total Width | 1225 mm |
| Effective Width | 1200 mm |
| Sheet Thickness | 0.5 – 0.7 mm |
| Sheet Length | 500 – 6000 mm |
| Overall Height | 5 mm |
| Minimal Roof Slope | 6° (10%) |
| Recommended Roof Slope | >10% |
| Available Coatings | X-MATT GreenCoat Crown BT, Polyester Glance, Ultramat, Aluzink, Galvanized, S-PURE, Safe-Matt |
This profile is mainly used for:
- Facade wall cladding
- Steel soffit systems
- Modern architectural decoration
- Interior metal wall applications
Its low rib height provides a smooth and elegant appearance perfect for modern buildings.

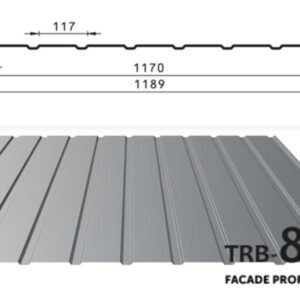

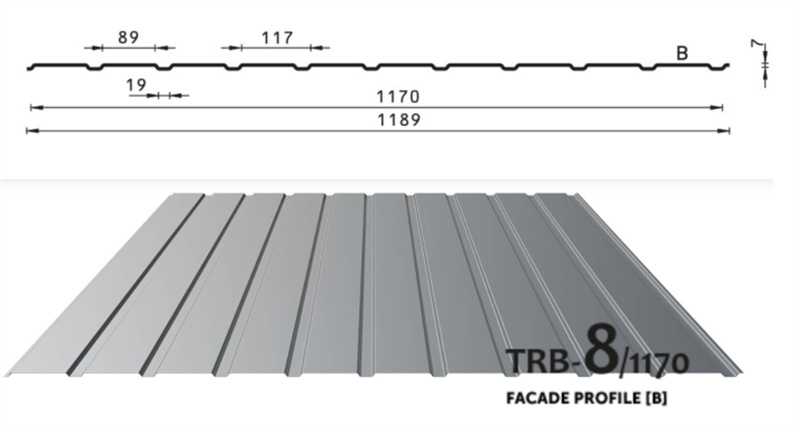

TRB-8/1170 Facade Profile Roll Forming Machine
The TRB-8/1170 Roll Forming Machine produces slightly deeper rib facade sheets while maintaining a modern architectural appearance.
TRB-8/1170 Profile Specifications
| Item | Specification |
|---|---|
| Total Width | 1189 mm |
| Effective Width | 1170 mm |
| Sheet Thickness | 0.5 – 0.7 mm |
| Sheet Length | 500 – 6000 mm |
| Overall Height | 7 mm |
| Minimal Roof Slope | 6° (10%) |
| Available Coatings | X-MATT GreenCoat Crown BT, Polyester Glance, Ultramat, Aluzink, Galvanized, S-PURE, Safe-Matt |
This profile is suitable for:
- Exterior wall systems
- Commercial facade projects
- Industrial building decoration
- Architectural metal cladding
The balanced rib design improves panel rigidity while maintaining aesthetic simplicity.

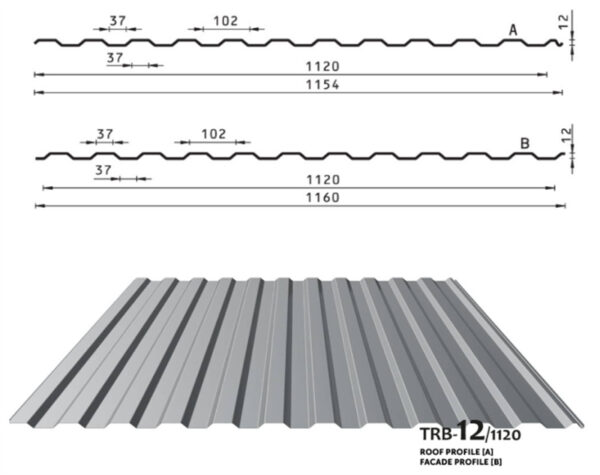

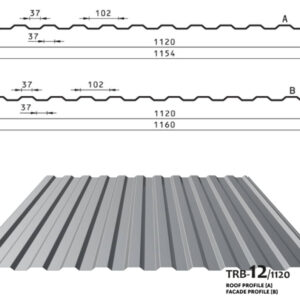

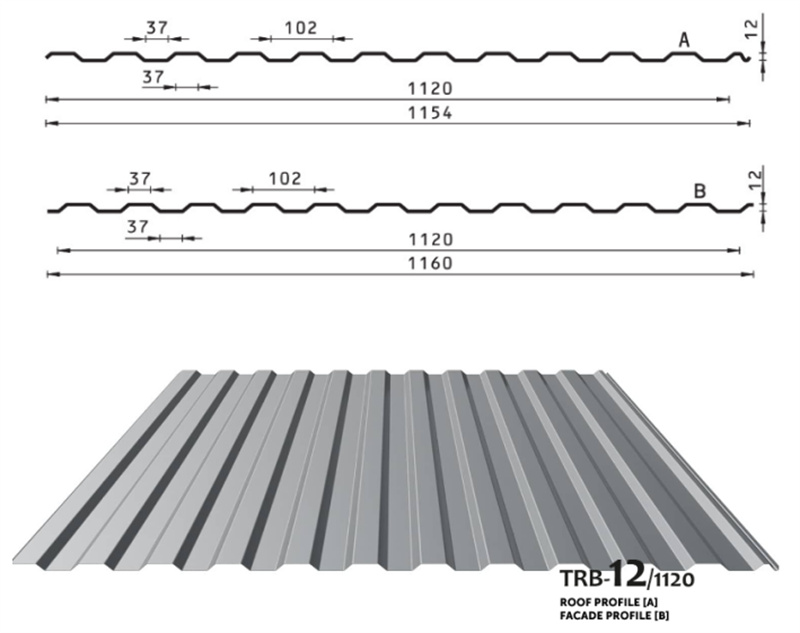

TRB-12/1120 Roof And Facade Roll Forming Machine
The TRB-12/1120 Roof Profile Roll Forming Machine is one of the most versatile models in the TRB series. It can be used for both roofing and facade applications.
TRB-12/1120 Profile Specifications
| Item | Specification |
|---|---|
| Total Width | 1154 / 1160 mm |
| Effective Width | 1120 mm |
| Sheet Thickness | 0.5 – 0.7 mm |
| Sheet Length | 500 – 8000 mm |
| Overall Height | 12 mm |
| Minimal Roof Slope | 6° (10%) |
| Available Coatings | X-MATT GreenCoat Crown BT, Polyester Glance, Ultramat, Aluzink, Galvanized, S-PURE, Safe-Matt |
Main applications include:
- Metal roofing systems
- Facade cladding
- Warehouse wall panels
- Residential roofing
- Commercial roofing systems
The increased rib height enhances drainage performance and structural strength.

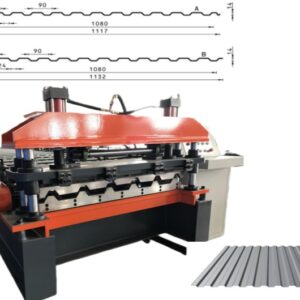

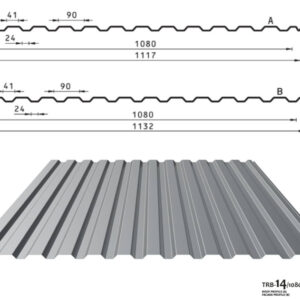

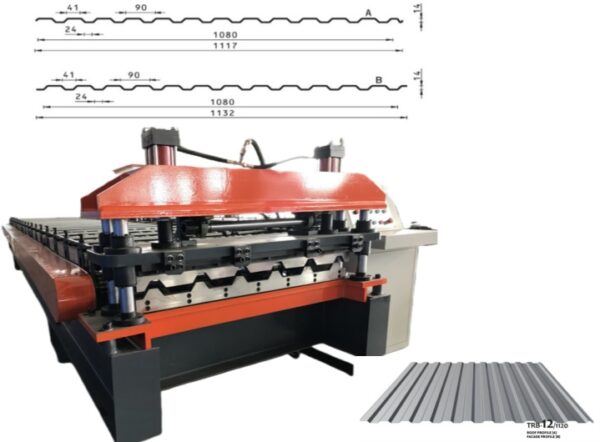

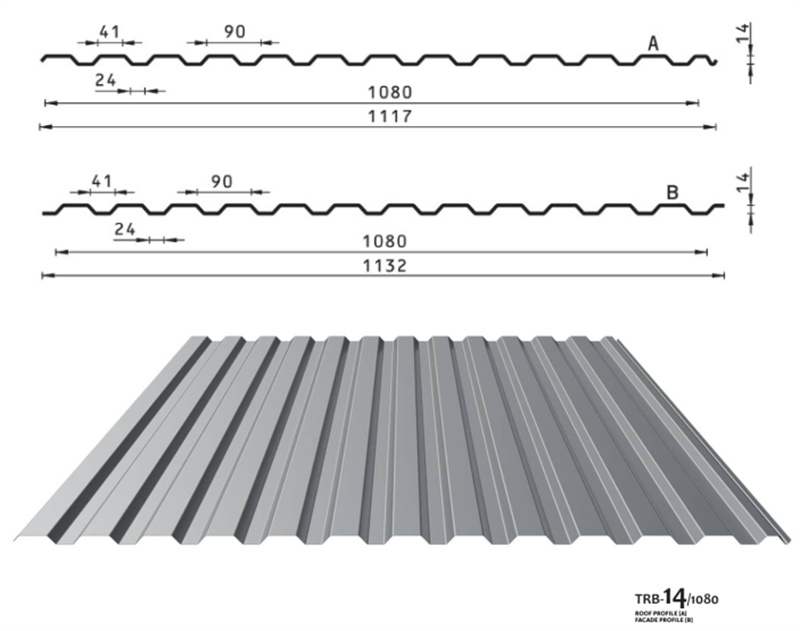

TRB-14/1080 Roof And Facade Roll Forming Machine
The TRB-14/1080 Trapezoidal Sheet Roll Forming Machine is designed for stronger roofing and facade systems requiring higher load-bearing capacity.
TRB-14/1080 Profile Specifications
| Item | Specification |
|---|---|
| Total Width | 1117 / 1132 mm |
| Effective Width | 1080 mm |
| Sheet Thickness | 0.5 – 0.75 mm |
| Sheet Length | 500 – 7600 mm |
| Overall Height | 14 mm |
| Minimal Roof Slope | 6° (10%) |
| Available Coatings | X-MATT GreenCoat Crown BT, Polyester Glance, Ultramat, Aluzink, Galvanized, S-PURE, Safe-Matt |
Typical applications:
- Industrial roofing
- Steel structure roofing systems
- Facade wall systems
- Agricultural buildings
- Large-span roofing projects
Its deeper rib profile offers better mechanical strength and water drainage performance.
Advantages Of TRB Series Roll Forming Machines
High Production Efficiency: The fully automatic production line ensures continuous forming and stable operation for mass production.
Excellent Surface Quality. Precision roll tooling guarantees smooth panel surfaces without scratches or deformation.
Multiple Profile Compatibility: The machine can be customized for different TRB trapezoidal sheet profiles according to customer drawings.
Wide Material Compatibility
The machine supports:
- PPGI
- Galvanized steel
- Aluminum coil
- Galvalume steel
- Color-coated steel
Modern Architectural Appearance
The finished panels are widely accepted in high-end architectural projects due to their clean and modern visual effect.

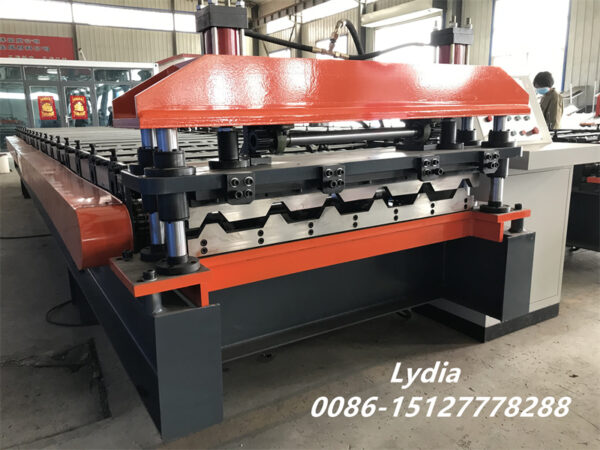

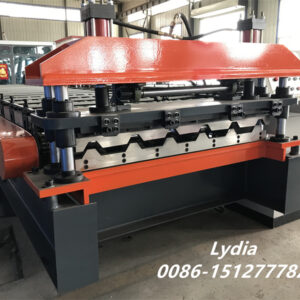

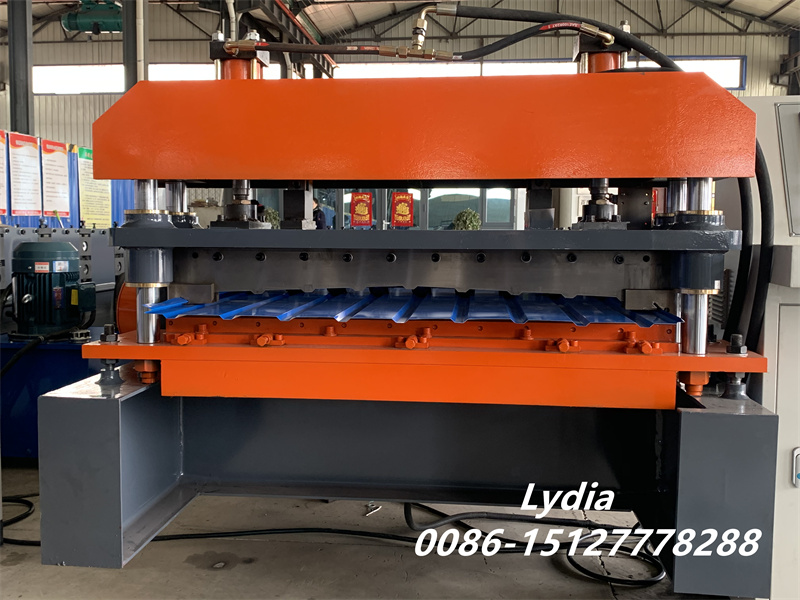

Main Components Of The TRB Roll Forming Machine
A complete TRB Trapezoidal Sheet Roll Forming Line usually includes:
| Component | Function |
|---|---|
| Hydraulic Decoiler | Coil loading |
| Feeding Device | Material guiding |
| Roll Forming System | Profile forming |
| Hydraulic Cutting Device | Automatic cutting |
| PLC Control Cabinet | Intelligent operation |
| Receiving Table | Finished panel collection |
Optional configurations include:
- Auto stacker
- Film laminating device
- Embossing system
- Servo feeding system
- Flying cutting system
The working process of the TRB Roof And Facade Roll Forming Machine:
Decoiling → Feeding → Roll Forming → Hydraulic Cutting → Finished Product Output
The entire production process is controlled automatically by a PLC system, greatly improving production efficiency and reducing labor costs.
Future Market Demand For Architectural Facade Roll Forming Machines
With the continuous growth of modern steel structure construction, the demand for Architectural Facade Roll Forming Machines and Trapezoidal Roofing Sheet Machines is rapidly increasing worldwide.
Modern construction projects require:
- Fast installation
- Energy-efficient building systems
- Durable roofing materials
- Modern facade appearance
- Low maintenance costs
As a result, the TRB Series Trapezoidal Sheet Roll Forming Machine has become one of the most promising investments for metal building material manufacturers.
The TRB Series Trapezoidal And Facade Roll Forming Machine is an ideal solution for producing high-quality roofing sheets, wall cladding panels, facade profiles, and steel soffit systems.
With excellent forming performance, modern profile design, and wide application range, the machine can help manufacturers improve productivity and expand their market competitiveness.
If you are looking for a reliable TRB Trapezoidal Sheet Roll Forming Machine Supplier, welcome to contact us for detailed technical support, profile customization, and quotation services.
