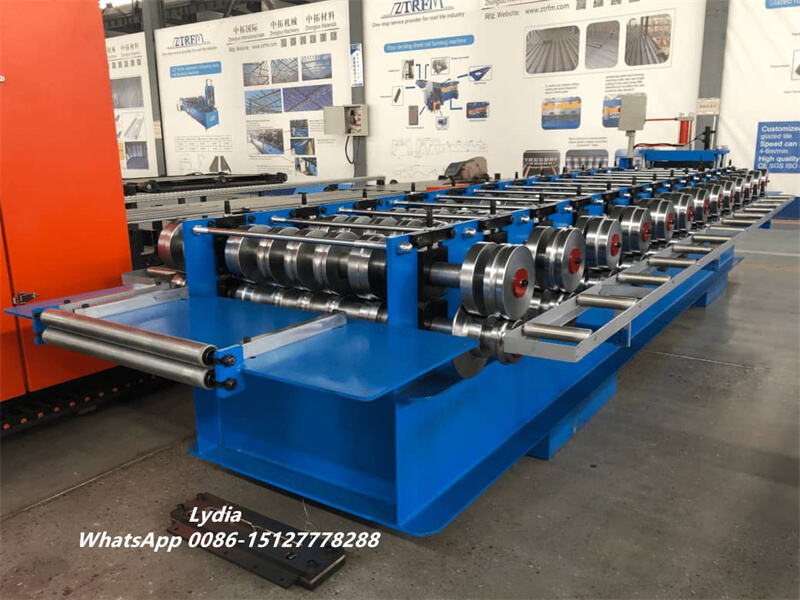

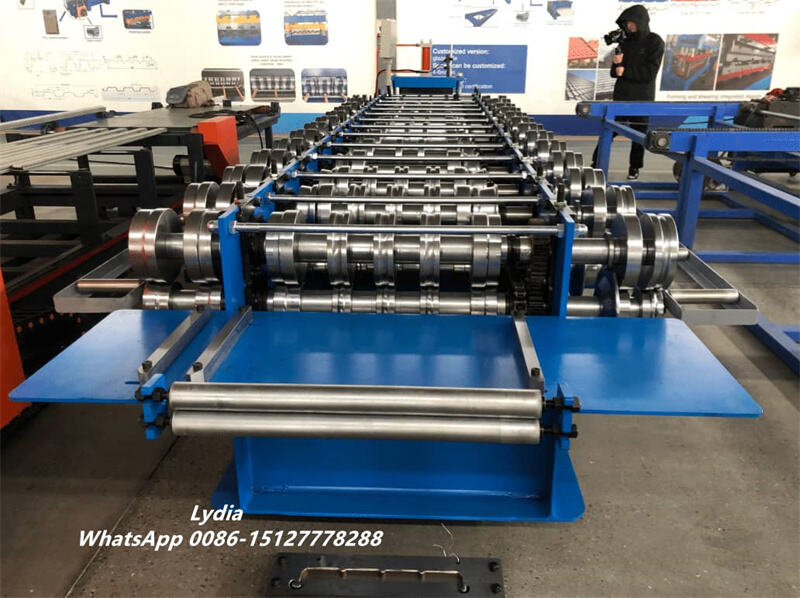

The YXB65-430 Bemo Roof Panel Roll Forming Machine is a versatile standing seam roofing machine developed for manufacturers and contractors who need to produce both straight and tapered metal roof panels. By combining automatic roll forming, hydraulic cutting, and seaming functions, this metal roof roll forming machine helps users streamline the complete panel production process.
Designed for overseas projects, the machine supports different panel widths and offers a compact structure that can fit into a 20-foot GP container. As a result, it provides a practical solution for customers who need to manufacture standing seam roofing panels directly at construction sites or in different regions.
Flexible Production for Straight and Tapered Roof Panels
The YXB65-400-425 model can produce standing seam roof panels with effective widths of 400 mm and 425 mm. This flexibility allows the same automatic roofing machine to handle different architectural requirements without requiring a separate production line for every panel size.

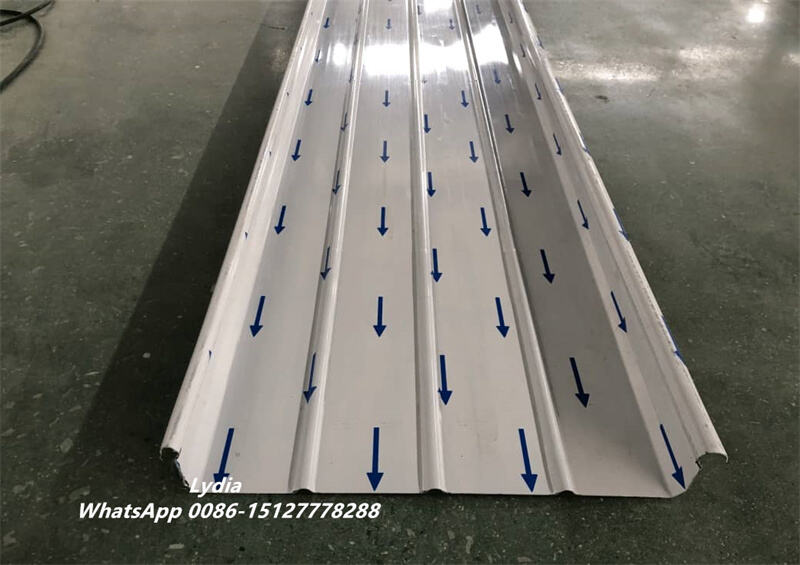

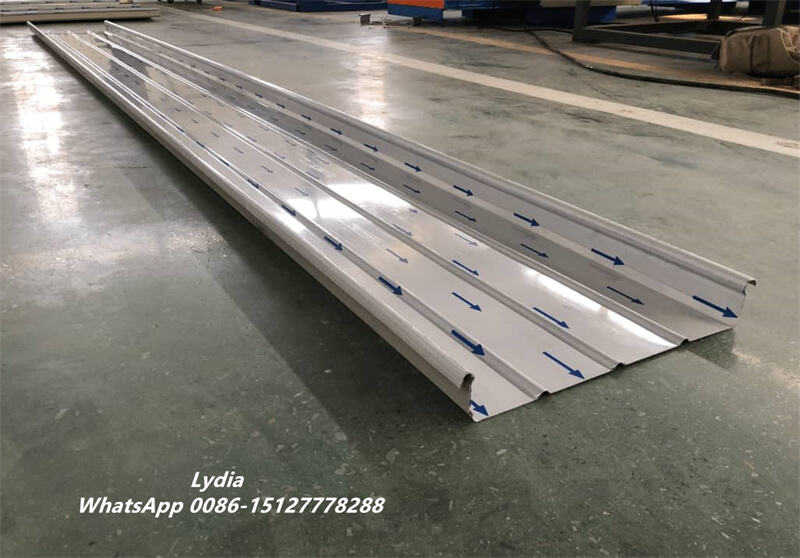

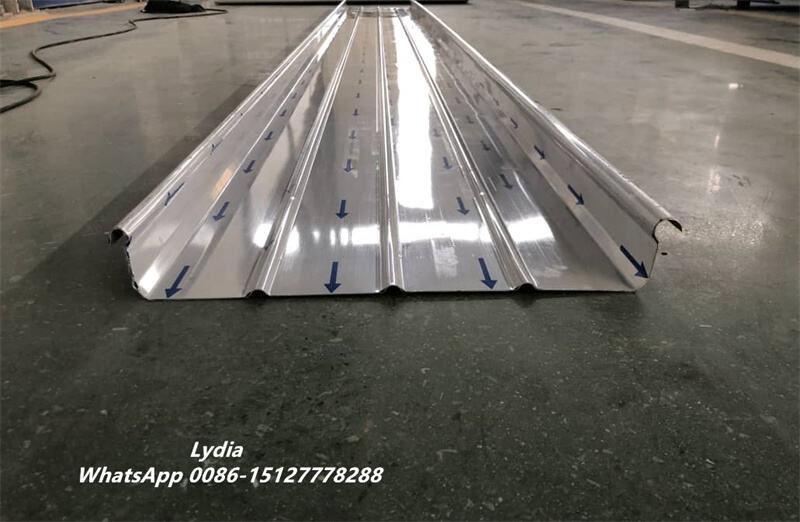

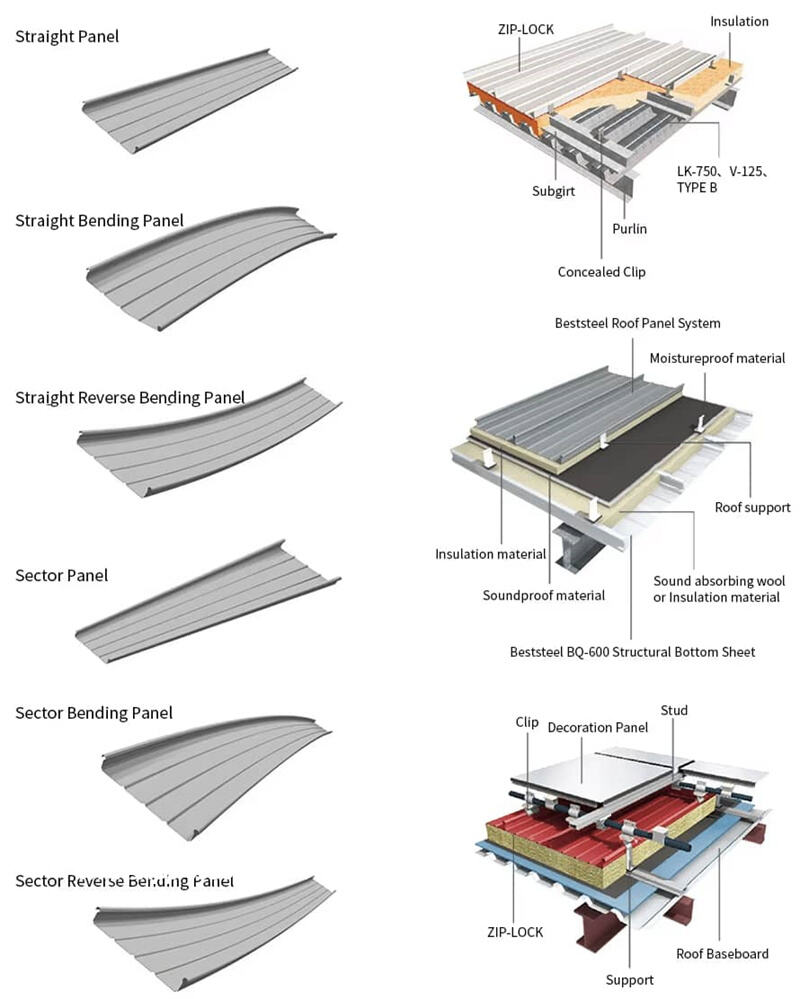

More importantly, the machine can manufacture both straight and tapered roof panels. For tapered applications, operators can choose one-time or two-time forming according to the required panel geometry. This makes the equipment particularly suitable for projects involving curved, irregular, or architecturally customized roof layouts.
The machine processes aluminum sheets from 0.7–1.0 mm and steel sheets from 0.5–0.8 mm. With properly configured forming rollers, the line maintains consistent panel dimensions while reducing deformation during continuous production.
Automatic Metal Roof Roll Forming Process
The production line uses a Schneider PLC control system with a touch-screen interface. Operators can enter panel length, production quantity, and batch settings directly through the control panel. Once the parameters are configured, the system coordinates the forming and cutting process automatically.

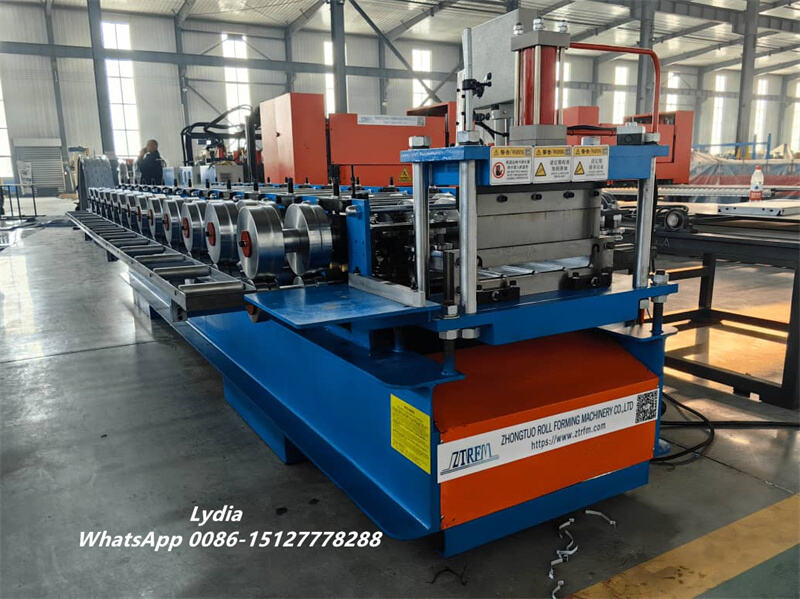

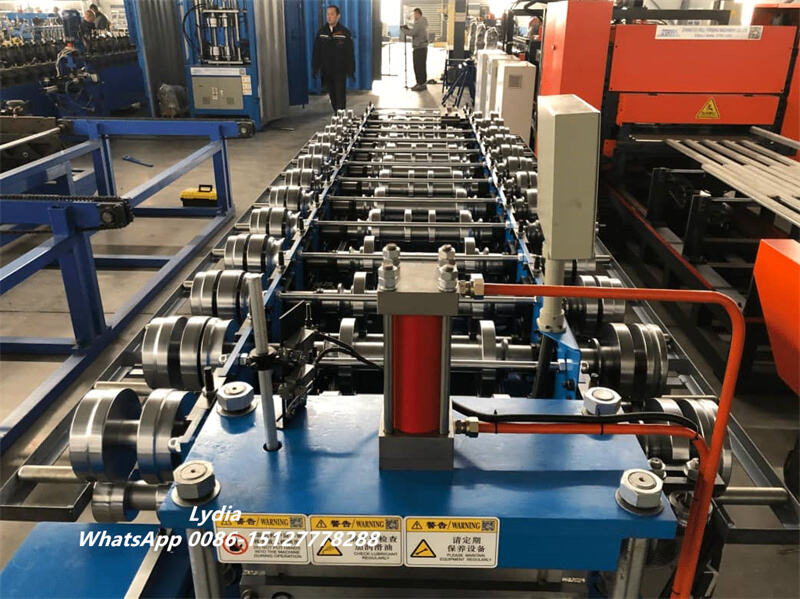

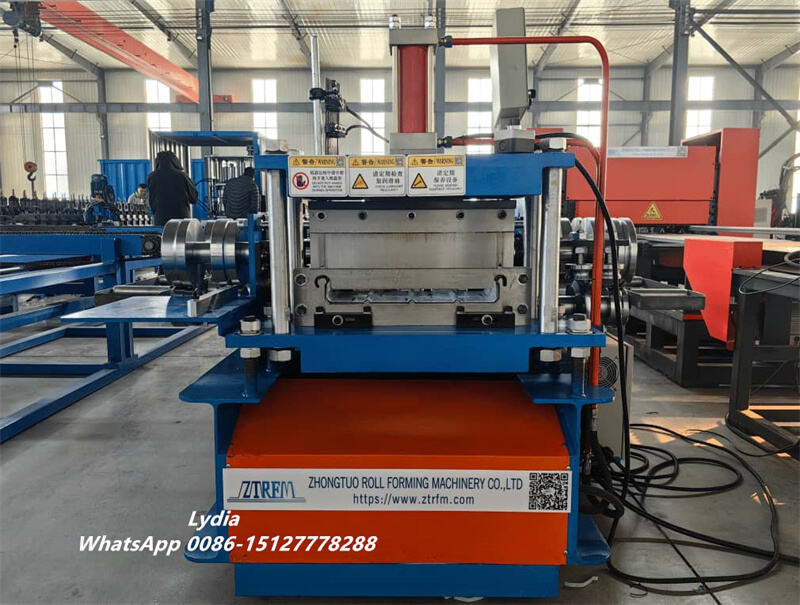

Meanwhile, the hydraulic post cutter uses Cr12MoV mold steel and receives heat treatment to improve wear resistance. The cutter accurately separates finished panels according to the preset length, helping reduce manual intervention and improve production efficiency.

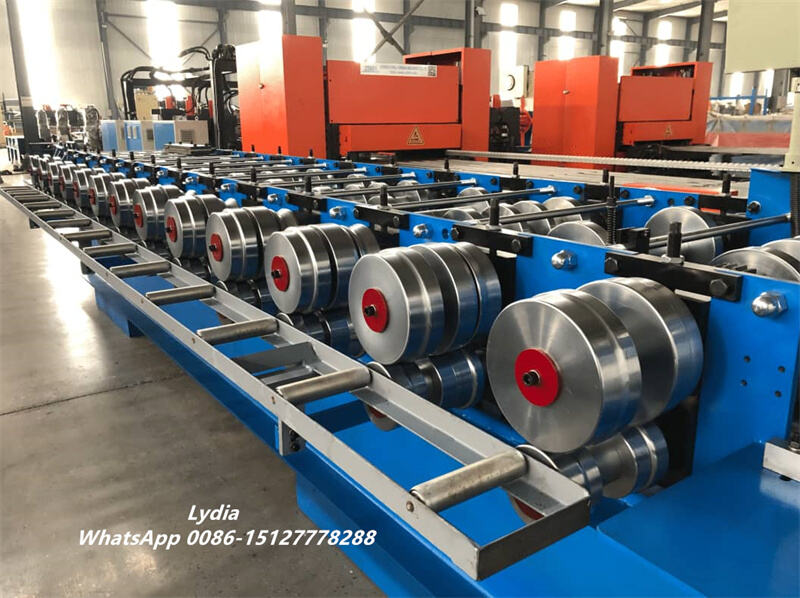

The forming rollers use 45# steel and undergo CNC machining to achieve accurate dimensions. For customers who require longer roller service life, hard chrome plating can also be selected as an optional treatment.
The complete workflow can be summarized as:
Coil Feeding → Roll Forming → Length Setting → Hydraulic Cutting → Panel Output → Automatic Seaming
With this integrated process, the roof forming line gives operators better control over panel consistency and production speed.
Technical Specifications of YX65-400-425 Roofing Machine
The following table summarizes the main parameters of this Bemo roof panel roll forming machine:
| Item | Specification |
|---|---|
| Machine Model | ZT65-400-425 |
| Effective Panel Width | 400 mm / 425 mm |
| Material Width | 575 mm / 600 mm |
| Steel Thickness | 0.5–0.8 mm |
| Aluminum Thickness | 0.7–1.0 mm |

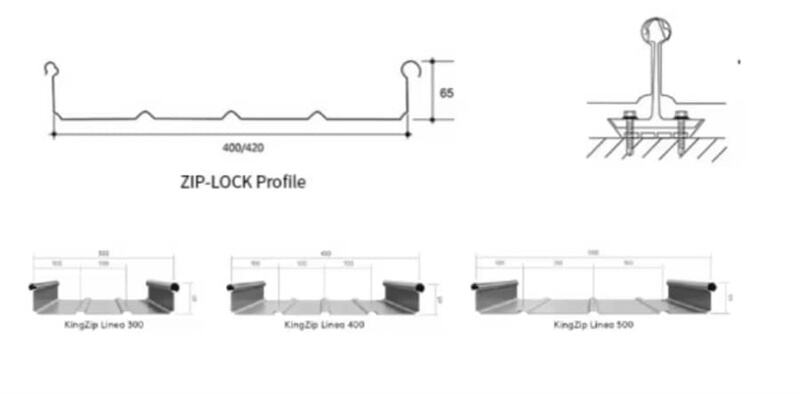

| Profile Height | 65 mm |
| Forming Speed | 8–15 m/min |
| Forming Stations | 13 |
| Main Motor Power | 7.5 kW × 2 |
| Hydraulic System | 2.2 kW |
| Control System | Schneider PLC + Touch Screen |
| Voltage | 380 V / 50 Hz / 3 Phase |
| Cutter Material | Cr12MoV |
| Roller Material | 45# Steel |
| Container Requirement | 20GP |
These specifications can be adjusted according to the customer’s raw material, panel profile, production requirements, and local power conditions.
Compact Design for Overseas and On-Site Roofing Projects
For international customers, transportation efficiency often matters as much as machine performance. Therefore, Zhongtuo designed this portable roof forming line with a relatively compact structure. The complete equipment can be arranged inside a 20-foot GP container, helping simplify overseas shipment and reduce unnecessary transportation complications.
The machine is also well suited to contractors who move equipment between different construction projects. Instead of transporting finished panels over long distances, users can bring the portable standing seam roofing machine to the project location and produce panels as needed.
The standard equipment package can include the main forming machine, 5-ton manual or hydraulic uncoiler, automatic seamer, hand seamer, Schneider PLC control system, run-out table, and operation manual. This configuration gives customers the essential equipment needed to establish a complete standing seam panel production setup.
Applications and Advantages of the Standing Seam Roofing Machine
The YXB65-400-425 standing seam roofing machine serves architectural, commercial, industrial, and other metal roofing applications. Its ability to form both standard and tapered panels makes it especially useful for modern building projects where conventional straight roof sheets may not meet the required design.
For example, contractors can use the machine for:
- Commercial and industrial buildings
- Architectural standing seam roofing
- Large-span metal roofing projects
- Customized tapered roof structures
- Portable roofing production sites
- Overseas construction and installation projects
In addition, the combination of 400/425 mm dual-width production, automatic PLC control, tapered panel capability, hydraulic cutting, and portable container-friendly construction gives this roofing machine a strong balance between flexibility and productivity.
For customers in India and other international markets, the YXB65-430 Bemo Roof Panel Roll Forming Machine provides a practical way to manufacture high-quality standing seam panels closer to the job site. With stable forming performance and an integrated automatic production process, it can help reduce manual work while improving the consistency of finished roofing panels.
