ZTRFM Ameri-Cana Trapezoidal Roof Panel Roll Forming Machine Waterproof Metal Roofing Machine

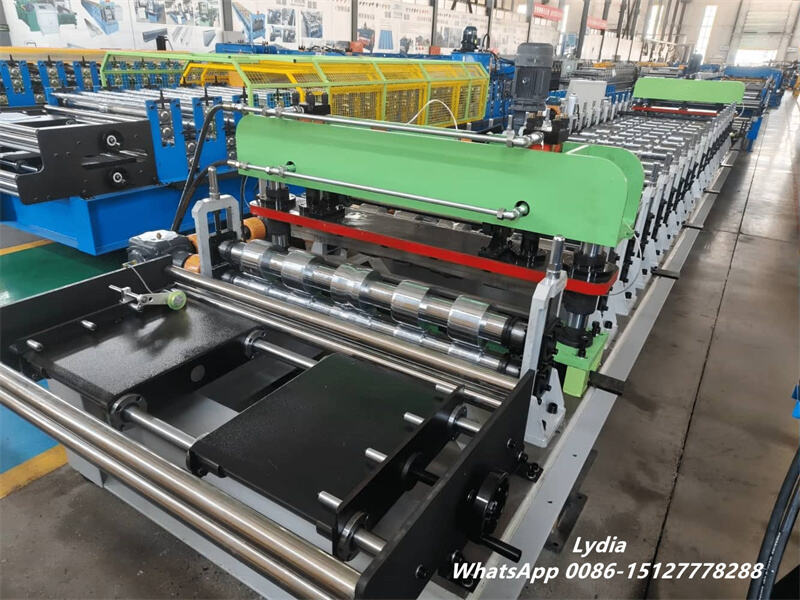

The ZTRFM Ameri-Cana Trapezoidal Roof Panel Roll Forming Machine is a high-performance metal roofing panel roll forming machine specially designed for producing durable trapezoidal roofing and siding panels. This automated trapezoidal roof panel roll forming machine uses galvanized steel, pre-painted steel, and aluminum coils as raw materials, and completes the entire production process through decoiling, leveling, feeding, roll forming, automatic cutting, and PLC control.

With advanced forming technology and a reliable structure, the ZTRFM Ameri-Cana roof panel machine helps manufacturers produce high-strength roofing sheets with excellent waterproof performance, precise dimensions, and reduced material waste. It is widely used in industrial buildings, warehouses, commercial facilities, agricultural structures, and modern metal construction projects.

ZTRFM Ameri-Cana Roofing Panel System: Reliable Waterproof Protection

The ZTRFM Ameri-Cana trapezoidal roofing panel system provides outstanding protection against harsh weather conditions through its specially designed anti-siphon groove structure. The anti-siphon groove on the overlap rib effectively prevents water infiltration caused by capillary action and allows any trapped water to drain away quickly.

This tight and waterproof overlap rib design creates a secure connection between roofing panels, making the Ameri-Cana metal roofing panel an excellent choice for buildings with long roof slopes and low roof pitches. The system is especially suitable for roofs with a minimum pitch of 3/12, where reliable water resistance is essential.

Compared with traditional roofing solutions, the ZTRFM roof panel roll forming machine produces continuous-length panels that reduce unnecessary overlaps from ridge to eave. Therefore, it significantly improves roof sealing performance while lowering the risk of leakage.

Save Production Cost with Low-Waste Ameri-Cana Roof Panels

The ZTRFM Ameri-Cana panel roll forming machine helps manufacturers improve material efficiency during production. The finished Ameri-Cana panels feature a standard width of 36 inches and are sustainably produced from 41-inch-wide plain sheets, creating less waste compared with other profiles featuring 3/4-inch-high ribbing.

By optimizing coil utilization and reducing leftover materials, the trapezoidal roof panel making machine allows customers to lower raw material costs while maintaining excellent panel strength and appearance.

In addition, the continuous roll forming process eliminates repeated manual operations, shortens production time, and increases daily output capacity. This makes the machine an ideal investment for companies producing large quantities of metal roofing sheets.

Strong Structure and Versatile Metal Roofing Applications

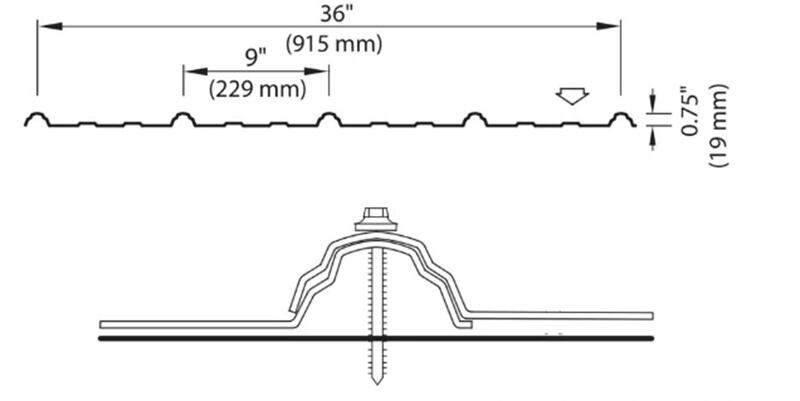

The ZTRFM Ameri-Cana roofing and siding system combines lightweight design with superior load-bearing capability. Thanks to its steel base with 80,000 psi maximum stiffness and five 3/4-inch-high ribs spaced every nine inches, the finished panels provide excellent structural strength.

The reinforced rib design improves resistance against external loads, allowing construction projects to reduce the use of additional wood or metal furring systems. As a result, customers can achieve lower installation costs while maintaining long-term building safety.

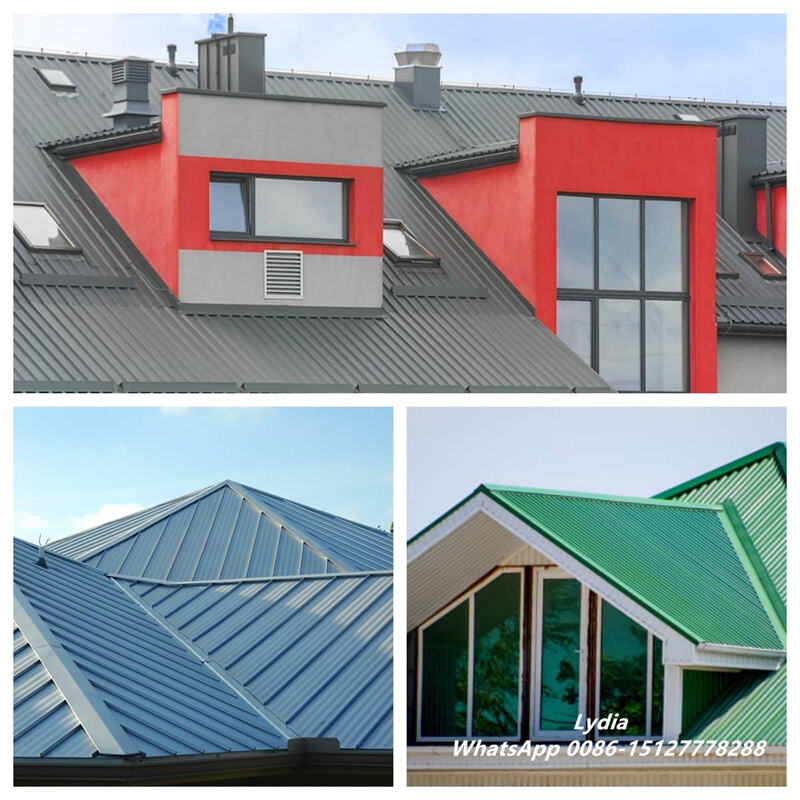

The Ameri-Cana trapezoidal roofing panel produced by ZTRFM machines is widely applied in:

• Industrial factories and large-span workshops
• Logistics centers and storage warehouses
• Commercial buildings and public facilities
• Agricultural and livestock buildings
• Metal wall cladding and siding systems

Whether used for roofing or siding applications, the system provides durability, flexibility, and a modern architectural appearance.

Technical Specifications of ZTRFM Ameri-Cana Trapezoidal Roof Panel Roll Forming Machine

Intelligent Roll Forming Technology for Efficient Manufacturing

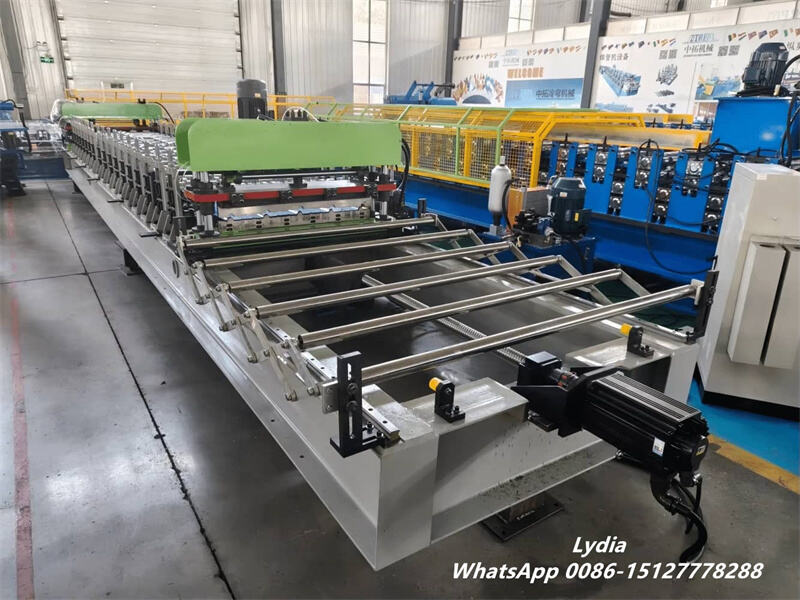

The ZTRFM trapezoidal roof panel roll forming machine integrates automation technology to simplify operation and improve production accuracy. The PLC control system allows operators to set panel length, production quantity, and working parameters directly through the touch screen.

During operation, the machine automatically completes coil feeding, forming, measurement, and cutting. This intelligent workflow reduces labor requirements and ensures consistent panel quality.

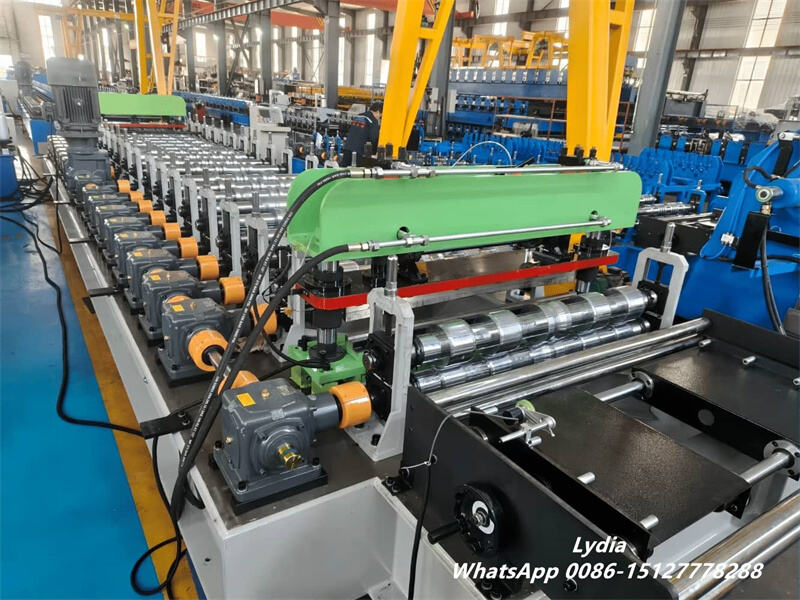

Furthermore, the precision-engineered rollers maintain stable forming pressure, ensuring that every Ameri-Cana metal roofing panel has accurate dimensions, smooth surfaces, and excellent overlap performance.

Durable Investment for Modern Roofing Panel Manufacturers

The ZTRFM Ameri-Cana Trapezoidal Roof Panel Roll Forming Machine combines waterproof design, high structural strength, and efficient production technology into one complete solution. By producing panels with anti-siphon overlap ribs, optimized material usage, and excellent load-bearing performance, this machine helps manufacturers meet the growing demand for reliable metal roofing systems.

For companies looking to expand their roof panel manufacturing business, improve production efficiency, and reduce material costs, the ZTRFM Ameri-Cana roll forming machine provides a professional and long-term solution.
