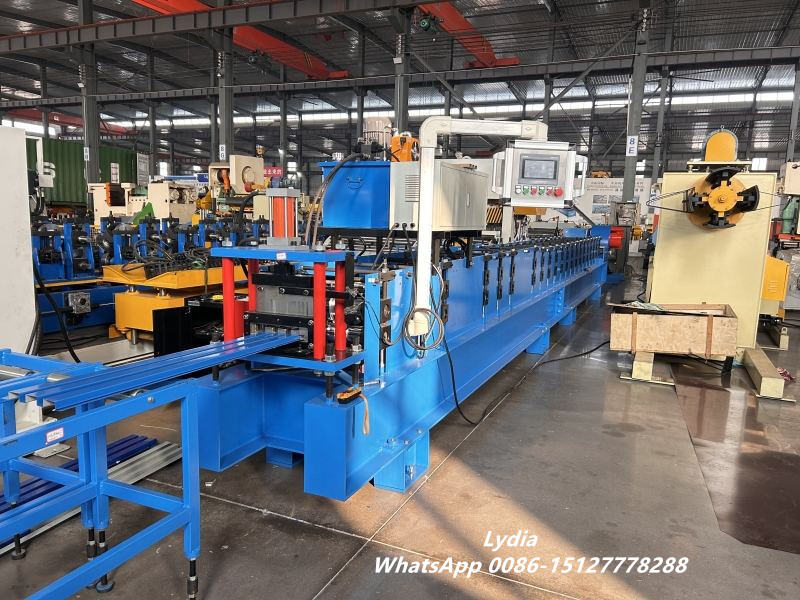

Zhongtuo’s 90° Horizontal Wall Cladding Roll Forming Machine offers high-precision and efficient solutions for modern roofing and façade projects. Designed for industrial and commercial buildings, this machine delivers reliable performance, reduces installation time, and supports purlinless roof decks with ease.
This roll forming machine employs advanced CNC programming and a servo-driven forming system, ensuring panel angles remain accurate within ±0.3°. As a result, it meets the strict requirements of high-end curtain wall projects and architectural facades. Moreover, the machine maintains consistent quality, enabling contractors to achieve professional finishes on every panel.

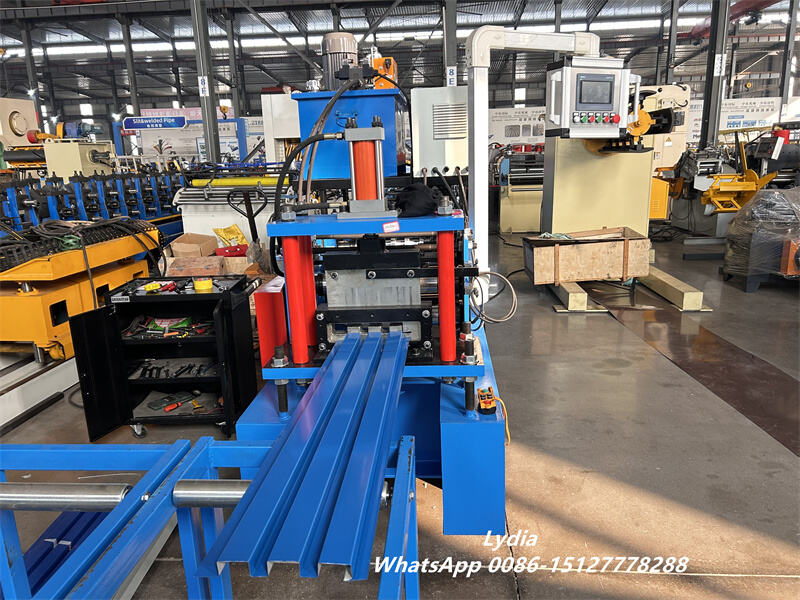

With a fully automated production line, the machine seamlessly integrates feeding, forming, punching, and cutting. Consequently, single-shift output reaches 800–1200 panels, which is up to four times higher than traditional manual or semi-automatic methods. This increase in productivity not only accelerates project timelines but also reduces labor costs significantly.

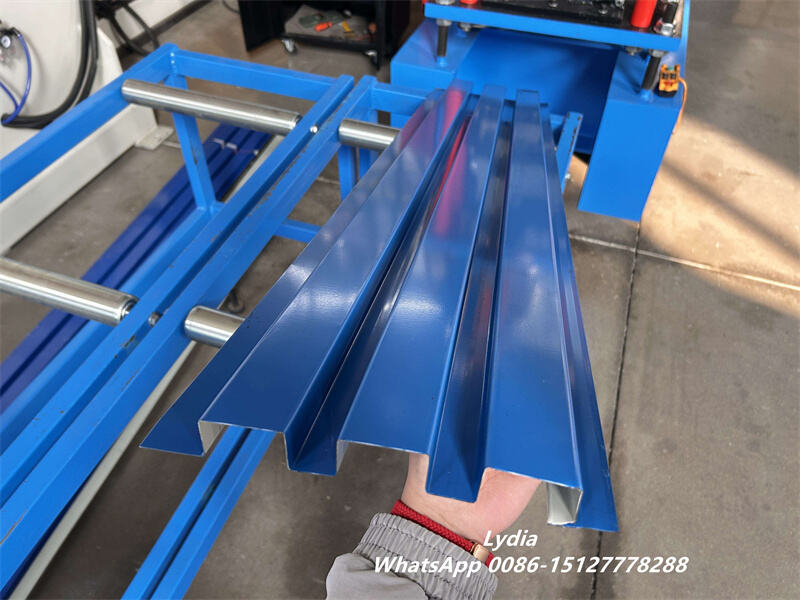

The panels produced with this machine are incredibly versatile and can be used across a wide range of construction types:
1. Architectural & Commercial Facades
Wall cladding adds modern aesthetics and structural protection to office buildings, shopping centers, hotels, and public facilities. High‑precision profiles deliver clean lines and consistent finishes, ideal for contemporary designs.
2. Industrial Plants & Warehouses
Durable metal cladding systems withstand harsh conditions in factories, logistics centers, and heavy‑duty industrial environments, improving weather resistance and speeding up assembly.
3. Agricultural & Storage Structures
Metal panels serve as protective shells for barns, storage sheds, and agricultural buildings, offering long‑lasting performance with minimal upkeep.
4. Residential & Retail Buildings
Modern residential developments and retail outlets increasingly use metal wall cladding for sleek exteriors, energy efficiency, and simplified insulation solutions.
5. Interior Wall Lining & Partitioning
Beyond external uses, wall panels are adopted for interior spaces — such as partitions in commercial interiors or high‑traffic facility walls — due to their clean surface, easy installation, and long‑term stability.
Technical Overview
| Feature | Specification |
|---|---|
| Product Name | 90° Horizontal Wall Cladding Roll Forming Machine |
| Applicable Material | PPGI, GI, GL, Aluminum |
| Material Thickness | 0.5 – 0.8 mm |
| Feeding Width | 915 mm |

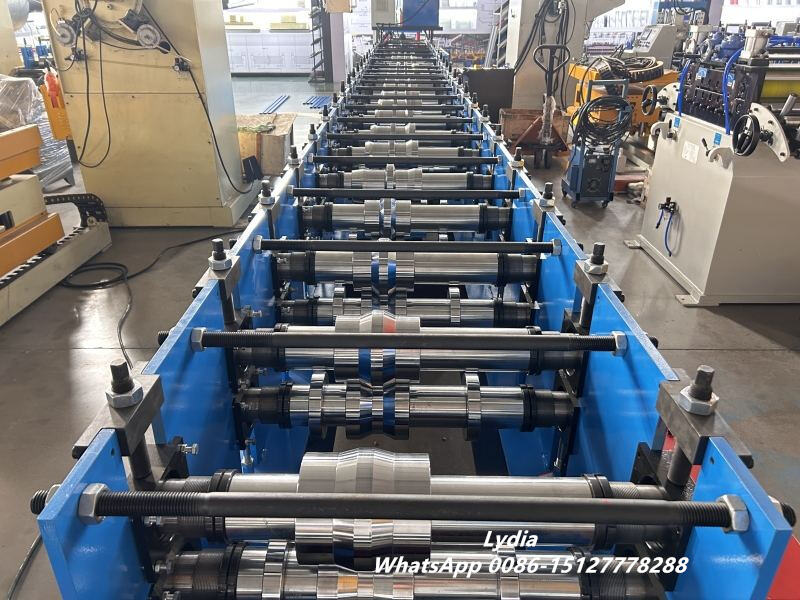

| Roller Stations | 28 rows (customizable) |
| Shaft Diameter | 80 mm solid shaft |
| Roller Material | 45# steel, hard chrome plated |
| Forming Speed | 15–20 m/min |
| Cutting System | Automatic hydraulic cutter (Cr12MoV) |

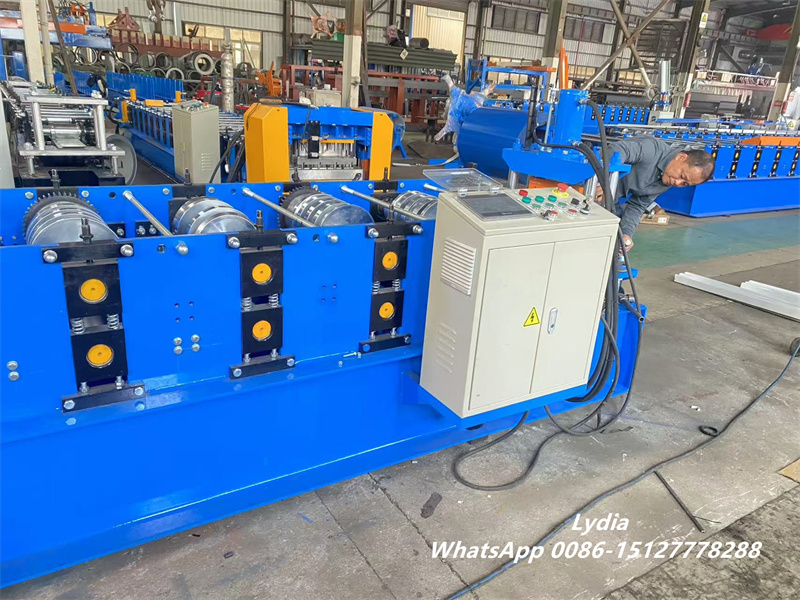

| Control | PLC (multi‑language support) |
| Voltage | Customizable (e.g., 380V/50Hz/3 Phase) |
| Machine Size | ~10500 × 1600 × 1600 mm |
| Weight | ~7.5 tons |
| Warranty | 1 Year |
| Export Port | Tianjin Port |
| Brand | ZTRFM |
Reduced Installation Time – Large panels and precise cuts mean faster assembly on site.
Lower Material & Labor Costs – High throughput and automated shaping minimize waste and labor needs.
Scalable Production – Suitable for contract manufacturers and large‑scale project suppliers.
Adaptable to Custom Profiles – Tooling changes allow different panel shapes and aesthetics, accommodating unique architectural demands.
Zhongtuo’s 90° Horizontal Wall Cladding Roll Forming Machine is a fully featured, high‑precision solution designed to meet the needs of modern construction. Whether you’re focused on architectural façades, industrial walls, agricultural structures, or interior applications, this machine delivers consistent quality, increased production speed, and flexible material support. Its broad utility and advanced automation make it a strategic investment for panel manufacturers and building system suppliers worldwide.
