Algerian Specification Standards Container House Frame Making Machine
The Algerian Specification Standards Container House Frame Making Machine is a heavy-duty roll forming solution specially developed for modular housing, living container houses, and prefabricated steel buildings in Algeria and North Africa. Designed to handle thick steel materials, harsh climates, and continuous production demands, this machine ensures stable performance, precise forming, and long service life.
It is ideal for manufacturers and contractors supplying worker camps, oil & gas accommodation, infrastructure housing, and temporary residential projects across Algeria.
Core Application: Container House Pillar Frame
The pillar frame is the most critical load-bearing component of a container house. Its quality directly affects:
- Structural strength
- Wind and load resistance
- Overall service life
Our container house frame-making machine is specifically engineered to produce high-strength pillar frames that meet Algerian project requirements and international construction standards.

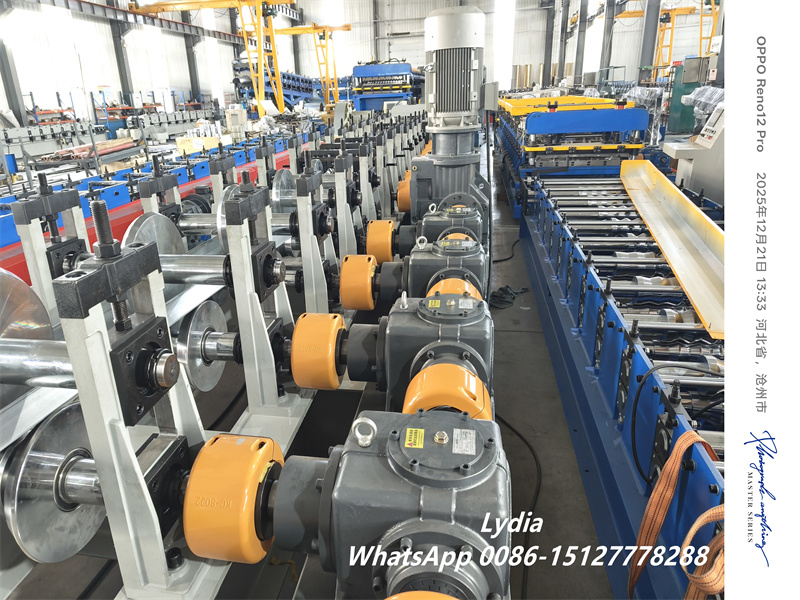

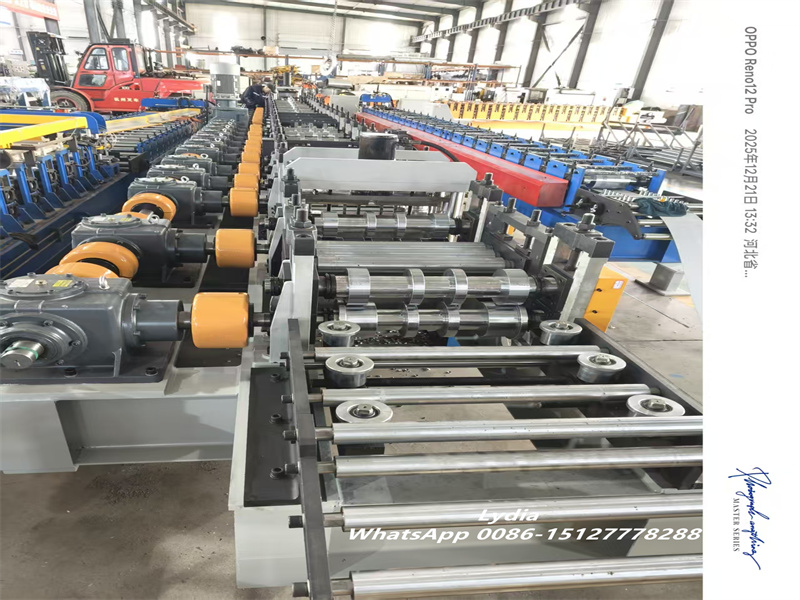

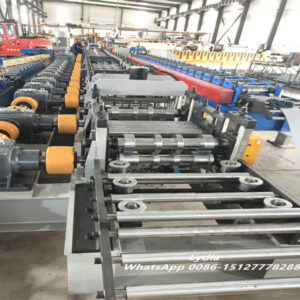

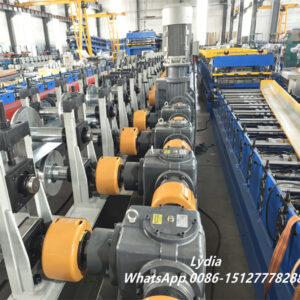

The automatic container house frame roll forming machine adopts a reinforced structure combined with a stable gearbox transmission system. It is capable of processing galvanized steel up to 4.0mm thickness, ensuring excellent forming accuracy without deformation.
Advantages for the Algerian Market
- Suitable for hot and dusty working conditions
- Capable of forming thick steel profiles up to 4.0mm
- High automation level reduces labor dependency
- Accurate cutting minimizes material waste
- Custom profile design available for Algeria projects
Key Design Advantages
- Gearbox-driven transmission for uniform power output
- Heavy-duty machine frame for thick material forming

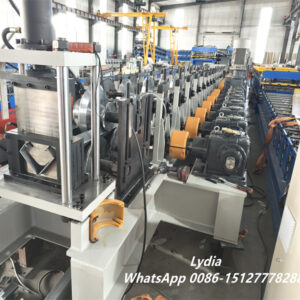

- Hydraulic forming and cutting to maintain profile accuracy
- Precision-machined molds for consistent and clean shapes
- Stable production speed suitable for mass manufacturing
- International-brand electrical and control components
Technical Parameters (Reference)
| Item | Specification |
|---|---|
| Raw Material | Galvanized Steel Sheet |
| Material Thickness | 3.0 – 4.0 mm |
| Steel Grade | Q235 |
| Forming Stations | 26 Rollers |
| Shaft Diameter | 95 mm (Quenched & Tempered) |
| Roller Material | GCr15, Heat Treated |
| Forming Speed | 15 m/min |
| Transmission Type | Gearbox |
| Cutting Method | Hydraulic Forming Shear |
| Length Tolerance | ≤ ±2.0 mm |
| Control System | PLC + Touch Screen (Delta) |
| Encoder | OMRON |
Main Components Description

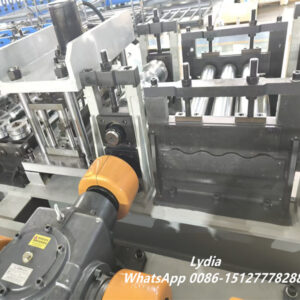

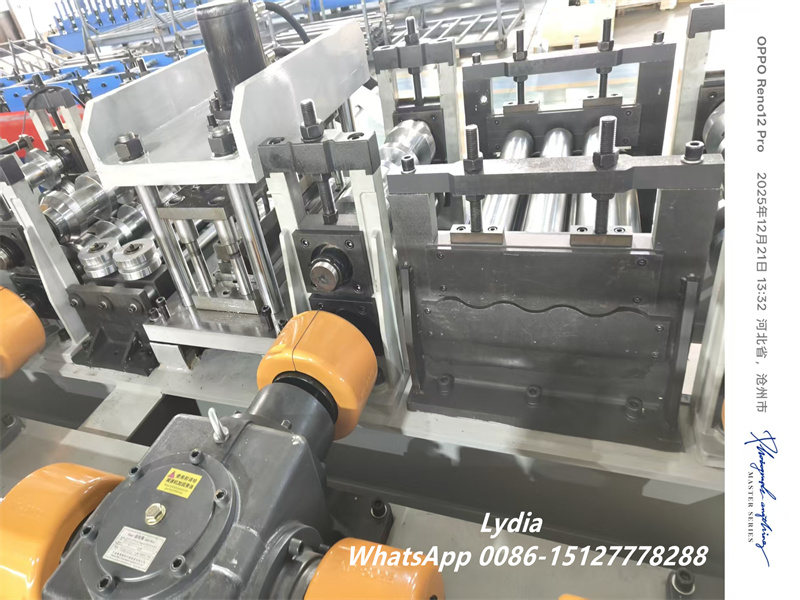

Roll Forming System
- Rollers manufactured from GCr15 bearing steel
- Heat-treated and fully blackened for wear and corrosion resistance
- Precision roll shaping device ensures stable profile dimensions
Hydraulic System
- Hydraulic control center with 55KW power
- Equipped with an air-conditioning cooling device for high-temperature environments
- Hydraulic back punching unit with a combined mold sleeve

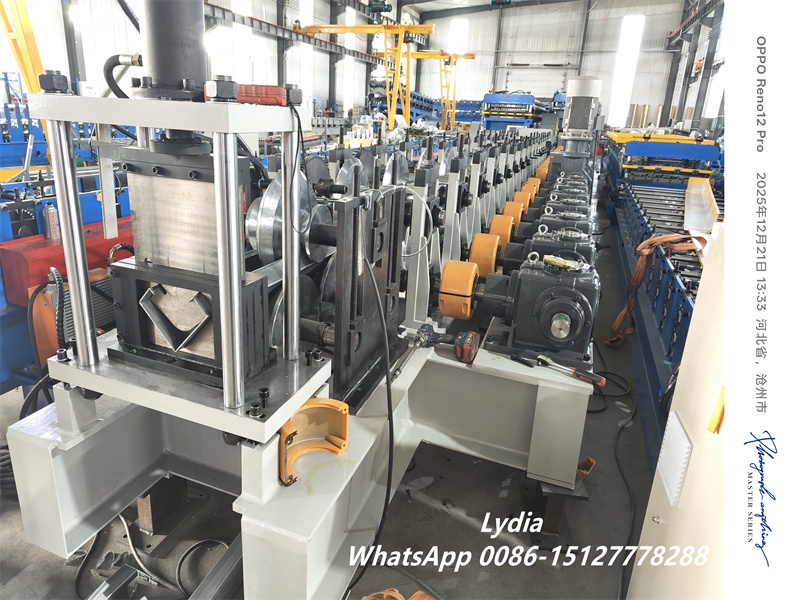

- Hydraulic forming and blanking shear using Cr12MoV, heat-treated
Intelligent Control System
- PLC-controlled operation with touch screen interface
- Automatic length measurement and cutting
- Preset quantity production and fault monitoring
- Easy operation and low maintenance

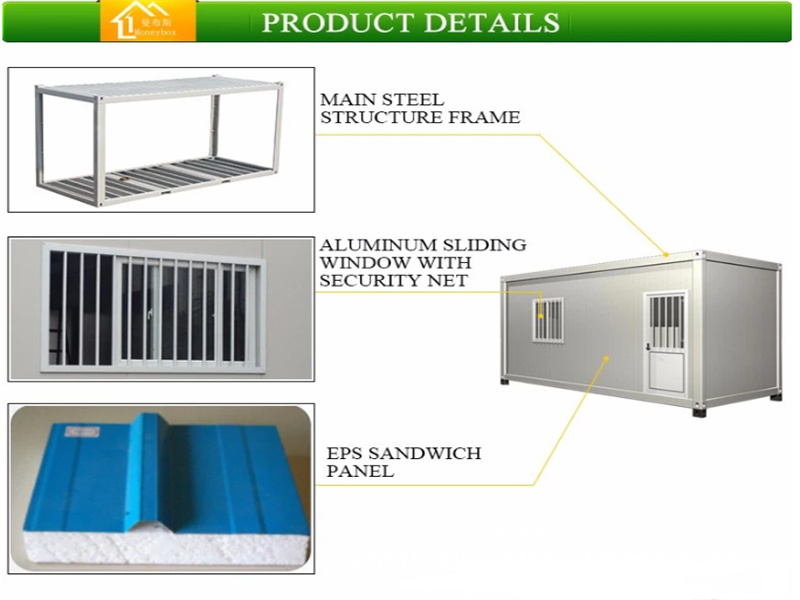

What Is a Living Container House?
A living container house is a modular building system assembled from standardized steel frames and panels. Compared with traditional construction, container houses offer faster installation, lower labor costs, and flexible relocation.
In Algeria, container houses are widely used for:
- Oil & gas field camps
- Construction worker accommodation
- Remote site housing
- Temporary offices and dormitories
- Emergency and project-based housing
They can be integrated with solar photovoltaic systems, solar water heaters, and independent water supply and drainage systems, making them suitable for hot and remote environments.
Typical Applications
- Living container houses
- Modular housing systems
- Oil & gas camp accommodation
- Construction site housing
- Prefabricated steel structure buildings
Why Choose Our Container House Frame Making Machine?
With years of experience in roll forming machine manufacturing, we provide reliable solutions tailored for Algeria and North Africa markets. From machine design to after-sales support, we focus on helping customers improve productivity and reduce production costs.
We also offer:
- Profile customization according to project drawings
- Technical support and installation guidance
- Long-term spare parts supply
Contact Us
Looking for a container house frame-making machine for Algeria?
Contact us today to receive:
- Technical solutions
- Machine layout drawings
- Competitive quotation
Our team is ready to support your modular housing projects with professional roll-forming solutions.
