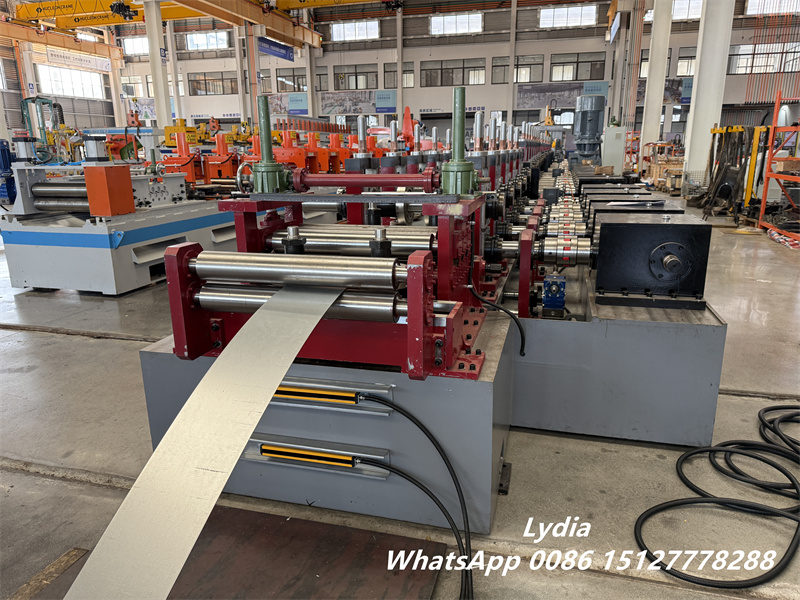

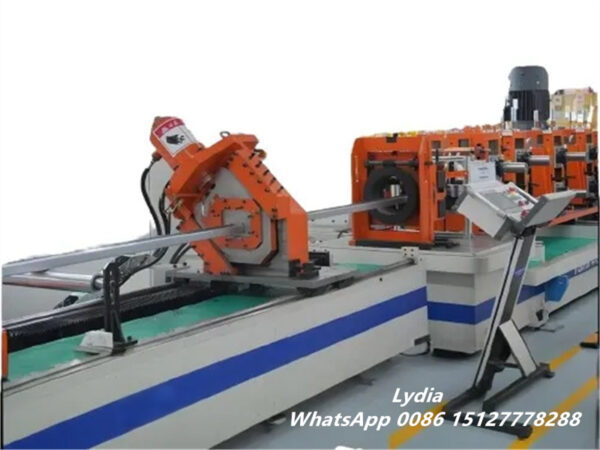

Zhongtuo Heavy Duty C Channel Roll Forming Machine for Steel Profiles

Heavy Duty C Channel Roll Forming Machine

The C Channel Roll Forming Machine is a heavy-duty, high-efficiency metal forming solution designed for continuous production of C-shaped steel profiles. Also known as a C Z U Purlin Roll Forming Machine, this equipment is engineered to process hot rolled and cold rolled steel strips with excellent dimensional accuracy and long-term stability.

Built for industrial environments, this machine combines robust mechanical structure, advanced PLC control, and optimized power consumption, making it an ideal choice for manufacturers focused on productivity, durability, and consistent quality.

Designed for Heavy Gauge & High-Strength Steel

This C profile forming machine is capable of processing a wide range of materials, including:

• Q235 (ASTM A36)
• Q550 high-strength steel
• Hot-rolled steel strip
• Cold-rolled steel strip

With Zhongtuo’s extensive experience in heavy gauge roll forming, this machine is engineered to handle maximum material thickness daily throughout the machine’s service life, ensuring long-term reliability and structural integrity.

Advanced PLC Control System for Precision Forming

Equipped with a state-of-the-art PLC control system, the machine offers:

• Accurate length and profile control
• Easy parameter setting via touch screen
• Stable and repeatable production results
• Reduced operator error and downtime

As a result, manufacturers can achieve high consistency in C channel dimensions, even during long production runs.

Heavy-Duty Mechanical Structure

Every core component is selected for durability and performance:

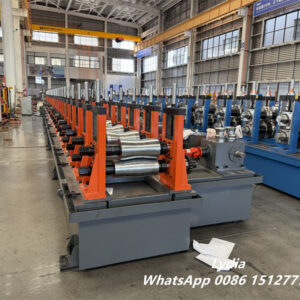

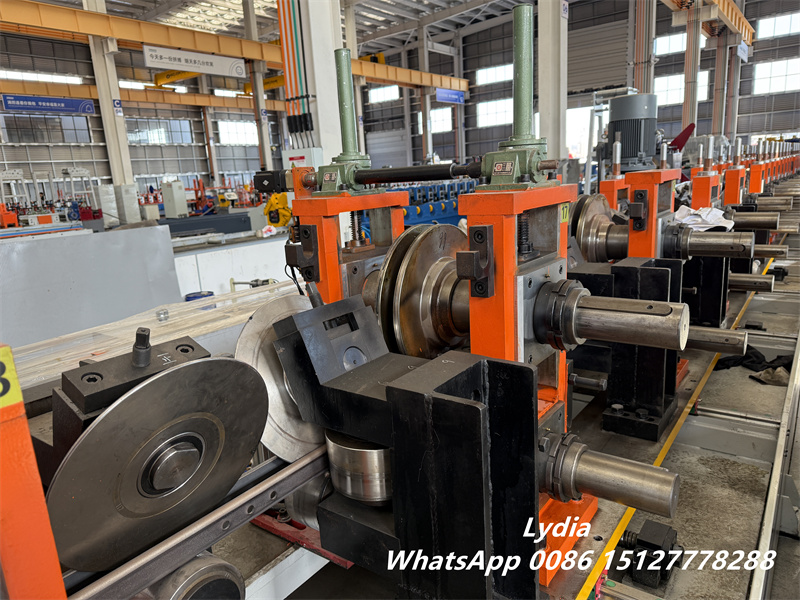

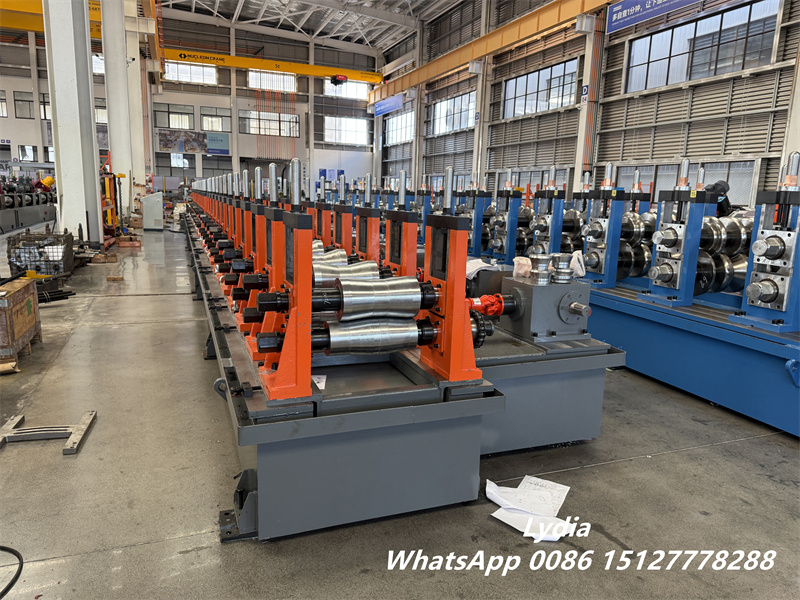

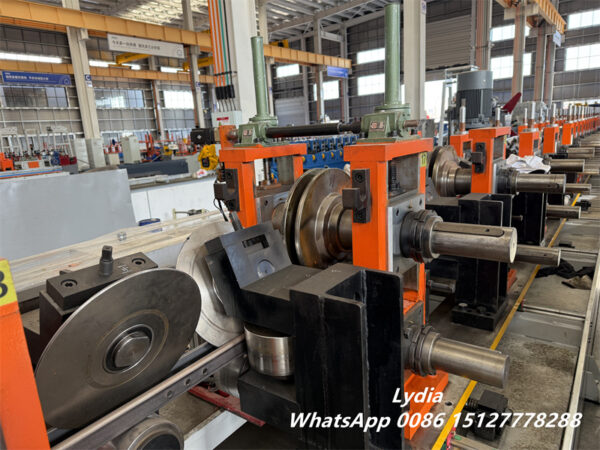

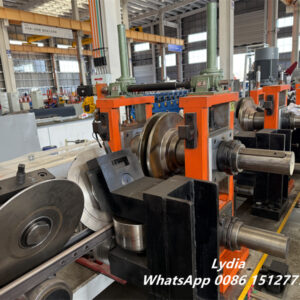

• Roller Material: Cr12, heat-treated for wear resistance
• Roller Diameter: 80mm

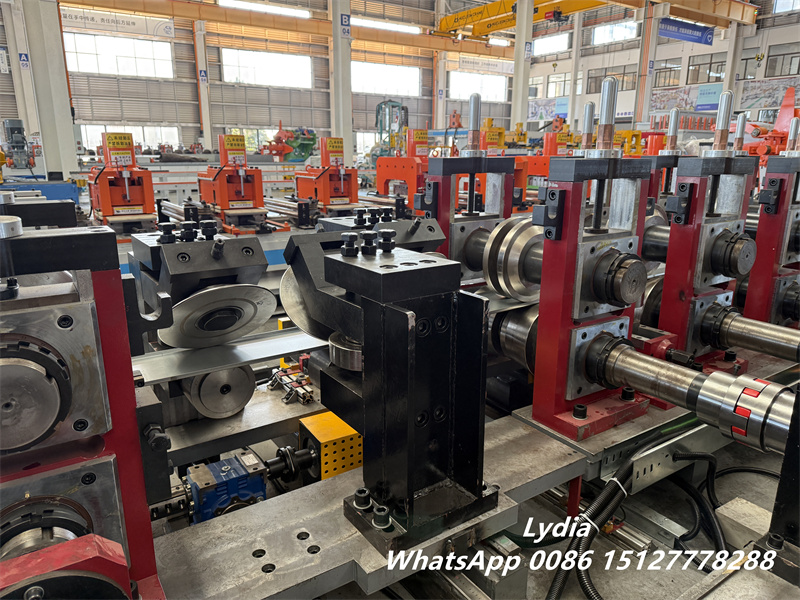

• Shaft Material: High-strength 45# steel
• Forming Speed: 10–30 m/min

Compared with standard roll forming machines, the sheer weight and structural strength of this heavy-gauge roll former ensure superior stability, reduced vibration, and longer service life.

Technical Parameters

Efficient Power Configuration & Global Voltage Compatibility

Powered by a 5.5KW electric motor, the machine delivers strong forming capability while maintaining energy-efficient operation.

• Voltage options: 220V / 380V
• Frequency: 50Hz / 60Hz
• Suitable for global markets and export projects

This flexible electrical configuration allows seamless integration into factories worldwide.

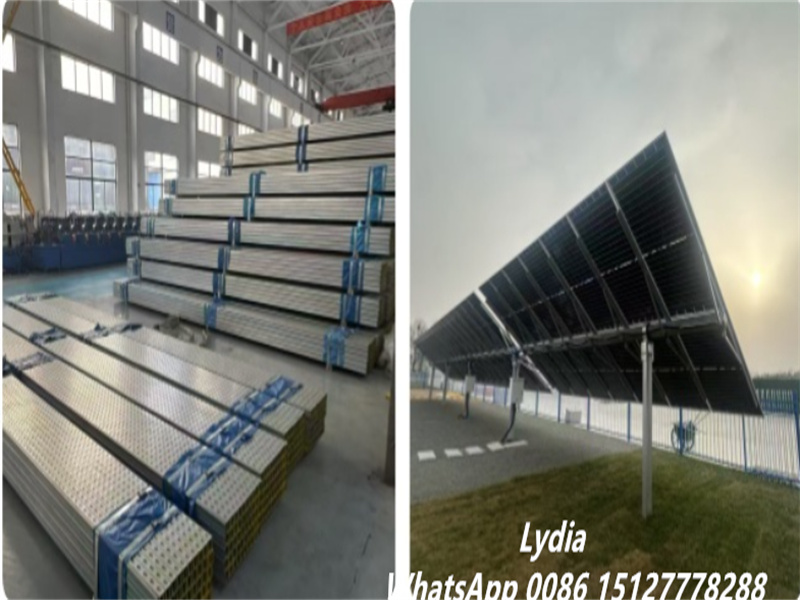

Application Scenarios

The C Channel Roll Forming Machine is widely used in:

• Steel structure buildings
• Metal framing systems
• Ceiling grids and partitions
• Industrial support structures
• Warehouses and prefabricated buildings

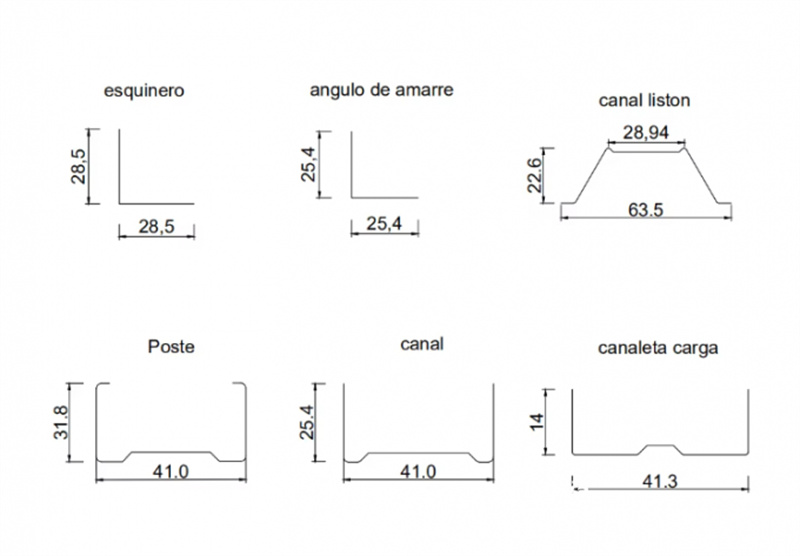

Its versatility allows manufacturers to customize C profiles according to project-specific requirements, making it suitable for both standard and customized production lines.

Customization & Manufacturing Strength

We offer full customization services, including:

• Profile size and thickness range
• Production speed adjustment
• Electrical standards for different countries
• Optional punching, cutting, or stacking systems

Backed by Zhongtuo’s global reputation in heavy-gauge roll forming equipment, our machines are trusted in demanding applications where strength, precision, and durability matter most.

Zhongtuo’s roll forming experience covers material thicknesses up to 0.500 inch, across a wide variety of profiles. Our machines are designed to help customers stand out with innovative, reliable manufacturing machine.

Why Choose This C Channel Roll Forming Machine?

• Heavy-duty structure for long-term industrial use
• Stable performance for high-strength steel materials
• PLC-controlled precision and easy operation
• Energy-efficient 5.5KW power system
• Proven roll forming expertise with global recognition

Looking for a reliable C Channel Roll Forming Machine for heavy-duty production?

Contact us today to receive a customized solution, technical proposal, and competitive quotation tailored to your specific market needs.
