Purlin / Structural Steel Profile for Eave Struts Making Machine
High-Precision Roll Forming Solution for Eave Struts and Structural Purlins
The Purlin / Structural Steel Profile for Eave Struts Making Machine is specially engineered to produce high-quality eave struts and structural steel purlins used in modern metal building systems. These profiles play a critical role at the transition between roof and wall structures, providing strong and reliable support at eaves and high side peaks.
Designed for efficiency, accuracy, and flexibility, this roll forming machine enables manufacturers to produce single-slope and double-slope eave struts, oriented either upward or downward, fully meeting the requirements of commercial, industrial, and agricultural steel buildings.
Are Eave Struts?

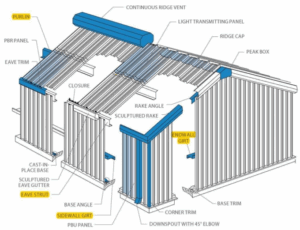

Eave struts are secondary steel framing members positioned where the roof meets the wall. They improve load transfer, enhance structural stability, and provide a secure connection between roof panels and wall systems.
Common features of eave struts include:
- Used at eaves and high side peaks
- Available in single slope and double slope
- Installed in up or down configurations
- Manufactured from galvanized or red oxide primed steel
- Cut to precise lengths for easy installation

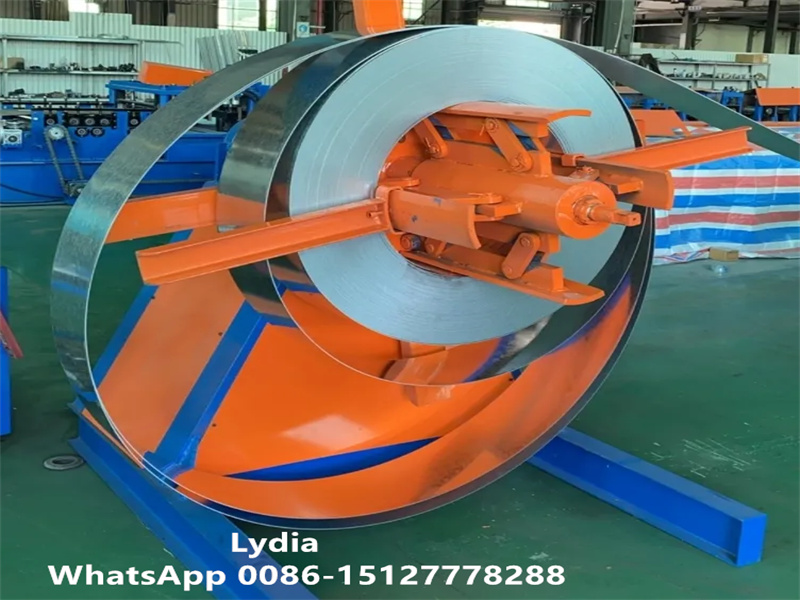

machine with hydraulic cutting system

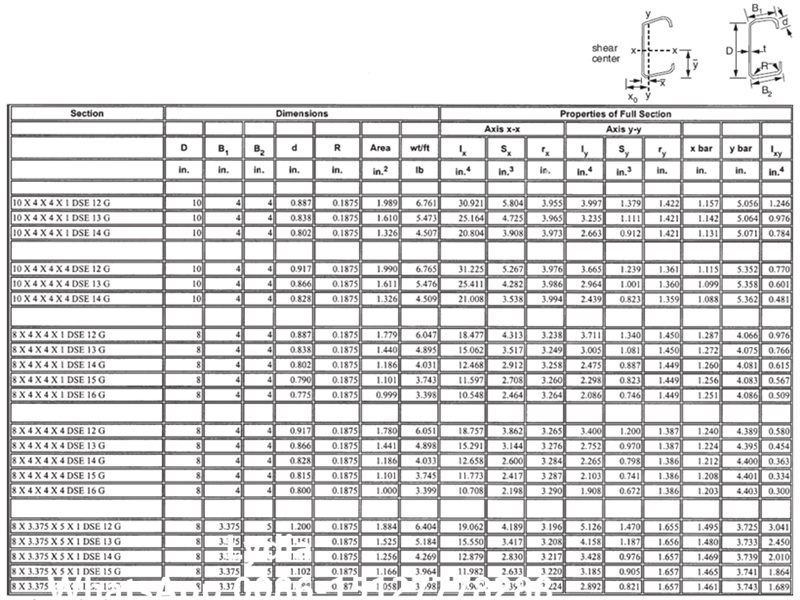

Typical Technical Specifications
| Item | Description |
|---|---|
| Applicable Profiles | Eave Struts, Z Purlins, Structural Steel Profiles |
| Web Size | 7″, 8″, 10″ (customizable) |
| Flange Size | 4″ standard |
| Material Thickness | 14 gauge steel |
| Cutting Accuracy | ±1/8 inch |
| Length Range | 6’–39’ (up to 45’–50’ optional) |
| Surface Finish | Galvanized / Red Oxide Primed |

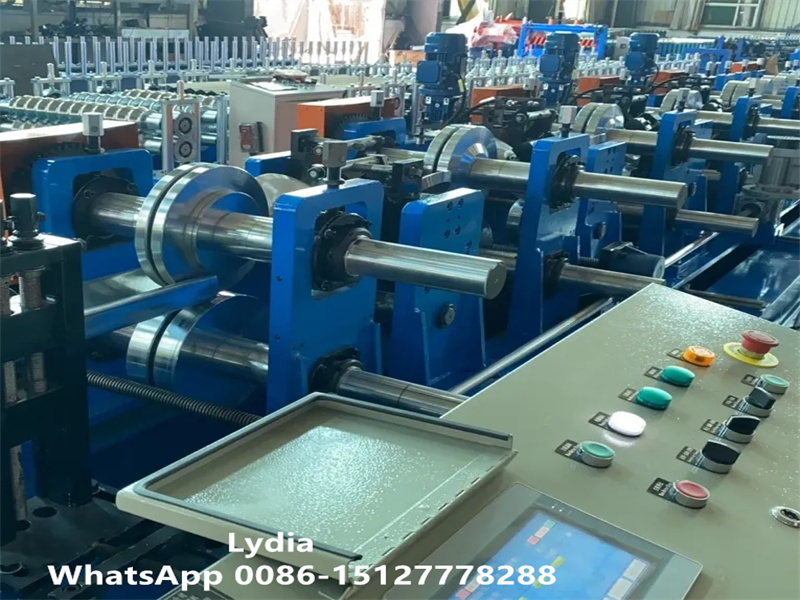

| Control System | PLC with touchscreen |
Machine Capabilities & Advantages
The Structural Steel Profile for Eave Struts Making Machine delivers consistent profile accuracy and smooth surface quality, even during long production runs.
Key Advantages
- Wide profile compatibility
Produces eave struts with 7″, 8″, or 10″ webs and 4″ flanges, with optional custom sizes available. - Flexible length control
Supports cutting lengths from 6 ft to 39 ft, extendable up to 45–50 ft depending on configuration. Length tolerance can be controlled within 1/8 inch. - Multiple material options
Suitable for 14-gauge steel, including red oxide primed and galvanized finishes. - High structural accuracy
Maintains excellent straightness and dimensional consistency, ensuring proper alignment during on-site installation. - PLC automatic control
Enables fast size change, precise length setting, and stable production with minimal manual intervention.
Product Demonstration

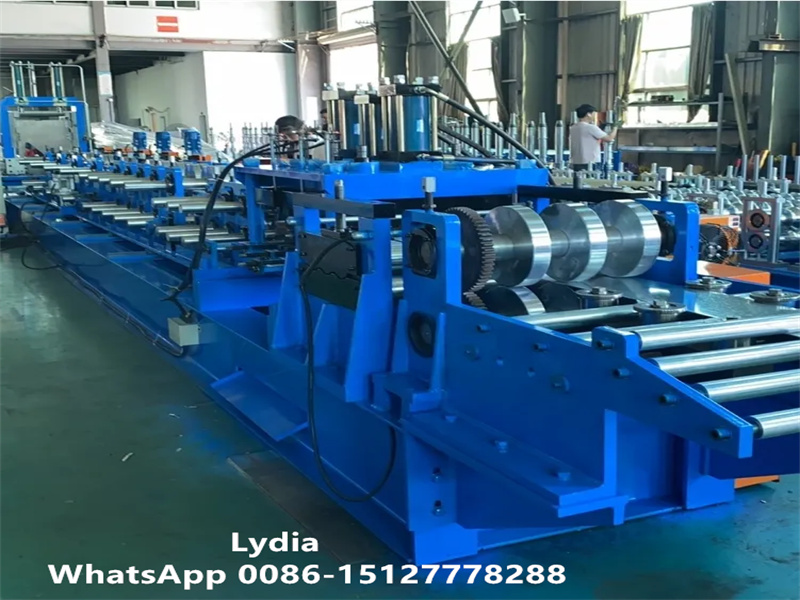

Purlin / Structural Steel Profile for Eave Struts Making Machine – Line Overview

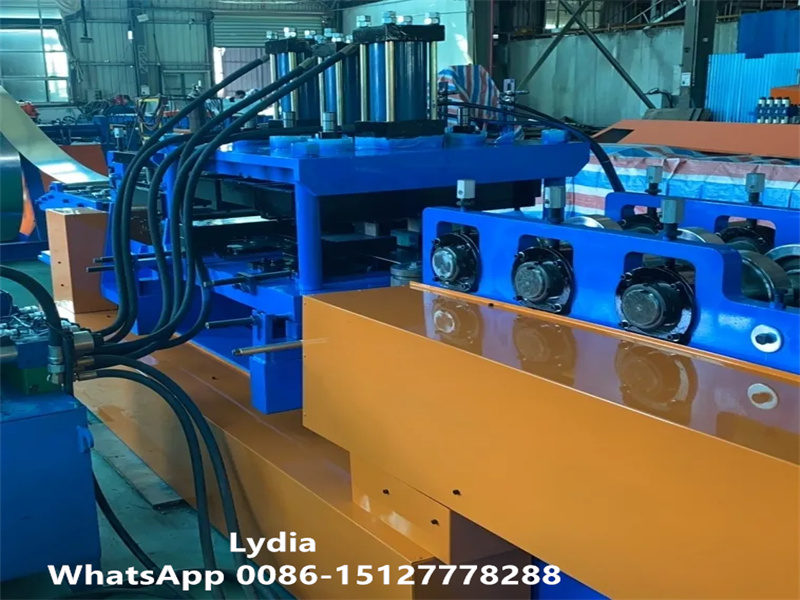

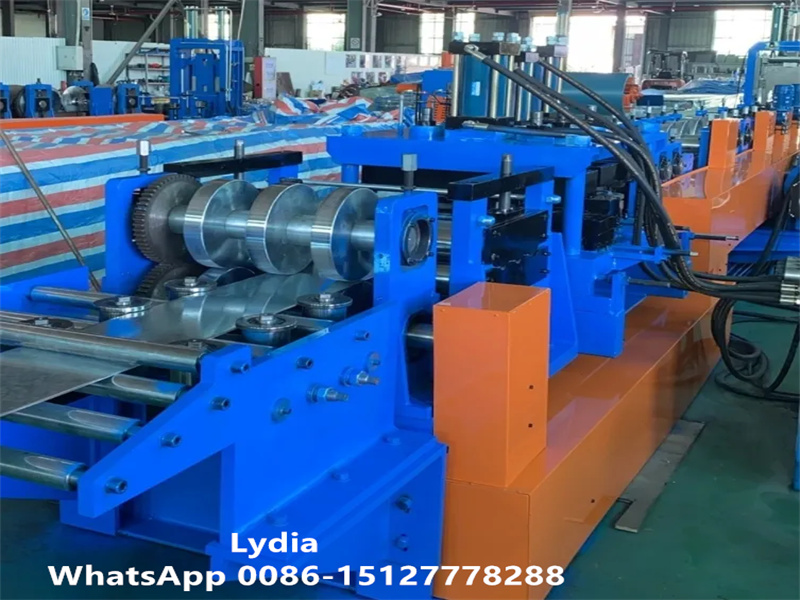

Shows the complete roll forming line, including decoiler, leveling system, roll forming stations, hydraulic cutting unit, and run-out table.
Structural Steel Profile Application
Finished eave struts installed in metal building systems, supporting roof panels at the eave and high side peak positions.
Technical Specifications of Eave Struts Roll Forming Machine
| Item | Details |
|---|---|
| Machine Weight | Approx. 15,000 kg |
| Machine Size | Approx. 22 m × 2 m × 1.8 m (L × W × H) |
| Machine Color | Main: Blue / Warning Parts: Yellow |
| Raw Material | Galvanized steel coils |
| Material Thickness | 1.9 – 2.6 mm |
| Coil Width | According to product profile size |
| Yield Strength | 235 MPa |
| Forming Roller Stations | 20 stations |
| Roller Shaft Diameter | 75 mm |
| Roll Forming Speed | 10 – 15 m/min |
| Effective Production Speed | 4 – 6 m/min |
| Roller Material | GCr15 mould steel, quenched |
| Cutting Blade Material | CR12 mould steel, quenched |
| Control System | PLC + Frequency Converter |
| Main Motor Power | 18.5 kW |
| Hydraulic Station Power | 5.5 kW |
| Power Supply | Customized according to customer requirements |
Applications
This machine is widely used in:
- Pre-engineered metal buildings (PEB)
- Warehouses and factories
- Steel workshops
- Agricultural buildings
- Commercial roofing and wall systems
- Custom structural steel fabrication plants
Why Choose Our Eave Struts Making Machine?
With years of experience in roll forming machine design and manufacturing, we focus on reliability, precision, and long-term performance. Our machines are built to handle continuous production while maintaining strict dimensional control, helping customers reduce material waste and improve overall productivity.
Whether you need standard eave struts or customized structural steel profiles, our Purlin / Structural Steel Profile for Eave Struts Making Machine provides a dependable and cost-effective solution.
