In today’s fast-paced construction industry, efficiency, durability, and cost control are critical factors for project success. The 1.0″ floor deck roll forming machine developed by Zhongtuo is engineered to meet these demands by delivering high-precision steel decking panels used in composite floor systems.
This advanced equipment enables manufacturers to produce consistent, high-strength metal decks that serve as both permanent formwork and structural reinforcement in multi-story buildings, industrial plants, and commercial projects.
What is a 1.0″ Floor Deck?

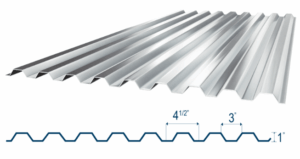

A 1.0″ floor deck refers to a steel decking profile with a rib height of 1 inch. It is widely used in composite slab construction, where steel decking works together with poured concrete to form a strong and stable floor system.
Compared to traditional formwork, this system simplifies construction while improving structural performance.
Standard Cover Width: 36″
Additional Cover Widths Available: 27″
Available Finishes: Galvanized-G60/G90, Prime Painted–Gray or White, Galvanized Painted
Available Gauges: 26, 24, 22, 20
Advantages of Steel Floor Deck Systems
Steel floor decks provide a highly efficient alternative to traditional construction methods by serving as permanent formwork for cast-in-place concrete, eliminating the need for time-consuming installation and removal of temporary molds. This significantly reduces labor costs and accelerates project timelines. Once installed, the decking system also acts as a stable working platform, allowing multiple floors to be constructed simultaneously without the need for additional support structures, thereby optimizing on-site workflow and saving valuable construction time. In terms of structural performance, the floor deck functions as tensile reinforcement within the concrete slab, enhancing overall stiffness and load-bearing capacity while simplifying reinforcement processes. Additionally, its optimized profile design helps reduce concrete usage—sometimes by up to 30%—which lowers overall material costs. Despite being lightweight, the steel deck maintains excellent strength and durability, making it especially suitable for high-rise buildings, industrial facilities, and other demanding construction environments.

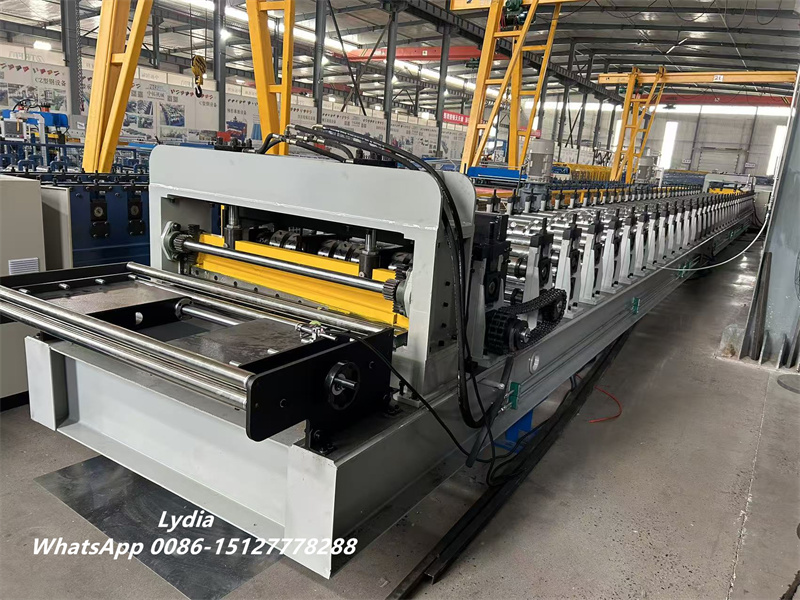

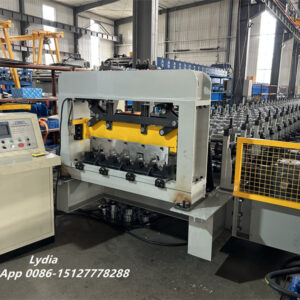

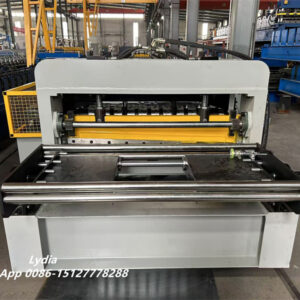

Key Features of the Zhongtuo Floor Deck Machine

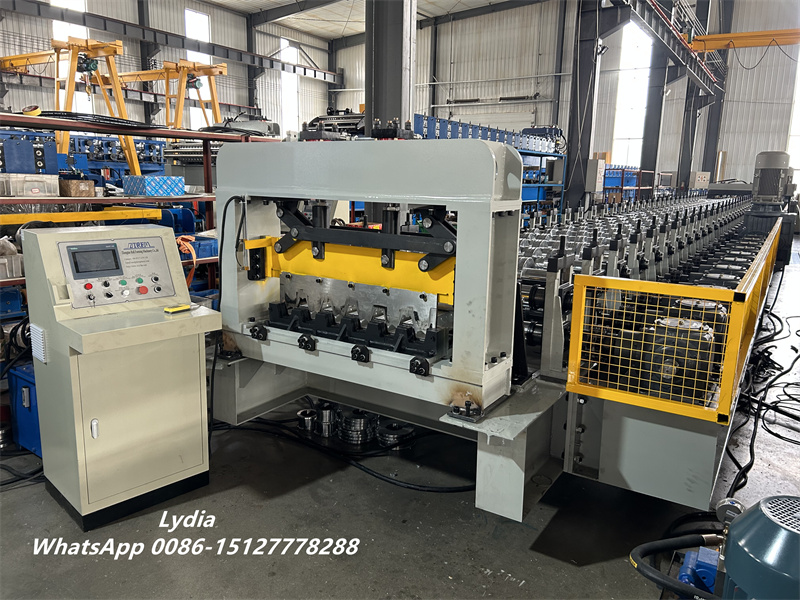

The Zhongtuo floor deck roll forming machine is designed with a focus on automation, precision, and durability.

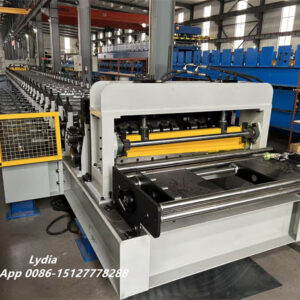

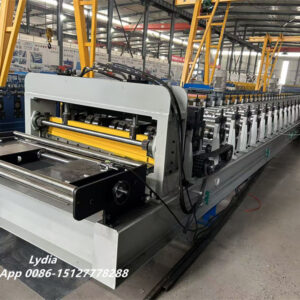

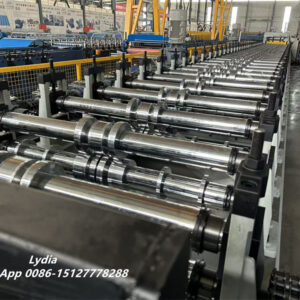

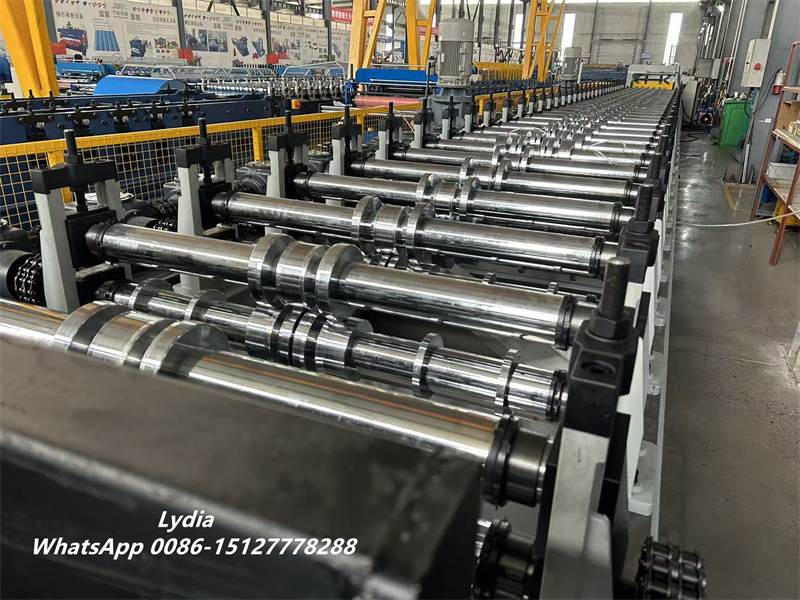

1. The machine adopts multiple roller stations to gradually shape galvanized steel coils into the required deck profile. Each stage ensures dimensional accuracy and smooth surface finish.
2. Automatic Feeding & Continuous Production

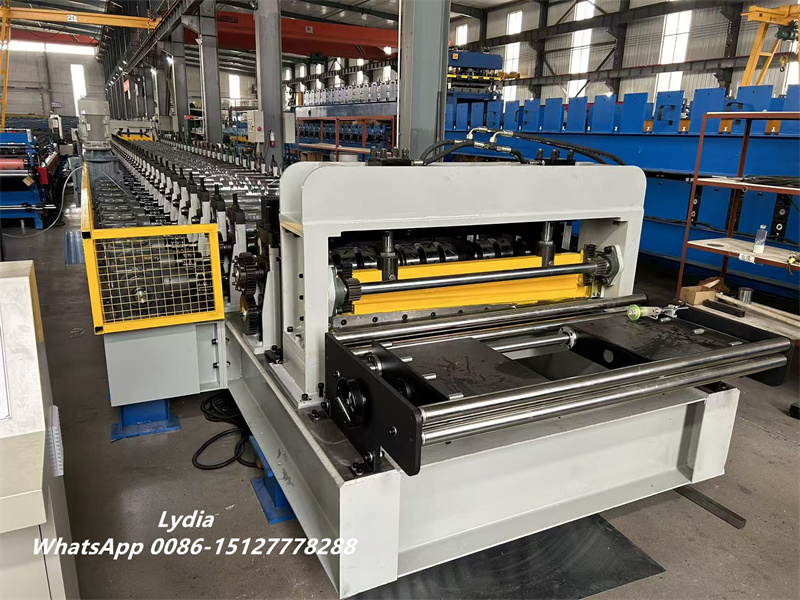

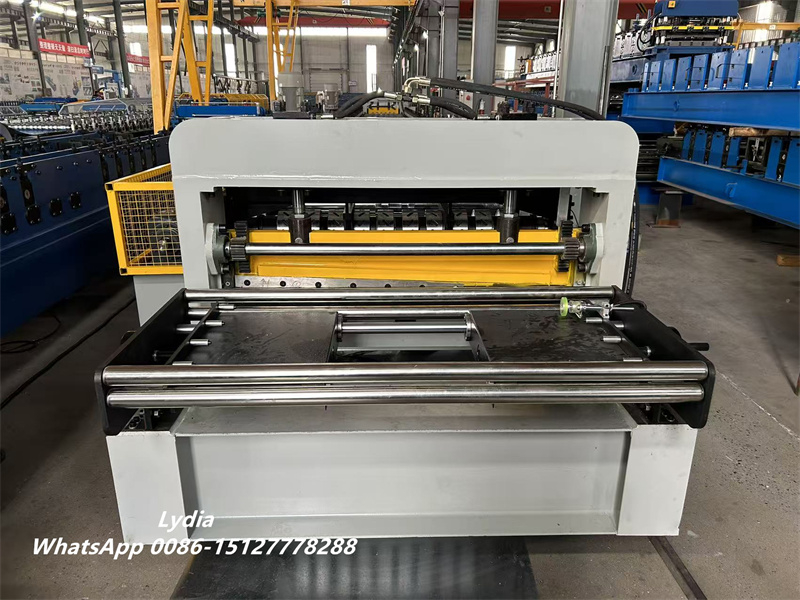

Equipped with an automated feeding system, the machine allows continuous operation with minimal manual intervention, improving productivity and reducing material waste.
3. Hydraulic Cutting System
The integrated hydraulic cutter ensures clean and accurate cutting according to preset lengths, meeting different project requirements.

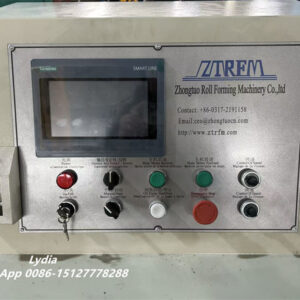

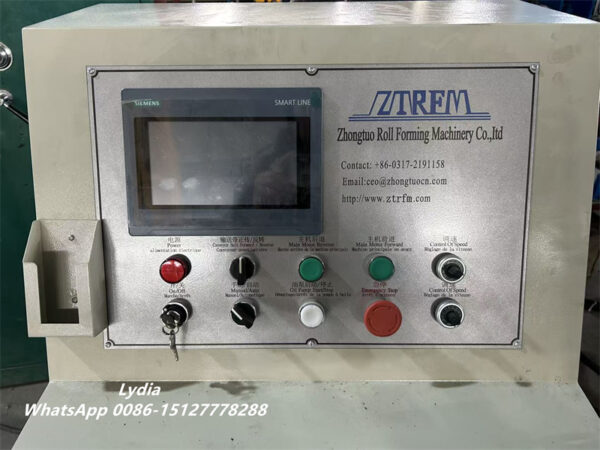

4. Intelligent Control System
Operators can easily adjust parameters such as speed, length, and batch quantity via a user-friendly control panel, ensuring stable and efficient production.
5. Durable Machine Structure
The machine frame is constructed with heavy-duty H-beam steel, providing strong support and long service life even under high-load operation.
Technical Specifications
Below is a summary of the main technical parameters:
| Item | Specification |
|---|---|
| Machine Size | 15000 × 1850 × 1500 mm |
| Machine Weight | Approx. 15.5 tons |
| Material Type | Galvanized Steel Coil |
| Yield Strength | Up to 550 MPa |
| Material Thickness | 0.8 – 1.5 mm |
| Input Width | 1220 mm |
| Effective Width | 914 mm |
| Roller Stations | About 28 stations |
| Shaft Diameter | 95 mm |
| Roller Material | GCr15 (HRC58–60) |
| Drive System | Double chain drive |
| Motor Power | 18.5 kW × 2 |
| Forming Speed | 0–15 m/min |
| Voltage | 480V / 60Hz / 3 Phase |
Application Fields: The finished floor decking panels are widely used in:
- High-rise commercial buildings
- Steel structure factories and warehouses
- Shopping malls and office complexes
- Parking structures
- Industrial plants with heavy loads
The Zhongtuo 1.0″ floor deck roll forming machine is a highly efficient and cost-effective solution for producing steel decking panels. By combining automation, precision engineering, and robust construction, it helps manufacturers meet the growing demand for modern composite flooring systems.
For construction companies aiming to improve efficiency while maintaining structural quality, investing in a high-performance floor deck machine is a smart and future-proof decision.
