Our Heavy Duty Coil Embossing Machine is specially designed for embossing 1.2-5 mm mild carbon steel sheets with outstanding precision, durability, and forming quality. Equipped with 42CrMo forged alloy steel embossing rollers, this machine creates deep, uniform embossed patterns while significantly improving the rigidity and appearance of metal sheets.
Designed for construction materials, steel processing plants, decorative panels, industrial flooring, and heavy-duty manufacturing, this embossing production line provides reliable operation, stable performance, and long service life. With a maximum feeding width of 1520 mm, it is ideal for processing large steel coils into premium embossed sheets for various industrial applications.
Applications of the Coil Embossing Machine
The heavy-duty embossing machine is widely used in industries requiring textured steel sheets with enhanced mechanical strength and decorative appearance.
Typical applications include architectural wall panels, anti-slip flooring, elevator panels, truck body panels, industrial equipment covers, storage tanks, construction materials, heavy machinery components, and decorative metal products.
Compared with ordinary flat steel sheets, embossed sheets offer better stiffness, improved anti-slip performance, higher structural strength, and an attractive surface finish.
How the Metal Embossing Process Works
The production process begins with placing the steel coil onto the input coil supporting table, allowing operators to feed the material smoothly and accurately into the embossing machine.
The steel sheet then passes through the heavy-duty embossing rollers, where specially engraved patterns are formed under controlled pressure. The machine uses integrally forged 42CrMo alloy steel rollers, ensuring excellent wear resistance and long-term pattern consistency.
Finally, the embossed sheet exits the machine and can be cut to any required length according to customer requirements for further fabrication or direct installation.
Unlike conventional stamping methods, this embossing system continuously forms high-quality textures while maintaining excellent dimensional accuracy and production efficiency.
Technical Parameters of the Coil Embossing Machine
| Item | Specification |
|---|---|
| Raw Material | Mild Carbon Steel |
| Material Thickness | 1.2–5.0 mm |
| Maximum Feeding Width | ≤1520 mm |
| Cutting Length | Adjustable |
| Working Speed | 5 m/min |

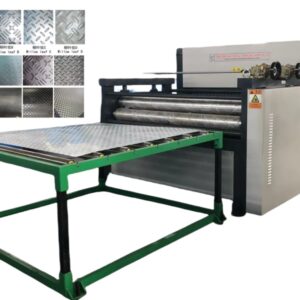

Main Machine Components

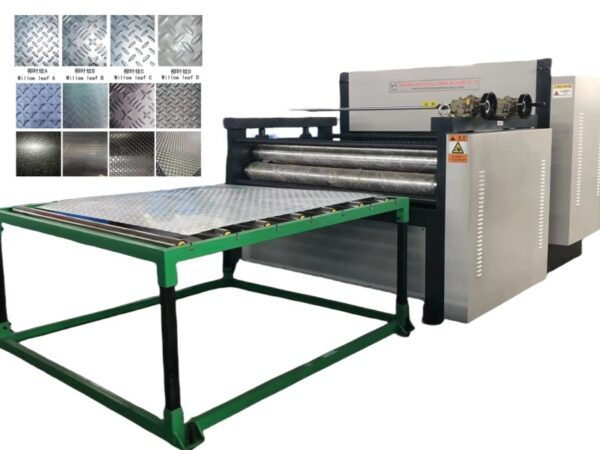

Part 1: Input Coil Supporting Table
The input supporting table is designed to simplify material loading and ensure stable feeding before embossing.
Its main function is to support heavy steel coils and guide the sheet accurately into the embossing machine, reducing labor intensity while improving feeding precision and production stability.

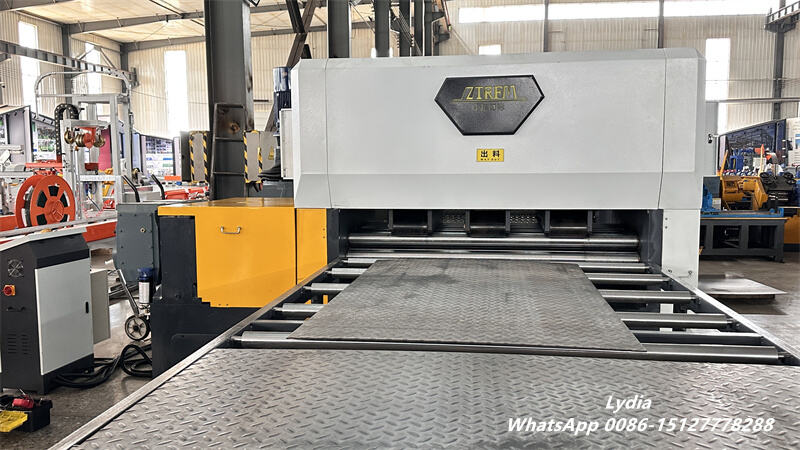

Part 2: Heavy Duty Metal Embossing Machine
The embossing machine is the core of the production line, engineered specifically for processing thick carbon steel sheets.
The embossing rollers are manufactured from integrally forged 42CrMo alloy steel. After professional heat treatment, the roller surface reaches a hardness of HRC 55–60, followed by chrome plating to provide exceptional wear resistance and longer service life.
The embossing roller size is:
- Roller Diameter: Φ450 mm
- Roller Length: 1700 mm
- Applicable Sheet Thickness: 1.2–5.0 mm
- Engraving Depth of Concave Roller: 2.5 mm
The machine is powered by a 15 kW national standard motor combined with a heavy-duty reducer to deliver stable torque and reliable operation during continuous production.
Its integrated welded frame adopts a one-piece structure with heavy solid side walls, ensuring excellent rigidity, vibration resistance, and long-term operating stability.

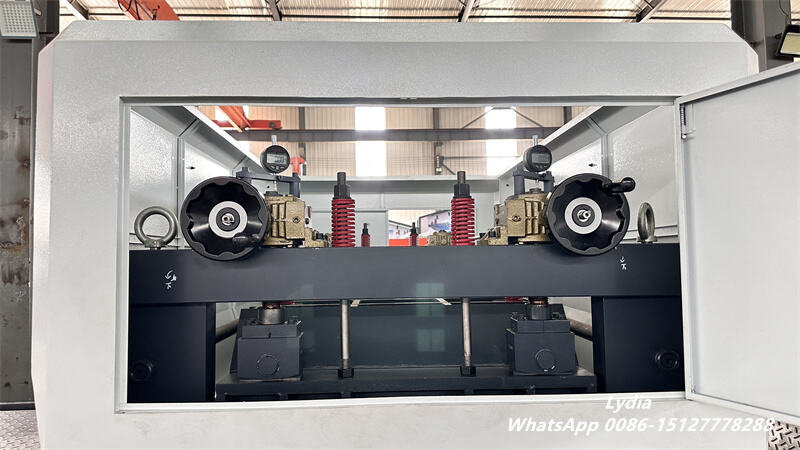

Pressure adjustment is achieved through a manual screw lifting system, while both sides are synchronized using a gear turbine transmission mechanism. The machine also includes a pressure reference scale, allowing operators to make precise adjustments according to different material thicknesses.
The entire system operates at a stable embossing speed of 5 m/min, making it ideal for heavy steel sheet processing.
Key Advantages of Our Coil Embossing Machine
Our heavy-duty embossing machine offers numerous advantages for manufacturers seeking high-quality embossed steel products.
- Processes 1.2–5 mm carbon steel sheets
- Supports maximum feeding width of 1520 mm
- Forged 42CrMo alloy steel embossing rollers
- Roller hardness reaches HRC 55–60
- Chrome-plated roller surface for extended service life
- Large Φ450 × 1700 mm embossing rollers
- Deep embossing pattern with 2.5 mm engraving depth
- Heavy-duty integrated welded frame for maximum stability
- Manual pressure adjustment with reference scale for accurate operation
- Powered by a 15 kW motor with heavy-duty reducer
- Stable working speed of 5 m/min
- Adjustable finished sheet length
- Suitable for continuous industrial production
Why Choose Zhongtuo Coil Embossing Machine?
With decades of experience in roll forming and sheet metal processing equipment, Zhongtuo supplies customized embossing solutions for customers worldwide.
Every machine is manufactured using premium components, precision machining, and strict quality control standards to ensure long-term reliability. We can also customize embossing patterns, roller designs, and machine configurations according to your production requirements.
Whether you manufacture construction materials, industrial panels, anti-slip flooring, or decorative steel products, our heavy-duty coil embossing machine delivers consistent embossing quality, high production efficiency, and excellent return on investment.
