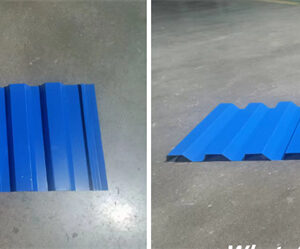

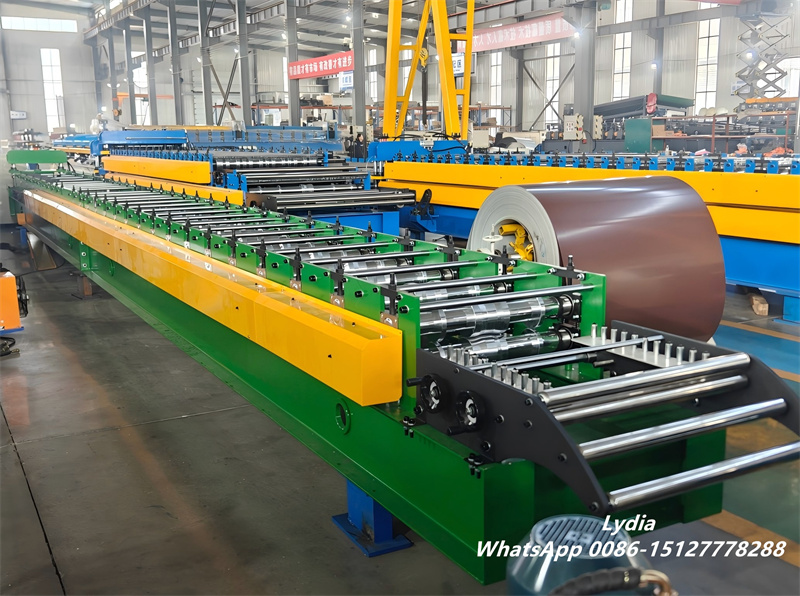

The Metal Colored Steel Wall Cladding Sheet Panel Roll Forming Machine is designed to produce high-quality metal wall cladding panels, colored steel siding sheets, and architectural façade panels with excellent dimensional accuracy and consistent profiles. It is suitable for processing PPGI, GI, GL, and aluminum coils with thicknesses ranging from 0.3 mm to 0.6 mm, making it an ideal solution for manufacturers serving residential, commercial, agricultural, and industrial construction markets.
By combining automatic feeding, precision roll forming, hydraulic cutting, and PLC control, this production line delivers continuous manufacturing with minimal manual intervention. As a result, manufacturers can increase daily output, reduce labor costs, and ensure stable product quality throughout long production runs.
How the Metal Wall Cladding Roll Forming Machine Works

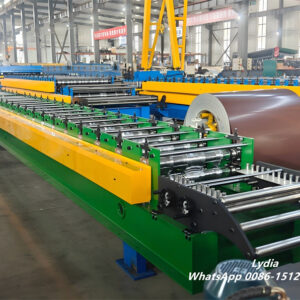

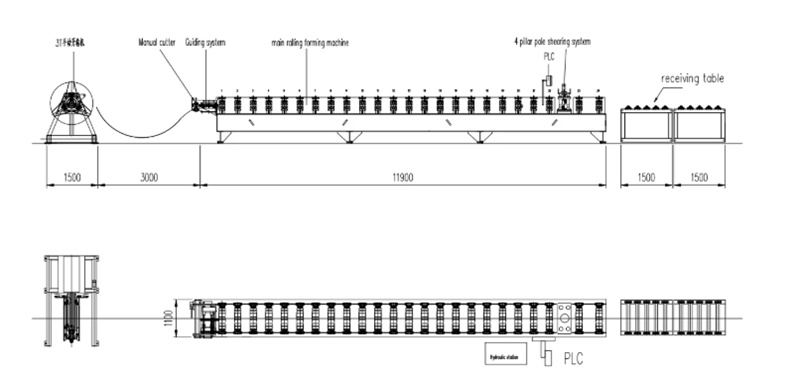

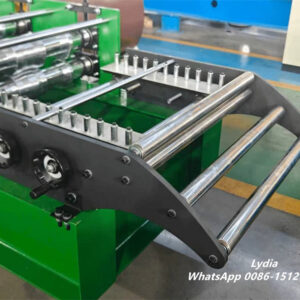

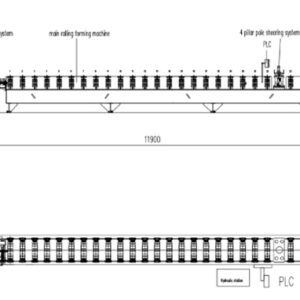

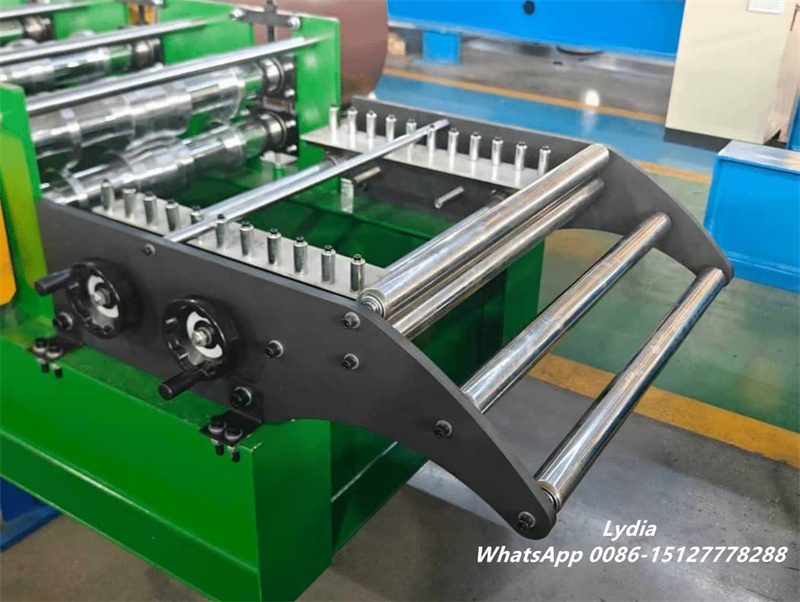

The production process is fully automated to improve efficiency and product consistency. First, the hydraulic decoiler safely unwinds the metal coil while maintaining stable feeding tension. Next, the guiding system accurately aligns the strip before it enters the roll forming section.

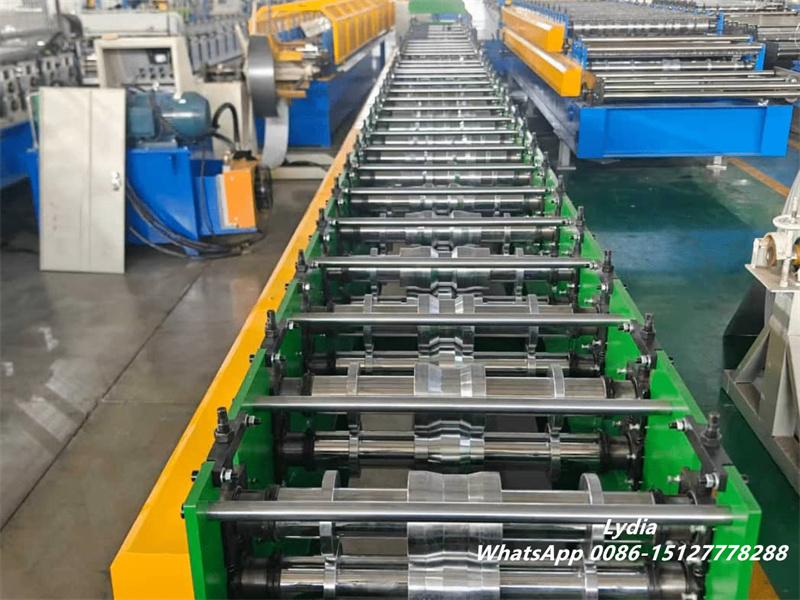

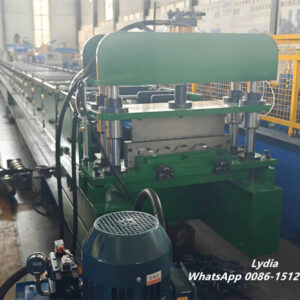

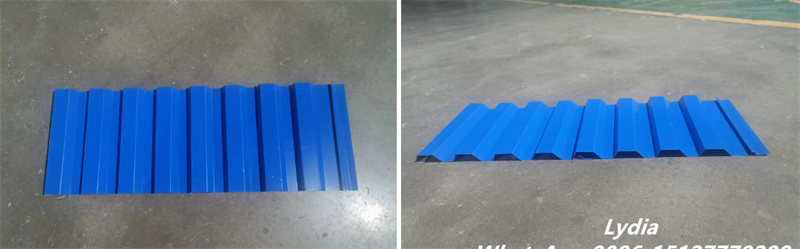

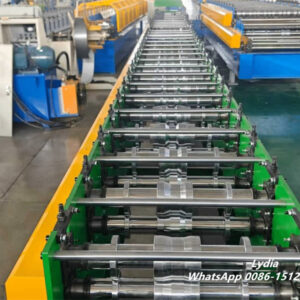

The material then passes through multiple precision-engineered forming stations where it is gradually shaped into the required wall cladding profile without damaging the coating. After forming, the PLC system measures the preset production length, activates the hydraulic cutting device, and cuts each panel automatically. Finally, the finished panels are discharged for packaging or direct installation.
Since the entire production line is controlled through a user-friendly PLC interface, operators can easily adjust production length, quantity, speed, and batch settings according to customer requirements.
Key Features and Performance Advantages
The machine adopts a heavy-duty 350H steel frame, providing excellent rigidity and vibration resistance during continuous operation. Consequently, the forming process remains stable even when producing long wall cladding panels.

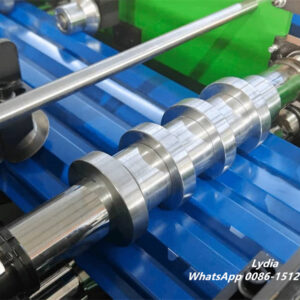

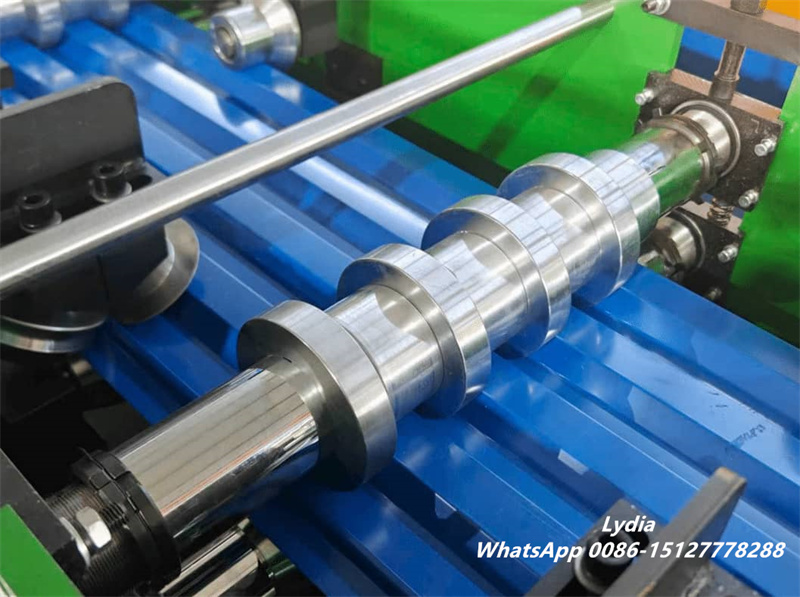

Each forming roller is manufactured from 45# forged steel with precision machining and hard chrome plating. Therefore, the rollers offer excellent wear resistance while protecting painted steel surfaces from scratches and coating damage.

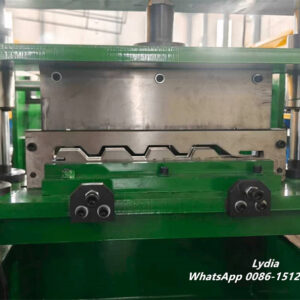

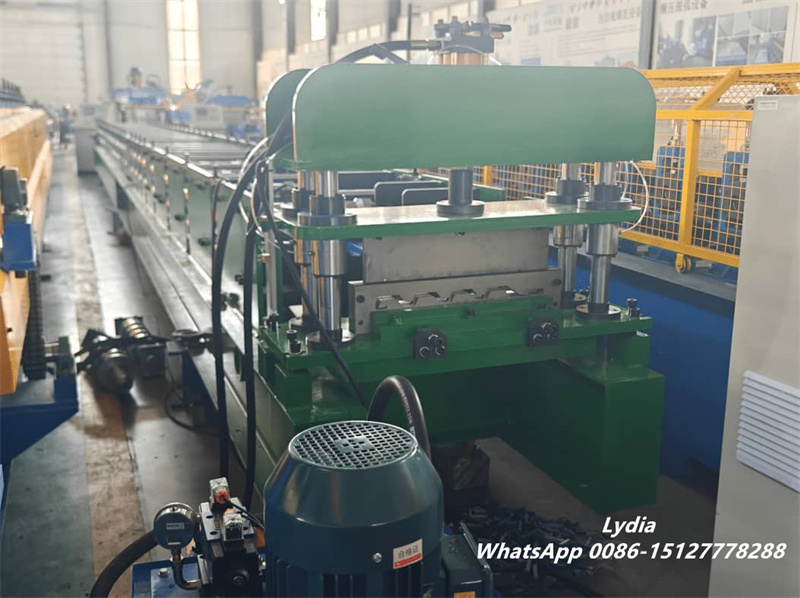

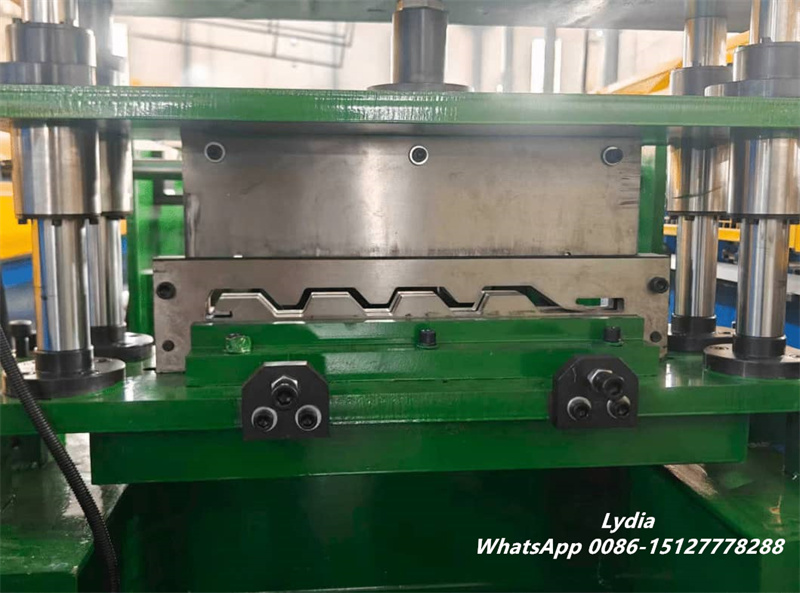

The hydraulic cutting system utilizes Cr12Mov high-strength tool steel, allowing clean cutting edges without deformation or burrs. This improves installation quality and minimizes material waste.
Furthermore, the integrated Delta PLC control system simplifies machine operation. Operators can quickly modify panel length, production quantity, and operating speed through the touch screen. Multiple language options also make the equipment suitable for international users.
Another important advantage is the machine’s energy-efficient design. The optimized transmission system reduces unnecessary power consumption while maintaining smooth operation, helping manufacturers lower operating costs over the long term.
Technical Specifications
| Item | Specification |
|---|---|
| Product | Metal Colored Steel Wall Cladding Sheet Panel Roll Forming Machine |
| Suitable Materials | PPGI, GI, GL, Aluminum Coil |
| Material Thickness | 0.3–0.6 mm |
| Feeding Width | 915 mm |
| Roller Stations | 26 Stations (Customizable) |
| Shaft Diameter | 65 mm Solid Shaft |
| Roller Material | 45# Steel with Hard Chrome Plating |
| Frame Structure | 350H Steel Frame |
| Transmission | Chain Drive |
| Main Motor Power | 5.5 kW |
| Hydraulic Power | 4 kW |
| Cutting Blade Material | Cr12Mov |
| Forming Speed | 15–20 m/min |
| Control System | Delta PLC (Multi-language Supported) |
| Voltage | 380V / 50Hz / 3 Phase (Customizable) |
| Machine Size | Approximately 10,500 × 1,600 × 1,600 mm |
| Machine Weight | About 7.5 Tons |
Wide Applications Across Modern Construction Projects
Metal wall cladding panels have become one of the most popular building materials due to their durability, attractive appearance, and low maintenance requirements. Consequently, this roll forming machine serves numerous industries and construction sectors.
Industrial Buildings
Factories, warehouses, logistics centers, manufacturing plants, aircraft hangars, power stations, and workshops frequently use metal wall panels for both exterior walls and roofing. The finished panels provide excellent structural protection while resisting corrosion, moisture, dust, and changing weather conditions.
Commercial Buildings

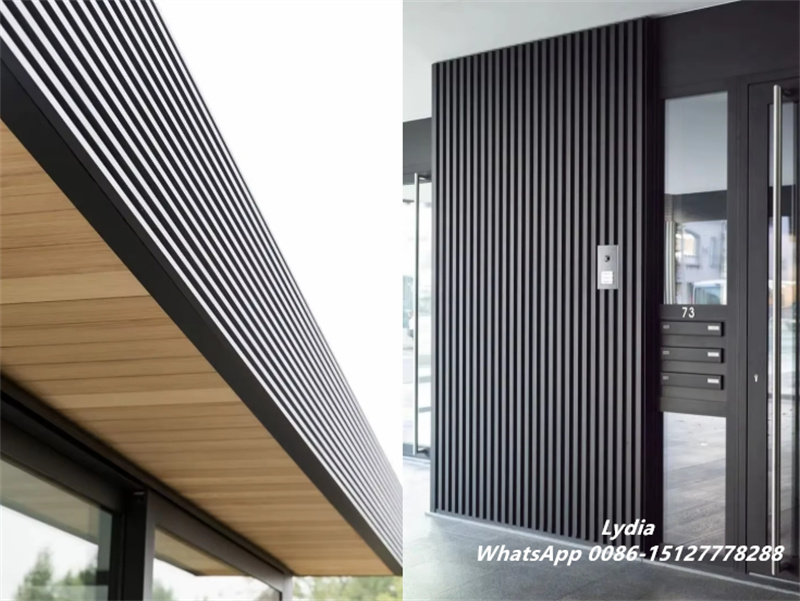

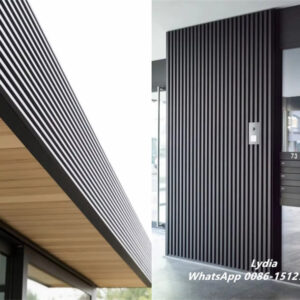

Shopping malls, office buildings, exhibition centers, convention halls, supermarkets, airports, train stations, stadiums, and sports arenas require modern exterior façades that combine durability with architectural aesthetics. Colored steel wall panels allow architects to create visually attractive building envelopes while reducing long-term maintenance expenses.
Residential Construction
Luxury villas, townhouses, apartment complexes, modular houses, and prefabricated buildings increasingly adopt metal cladding systems because they offer lightweight installation, excellent weather resistance, and modern architectural styling. Different panel profiles and colors also allow designers to achieve customized exterior appearances.
Agricultural Buildings
Livestock farms, poultry houses, grain storage facilities, greenhouses, agricultural warehouses, and equipment sheds benefit from steel wall cladding panels due to their corrosion resistance and long service life. The panels perform reliably even under humid farming environments.
Public Infrastructure
Schools, hospitals, museums, libraries, community centers, government buildings, and transportation terminals often utilize metal cladding systems for renovation and new construction projects. These panels help improve building insulation while enhancing overall visual appeal.
Energy and Industrial Facilities
Power plants, renewable energy projects, chemical factories, mining facilities, and equipment enclosures require durable wall systems capable of withstanding demanding operating environments. Metal cladding panels offer dependable protection while maintaining a clean architectural appearance.
Commercial Renovation Projects
Old industrial buildings and commercial properties can significantly improve their appearance by replacing traditional exterior walls with modern colored steel cladding panels. This renovation solution is fast, economical, and minimizes construction downtime.
Why Choose Our Metal Wall Cladding Roll Forming Machine?
Our Metal Colored Steel Wall Cladding Sheet Panel Roll Forming Machine combines reliable mechanical construction with advanced automation technology to help manufacturers improve production efficiency and product quality. Every production line can be customized according to panel profile, material thickness, production capacity, and local electrical standards.
With years of experience in cold roll forming equipment manufacturing, we provide complete technical support including machine design, profile customization, installation guidance, operator training, and after-sales service. Whether you are expanding an existing production line or establishing a new metal building material factory, this machine offers a dependable and cost-effective solution for producing high-quality wall cladding panels for global construction markets.
