The Automatic Sheet Metal Embossing Production Line is designed to deliver a highly efficient and stable solution for manufacturing embossed metal sheets. By integrating automatic uncoiling, embossing, recoiling, and intelligent control systems, the entire production process becomes continuous, accurate, and labor-saving.
Manufacturers can use this production line to process various metal materials such as color-coated steel, galvanized steel, aluminum sheets, and stainless steel plates. The system supports material thicknesses from 0.25 mm to 3 mm and a maximum sheet width of 1250 mm, making it suitable for multiple industrial applications.
More importantly, the machine focuses on energy efficiency and long-term operational stability. Through optimized mechanical transmission and frequency-controlled motors, the equipment reduces power consumption while maintaining high productivity. As a result, manufacturers can lower operational costs and improve overall production efficiency.
Flexible Embossing Patterns for Multiple Applications
One of the major advantages of this metal embossing line is its ability to produce a wide range of decorative and functional patterns. By replacing customized embossing rollers, the machine can create different surface textures according to customer requirements.
Common embossing patterns include:
- Wavy pattern
- Grid pattern
- Diamond pattern
- Dot pattern
- Leaf pattern
- Stripe pattern
- Water ripple stainless steel sheet
- Anti-skid metal plate pattern
- Water drop texture
These patterns are widely used in construction decoration, industrial panels, anti-slip flooring, elevator panels, kitchen equipment, and architectural cladding. Because the rollers are manufactured using laser engraving technology, the embossed patterns are clear, consistent, and durable.

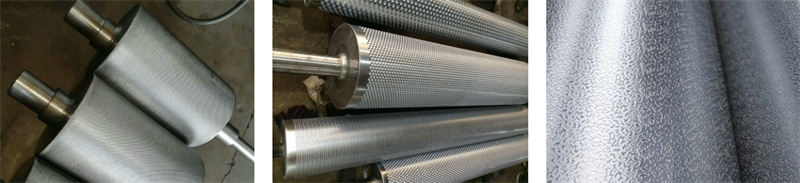

To ensure long-term performance, the embossing production line adopts a heavy-duty mechanical structure combined with a reliable hydraulic system. The embossing rollers are made from 9Cr2Mo alloy steel, and after heat treatment and high-frequency quenching, the roller hardness reaches HRC63–64. This significantly improves wear resistance and ensures precise pattern formation.
In addition, the system uses PLC control with a touch-screen interface, allowing operators to easily monitor and adjust machine parameters. The machine supports both automatic mode and manual mode, which simplifies production management and equipment debugging.
Furthermore, variable-frequency speed control allows the embossing speed to be adjusted smoothly according to material specifications and production requirements.
Main Components of the Embossing Production Line

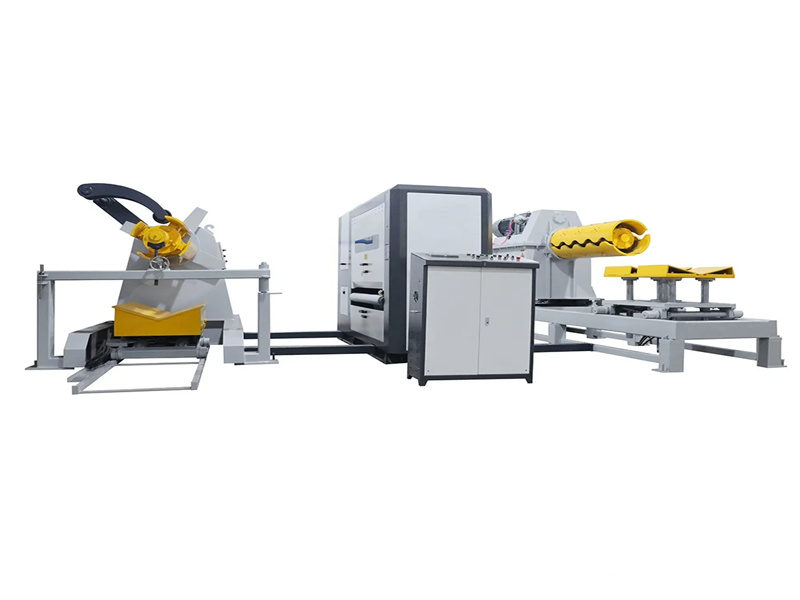

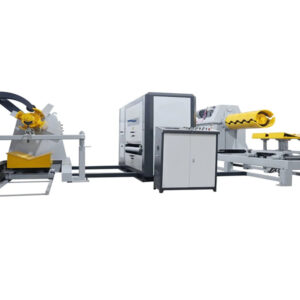

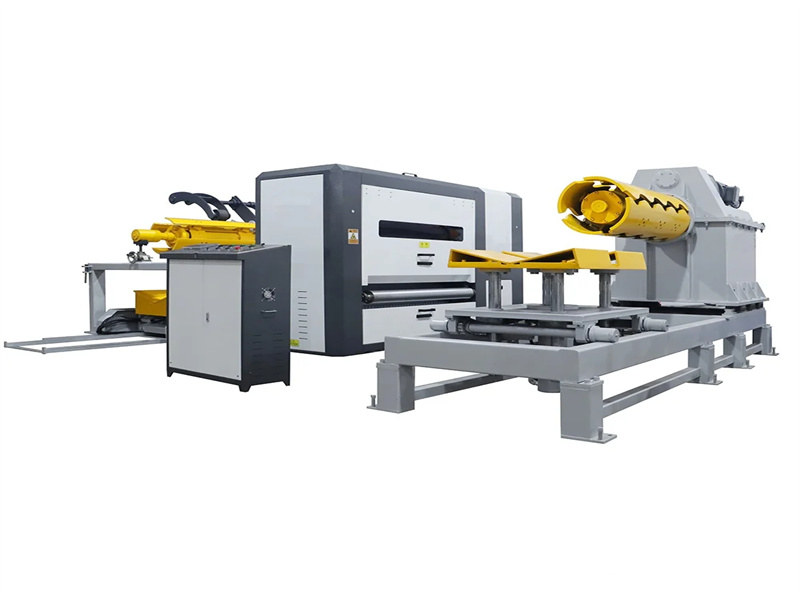

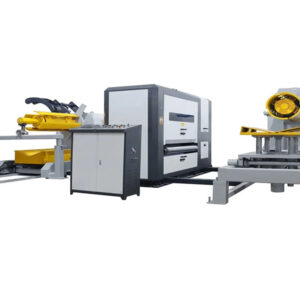

The sheet metal embossing line integrates several key machines to form a complete automated system:

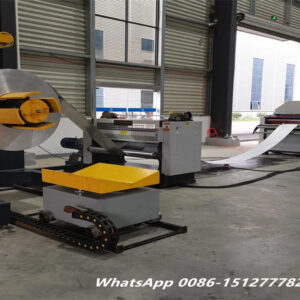

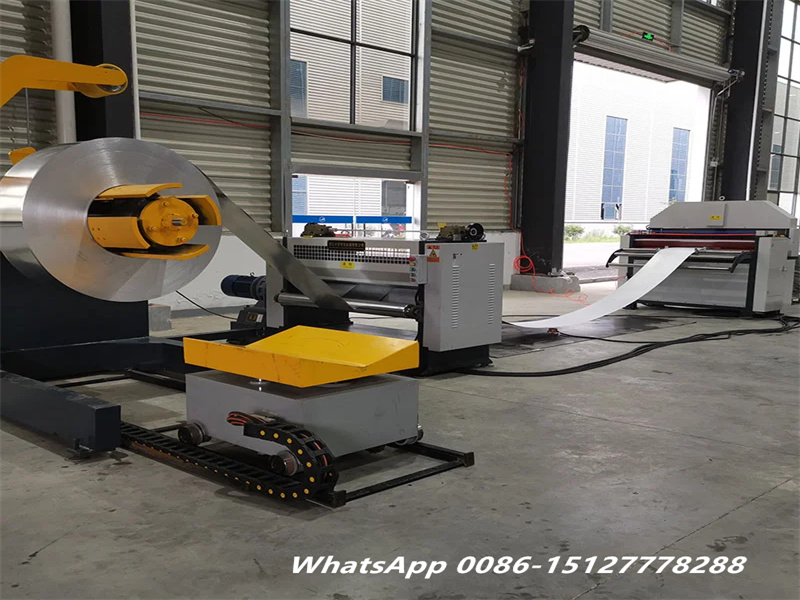

- Automatic Uncoiler with Hydraulic Loading Trolley
Handles metal coils up to 10 tons and automatically feeds the material into the production line. - Embossing Machine

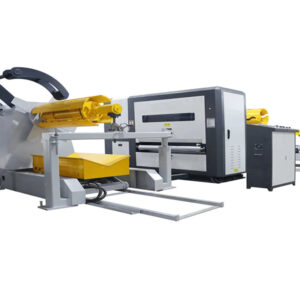

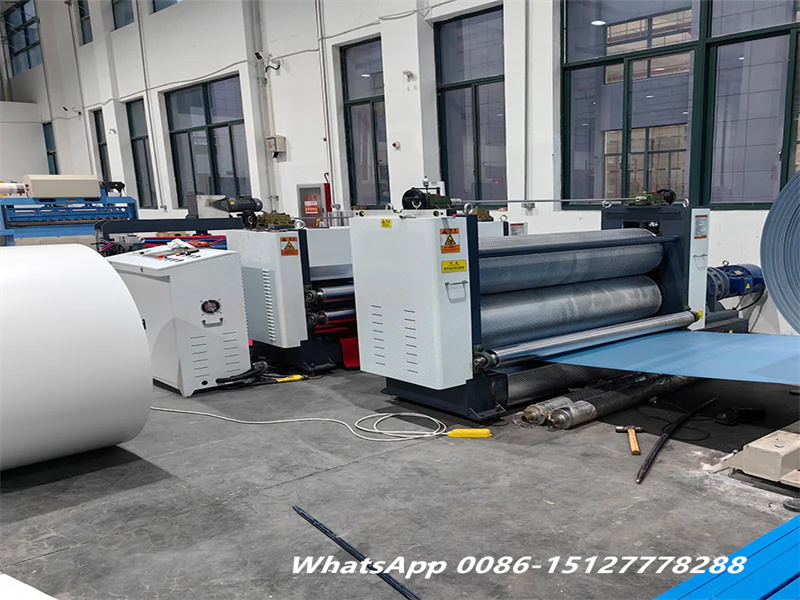

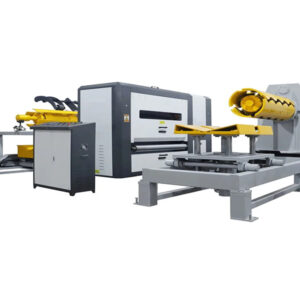

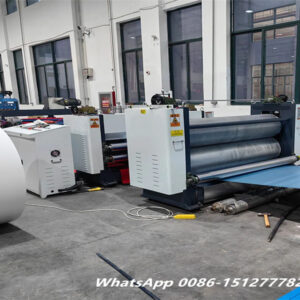

Equipped with large-diameter patterned rollers that press the metal sheet from both sides to create precise textures. - Automatic Recoiler with Hydraulic Trolley
Recoils finished embossed sheets neatly for easy transportation and storage. - Hydraulic Power Station
Provides stable hydraulic pressure for roller pressing and auxiliary mechanisms. - Electrical Control Cabinet
Centralizes machine operation and integrates PLC, frequency inverter, and safety protection systems.
Because each component operates under coordinated PLC control, the entire line runs smoothly while maintaining high production accuracy.
Technical Specifications
| Item | Specification |
|---|---|
| Material Type | Color-coated steel, galvanized steel, aluminum, stainless steel |
| Material Thickness | 0.25 – 3 mm |
| Maximum Sheet Width | 1250 mm |
| Embossing Roller Size | Ø500 × 1400 mm |
| Roller Material | 9Cr2Mo alloy steel |
| Roller Hardness | HRC63 – 64 |
| Production Speed | 1 – 30 m/min |
| Uncoiler Capacity | 10 Tons |
| Recoiler Capacity | 10 Tons |
| Main Motor Power | 30 KW |
| Control System | PLC + Touch Screen |
| Power Supply | 380V / 50Hz / 3 Phase |
Advantages of the Automatic Metal Embossing Line
Compared with traditional embossing equipment, this production line offers several practical advantages. First, the automated loading and recoiling systems greatly reduce manual handling. Second, the hydraulic pressure system ensures uniform embossing depth across the entire sheet width.
Meanwhile, the line adopts horizontal tension control, which synchronizes the uncoiler, embossing machine, and recoiler. This design improves sheet stability during processing and ensures that the finished coils remain flat and evenly wound.
Additionally, the machine includes infrared alignment devices, safety protection covers, and fault alarm systems, which significantly enhance operational safety and reliability.
