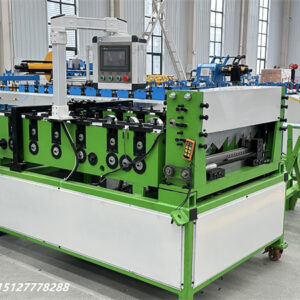

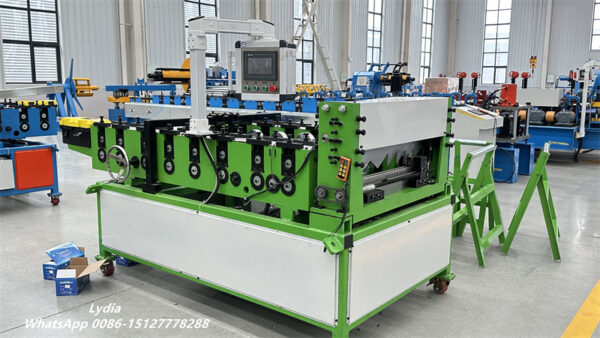

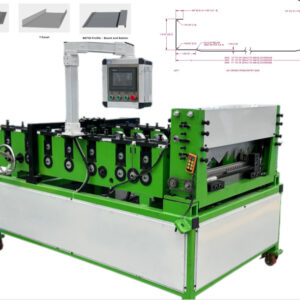

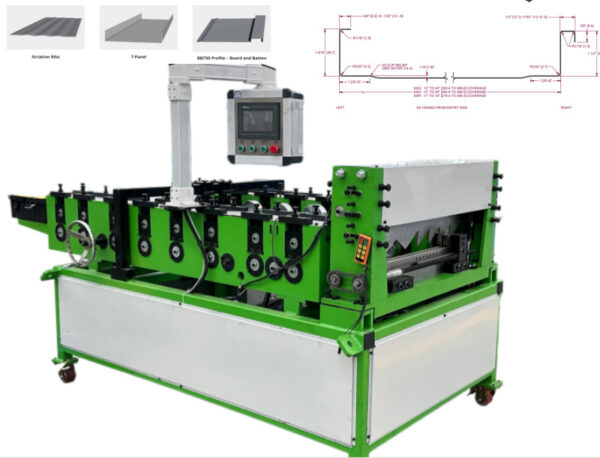

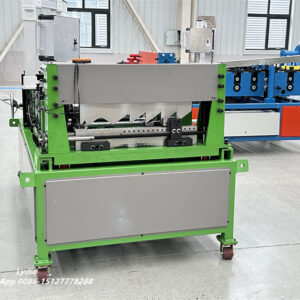

As the demand for standing seam metal roofing continues to grow worldwide, contractors and manufacturers need equipment that can produce multiple panel profiles efficiently and accurately. The SSQ II MultiPro Roof Panel Machine is designed to meet this need by offering exceptional flexibility, high production speed, and the ability to form a wide range of standing seam roofing and wall panel profiles from a single machine.
Whether you are producing mechanical seam panels, snap-lock roofing systems, or specialized architectural profiles, the SSQ II helps streamline production while reducing equipment investment.
Why Multi-Profile Roof Panel Machines Are Becoming More Popular
Modern roofing projects often require different panel configurations depending on building design, climate conditions, and installation methods. Instead of purchasing separate machines for each profile, many contractors now prefer versatile roll forming systems capable of producing multiple panel styles.
The SSQ II MultiPro allows manufacturers to quickly switch between popular standing seam profiles, helping businesses respond to changing project requirements while maximizing equipment utilization.

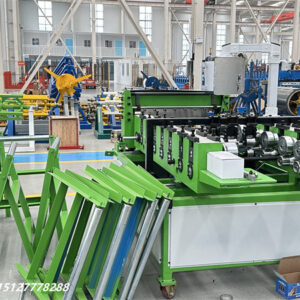

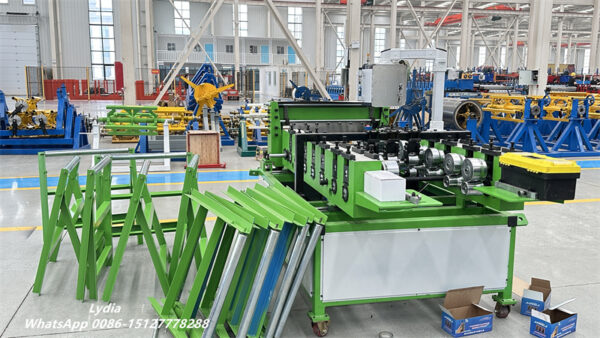

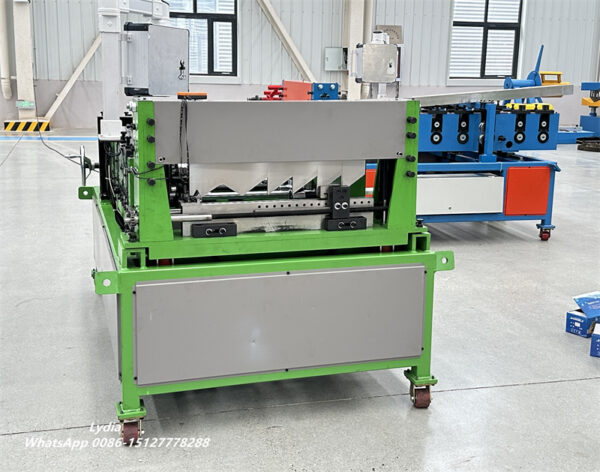

Furthermore, producing panels directly at the job site reduces transportation costs and minimizes the risk of panel damage during delivery.
Key Advantages of the SSQ II MultiPro System
The SSQ II stands out because it combines versatility with productivity.
First, its advanced PLC control system simplifies operation and improves production accuracy. Operators can quickly enter panel lengths and production settings through an intuitive control interface.
Second, the hydraulic drive and cutting system ensure smooth operation while reducing operator fatigue. Compared with traditional manual systems, automated controls help increase efficiency and minimize production errors.
Another major benefit is production speed. The machine can reach approximately 75 feet per minute, making it one of the fastest portable standing seam roll forming systems available.
Additionally, the ability to manufacture both roofing and siding profiles allows contractors to expand their service offerings and generate additional revenue opportunities.
Applications Across Residential and Commercial Projects
The wide profile selection enables the SSQ II to support numerous construction sectors.
SS450 and SS450SL snap-lock panels are particularly popular for residential homes, luxury villas, churches, schools, and light commercial buildings. Because these profiles do not require field seaming equipment, installation is faster and more cost-effective.

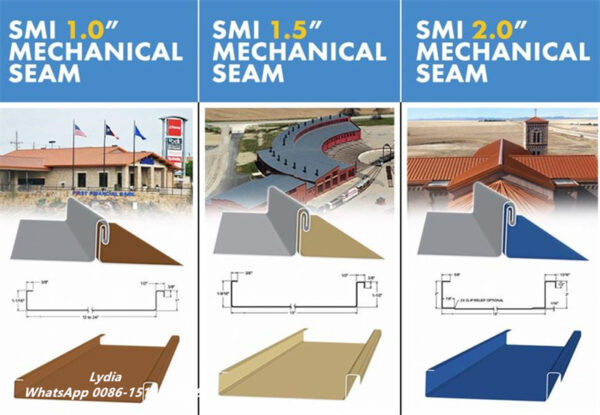

Meanwhile, SS100, SS150, SSQ200, and SSQ210A mechanical seam profiles are commonly specified for commercial buildings, warehouses, manufacturing facilities, government structures, airports, and projects located in high-wind regions. Mechanical seam systems provide enhanced weather resistance and superior long-term performance.
Consequently, contractors can use a single machine to serve both residential and commercial markets.

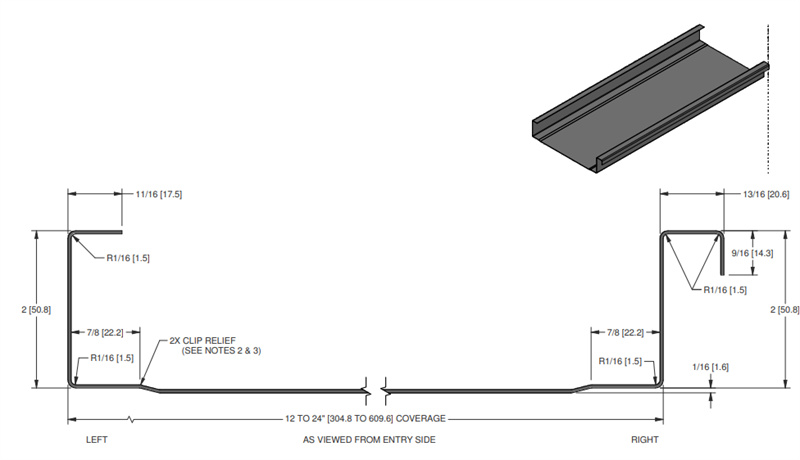

The SSQ200 2″ Mechanical Seam Profile is designed for demanding roofing environments that require superior weather protection. Featuring a 2-inch seam height, it supports 28–22 gauge steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper materials. The finished panel coverage can be adjusted from 12″ to 24″, and this profile is exclusively produced by the SSQ II MultiPro Roof Panel Machine. It is frequently specified for large commercial buildings, airports, government facilities, and architectural roofing systems exposed to severe weather conditions.

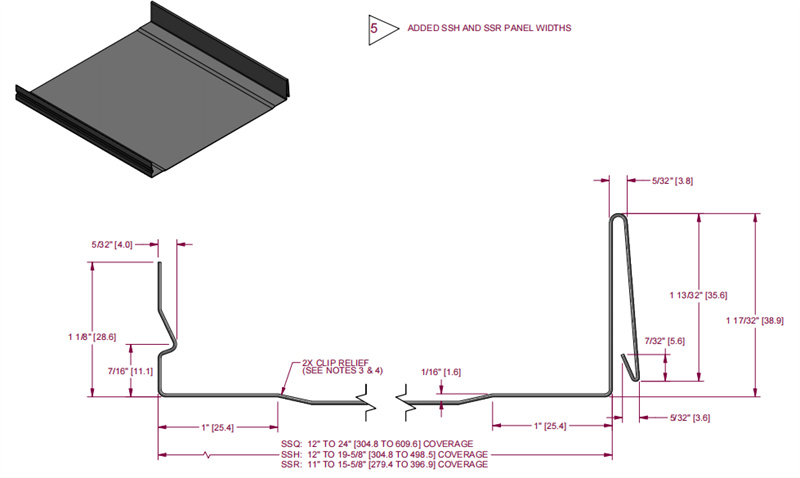

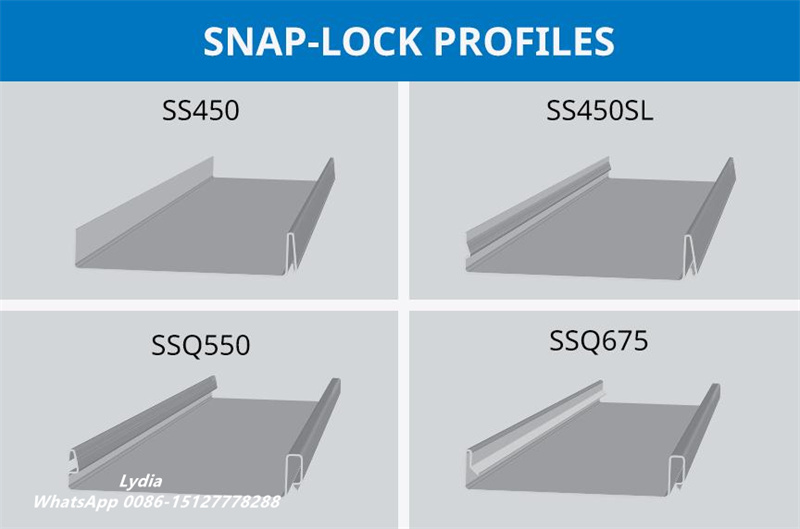

The SS450SL 1.5″ Snap-Lock Profile offers similar installation advantages to the SS450 while incorporating a slightly modified locking geometry for specific architectural requirements. It processes 28–22 gauge painted steel, Galvalume steel, coated galvanized steel, aluminized steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper. The panel coverage ranges from 12″ to 24″ on the SSQ II, 12″ to 19 5/8″ on the SSH, and 11″ to 15 5/8″ on the SSR MultiPro Jr. This profile is widely used on premium residential properties, architectural metal roofing systems, educational facilities, and commercial buildings requiring an attractive standing seam appearance combined with efficient installation.

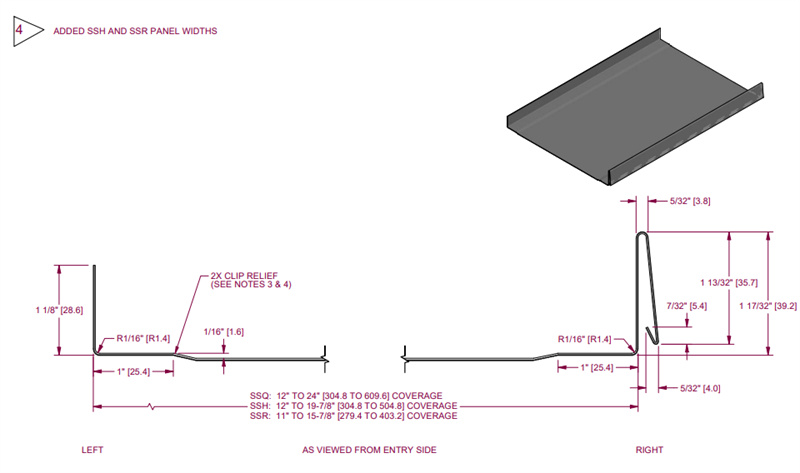

The SS450 1.5″ Snap-Lock Profile utilizes a snap-together installation system that eliminates the need for mechanical seaming during installation. It supports 28–22 gauge steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper. Panel coverage ranges from 12″ to 24″ on the SSQ II, 12″ to 19 7/8″ on the SSH, and 11″ to 15 7/8″ on the SSR MultiPro Jr. Due to its fast installation and clean appearance, the SS450 profile is a popular choice for residential homes, churches, retail buildings, agricultural structures, and light commercial projects.

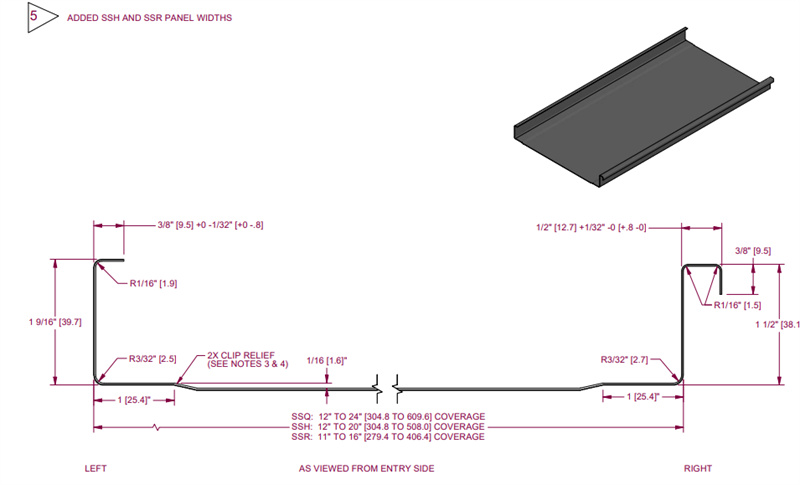

The SS150 1.5″ Mechanical Seam Profile incorporates a higher 1.5-inch standing seam for improved water-tightness and wind uplift resistance. It accommodates the same material range as the SS100, including steel, aluminum, and copper roofing materials. Panel coverage is available from 12″ to 24″ on SSQ II, 12″ to 20″ on SSH, and 11″ to 16″ on SSR MultiPro Jr. Because of its enhanced structural performance, this profile is widely selected for commercial buildings, industrial facilities, schools, warehouses, and low-slope roofing applications.
The SS100 1″ Mechanical Seam Profile features a 1-inch high standing seam designed for mechanically locked roofing systems. It can process 28–22 gauge painted steel, Galvalume steel, coated galvanized steel, aluminized steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper. The panel coverage ranges from 12″ to 24″ on the SSQ II, 12″ to 20″ on the SSH, and 11″ to 16″ on the SSR MultiPro Jr. This profile is commonly used for residential roofing, light commercial buildings, and architectural metal roof projects where durability and weather resistance are required.
Materials and Production Capabilities
The SSQ II is engineered to process a variety of metal roofing materials commonly used throughout North America, Europe, Australia, and other international markets.
Compatible materials include:
- Painted steel
- Galvalume steel
- Coated galvanized steel
- Aluminized steel
- Painted aluminum
- Copper
The machine can typically process:
- Steel thickness: 28–22 gauge
- Aluminum thickness: 0.027″–0.040″
- Copper thickness: 16 oz. to 20 oz.
In addition, finished panel widths can be adjusted according to the selected profile, providing greater flexibility for different roofing systems.
As a result, manufacturers can produce custom-length panels on demand while maintaining consistent quality and dimensional accuracy.
| Item | Specification |
|---|---|
| Machine Model | SSQ II MultiPro Roof Panel Machine |
| Machine Type | Portable Standing Seam Roof Panel Roll Forming Machine |
| Supported Profiles | SS100 (1″ Mechanical Seam), SS150 (1.5″ Mechanical Seam), SSQ200 (2″ Mechanical Seam), SSQ210A (2″ ARMCO Mechanical Seam), SS450 (1.5″ Snap-Lock), SS450SL (1.5″ Snap-Lock), SMI 550, SMI 1.75″, Fastener Flange Profiles, T-Panel, Trapezoid Panels |
| Number of Profiles | Up to 15 Different Profiles |
| Forming Method | Roll Forming |
| Control System | PLC Automatic Control System |
| Drive System | Hydraulic Drive |
| Cutting System | Hydraulic Shear Cutting |
| Production Speed | Approx. 75 ft/min (23 m/min) |
| Finished Panel Width | 10″ – 16″ (254 – 406 mm) |
| Steel Thickness | 28 – 22 Gauge |
| Aluminum Thickness | 0.019″ – 0.040″ (0.48 – 1.0 mm) |
| Copper Thickness | 16 oz – 20 oz (3/4 Hard Copper) |
| Coil Materials | Painted Steel, Galvalume Steel, Galvanized Steel, Aluminized Steel, Aluminum, Copper |
| Panel Length Control | Automatic Length Programming |
| Application | Roofing Panels & Wall Cladding Panels |
| Installation Mode | Factory Production or On-Site Production |
| Typical Markets | Residential, Commercial, Industrial, Architectural Projects |
A Smart Investment for Growing Roofing Businesses
For roofing contractors looking to expand their capabilities, the SSQ II MultiPro offers a practical long-term solution. Instead of purchasing several dedicated roll forming machines, businesses can produce a wide variety of standing seam profiles using one versatile platform.
Its combination of profile flexibility, high production speed, material compatibility, and advanced automation makes it an excellent choice for companies involved in standing seam metal roofing, architectural metal panels, and portable on-site panel production.
As project requirements continue to evolve, investing in a multi-profile standing seam roll forming machine can help contractors remain competitive while improving operational efficiency and profitability.
