Zhongtuo 25m/min C Purlin Roll Forming Machine Automatic C Channel Machine

A C Purlin Roll Forming Machine is a fully automated cold roll forming machine specifically designed to manufacture high-strength C steel purlins from galvanized steel coils, cold rolled steel, or hot rolled steel strips. As one of the most popular steel purlin roll forming machines in the construction industry, it continuously performs feeding, leveling, punching, roll forming, hydraulic cutting, and discharging in one production line. Compared with conventional fabrication methods, the automatic C purlin machine delivers higher production efficiency, greater dimensional accuracy, and lower material waste. Consequently, manufacturers can reduce production costs while maintaining consistent product quality. Whether you are producing C channel purlins for industrial buildings, commercial projects, or prefabricated steel structures, this C channel roll forming machine provides a reliable and economical manufacturing solution.

Applications of C Steel Purlins in Modern Construction

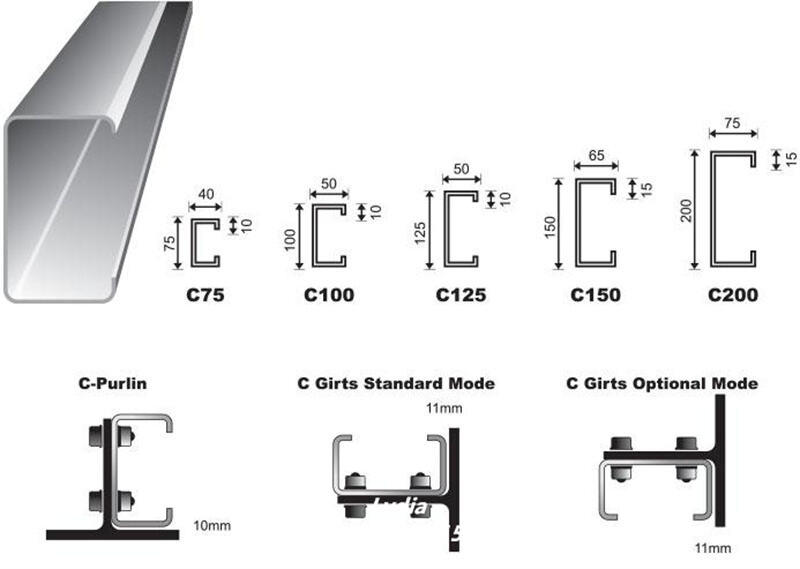

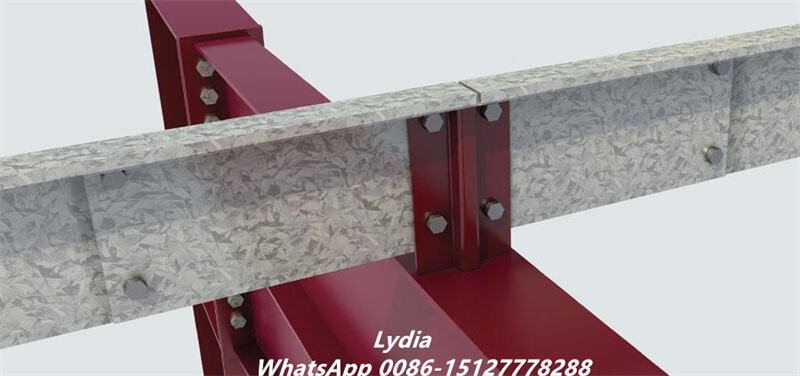

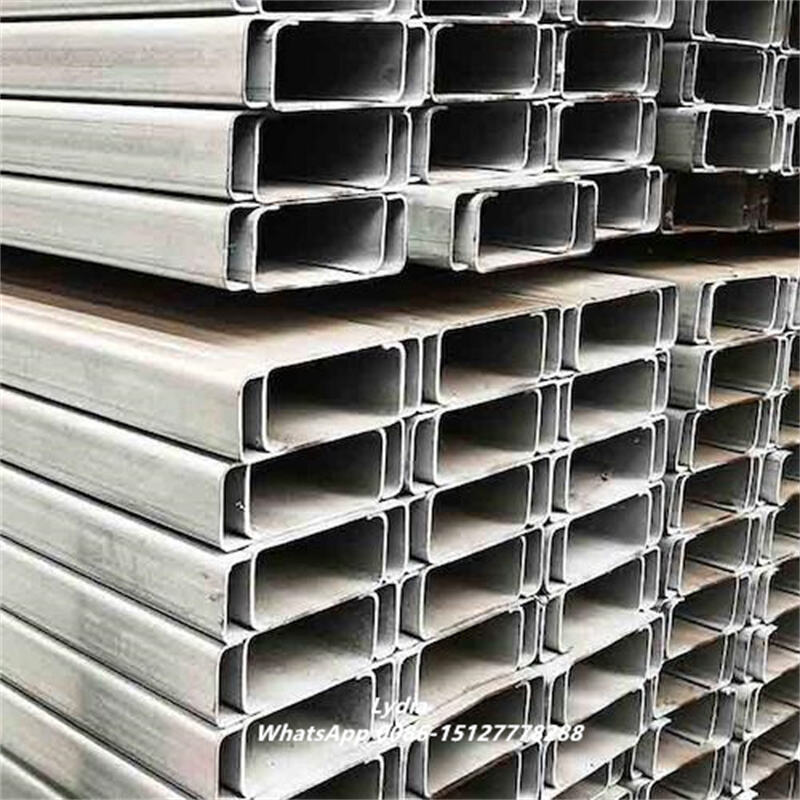

C steel purlins are among the most widely used structural components in modern steel buildings because they provide excellent load-bearing performance while remaining lightweight. Installed between the primary steel frame and roofing or wall cladding, C purlins evenly distribute structural loads and improve the stability of the entire building. Thanks to their high strength-to-weight ratio, these profiles are easy to transport, simple to install, and highly resistant to deformation. Therefore, C purlins are extensively used in warehouses, factories, workshops, logistics centers, shopping malls, agricultural buildings, aircraft hangars, commercial buildings, residential steel structures, and steel structure construction projects. As global demand for prefabricated buildings continues to increase, investing in a professional C purlin forming machine allows manufacturers to meet market requirements with greater efficiency and flexibility.

Intelligent C Purlin Roll Forming Machine for Continuous Production

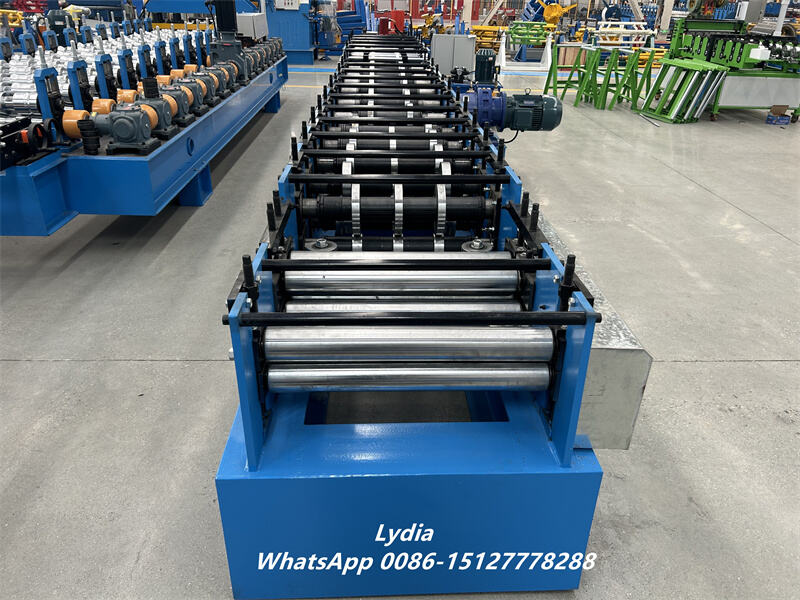

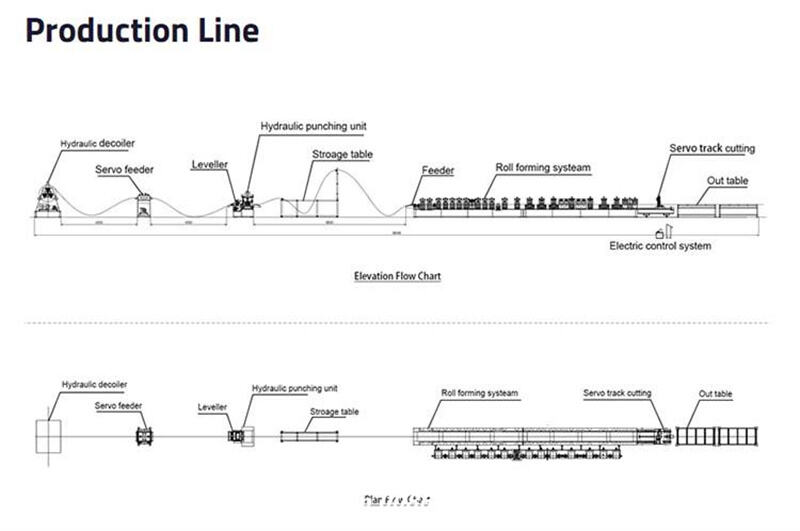

The Zhongtuo C Purlin Roll Forming Machine integrates coil feeding, leveling, servo or hydraulic punching, precision roll forming, hydraulic cutting, PLC control, and automatic material discharge into one intelligent production line. After operators enter production parameters through the PLC touch screen, the automatic roll forming machine completes the entire manufacturing process without complicated manual adjustments. This intelligent control system not only improves production efficiency but also guarantees consistent dimensions and excellent surface quality for every finished C channel.

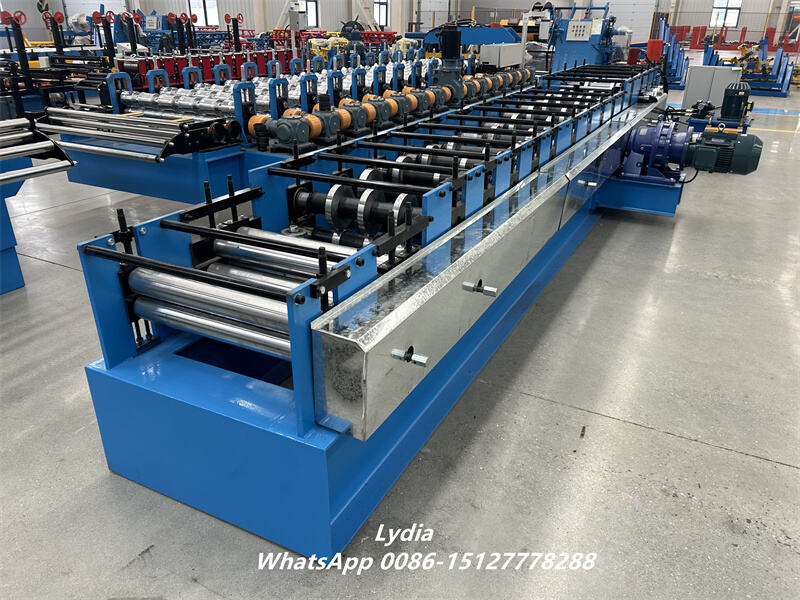

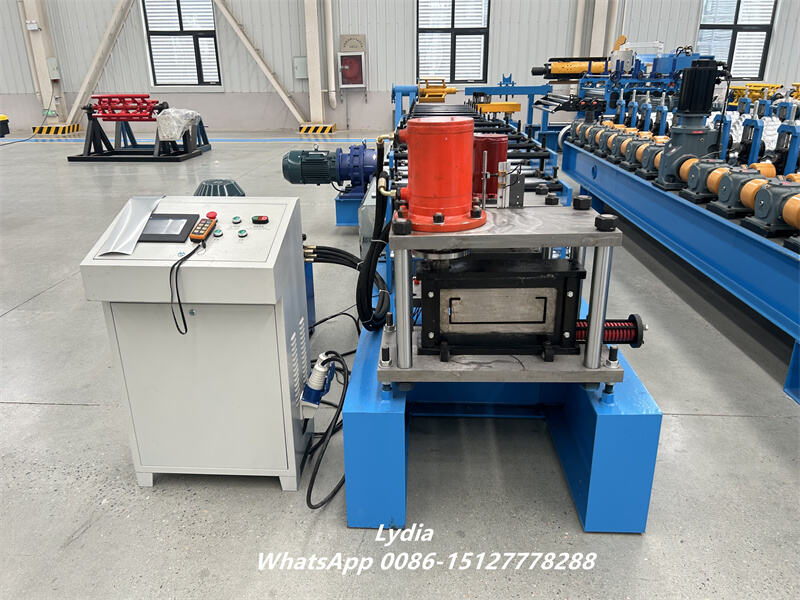

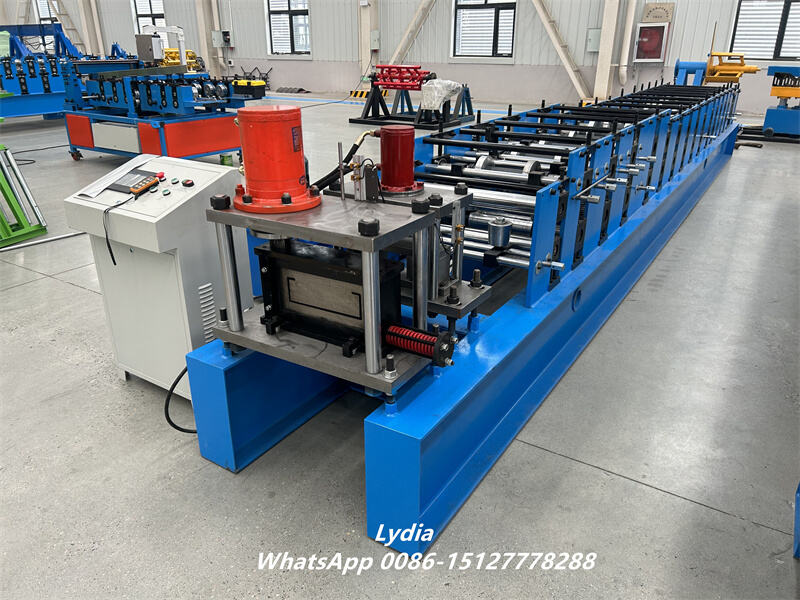

Furthermore, the machine adopts a heavy-duty frame together with precision-machined forming rollers to ensure stable operation during continuous production. High-quality rollers accurately form the steel strip while reducing scratches and deformation, enabling the machine to process galvanized steel with thicknesses ranging from 1.0 mm to 3.0 mm. Meanwhile, the hydraulic punching and cutting system provides precise hole locations and accurate cutting lengths, ensuring every finished steel C purlin satisfies engineering standards. In addition, the modular machine structure simplifies maintenance and allows faster size adjustments, helping manufacturers improve productivity while reducing downtime.

Technical Specifications of the C Purlin Roll Forming Machine

The C purlin roll forming machine can be customized according to different profile drawings, production capacities, and customer requirements.

The machine incorporates internationally recognized components, including Siemens PLC, Schneider HMI, Mitsubishi inverter, Omron encoder, Yuken hydraulic system, and SKD11 cutting blades. These premium components significantly improve machine stability, extend service life, and maintain high forming accuracy during long production cycles. Optional automatic stacking and packaging systems can also be integrated to create a fully automated C purlin production line, further reducing labor costs and increasing production efficiency.

Why Choose Zhongtuo as Your C Purlin Roll Forming Machine Manufacturer

As a professional roll forming machine manufacturer, Zhongtuo has extensive experience in designing and producing customized C purlin roll forming machines for customers around the world. We provide complete manufacturing solutions rather than simply supplying equipment. From profile design and machine customization to installation, commissioning, operator training, and after-sales service, our engineering team supports customers throughout the entire project lifecycle.

Every steel purlin roll forming machine undergoes comprehensive testing before shipment to ensure stable performance and reliable production after installation. By combining advanced manufacturing technology, strict quality control, and international electrical components, Zhongtuo helps customers improve production efficiency, lower manufacturing costs, and produce high-quality C steel purlins that meet international construction standards.
