In Australia, metal fencing has become one of the most popular choices for residential, commercial, and industrial properties. Property owners prefer steel fencing because it delivers excellent durability, modern appearance, and long service life with very little maintenance. To meet this growing demand, our Australia Corrugated Metal Fence Panel Machine provides a complete and efficient manufacturing solution for producing high-quality Colorbond-style fencing systems.
This production solution can manufacture corrugated fence sheets, fence rails, and fence posts with stable forming accuracy and excellent production efficiency. Therefore, it is widely suitable for fencing manufacturers, building material suppliers, and steel structure companies targeting the Australian and overseas fencing markets.
The finished fence panels combine classic corrugated aesthetics with strong structural performance. Moreover, the interlocking fence structure improves installation efficiency while creating a cleaner and more secure boundary system.
Why Colorbond Steel Fencing Is Popular
Steel fencing is widely recognized for its excellent weather resistance and long-term durability. Thanks to its multi-layer protection technology, the steel surface can resist corrosion, UV exposure, rain, and harsh environmental conditions commonly found across Australia.
Additionally, Colorbond-style fencing offers several practical advantages:
- Strong resistance against wind and outdoor impact
- Minimal maintenance after installation
- Modern and clean visual appearance
- Excellent privacy protection
- Multiple powder-coated color options
- Long-lasting coating performance without peeling or fading
Because of these advantages, corrugated steel fencing is commonly used for:

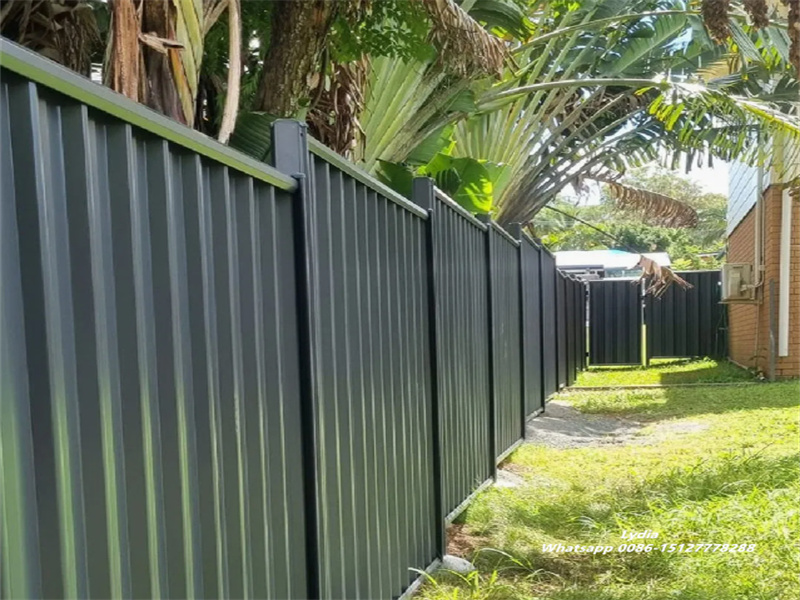

- Residential backyard fencing
- Commercial property boundaries
- Industrial security fencing
- Warehouse perimeter protection
- Farm and rural fencing systems
- Public infrastructure projects
Furthermore, fence panels are available in multiple heights and widths, making them suitable for different installation requirements and project scales.

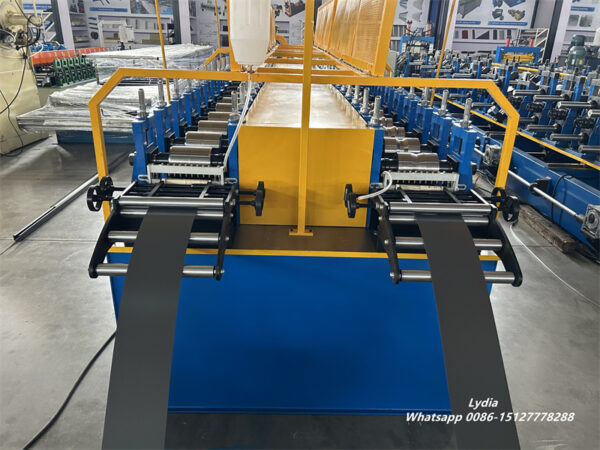

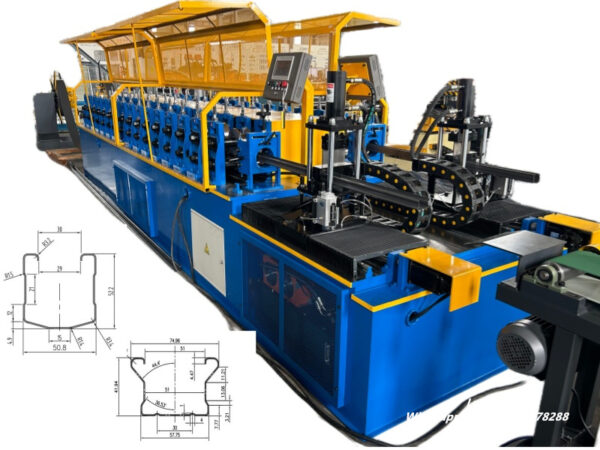

Complete Metal Fence Manufacturing Machine

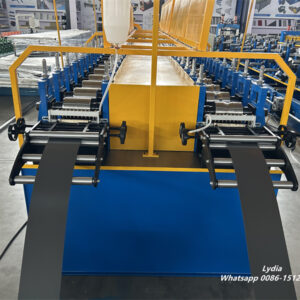

Unlike a single-purpose roll forming machine, this fencing production system normally includes three separate forming lines. Each machine focuses on one important fencing component, allowing manufacturers to achieve higher production flexibility and better product consistency.
Main Production Lines
| Machine Type | Main Function | Material Thickness |
|---|---|---|
| Fence Panel Roll Forming Machine | Produces corrugated steel fence sheets | 0.3–0.7mm |

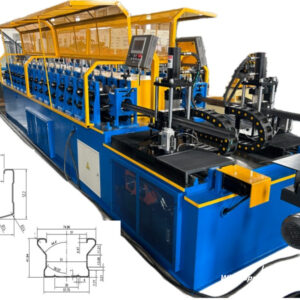

| Fence Post Machine | Manufactures galvanized steel fence posts | 0.85mm |

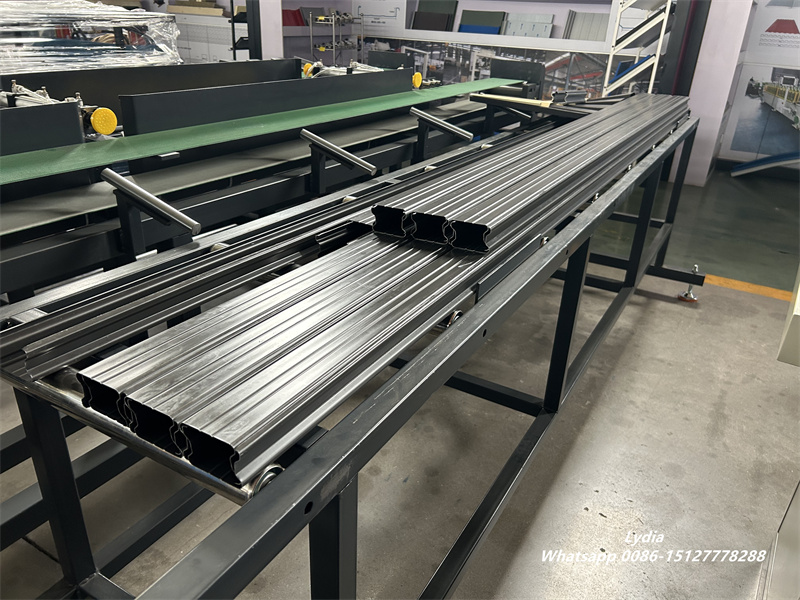

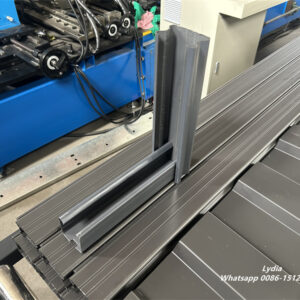

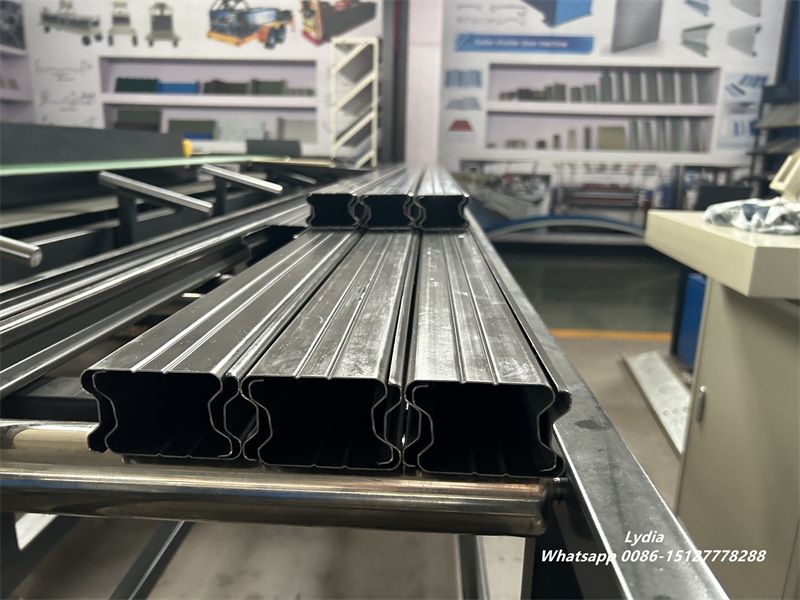

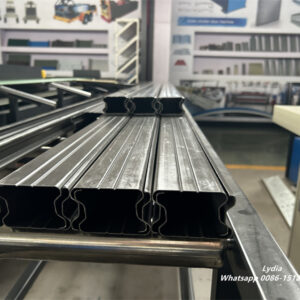

| Fence Rail Machine | Produces fence rails and support channels | 0.85mm |
Each production line typically includes:

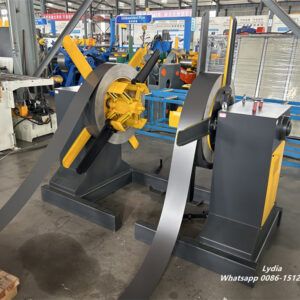

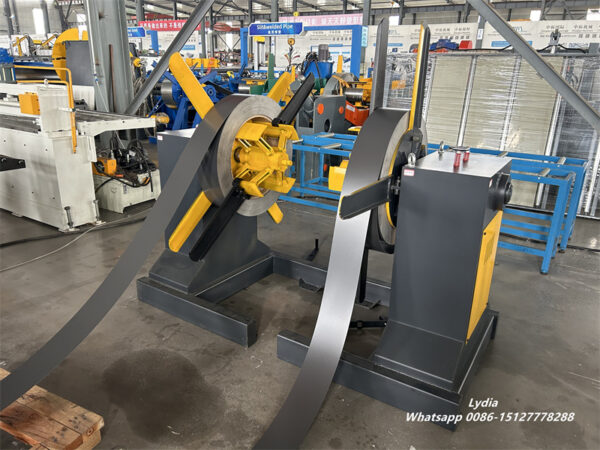

- Manual decoiler
- Roll forming machine
- PLC control system

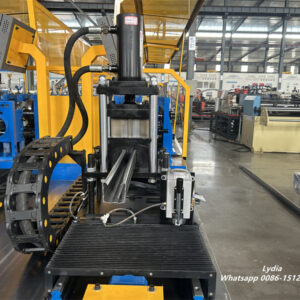

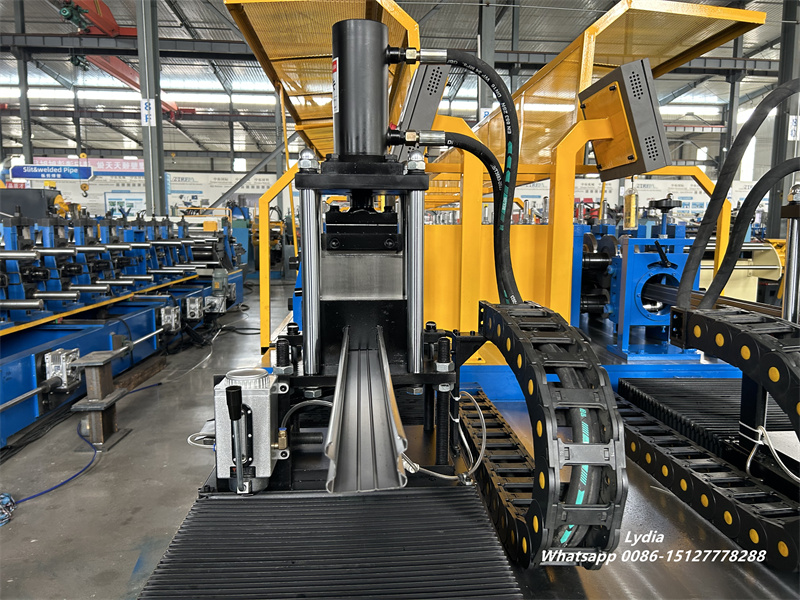

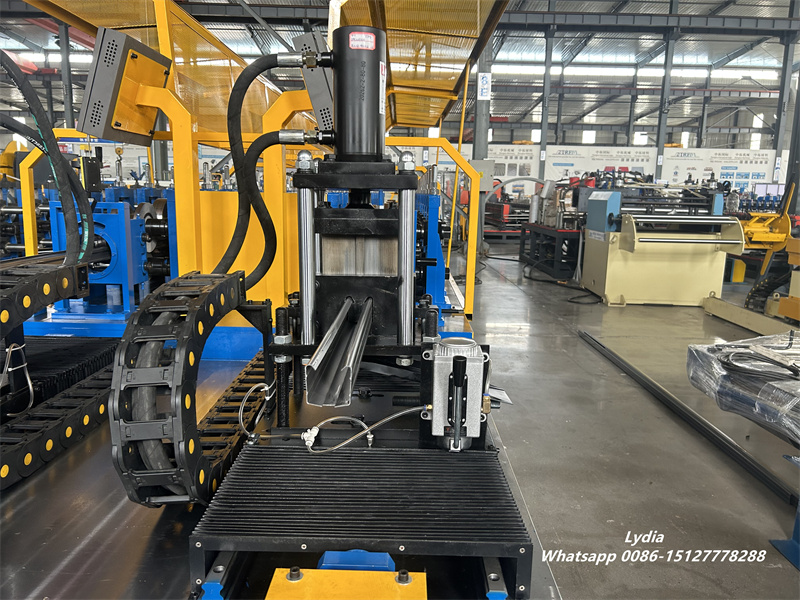

- Hydraulic cutting station

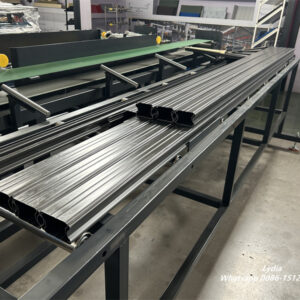

- Run-out table
- Hydraulic power station
In addition, the full production layout requires approximately 20 meters in length and 6 meters in width, which makes it practical for medium and large-scale fencing factories.

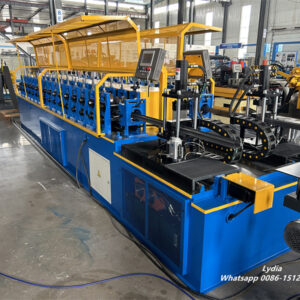

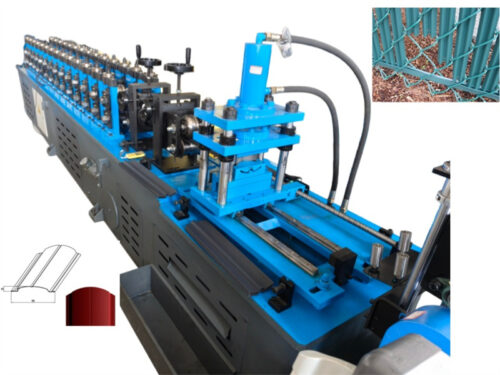

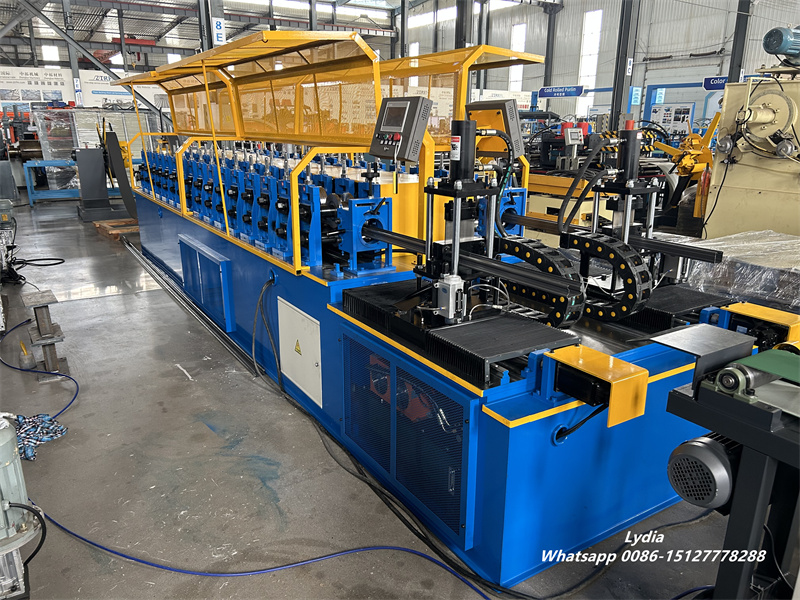

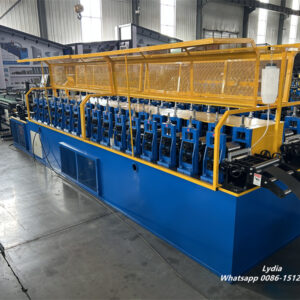

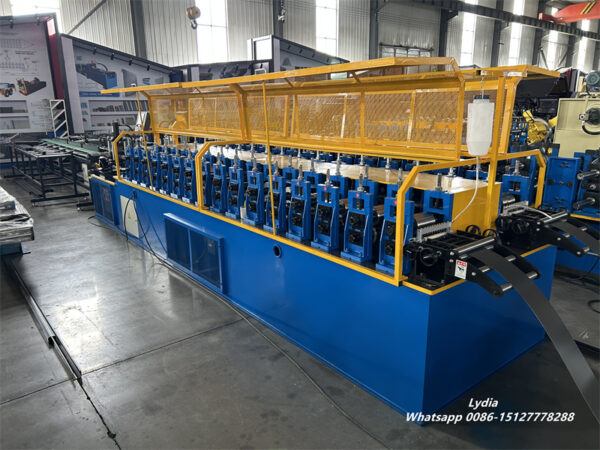

Technical Specifications of the Fence Panel Machine

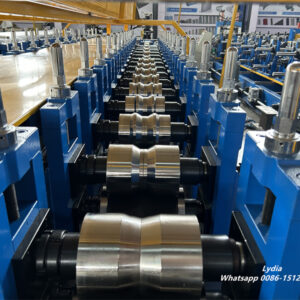

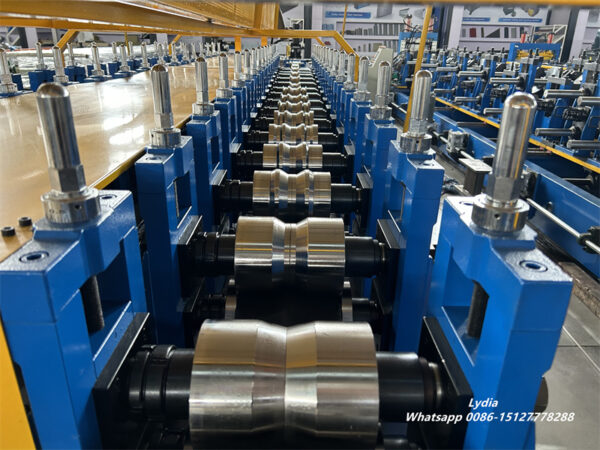

The machine adopts a heavy-duty wall plate structure to ensure forming stability during continuous production. At the same time, the roller system improves profile precision and helps reduce material waste.
Main Technical Parameters
| Item | Specification |
|---|---|
| Machine Weight | About 7500kgs |
| Machine Size | About 10m × 1.7m × 1.5m |
| Main Color | Blue |
| Warning Color | Yellow |
| Suitable Material | Colored Steel Coils |
| Material Thickness | 0.3–0.7mm |
| Forming Stations | About 14 Stations |
| Shaft Diameter | 70mm |
| Production Speed | 15–20m/min |
| Roller Material | No.45 Steel with Chrome Coating |
| Cutter Material | CR12 Mould Steel with Quenched Treatment |
| Control System | PLC and Frequency Converter |
| Main Motor Power | 7.5kw |
| Hydraulic Power | 3kw |
| Voltage | Customized According to Customer Requirements |
The machine frame uses 18mm wall plates, which significantly improve operational stability. Consequently, the forming process becomes smoother and more reliable even during long working hours.

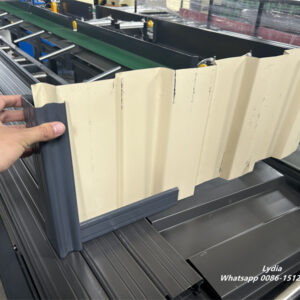

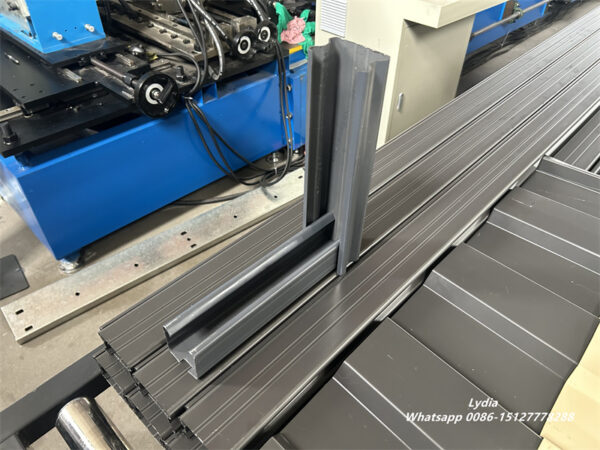

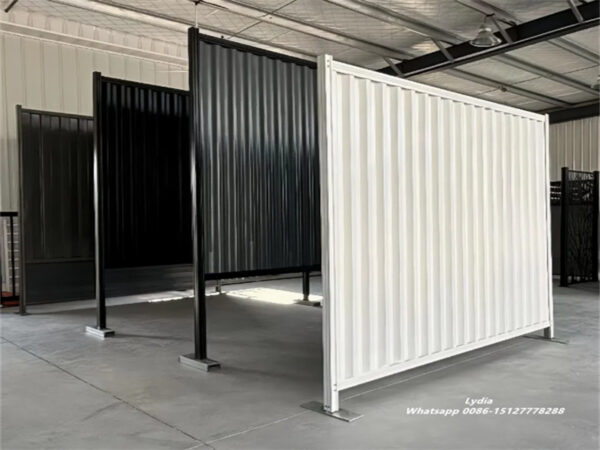

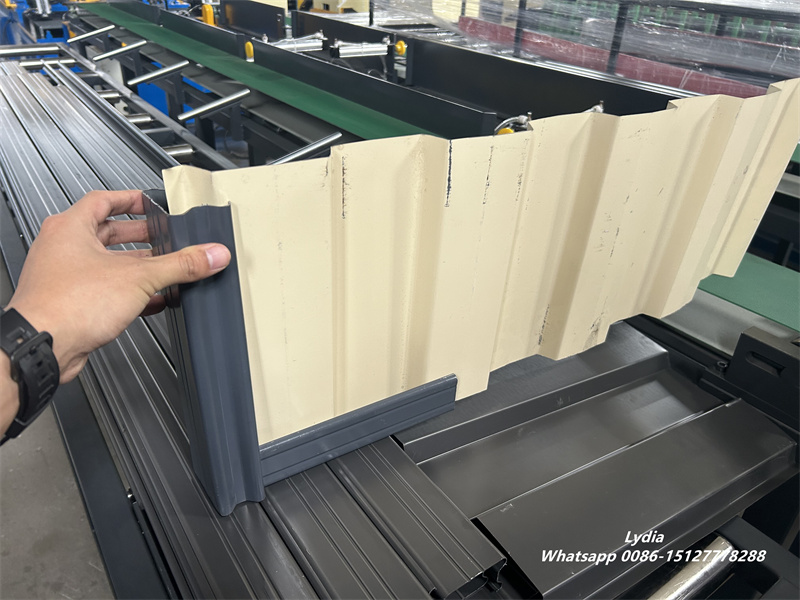

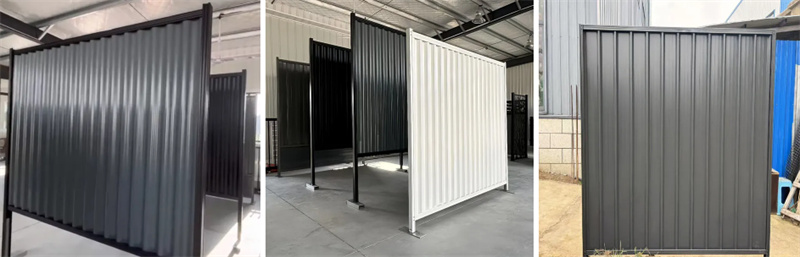

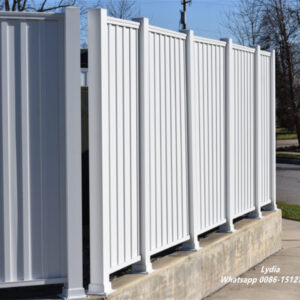

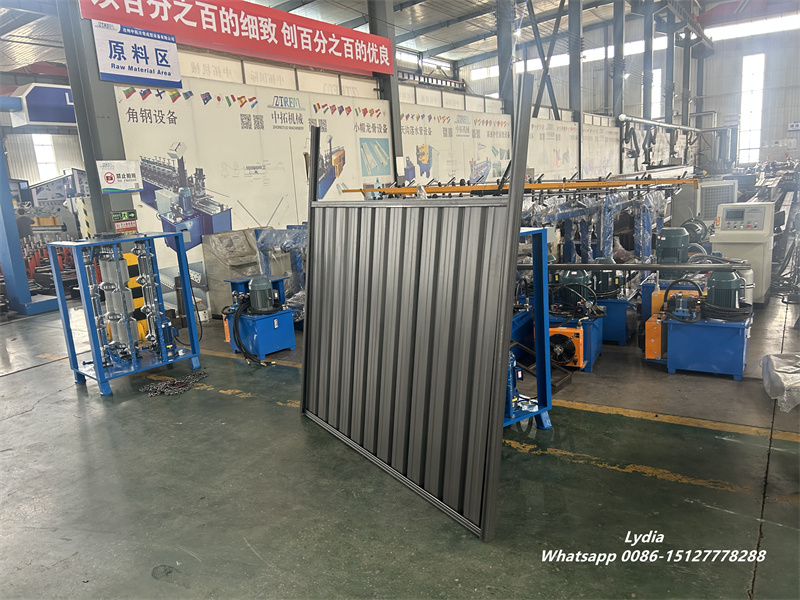

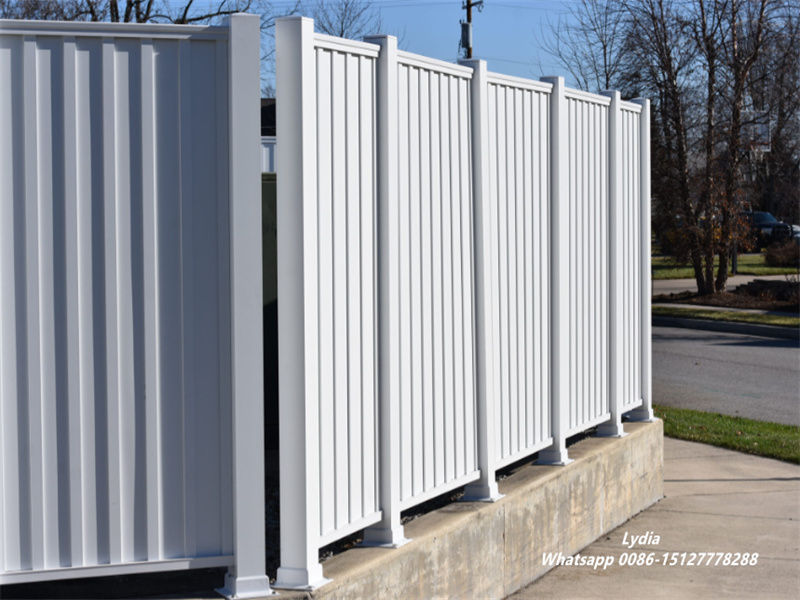

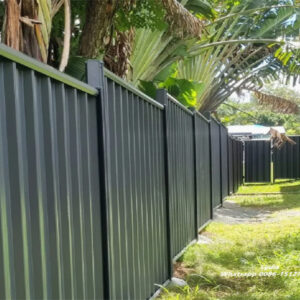

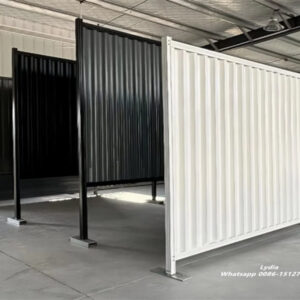

Finished Fence Products and Standard Configurations
The completed fencing system usually includes fence panels, posts, rails, screws, gates, and protective accessories. Since different projects require different dimensions, customers can customize sizes and colors according to local market demand.
Standard Fence System Configuration
| Component | Specification |
|---|---|
| Fence Panel Size | 2.4m × 1.8m / 2.4m × 2.1m |
| Steel Post | 2pcs × 2.4m × 0.85mm |
| Steel Rail | 2pcs × 2.4m × 0.85mm |
| Corrugated Sheet | 3pcs × 1.8m/2.1m × 0.45mm |
| Screws | 15pcs per set |
| Gate Options | Single Gate / Double Gate |
| Weight Per Set | About 29.5kgs |
| Surface Finish | Powder Coated |
| Common Colors | Black, Grey, Green or Customized |
| Warranty | 5 Years |
Additionally, the powder-coated surface treatment uses high-quality coatings similar to Akzo Nobel standards, helping the fencing maintain long-term color stability and corrosion resistance.
Manufacturers can also customize:
- Flat top fence designs
- Spear top fence systems
- Different rail dimensions
- Multiple post diameters
- RAL color selections
Therefore, the production line can adapt to both standard Australian fencing profiles and customized international market designs.
Efficient Production with Long-Term Business Value
Modern fencing manufacturers require equipment that combines speed, precision, and low maintenance costs. Our corrugated metal fence panel machine delivers all three advantages while supporting long-term production stability.
Compared with traditional fabrication methods, roll forming technology provides:
- Faster production efficiency
- Lower labor costs
- Consistent profile dimensions
- Reduced material waste
- Easier mass production
- Better surface appearance
Most importantly, steel fence sheets produced by this machine offer strong resistance against natural outdoor conditions while maintaining an attractive modern appearance for many years.
As global demand for durable and low-maintenance fencing continues to increase, investing in a reliable metal fence panel roll forming machine can help manufacturers expand production capacity and improve market competitiveness. Whether you plan to produce corrugated fence sheets, posts, or rails, this complete fencing production solution offers stable performance and flexible customization for modern fencing businesses.
