The Steel Foot Plate Footpedal Roll Forming Machine is designed to produce high-quality metal scaffold walk boards with stable performance, accurate dimensions, and efficient automation. In the construction industry, scaffold planks must offer reliable strength, anti-slip performance, and long service life. Therefore, manufacturers need a machine that can ensure both productivity and product consistency.

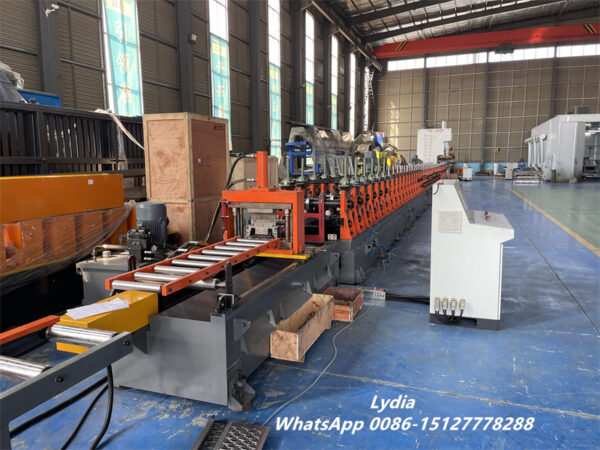

To meet these requirements, ZTRFM provides a complete Metal Scaffold Walk Board Roll Forming Machine that combines decoiling, leveling, servo feeding, punching, roll forming, riveting, edge shaping, and cutting in one continuous line. As a result, users can reduce labor costs, improve production efficiency, and maintain stable finished product quality.
Why Steel Scaffold Walk Boards Are Widely Used
Steel scaffold walk boards play an important role in construction sites, maintenance projects, industrial platforms, and temporary access systems. Compared with traditional materials, steel boards provide higher strength, better durability, and more consistent quality. In addition, perforated and shaped scaffold planks improve safety by creating anti-slip surfaces and enhancing drainage performance.
Because modern scaffold systems must adapt to different site conditions, the demand for high-quality steel walk boards continues to grow. That is why more manufacturers are investing in automatic roll forming lines for scaffold plank production.
What the Machine Can Produce

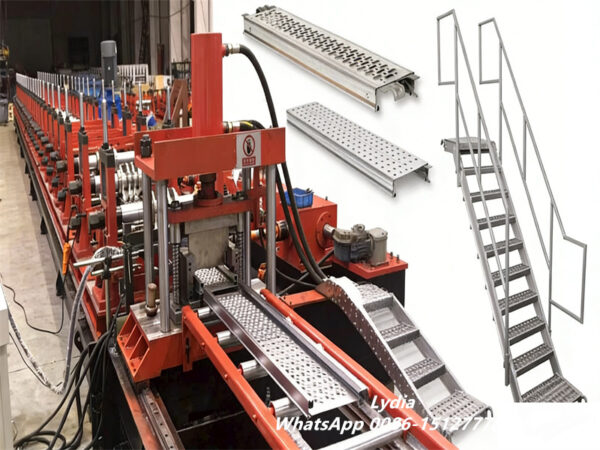

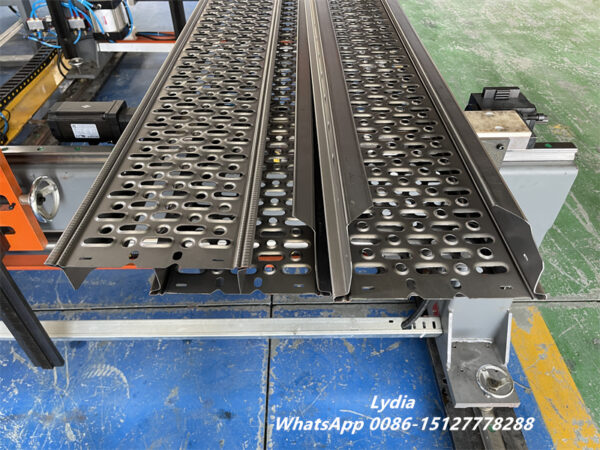

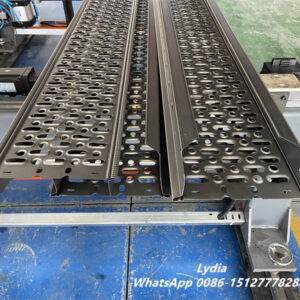

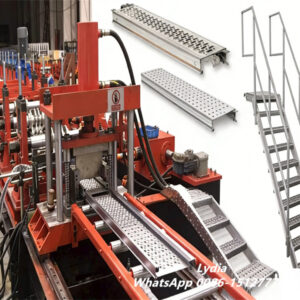

This machine is suitable for producing various scaffold-related products, such as steel scaffold planks, metal walk boards, foot pedal boards, perforated scaffold decks, and other customized scaffold platform profiles. According to the drawing confirmed by both parties, the production line can manufacture different shapes, hole patterns, and edge structures.
In this way, the machine can satisfy the requirements of different scaffold systems and local market standards.

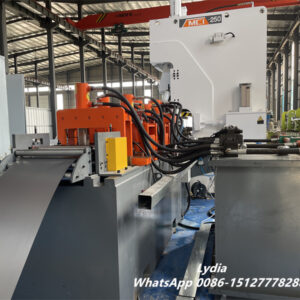

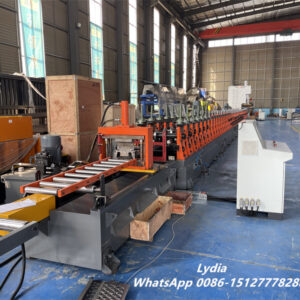

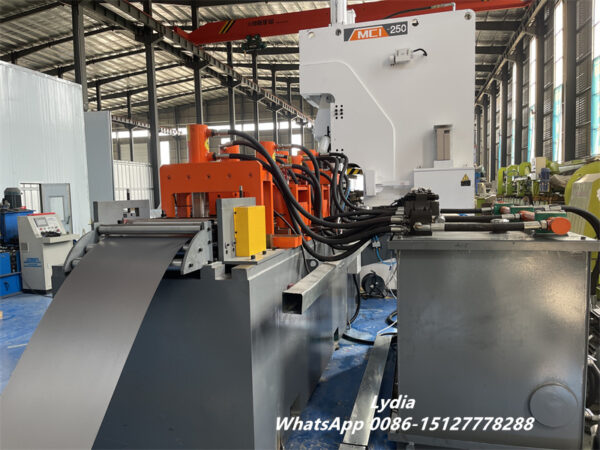

The production line follows a highly efficient and stable workflow. First, the metal coil enters the integrated decoiling and leveling unit. Next, the servo feeding and punching system completes hole punching and stretching operations with high precision. Then, the strip moves through guiding and clamping devices before entering the roll forming section.
After the profile is gradually formed, the machine carries out riveting and edge forming to strengthen the structure. Finally, the servo tracking saw cuts the finished scaffold walk board to the required length. As a result, the whole process remains continuous, automatic, and reliable.
Production Flow:
Decoiling & Leveling 2 in 1 → Servo Feeding + Punching → Guiding → Clamping → Roll Forming → Riveting → Edge Forming → Riveting → Servo Tracking Saw Cutting
Main Advantages of the Machine
The biggest advantage of this machine is its ability to combine automation, precision, and durability in one system. First of all, the integrated production line reduces manual handling and saves workshop space. Meanwhile, the PLC control system makes operation easier and improves coordination among all sections.
Furthermore, the servo feeding system ensures accurate material feeding, while the hydraulic punching unit creates clean and consistent holes. The roll forming section uses a strong structure and precision-machined rollers, so it delivers stable forming results even during long production runs. In addition, the servo tracking cutting system improves efficiency because it cuts accurately without stopping the line.
Therefore, manufacturers can achieve better output, lower waste, and more competitive product quality.
Main Technical Parameters
| Item | Specification |
|---|---|
| Raw Material | Galvanized steel, cold rolled steel |
| Material Thickness | ≤ 2.0 mm |
| Coil Width | ≤ 900 mm |
| Decoiler Capacity | 5 tons |
| Leveling Rollers | 7 rollers, φ52.5 mm |
| Servo Feeder | NC-900 |

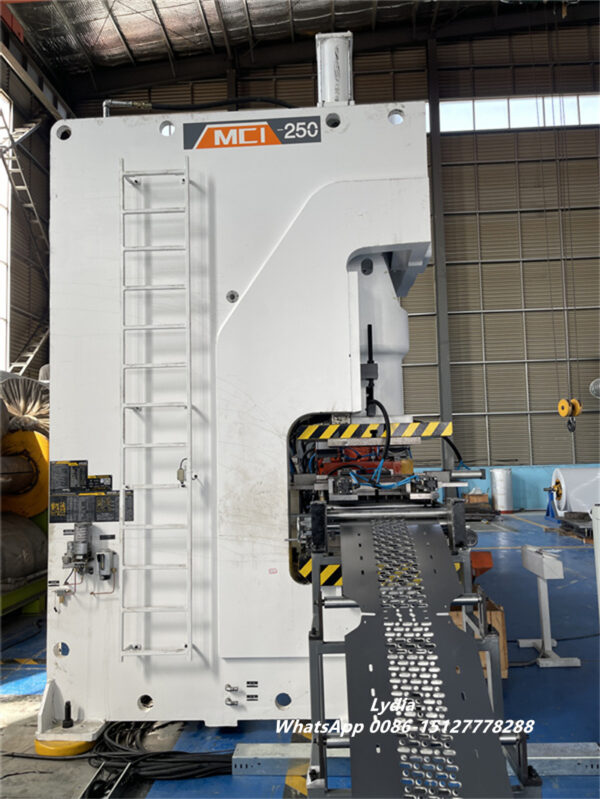

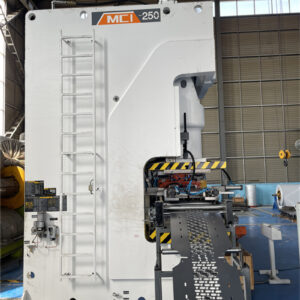

| Punching System | 200T hydraulic punch |
| Forming Stations | 40 passes + auxiliary rollers |
| Shaft Diameter | Φ80 mm |
| Roller Material | GCr15, HRC58–62 |
| Main Motor Power | 2 × 11 kW |
| Cutting Type | Servo tracking circular saw |
| Cutting Accuracy | ±1 mm |
| Control System | Siemens PLC |
| Electrical Components | Schneider, Delta/Yaskawa, Koyo, MCGS |
Key Machine Features
The decoiling and leveling unit feeds the strip smoothly and improves flatness before forming. Then, the servo feeding and punching section guarantees precise hole positioning, which is essential for scaffold walk board production. After that, the roll forming machine shapes the profile step by step through multiple forming stations, ensuring dimensional consistency and structural reliability.
At the same time, the riveting system strengthens the final product, while the edge forming section improves both appearance and usability. Finally, the servo tracking saw provides accurate cutting length and supports continuous operation.
Together, these sections create a highly efficient production solution for scaffold board manufacturers.
Stable Quality and Long-Term Performance
ZTRFM pays close attention to machine quality because scaffold products are closely related to jobsite safety. We use durable materials, precision machining, and reliable control components to ensure long-term machine performance. Before shipment, each machine undergoes careful testing to confirm forming accuracy, punching stability, and cutting precision.
Moreover, the equipment complies with relevant industrial standards and comes with a one-year warranty and lifetime technical support. This helps customers operate the machine with greater confidence and lower maintenance concerns.
Why Choose ZTRFM
ZTRFM has extensive experience in the design and manufacture of cold roll forming equipment. We understand that different customers may need different scaffold plank sizes, profile details, and punching layouts. Therefore, we provide customized machine solutions based on actual drawings and production targets.
Whether you are planning to produce standard scaffold walk boards or customized steel foot plates, our team can offer a practical and efficient roll forming solution for your business.
The Steel Foot Plate Footpedal Roll Forming Machine is an ideal choice for producing durable, anti-slip, and dimensionally accurate metal scaffold walk boards. With automated punching, reliable roll forming, and precise servo cutting, the machine helps manufacturers improve productivity and product quality at the same time.
As the demand for safe and durable scaffold systems continues to rise, investing in a high-performance scaffold walk board roll forming machine becomes a smart step for long-term business growth.
