The U Baffle Ceiling Roll Forming Machine is specially engineered to manufacture high-precision metal U-shaped ceiling baffles for modern architectural and interior decoration projects. As commercial buildings increasingly demand stylish acoustic ceiling systems, manufacturers require faster, more flexible, and highly automated production equipment. This machine meets those requirements by combining automatic size adjustment, high-speed forming, online punching, and non-stop hydraulic cutting in one integrated production line.

Compared with traditional ceiling production methods, this roll forming solution improves efficiency, reduces labor costs, and maintains excellent dimensional accuracy throughout continuous production. In addition, the PLC-controlled operating system allows operators to change profile sizes quickly through the touchscreen interface, which significantly shortens setup time and increases productivity.

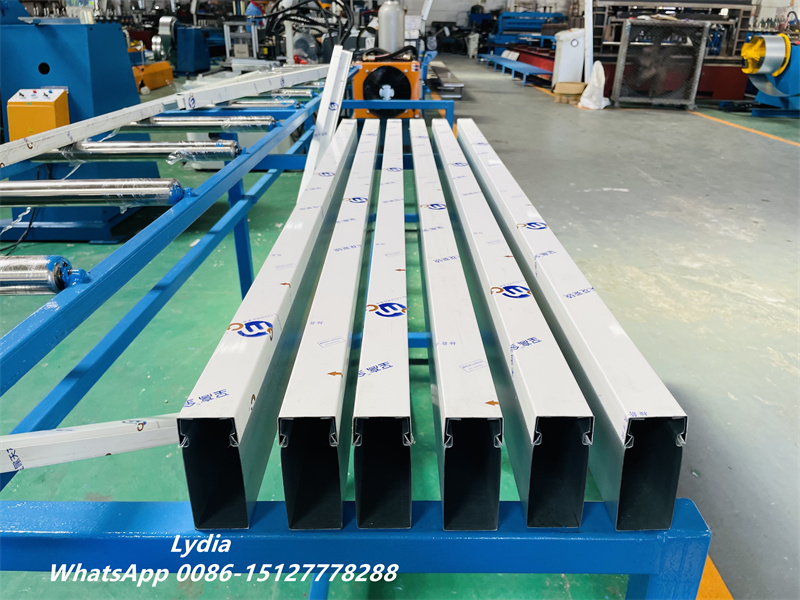

The finished U baffle panels not only create a clean and modern visual effect but also improve acoustic performance in large indoor spaces. Therefore, architects, contractors, and ceiling system suppliers widely choose these products for premium commercial projects.

Wide Applications of Metal U Baffle Ceiling Profiles

Metal U baffle ceiling systems have become increasingly popular in modern architecture because they combine aesthetics, ventilation, and sound absorption in one structure. Different profile widths and heights create unique visual layers, allowing designers to customize interior environments according to project requirements.

These ceiling profiles are widely applied in:

• Large shopping malls and retail centers
• Airports and railway terminals
• Hotels and luxury restaurants
• Office buildings and business centers
• Exhibition halls and convention centers
• Libraries and museums
• University buildings and classrooms
• Hospital public areas
• Subway stations and transportation hubs
• Cinema ceilings and entertainment venues
• Modern residential interior decoration
• Open commercial public spaces

Furthermore, designers often use different U-baffle arrangements to create linear, staggered, wave-shaped, suspended, and grid-style ceiling layouts. As a result, the ceiling system provides both decorative impact and functional acoustic control.

Stable Roll Forming Process with Intelligent Automation

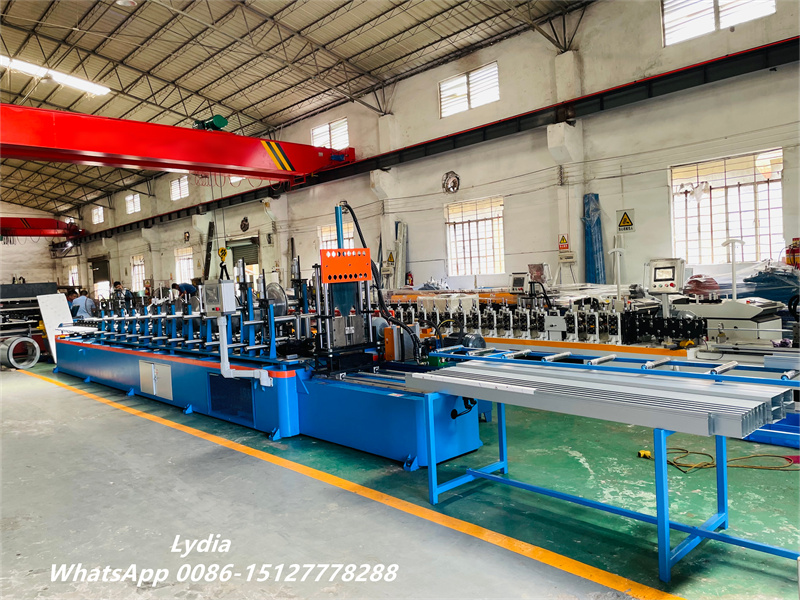

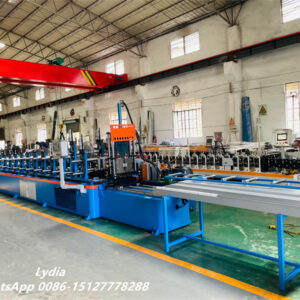

This production line adopts a fully automated forming process designed for high-speed and stable operation. The machine feeds metal coils smoothly into the forming section, performs online punching automatically, and then completes servo-controlled hydraulic cutting without stopping production.

Production Flow

Material Coil → Decoiler → Roll Forming → Online Punching → Servo Hydraulic Cutting → Finished U Baffle Profiles

Because the machine supports continuous non-stop cutting and punching, it greatly increases production efficiency while maintaining excellent profile consistency. Meanwhile, the frequency-controlled motor system ensures stable forming speed and smooth operation during long production cycles.

The dual-axis motion controller and PLC system also help operators manage production parameters easily. Users can directly set profile length, punching distance, and production quantity through the touchscreen control panel. Consequently, the machine adapts quickly to different customer orders and ceiling specifications.

Main Technical Parameters

Advanced Machine Structure for Precision Production

To ensure long-term durability and forming accuracy, the machine uses high-quality components throughout the production line. The rollers are manufactured from Cr12Mov steel and undergo heat treatment and hard chrome plating. Therefore, the rollers maintain excellent wear resistance even during high-speed production.

At the same time, the 40Cr main shafts receive thermal refining treatment to improve strength and stability. The gear-and-chain transmission system provides reliable power delivery, while the frequency control system allows flexible speed adjustment according to different material thicknesses.

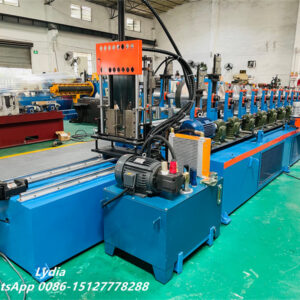

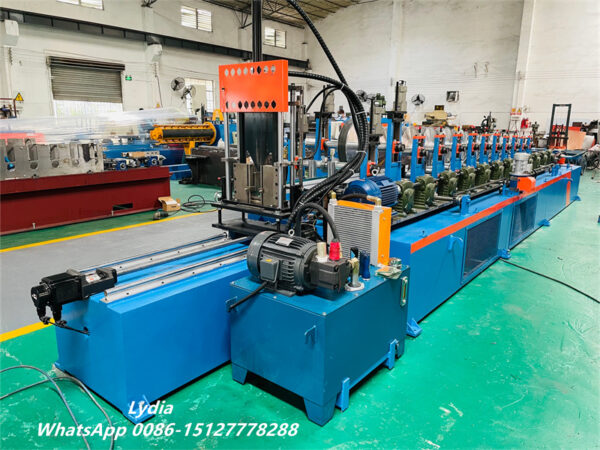

The hydraulic cutting section adopts servo motor driving combined with a precision planetary reducer. Consequently, the machine achieves accurate cutting synchronization without interrupting material feeding. This design not only improves efficiency but also minimizes material waste.

Additionally, the hydraulic system includes:

• Independent energy storage structure
• High-precision filtration system
• Overload protection device
• Famous-brand hydraulic accessories
• Forced-air cooling electric cabinet

These configurations help the production line operate continuously and safely under demanding industrial conditions.

Modern architectural projects no longer rely on simple flat ceiling systems. Instead, designers increasingly prefer dynamic ceiling structures that create stronger visual impact while improving indoor acoustic performance. The U-baffle ceiling system perfectly matches this modern design trend because it allows architects to create linear, staggered, curved, suspended, and wave-style ceiling layouts with greater flexibility. In addition, manufacturers can apply various surface treatments such as powder coating, wood grain finishes, and perforated acoustic ceiling panel designs to achieve different decorative effects. As commercial buildings continue to focus on aesthetics, sound absorption, and open-space design concepts, metal U-baffle ceilings are becoming a preferred solution for airports, shopping malls, office buildings, transportation hubs, exhibition centers, and many other public interior projects.

This U baffle roll forming machine combines intelligent automation, high production efficiency, and precise forming performance in one complete production system. The PLC control system enables operators to adjust profile sizes quickly through the touchscreen interface, which greatly improves production flexibility and reduces downtime. Meanwhile, the high-speed forming structure, servo-driven hydraulic cutting system, and online punching technology ensure smooth and continuous operation with minimal material waste. Because of its durable machine structure, stable transmission system, and easy operation, the equipment can meet both large-scale mass production requirements and customized metal ceiling production demands. As the global market for modern acoustic metal ceiling systems continues to expand, this machine provides ceiling manufacturers with a reliable and competitive production solution.
