The automatic chicken feeder with upcycled gutter rolling forming machine is an innovative solution designed to produce metal poultry feeders in a fully automated process. Unlike traditional PVC feeders, this system focuses on durability, cost efficiency, and mass production capability.As poultry farms continue to scale up, manual or plastic feeder solutions often become inefficient and expensive. Therefore, this machine offers a practical alternative by converting metal sheets into strong, reusable gutter-style feeders with consistent quality.
In today’s poultry farming industry, many users still rely on PVC feeders because of their appearance. However, as production demand increases, PVC solutions often require more time, higher investment, and frequent replacement. Therefore, metal gutter feeders have become a more practical and cost-effective alternative.
This machine transforms metal coils into high-strength feeder profiles with stable quality. As a result, it is especially suitable for large-scale farms and equipment suppliers who need consistent and durable products.
Application: Automatic Chicken Feeder System
After forming, the gutter profiles are transformed into a smart feeding system. The feeder typically includes:
-
Gutter base
-
Protective cover lid
-
Mechanical linkage system
-
Pedal mechanism

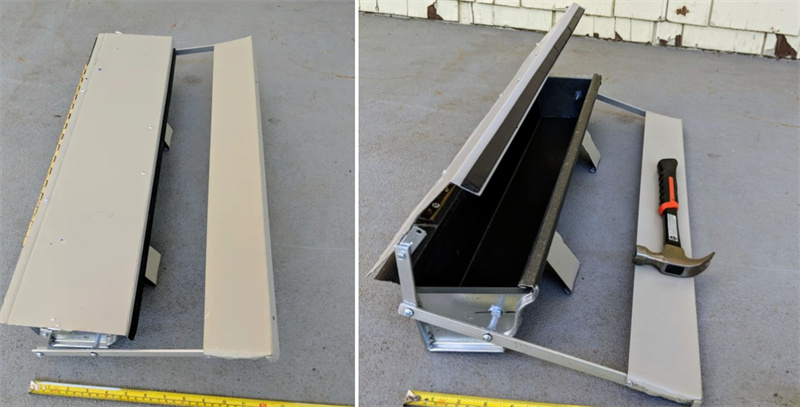

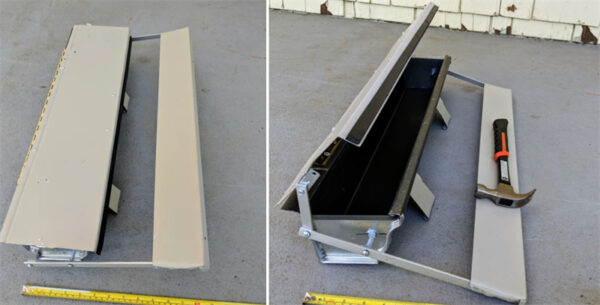

When a chicken steps on the pedal, the lid opens automatically, allowing access to feed. Once the chicken leaves, the lid closes again, keeping the feed clean and protected.
Machine Configuration & Technical Details
The production line includes a complete set of components working together smoothly. It starts with a 3-ton manual decoiler for material loading, followed by the main roll forming machine, a PLC control system, a hydraulic cutting unit, a stepping device, and a finished product collection table.

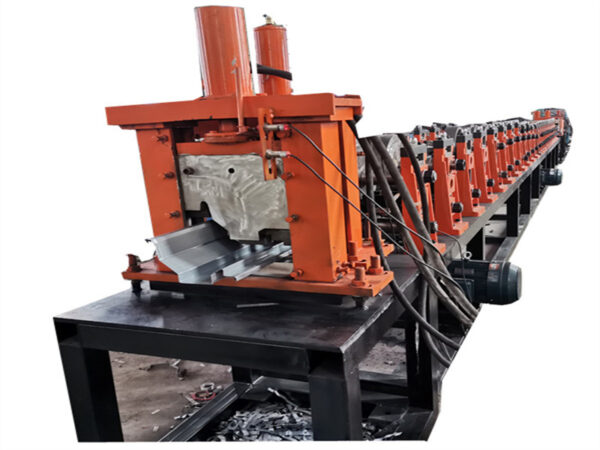

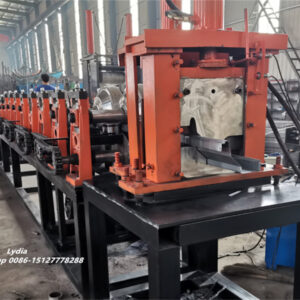

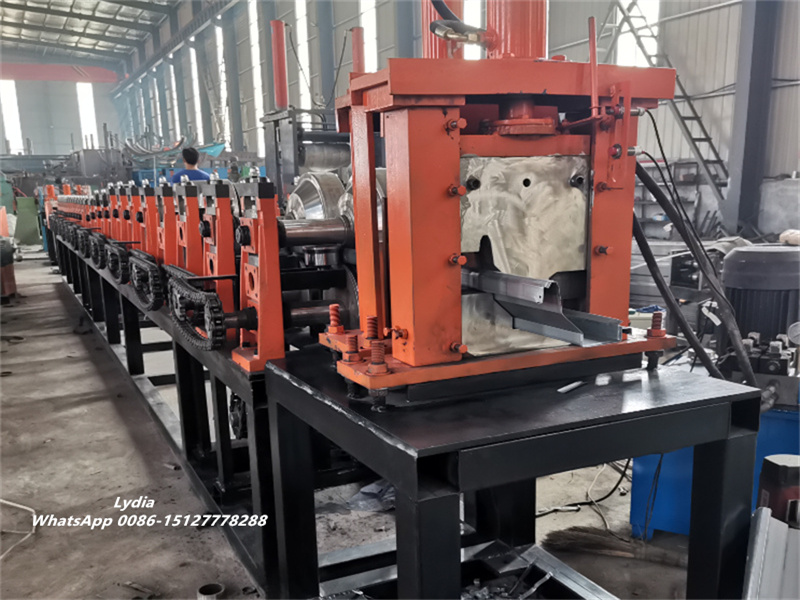

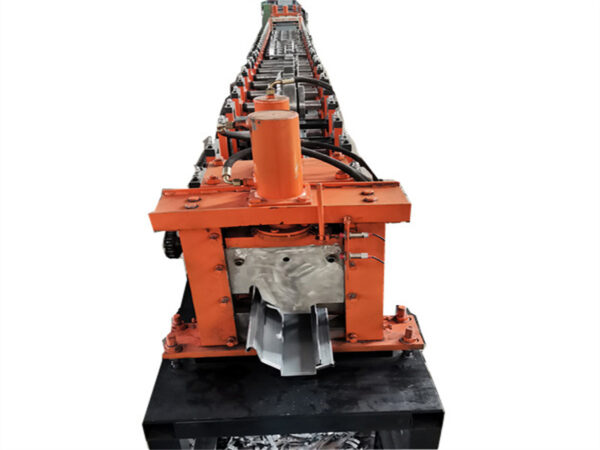

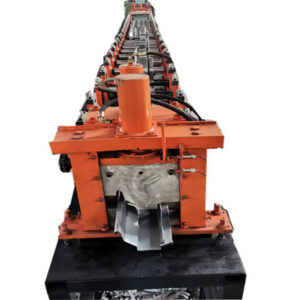

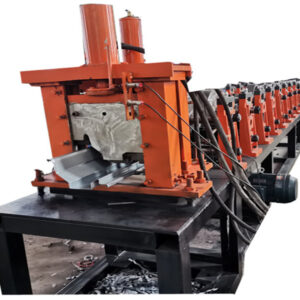

The core roll forming machine adopts a strong welded steel structure combined with an independent cast iron arch frame, which ensures long-term stability. At the same time, the rollers are made of Cr12 steel with heat treatment and chrome plating, which extends the service life up to three times compared to ordinary materials.
In addition, the shafts are manufactured from 45# steel with tempering treatment and a diameter of 60 mm, providing excellent resistance to deformation. The machine is equipped with 28 forming stations, allowing smooth and precise shaping of the gutter profile. The working speed can reach 0–15 meters per minute, and the transmission system uses gear drive with a protective cover for safer operation.
| No. | Component Name | Quantity | Description |
|---|---|---|---|
| 1 | Manual Decoiler (3T) | 1 set | Supports raw material loading |
| 2 | Main Roll Forming Machine | 1 set | Core forming system |
| 3 | PLC Control System | 1 set | Automated operation control |
| 4 | Cutting System | 1 set | Precision hydraulic cutting |
| 5 | Stepping & Overlap Unit | 1 set | Ensures continuous forming |
| 6 | Product Collection Table | 1 set | Finished product output |
Working Principle & Application

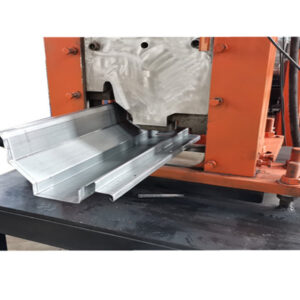

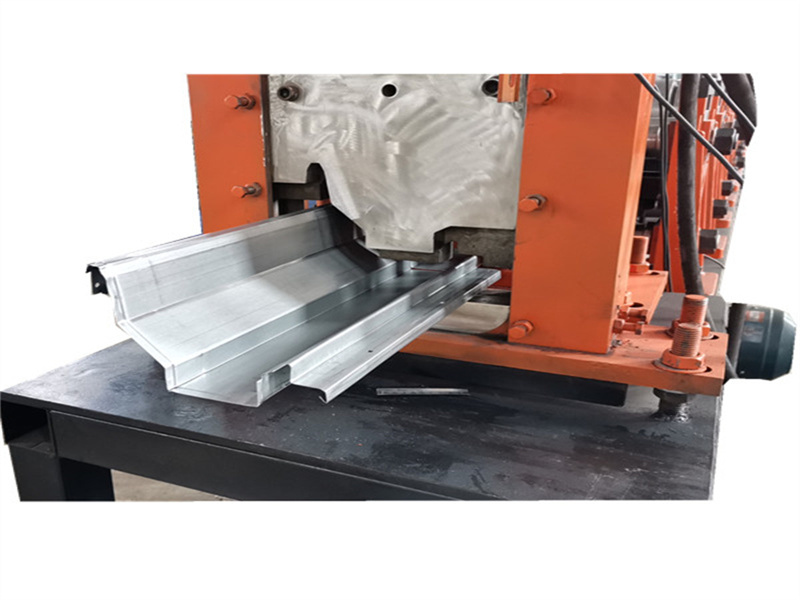

During operation, the metal coil is fed into the machine and gradually formed into the required gutter shape through multiple rolling stations. Then, the hydraulic cutting system cuts the profile to the preset length automatically. Meanwhile, the PLC control system allows operators to easily adjust parameters such as length and speed.

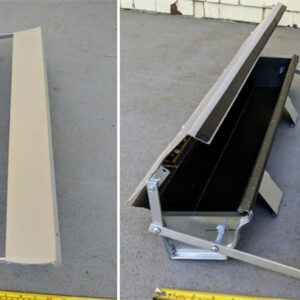

After forming, the gutter profiles can be assembled into an automatic chicken feeder system. This system typically includes a base, a cover lid, a pedal, and a mechanical linkage structure. When a chicken steps on the pedal, the lid opens to provide access to feed. Once the chicken leaves, the lid closes automatically, which helps keep the feed clean and protected from contamination.
This design not only improves feeding efficiency but also reduces waste, making it ideal for modern poultry farms.
Advantages & Value of automatic chicken feeder
First of all, the machine enables fully automated production, which greatly reduces manual labor and increases output. At the same time, the use of metal materials ensures that the feeders are more durable and suitable for long-term outdoor use.
Moreover, the production cost is lower compared to plastic feeder manufacturing, especially when producing in large quantities. The machine also offers flexibility in adjusting feeding width and profile design, allowing it to meet different customer requirements.
In addition, the PLC control system makes operation simple and user-friendly. Even for new operators, it is easy to learn and manage. With stable performance and reliable quality, this machine provides an excellent return on investment.
Overall, the automatic chicken feeder rolling forming machine is a smart choice for businesses looking to improve efficiency, reduce costs, and deliver high-quality poultry feeding solutions.
