Zhongtuo Automatic Greenhouse Ventilation Rack Roll Forming Machine Rack and Pinion System Production Line

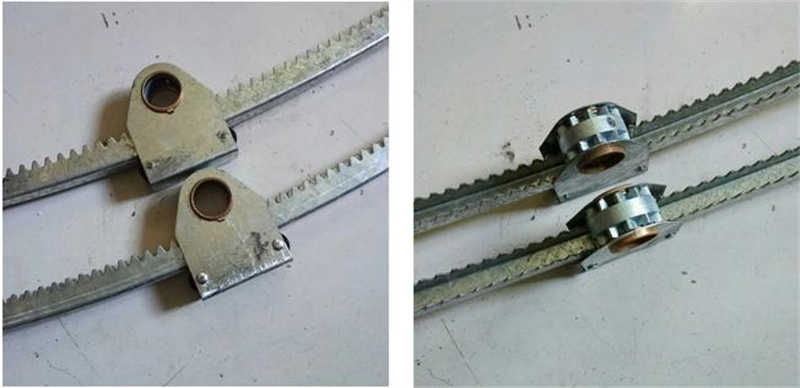

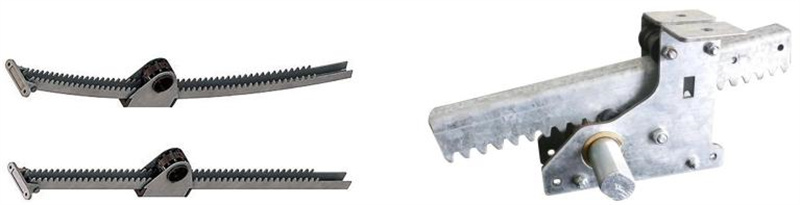

The Greenhouse Ventilation Rack and Pinion Roll Forming Machine is designed to produce toothed ventilation racks for modern greenhouse ventilation systems. These racks work with pinion gears to convert rotational motion into linear motion, allowing greenhouse roof and side vents to open and close smoothly.

With growing demand for automated greenhouse climate control, rack-and-pinion ventilation systems have become one of the most reliable solutions. Our roll-forming machine enables manufacturers to produce these racks efficiently, accurately, and in large quantities, ensuring consistent quality and a long service life.

How Rack and Pinion Ventilation Works

In greenhouse structures, proper airflow is essential for maintaining ideal growing conditions. The rack and pinion mechanism plays a critical role in this process.

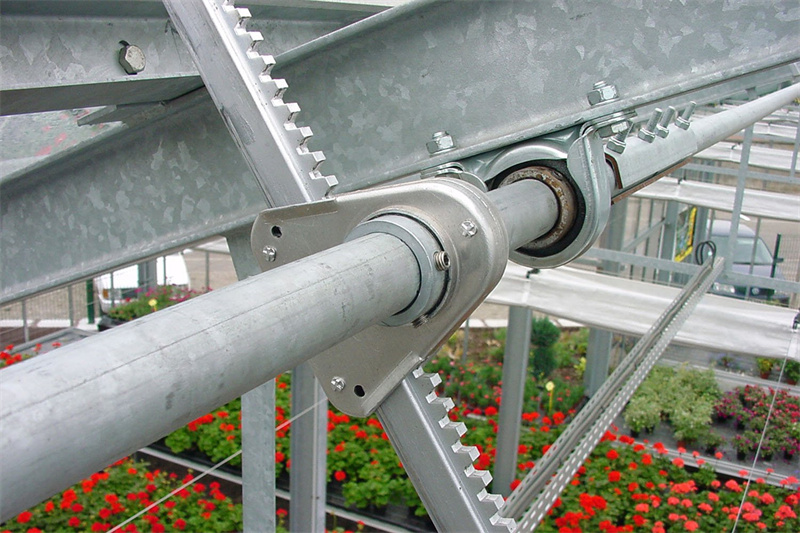

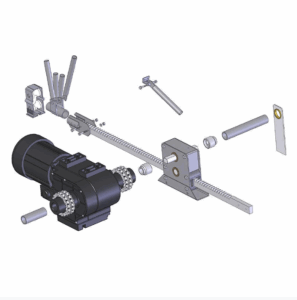

When a motor rotates the pinion gear, the gear engages with the toothed rack and moves it in a straight line. As a result, the ventilation window opens or closes accordingly. This simple mechanical design offers several advantages:

• Smooth and stable movement
• Reliable operation at low and medium speeds
• Minimal maintenance requirements
• Quiet working environment

Compared with fan-based cooling systems, natural ventilation powered by rack-and-pinion systems provides a silent, energy-efficient solution, which is especially important for retail garden centers and commercial greenhouses.

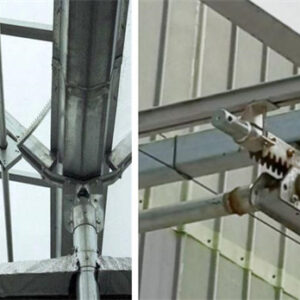

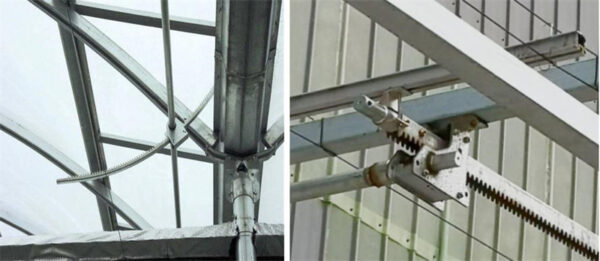

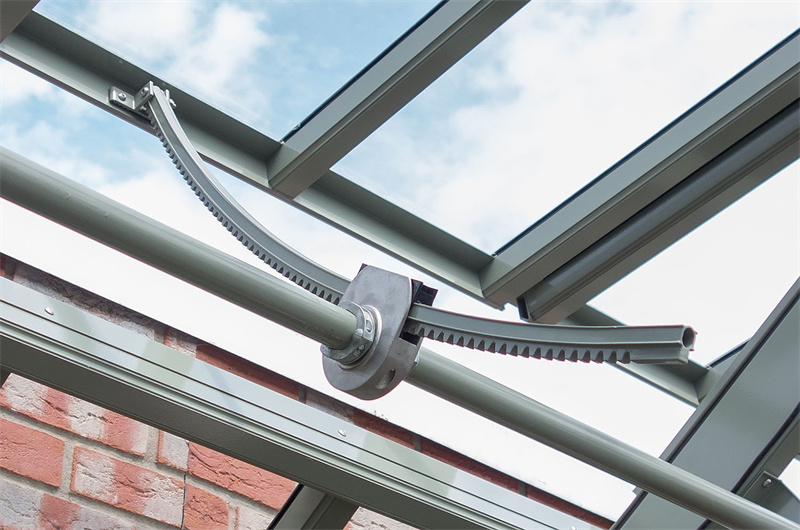

Application in Greenhouse Ventilation Systems

Rack-and-pinion ventilation components are widely used in greenhouse structures to control roof and side vents. At the same time, fresh air enters through side inlet vents, which may include:

When combined with shade curtains and inlet vents, this ventilation approach can sometimes keep greenhouse temperatures lower than the outside ambient temperature.

Because the system relies on natural airflow rather than noisy fans, it creates a quiet, comfortable environment, ideal for shopping areas in retail garden centers.

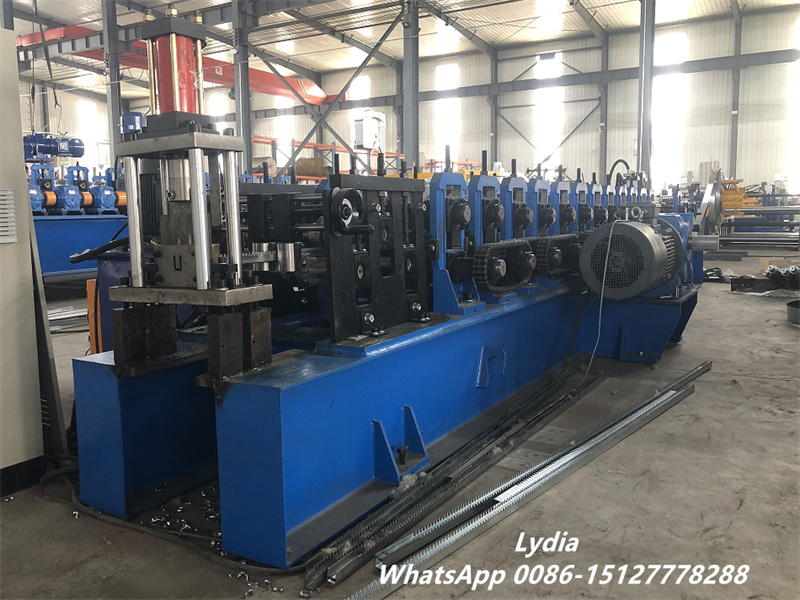

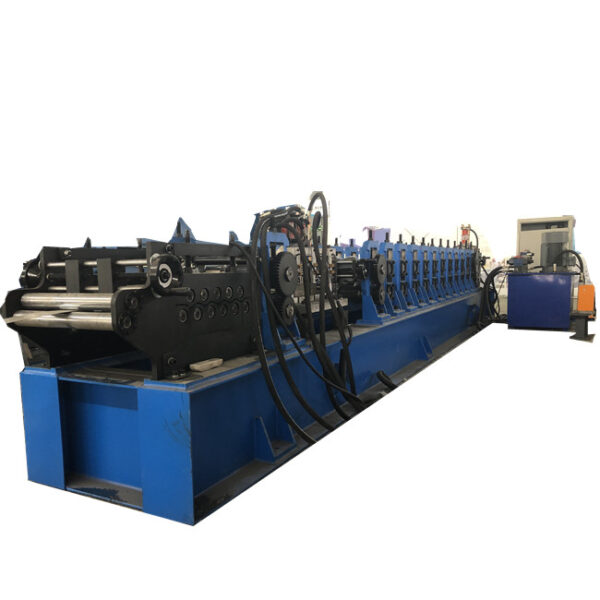

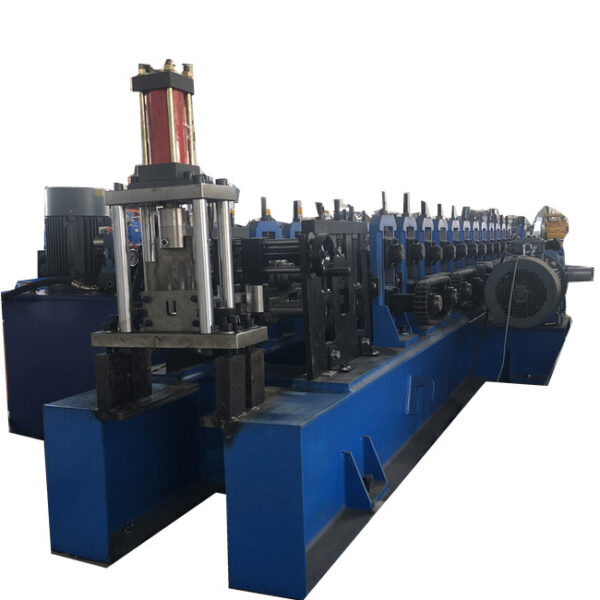

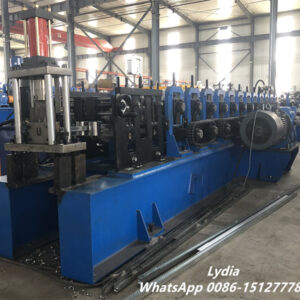

The Greenhouse Ventilation Rack Roll Forming Machine integrates several functional units to ensure stable and efficient production.

The main components include:

• Decoiler for coil feeding

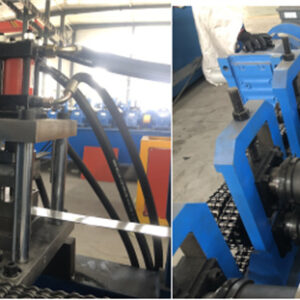

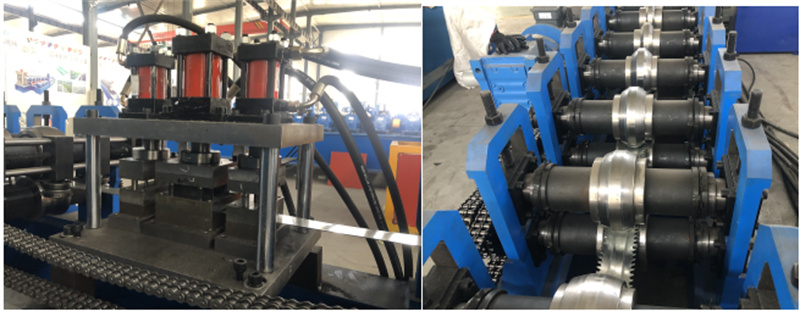

• Hydraulic punching system for tooth punching
• Main roll forming machine
• Hydraulic cutting system
• Receiving table for finished products

To reduce equipment costs, the machine uses a hydraulic punching unit as the standard configuration. However, customers who require higher production speed can upgrade to a hydraulic press punching system for faster zigzag punching.

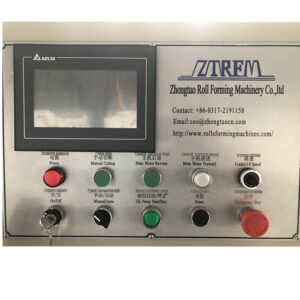

The production process is fully automated and easy to operate.

1. The decoiler feeds galvanized steel coil into the machine.
2. The punching system forms the toothed rack pattern.

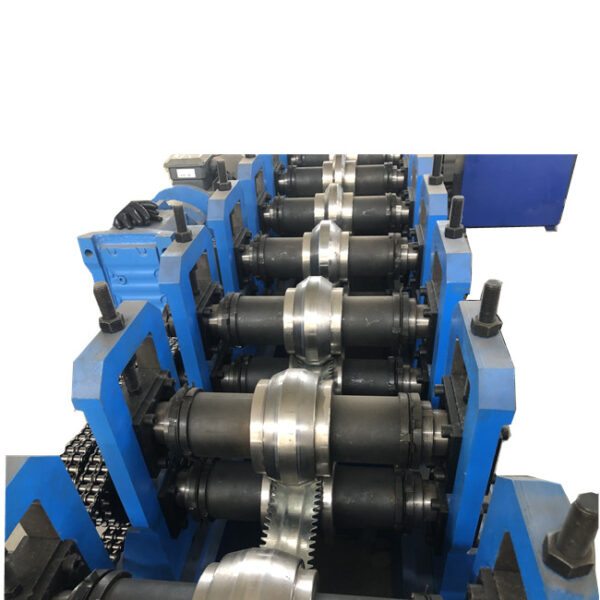

3. The roll forming stations gradually shape the profile.
4. The hydraulic cutting system cuts the finished rack to the required length.
5. Finally, the receiving table collects the finished products.

The machine operates at approximately 5–7 meters per minute, providing efficient production of greenhouse ventilation components.

The Greenhouse Ventilation Rack and Pinion Roll Forming Machine is designed for stable and efficient production. The main technical parameters are shown below:

Advantages of Rack and Pinion Ventilation Systems

Key benefits include: Reliable mechanical structure: Straight-tooth gears deliver stable performance at low and medium speeds.Easy installation:The system features a simple structure that allows quick installation and convenient adjustments.Low maintenance requirements: Rack-and-pinion drives require very little maintenance and have a long service life.Quiet operation:The system produces minimal noise, creating a comfortable greenhouse environment.
