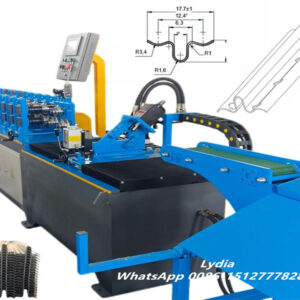

Plaster Beacon 6mm × 3.0m Roll Forming Machine
Automatic Production Line for Plaster & Screed Beacon Profiles

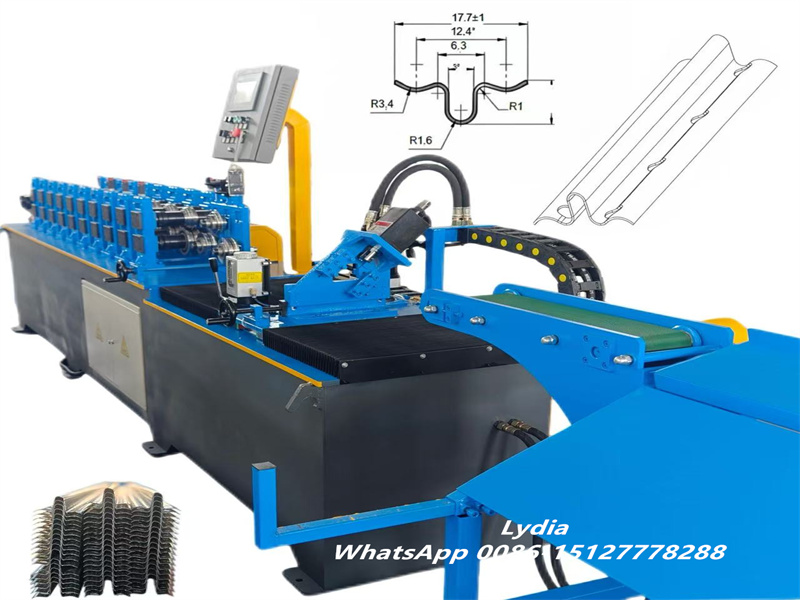

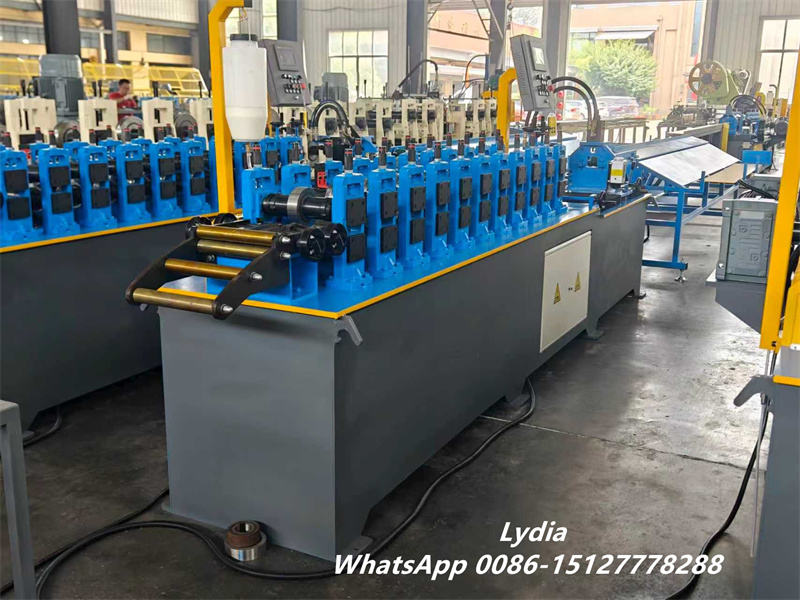

The Plaster Beacon 6mm 3.0m Roll Forming Machine is a fully automatic cold roll forming solution designed for mass production of galvanized steel plaster beacons.
It is widely used by manufacturers supplying wall plastering, floor screed, and interior finishing systems for residential, commercial, and industrial construction projects.
With high-speed forming, precise punching, and servo-controlled cutting, this machine ensures stable quality, high efficiency, and low labor cost, making it ideal for B2B production environments.
Finished Product Overview

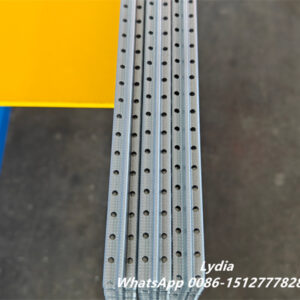

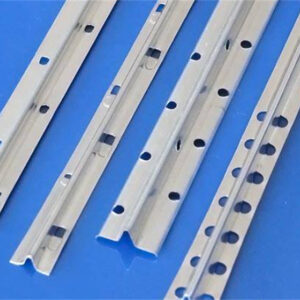

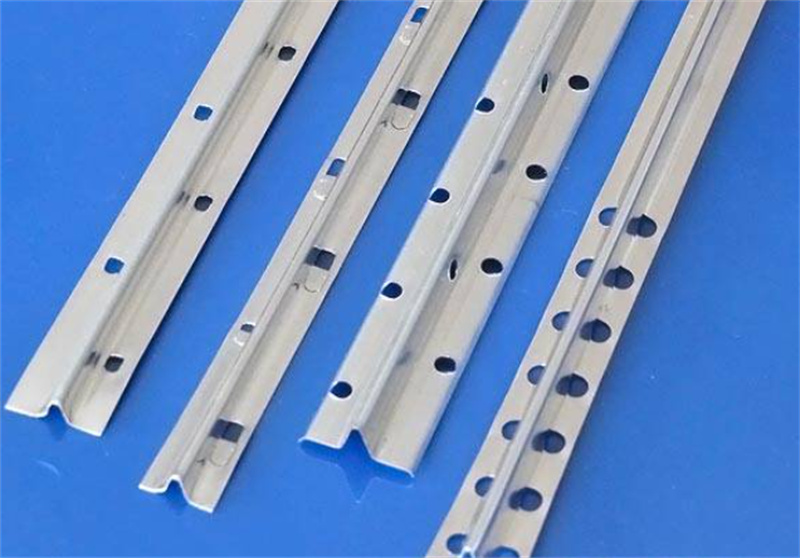

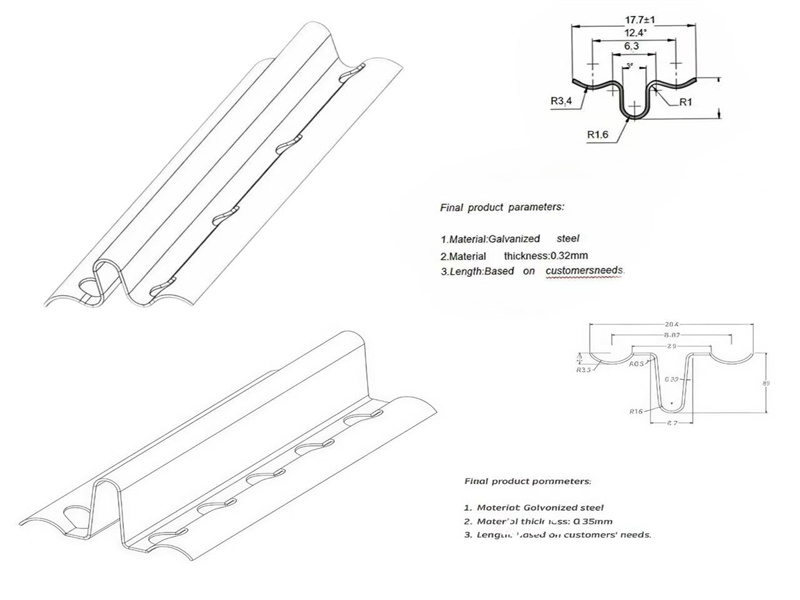

- Product Type: Plaster Beacon / Screed Beacon Profile
- Height: 6 mm
- Standard Length: 3.0 m (customizable)
- Material: Galvanized Steel (GI)
- Material Thickness: 0.30–0.32 mm

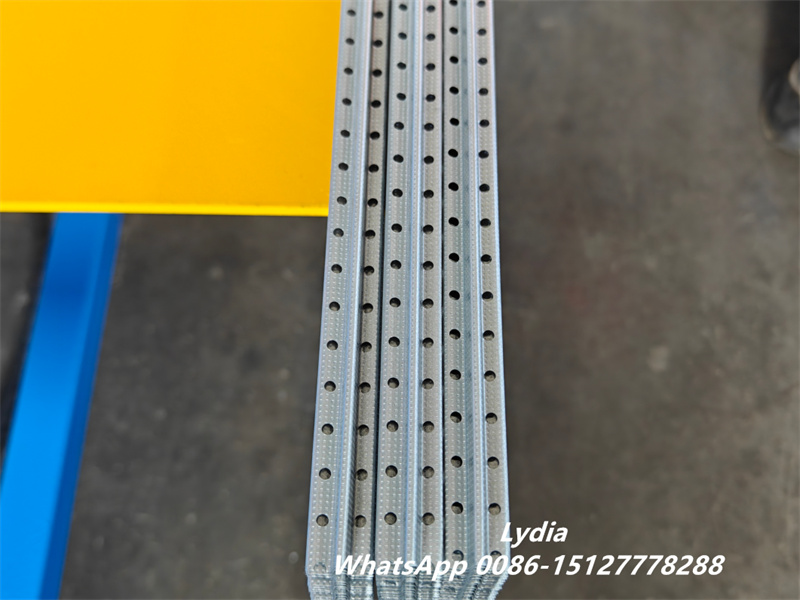

- Surface: Full-length perforated shelves for strong mortar bonding

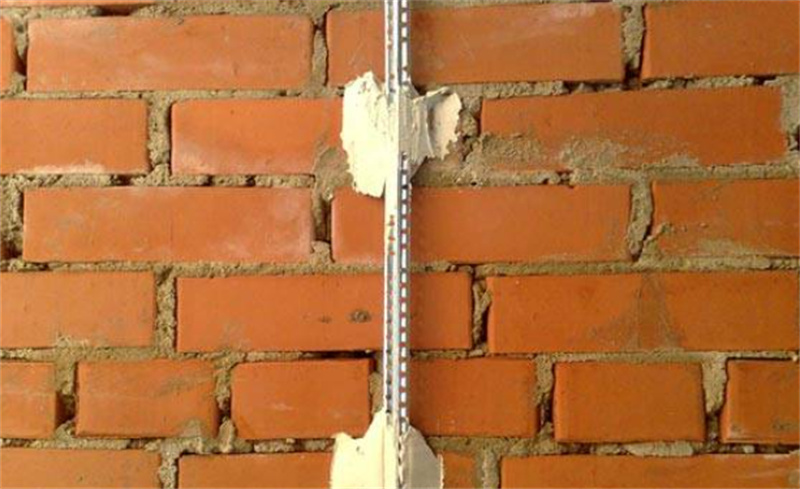

The finished plaster beacon can remain embedded in the plaster layer without removal, improving construction efficiency and long-term durability.
Machine Technical Parameters
Formed Material
- Steel Type: GI (Galvanized Steel)
- Thickness Range: 0.30–0.32 mm
Production Speed
- Max Speed: up to 70 m/min (customized according to punching requirements)
- Speed Adjustable via PLC

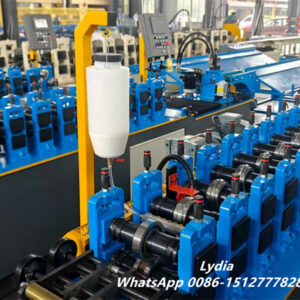

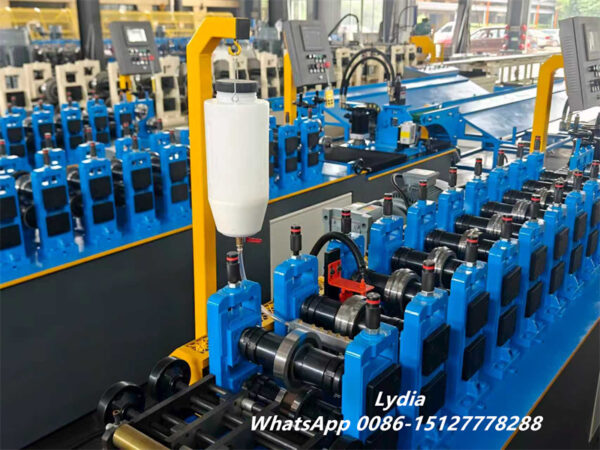

Main Roll Forming System
- Roller Stations: 10 rows (customizable)
- Shaft Diameter: Ø50 mm solid shafts
- Roller Material: GCr12, quenched & hard chrome plated
- Frame Structure: Heavy-duty steel welded body
- Transmission: Chain-driven system
| Item | Specification |
|---|---|
| Finished Product | Plaster Beacon / Screed Beacon Profile |
| Beacon Height | 6 mm |
| Standard Length | 3.0 m (Customizable) |
| Material | Galvanized Steel (GI) |
| Material Thickness | 0.30 – 0.32 mm |
| Decoiler Type | Hydraulic Automatic Decoiler |
| Decoiler Capacity | 3 Tons |
| Coil Inner Diameter | Ø450 – 550 mm (Adjustable) |
| Punching System | High-Speed Punching with Servo Feeder |
| Punching Pressure | 55 Tons |
| Main Forming Stations | 10 Rows (Customizable) |
| Roller Material | GCr12, Quenched & Chrome Plated |
| Shaft Diameter | Ø50 mm Solid Shaft |
| Cutting Type | Hydraulic Servo Tracking Cutting |
| Cutting Blade Material | Cr12MoV |
| Length Tolerance | ±0.5 mm / 3 m |
| Control System | PLC Automatic Control |
| Operation Language | English / Multi-language Support |
| Forming Speed | Up to 70 m/min (Adjustable) |
| Main Motor Power | 7.5 kW |
| Hydraulic Power | 3 kW |
| Power Supply | 380V / 50Hz / 3 Phase (Customizable) |
| Collecting Table Length | 3 m |
| Machine Weight | Approx. 3 Tons |
| Application | Wall Plastering, Floor Screed, Construction Leveling |

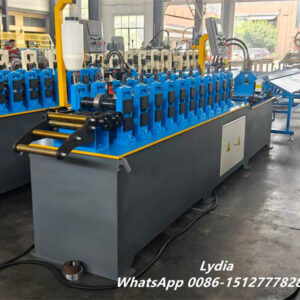

Main Components of the Production Line

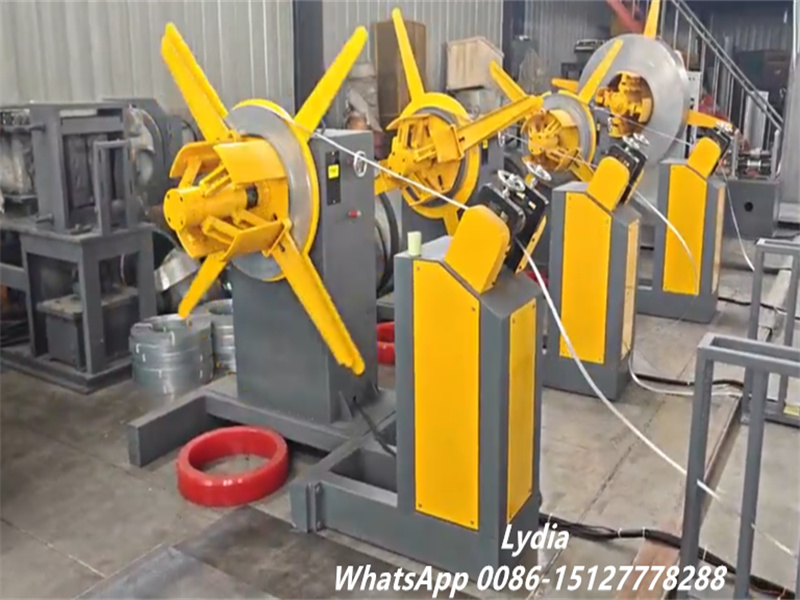

1. Hydraulic Decoiler
- Loading Capacity: 3 tons
- Coil Inner Diameter: Ø450–550 mm (adjustable)
- Working Mode: Hydraulic automatic expansion
- Function: Stable and continuous coil feeding
A manual decoiler is provided as a free backup option.
2. High-Speed Punching Machine with Servo Feeder
- Servo-driven NC feeder for accurate positioning
- Punching Capacity: 55 tons
- Mold Material: Cr12
- High punching precision with clean hole edges
Ensures consistent perforation for strong plaster adhesion.
3. Guide Feeding Device
- Stainless steel and rubber rollers
- Manual adjustment system
- Prevents material deviation and surface scratching
Guarantees straight, neat, and uniform finished profiles.

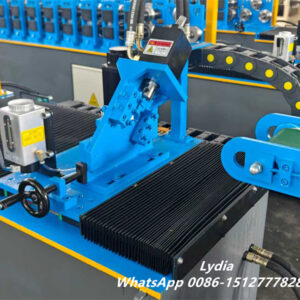

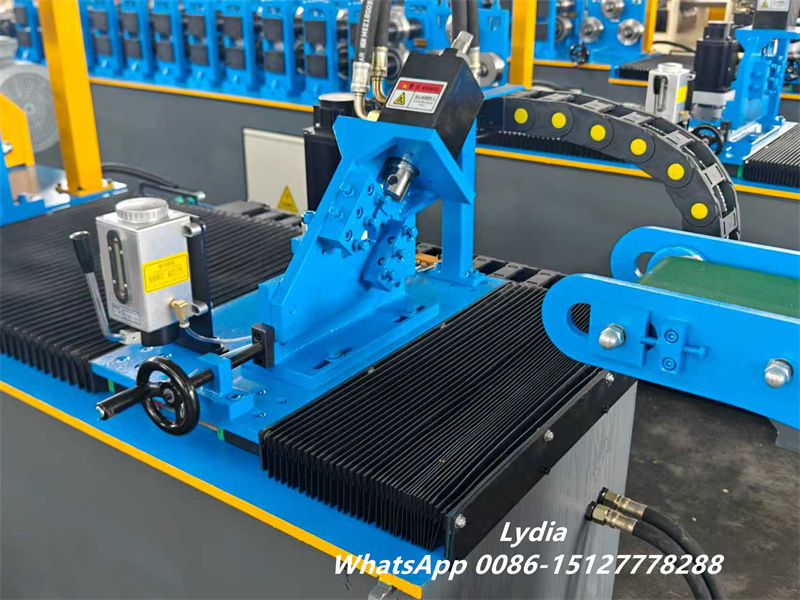

4. Automatic Cutting System
- Cutting Type: Hydraulic servo tracking cutting
- Blade Material: Cr12MoV
- Length Tolerance: ±0.5 mm / 3 m
- Cutting Feature: No burrs, no deformation
Cutting is synchronized with roll forming speed for continuous production.
5. PLC Control System
- Fully automatic operation
- Supports batch, length, and quantity settings
- English interface (multi-language available)
- Electrical components from well-known brands
Simple operation and stable long-term performance.

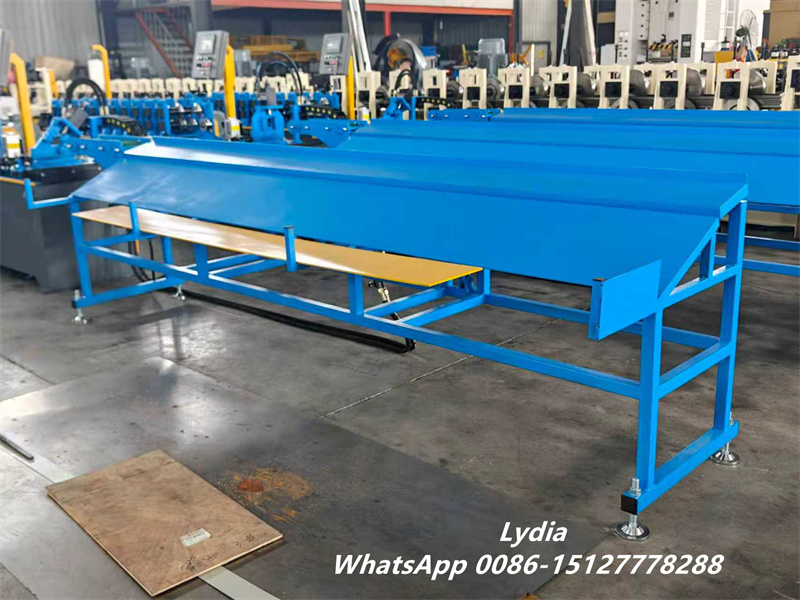

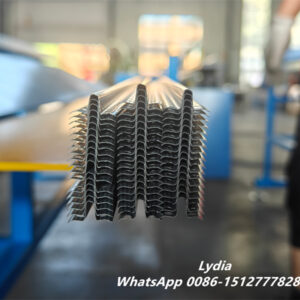

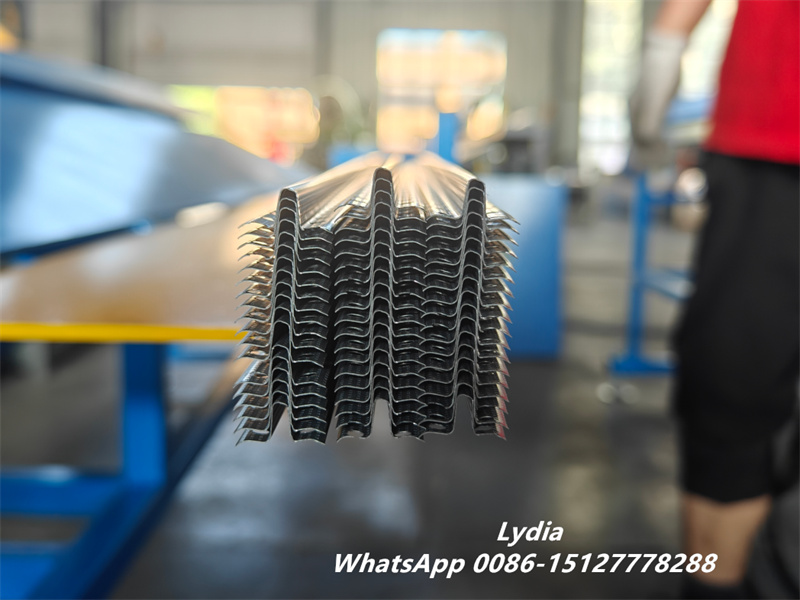

6. Product Collecting Table
- Length: 3 meters
- With conveyor and hydraulic push system
- Reduces manual handling and improves safety
Advantages for Manufacturers
- High Production Efficiency – suitable for large-volume orders
- Stable Product Quality – uniform dimensions and straightness
- Low Labor Requirement – fully automatic operation
- Cost-Effective Production – reduced waste and maintenance
- Flexible Customization – profile size, length, speed adjustable
Applications
Plaster beacons produced by this machine are widely used for:
- Wall plaster leveling
- Floor screed installation
- Concrete surface alignment
- Residential and commercial renovation projects
- Industrial construction finishing
Get a Quotation
Looking for a reliable plaster beacon roll forming machine for your factory?
Send us your requirements, and we will provide:
- Technical proposal
- Machine layout drawing
- Quotation & delivery time
- Video of similar machines in operation
Contact us now to start your plaster beacon production line.
