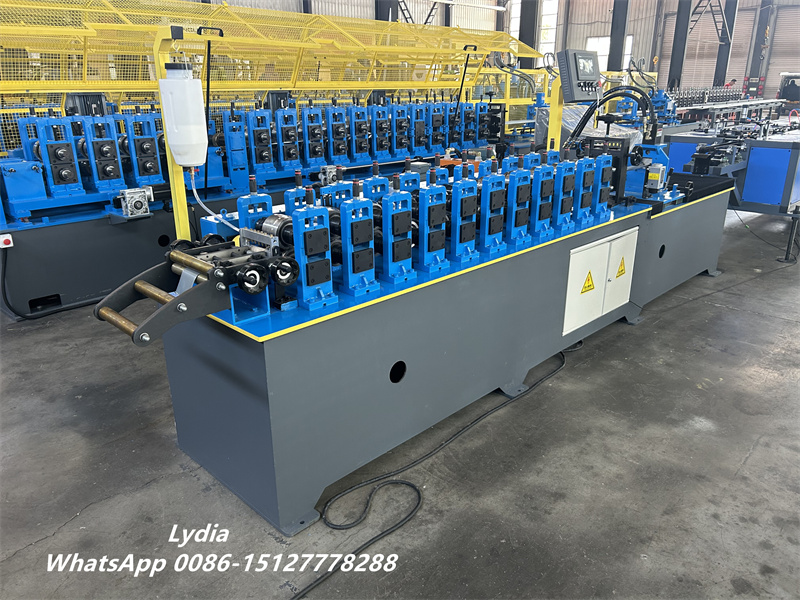

The Hat Channel Roll Forming Machine is designed to manufacture high-precision metal hat channels, also known as omega profiles, for modern construction and framing applications. These profiles are widely used in drywall systems, suspended ceilings, roofing substructures, partition walls, and steel framing projects.
This machine continuously forms metal strips into accurate hat-shaped profiles through a fully automated roll forming process. As a result, manufacturers achieve stable production, smooth profile edges, and consistent dimensions while reducing labor costs and material waste.
Unlike traditional bending methods, the roll forming process delivers faster production speed, higher forming accuracy, and better profile consistency. Therefore, it becomes an ideal solution for companies involved in steel framing, ceiling systems, and lightweight construction materials.
Efficient Production Process
The machine uses a continuous automated production line to improve efficiency and maintain profile consistency.
Production Flow

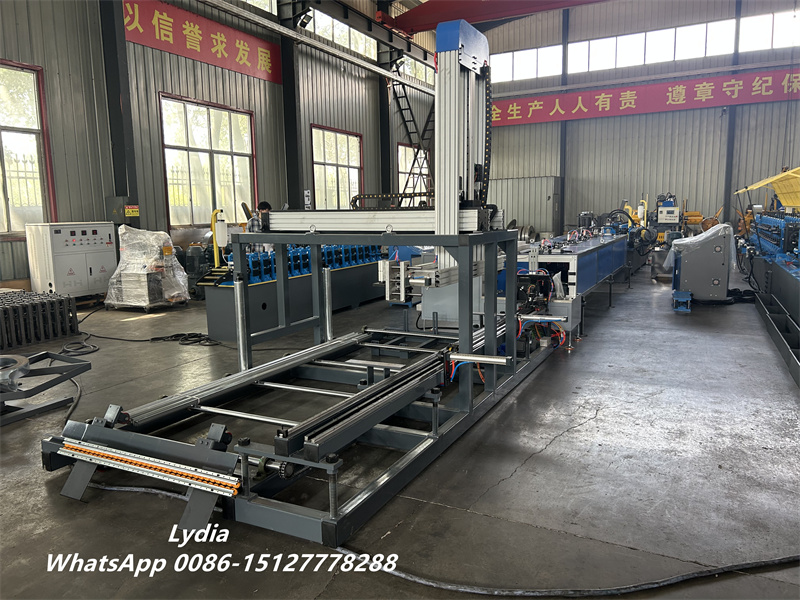

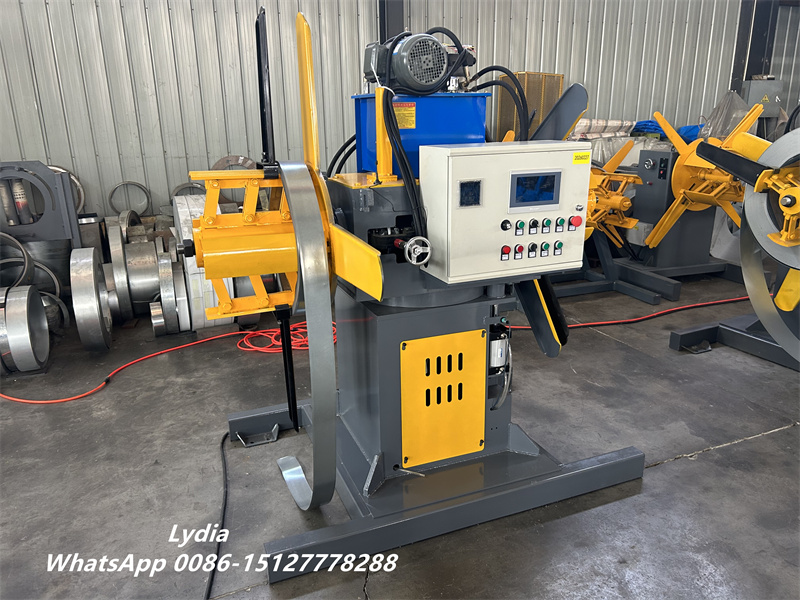

Decoiling → Feeding → Leveling → Roll Forming → Straightening → Cutting → Finished Product Output
During operation, the leveling section removes coil stress and improves material flatness before forming begins. Then, multiple roll forming stations gradually shape the material into the final hat channel profile. Finally, the electric cutting system cuts the profiles according to the preset length.
As a result, the complete line ensures smooth operation, precise cutting accuracy, and reliable production output.
Main Features of the Hat Channel Roll Forming Machine
The machine combines durable structure design with efficient automation technology to ensure long-term production stability.
The Hat Channel Roll Forming Machine can efficiently produce both hat channels and omega profiles with stable forming performance and consistent product quality. The machine supports galvanized steel and various metal materials, while the production speed can reach up to 40ft/min, making it suitable for continuous mass production. Equipped with a reliable electric shear cutting system and an advanced PLC control system, the machine offers easy operation, accurate length control, and smooth workflow throughout the production process.

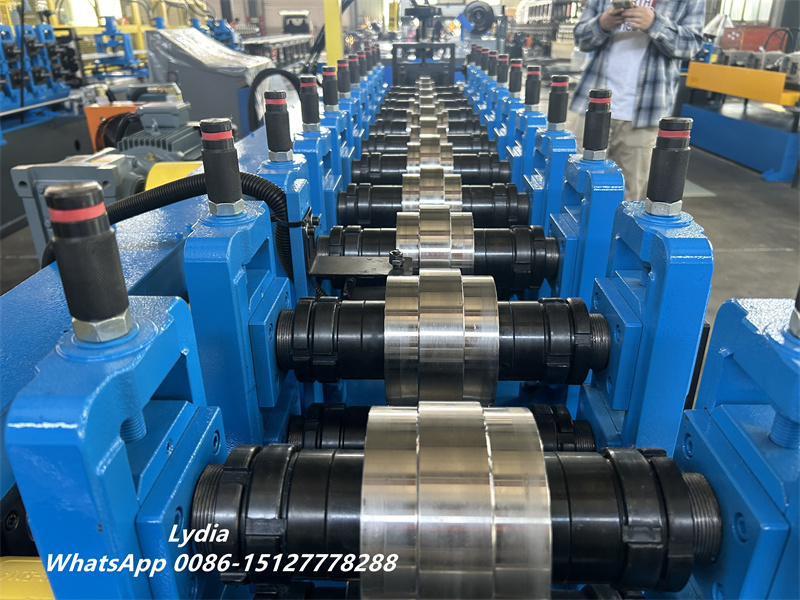

In addition, the compact machine structure helps save valuable workshop space, while the precision roll forming stations ensure high forming accuracy and smooth profile appearance. During operation, the forming rollers gradually shape the material step by step, which effectively reduces profile deformation and improves the overall quality and durability of the finished products.
Technical Specifications
The following table shows the main technical parameters of the machine:
| Item | Specification |
|---|---|
| Machine Type | Hat Channel / Omega Roll Forming Machine |

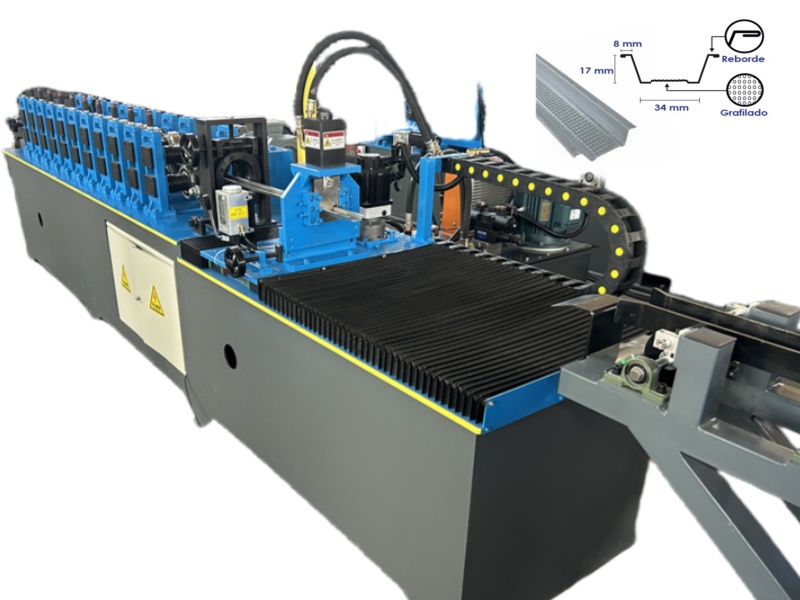

| Profile Size | 1″ × 2″ × 1″ – 1/2″ Deep |
| Production Speed | 40ft/min |
| Machine Size | 18ft × 3ft × 5ft |
| Machine Weight | 2500lbs |
| Voltage | 240V / 3 Phase / 60Hz |
| Cutting Type | Electric Shear |
| Material Type | Galvanized Steel / Metal Coil |
| Forming Method | Continuous Roll Forming |
| Application | Ceiling, Wall, Roofing Support |
Because different markets require different profile dimensions, we can also customize the machine according to customer drawings and production requirements.
Applications of Hat Channel and Omega Profiles

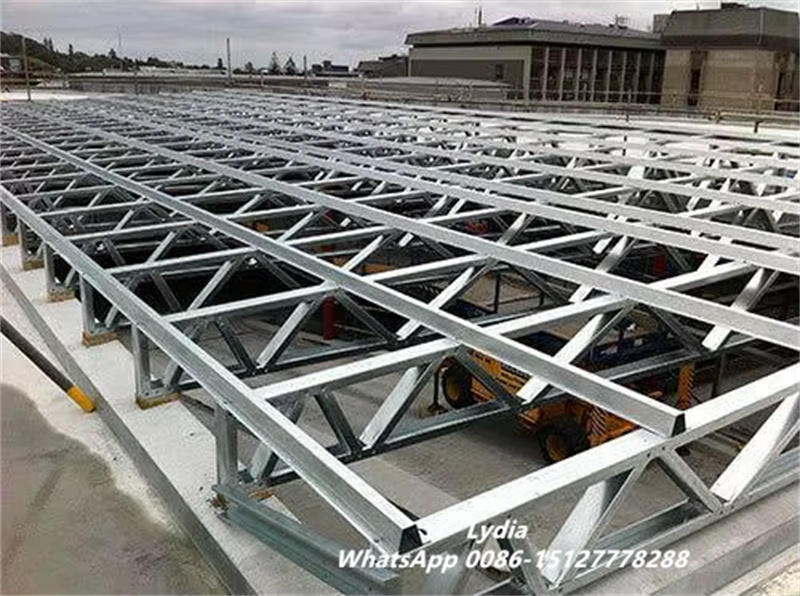

Hat channels play an important role in lightweight steel framing systems. Due to their excellent strength-to-weight ratio, contractors and manufacturers widely use these profiles in both commercial and residential construction.
Common Applications Include:

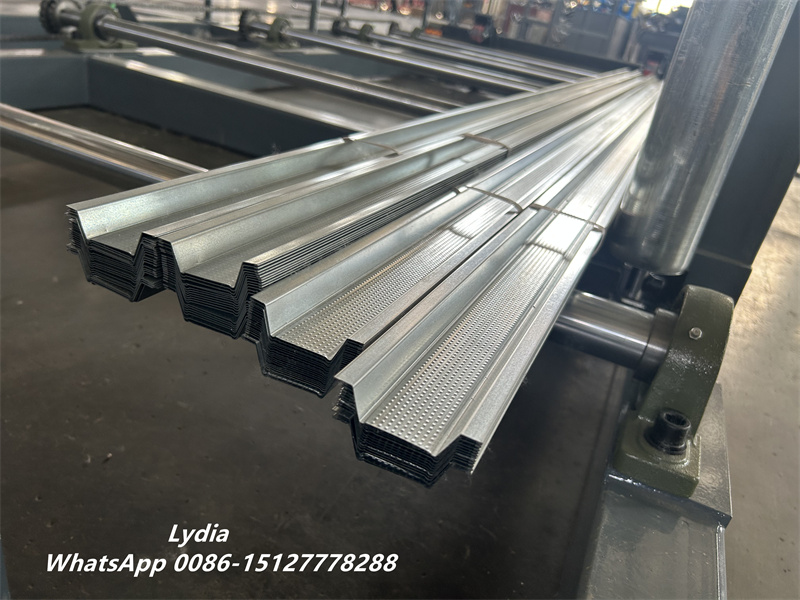

Hat channels and omega profiles are widely used in modern construction and steel framing industries. These profiles are commonly applied in drywall framing systems, suspended ceiling structures, roof support systems, partition wall framing, metal cladding support, interior decoration structures, insulation support systems, and industrial building frameworks. Their lightweight yet durable structure makes them highly suitable for both residential and commercial construction projects.
Moreover, omega profiles provide excellent structural stability while maintaining lightweight performance. As a result, they simplify installation, improve construction efficiency, and help reduce transportation and labor costs for manufacturers and contractors.
Moreover, omega profiles improve structural stability while maintaining lightweight performance. This advantage makes installation easier and reduces transportation costs.
Complete Roll Forming Solutions for Construction Industry
In addition to the Hat Channel Roll Forming Machine, we also manufacture a complete range of drywall and construction roll forming equipment.
Available Roll Forming Machines
- Metal Stud Roll Forming Machine
- Metal Track Roll Forming Machine
- Ceiling Channel Roll Forming Machine
- Roof Panel Roll Forming Machine
- Floor Deck Roll Forming Machine
Furthermore, we provide customized high-speed production lines, including double-row and multi-profile roll forming solutions to help customers improve efficiency and reduce investment costs.
With extensive manufacturing experience and professional technical support, we help customers build reliable, cost-effective roll forming production systems for global construction markets.
