Interior Framing U-Shape Track & U Channel Roll Forming Machine

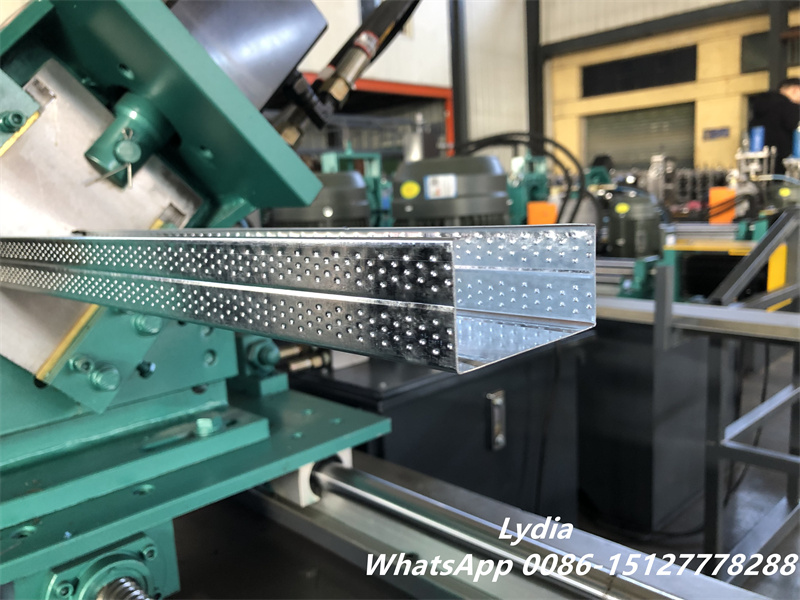

Overview of Interior Framing U-Shape Tracks

Interior framing U-shape tracks are standard cold-formed steel components widely used in North American interior wall framing systems, working in conjunction with matching C-studs. Designed in accordance with AISI S100/CSA S136, these tracks provide accurate alignment, structural stability, and efficient installation for residential and light commercial construction projects.

The illustrated profile represents a 25-gauge cold-formed steel interior track, suitable for drywall partition systems, non-load-bearing walls, and light framing applications.

Advantages of Our U Channel Roll Forming Machine

• High production efficiency with stable operation
• Adjustable tooling for multiple profile sizes
• Consistent quality and repeatability
• Reduced material waste
• Suitable for North American framing standards

Our roll forming machines are ideal for manufacturers seeking cost-effective, high-volume production of U channels and interior framing tracks.

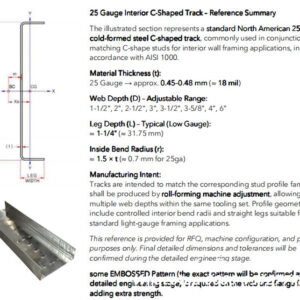

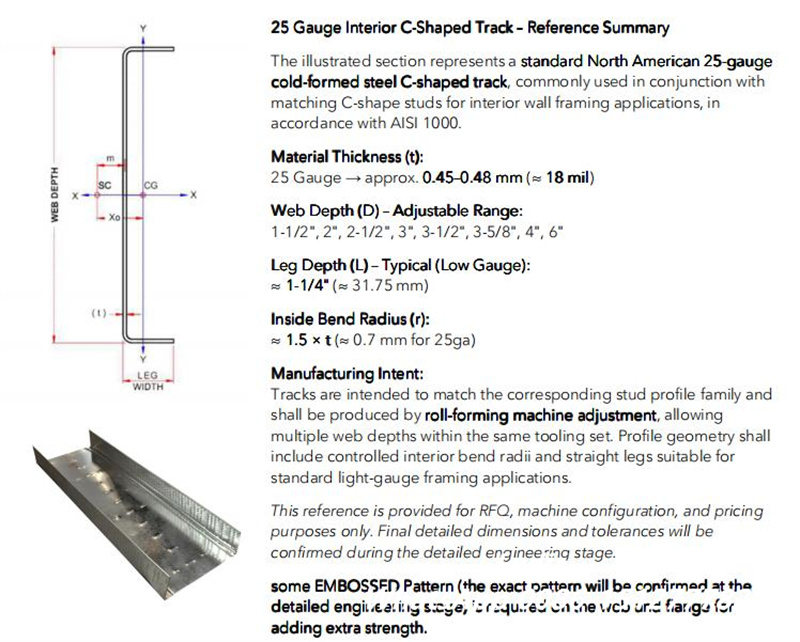

Standard Technical Parameters (25 Gauge)

• Material Thickness (t):
  25 Gauge ≈ 0.45 – 0.48 mm (≈ 18 mil)
• Web Depth (D) – Adjustable Range:
  1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″, 3-5/8″, 4″, 6.”
• Leg Depth (L):
  Approx. 1-1/4″ (31.75 mm)
• Inside Bend Radius (r):
  ≈ 1.5 × material thickness (≈ 0.7 mm for 25 ga)
• Surface Feature:

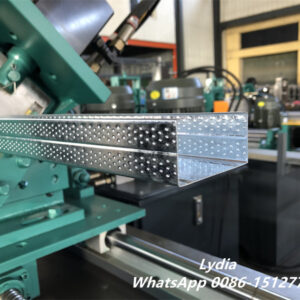

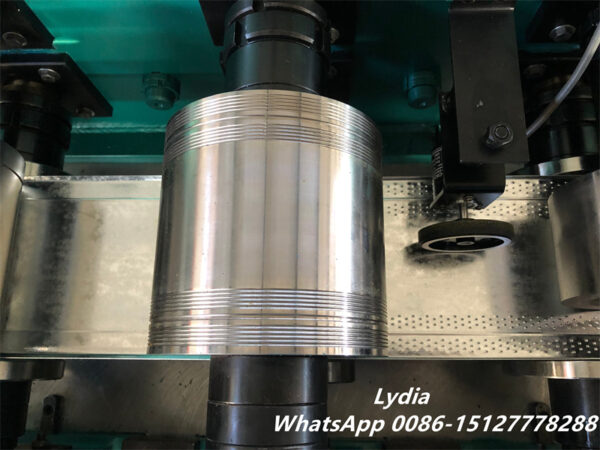

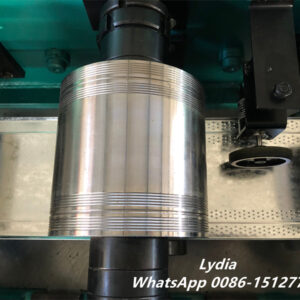

  Embossed strengthening patterns on the web and flange
  (final embossing design confirmed during detailed engineering stage)

Manufacturing Intent

These U-shaped tracks are designed to be produced on a roll-forming machine with adjustable tooling, allowing multiple web depths to be formed using a single machine configuration. Controlled bend radii, straight legs, and consistent geometry ensure full compatibility with standard light-gauge framing systems.

This reference is intended for:

• RFQ preparation
• Roll forming machine configuration
• Project pricing evaluation

Final dimensions and tolerances will be confirmed during the engineering phase.

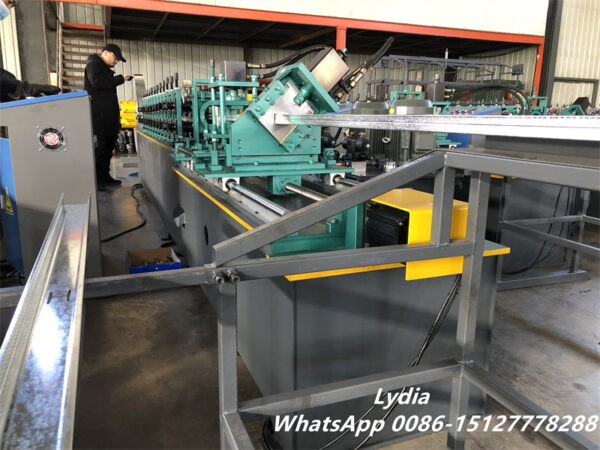

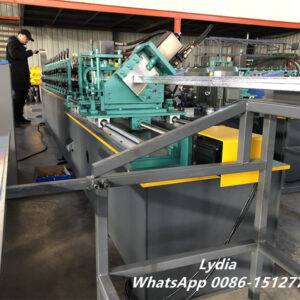

U Channel Roll Forming Machine – Specification

Our U Channel Roll Forming Machine is engineered for the continuous production of interior framing U-tracks and structural U channels with high dimensional accuracy and excellent surface finish.

Machine Technical Data

• Condition: New
• Production Capacity: Up to 50 ft/min
• U Channel Size: 2″ × 3″ × 2″
• Material Thickness Range:
  0.27″ – 0.32″ / 0.5 – 0.8 mm
• Compatible Materials:
  Steel, Galvalume, Painted Steel, Aluminum
• Forming Stations: 12 steps
• Overall Dimensions: 17′ × 6′ × 7′
• Machine Weight: Approx. 4 tons

U Channel Roll Forming Machine Description

A U Channel Roll Forming Machine is a specialized piece of equipment designed to manufacture U-shaped metal profiles from steel or aluminum coils through a continuous roll forming process. These U channels are widely used in:

• Interior wall framing systems
• Structural supports
• Ceiling and partition frameworks
• Industrial and architectural applications

How the Machine Works

1. Material Feeding
Metal coils are loaded onto a decoiler and smoothly fed into the roll forming line.

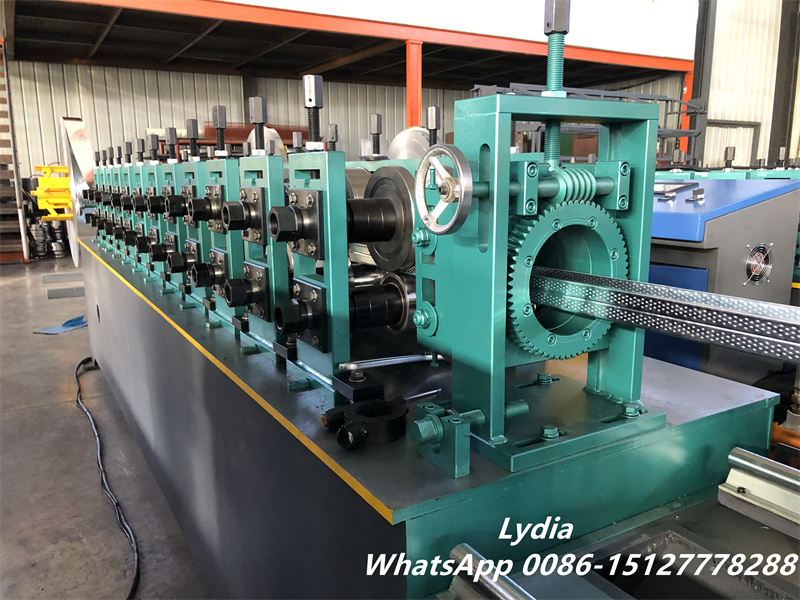

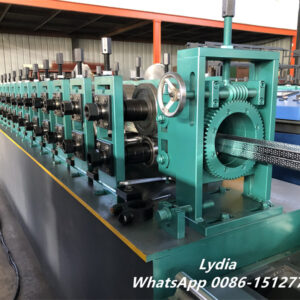

2. Roll Forming Process

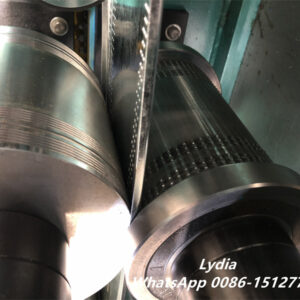

A sequence of precision-engineered rollers gradually bends the metal strip into the required U-channel geometry, ensuring consistent dimensions and controlled bend radii.

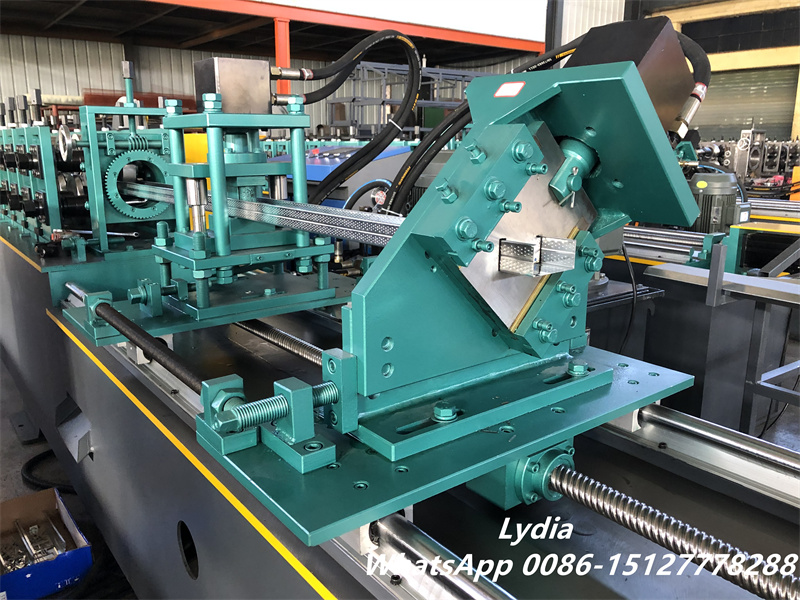

3. Cutting System
Profiles are cut to length using a flying cutoff or post-cut shear system, delivering clean, accurate cuts without deformation.

4. Optional Post-Processing
Depending on project requirements, the line can integrate:

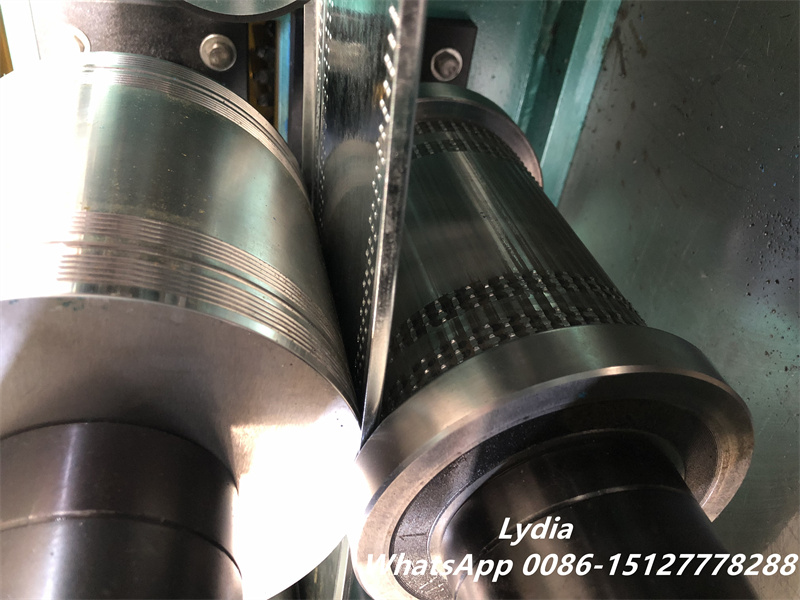

• Embossing units
• Punching systems
• Custom hole patterns or reinforcements

5. Stacking & Packaging

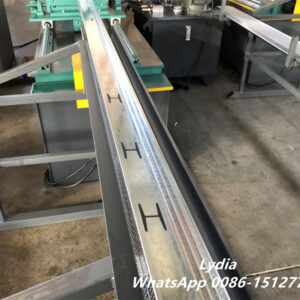

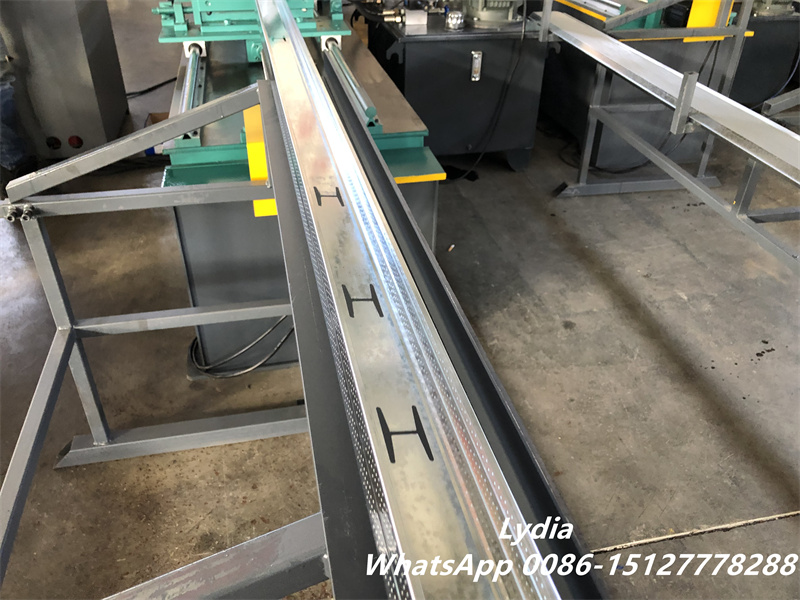

Finished U channels are automatically stacked or bundled for easy handling and transport.

Manufacturing & Warranty

All roll forming machinery is fully assembled and tested before delivery.
Each machine is manufactured according to customer-specific profile drawings and production requirements.

• Warranty: 1 year for parts and labor
• Customization: Profile, thickness range, embossing pattern, and automation level available
