In modern construction projects, light-gauge steel framing systems have become one of the most popular alternatives to traditional wood structures. Builders now prefer metal C studs and U tracks because they deliver higher strength, better fire resistance, and faster installation efficiency. As commercial buildings, modular houses, gypsum partition systems, and steel structure projects continue to grow worldwide, the demand for high-quality framing profiles is increasing rapidly.
To meet this market demand, ZTRFM develops advanced C Stud and U Track Roll Forming Machines designed for fully automatic production of drywall framing profiles with high precision, stable running performance, and flexible customization options.
What Is a C Stud and U Track Roll Forming Machine?

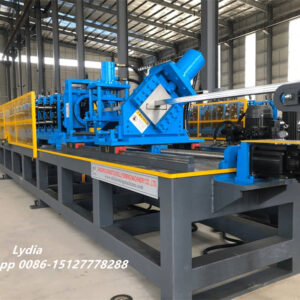

A C Stud and U Track Roll Forming Machine is a cold roll forming production line used to manufacture galvanized steel framing members for partition walls, ceiling systems, curtain walls, and drywall structures.

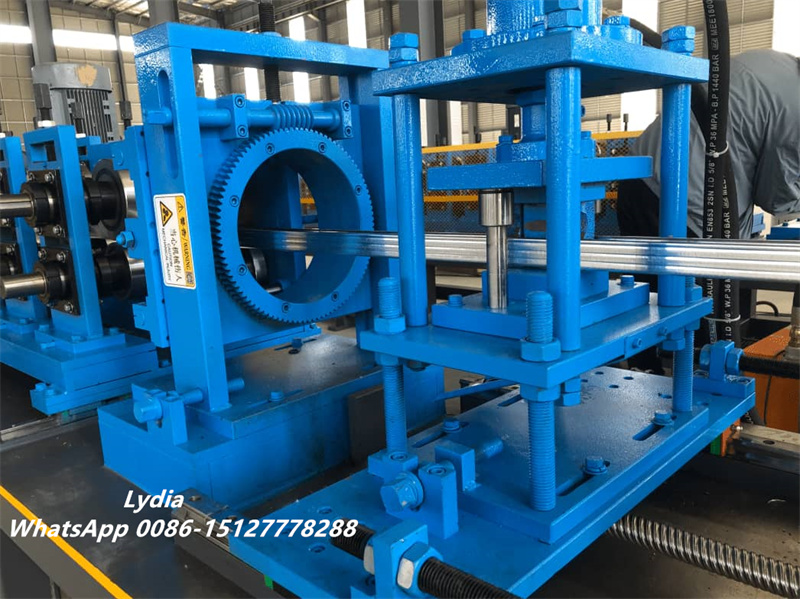

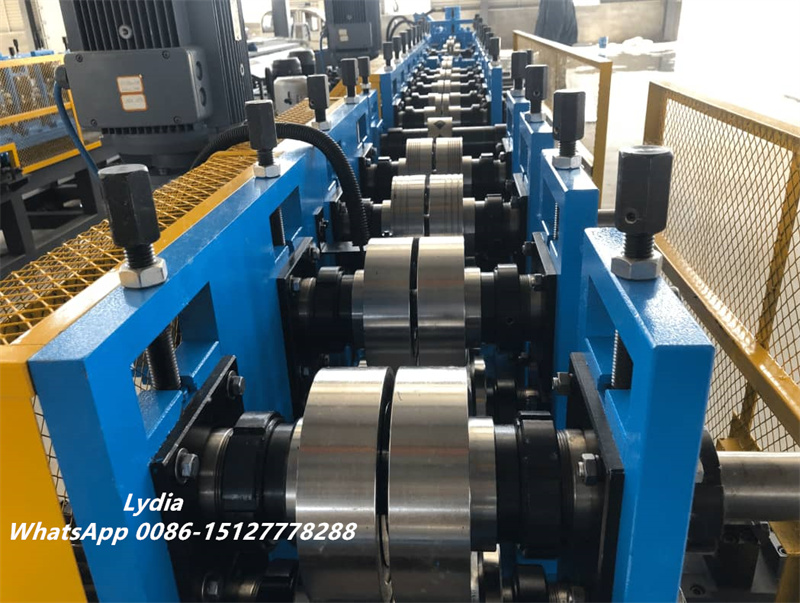

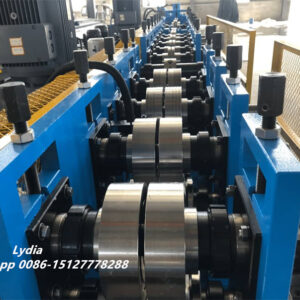

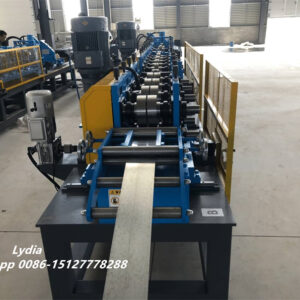

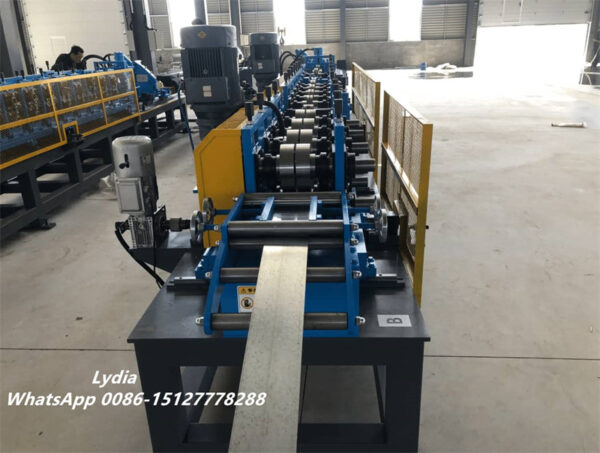

The machine continuously feeds galvanized steel coils into the roll forming section. Then, multiple roller stations gradually shape the steel strip into accurate C-shaped studs or U-shaped tracks. At the same time, the production line can complete punching, embossing, logo marking, and hydraulic cutting automatically.
Because of its intelligent control system, the machine greatly improves production efficiency while reducing labor costs and material waste.
Main Components of Metal Stud and Track Framing
A complete drywall framing system mainly includes vertical studs and horizontal tracks. These components work together to create lightweight but strong partition structures.

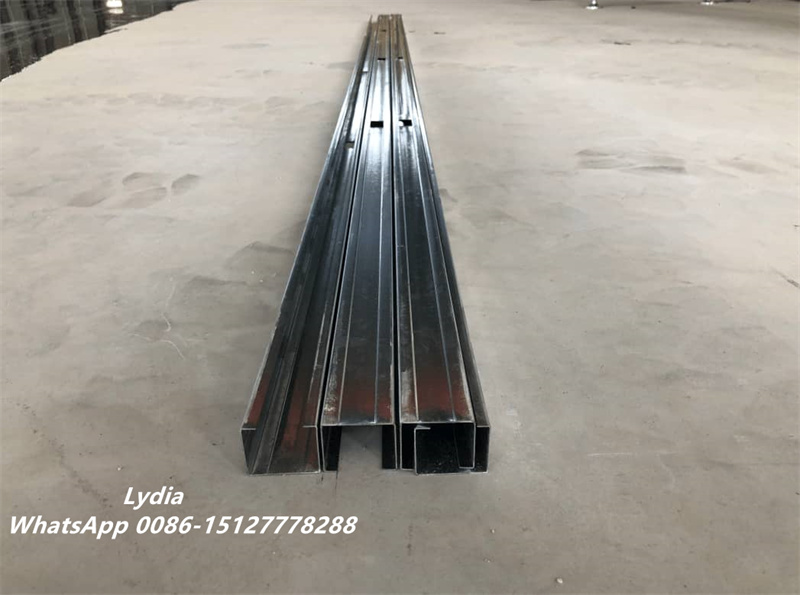

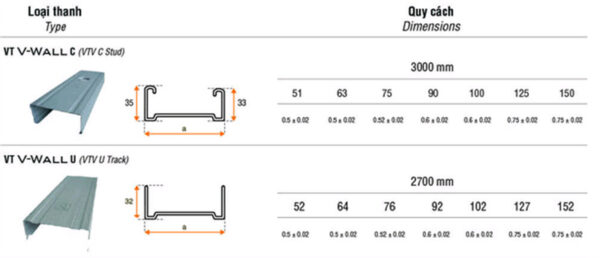

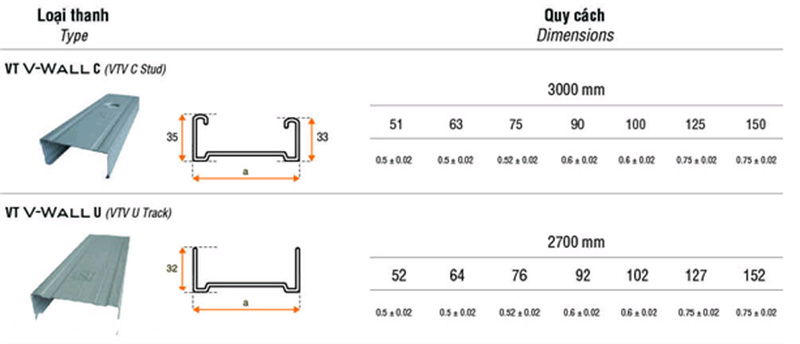

C Stud Profiles

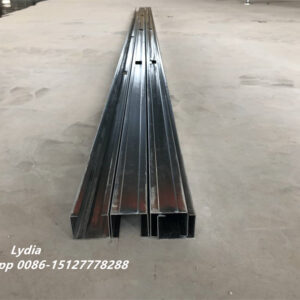

The C Stud serves as the vertical support member inside partition walls and ceiling systems. Manufacturers produce these profiles from galvanized steel coils through cold roll forming technology.
Common stud widths include:
- 50mm
- 60mm
- 70mm
- 75mm
- 92mm
- 100mm
- 146mm
These profiles usually include service holes for electrical wiring and plumbing installation.
U Track Profiles
The U Track acts as the horizontal guide channel positioned at the top and bottom of wall systems. It securely holds the vertical studs in place and improves the overall structural stability.
Tracks are available in matching dimensions corresponding to stud sizes.

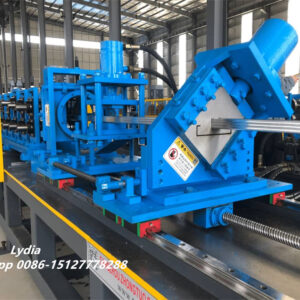

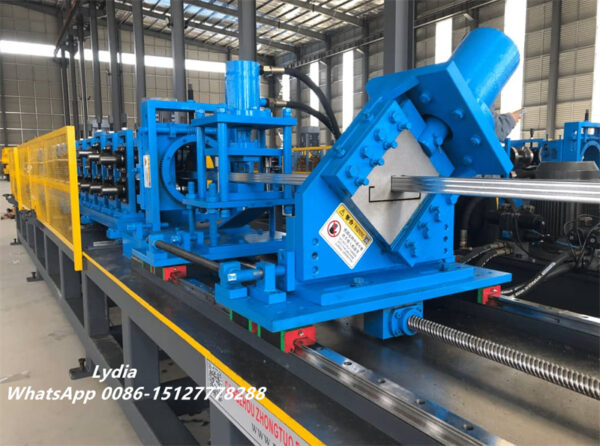

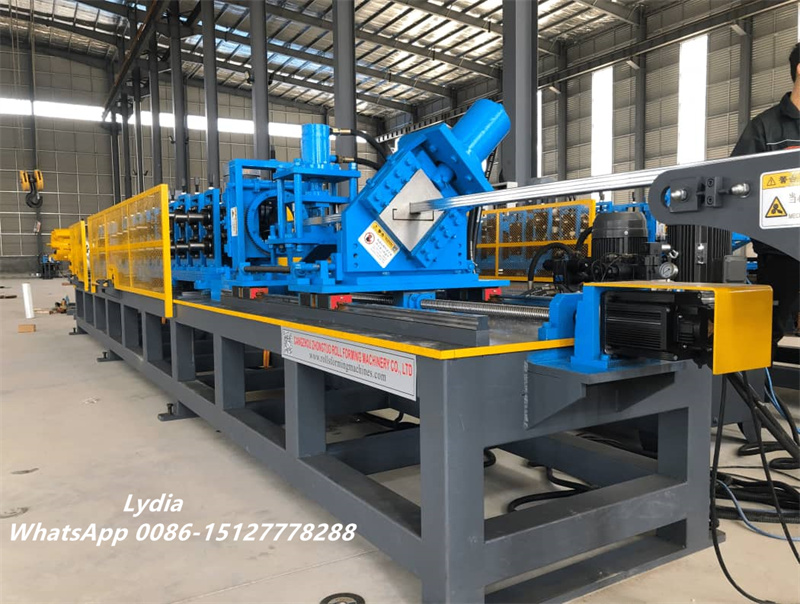

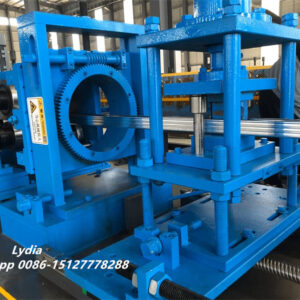

Technical Features of ZTRFM C Stud Roll Forming Machine
Unlike conventional forming equipment, the ZTRFM drywall stud and track machine combines automation, durability, and flexible production capabilities into one integrated solution.
| Item | Specification |
|---|---|
| Material Thickness | 0.4mm – 1.2mm |
| Raw Material | GI Steel, Galvanized Steel |
| Profile Types | C Stud, U Track |
| Forming Speed | 30–60 m/min |
| Cutting Type | Hydraulic Servo Cutting |
| Drive System | Gearbox / Chain Transmission |
| Control System | PLC Touch Screen |
| Punching Function | Available |
| Embossing Logo | Optional |
| Voltage | Customized |
Additionally, ZTRFM can customize the machine according to customer drawings, profile dimensions, and local electrical standards.

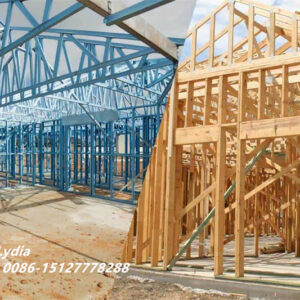

Advantages of Metal Stud and Track Framing Systems

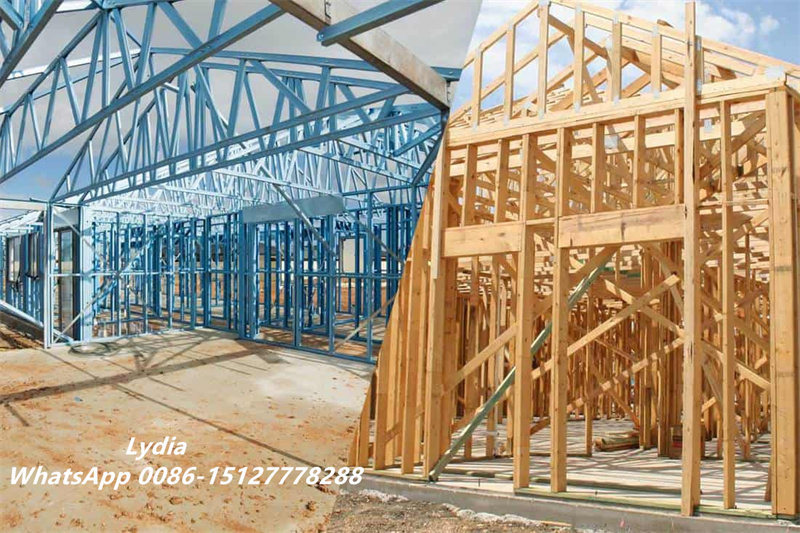

Today, contractors and developers increasingly choose light gauge steel framing systems because they offer many practical advantages over traditional wood framing.
Excellent Durability
Galvanized steel framing resists moisture, corrosion, termites, and deformation. Therefore, the wall system remains stable for many years.
Fast Installation
Workers can quickly assemble metal studs and tracks using screws. Consequently, construction efficiency improves significantly.
Lightweight but Strong
Although the structure is lightweight, it still provides excellent load-bearing capacity and dimensional stability.
Fire Resistance
Steel framing materials do not burn, which greatly improves building safety performance.
Environmentally Friendly
Compared with wood framing, steel framing produces less waste and supports recyclable construction practices.
Applications of C Stud and U Track Profiles
The finished products manufactured by the machine are widely used across many industries and construction sectors.
Common applications include:
- Drywall partition systems
- Ceiling suspension systems
- Commercial buildings
- Office partitions
- Hotels and hospitals
- Modular houses
- Curtain wall framing
- Warehouse interior walls
- Light steel villas
- Industrial workshops
Because of their flexibility and easy installation, these profiles have become essential materials in modern building projects.
Whether you need a standard drywall framing production line or a fully customized solution, ZTRFM can help you improve manufacturing efficiency and expand your business capacity.
The demand for C Stud and U Track framing systems continues to rise in the global construction industry. Therefore, investing in a high-performance C Stud and U Track Roll Forming Machine becomes an important step for manufacturers seeking higher efficiency and better product quality.
With advanced technology, stable operation, and flexible customization capabilities, ZTRFM provides professional roll forming solutions for drywall framing production worldwide.
If you are looking for a reliable partner for your steel framing manufacturing business, ZTRFM is ready to support your project with efficient and cost-effective machinery solutions.FANSILE NISHUO NE NISHUONE
