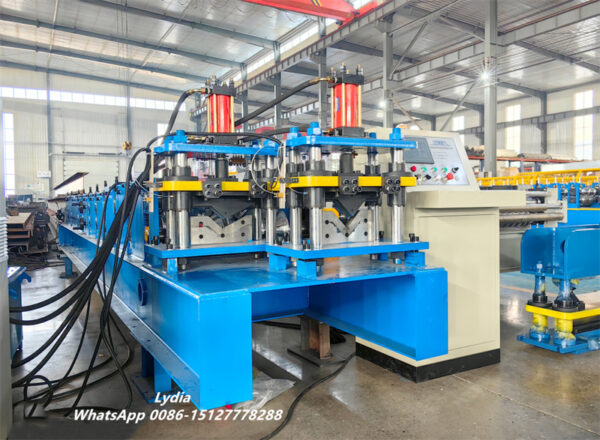

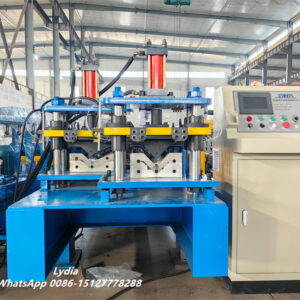

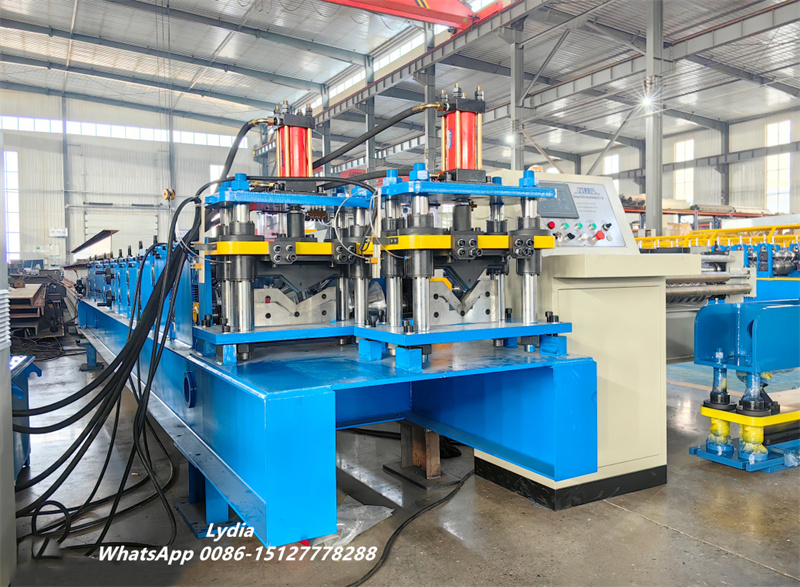

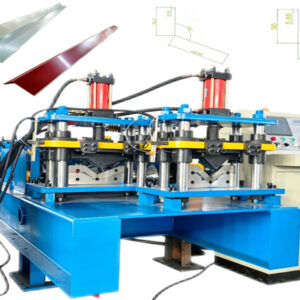

In modern steel construction projects, roof-to-wall flashing, drip edge trims, and eave finishing profiles play a crucial role in waterproofing, structural protection, and architectural appearance. The Double Line Drip Edge Roll Forming Machine is specifically designed to manufacture these essential metal components with high speed, precision, and efficiency.
Unlike conventional single-profile production lines, this advanced Double Line Roof To Wall Roll Forming Machine can simultaneously produce two profiles or significantly increase production capacity, making it an ideal solution for roofing manufacturers, steel structure contractors, and prefabricated building suppliers.
Why Choose a Double Line Roof To Wall Roll Forming Machine?
As construction projects continue to demand faster delivery and lower production costs, manufacturers need equipment that can maximize output without compromising quality.

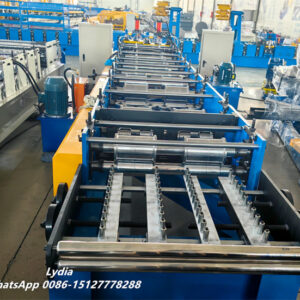

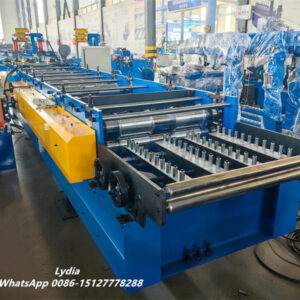

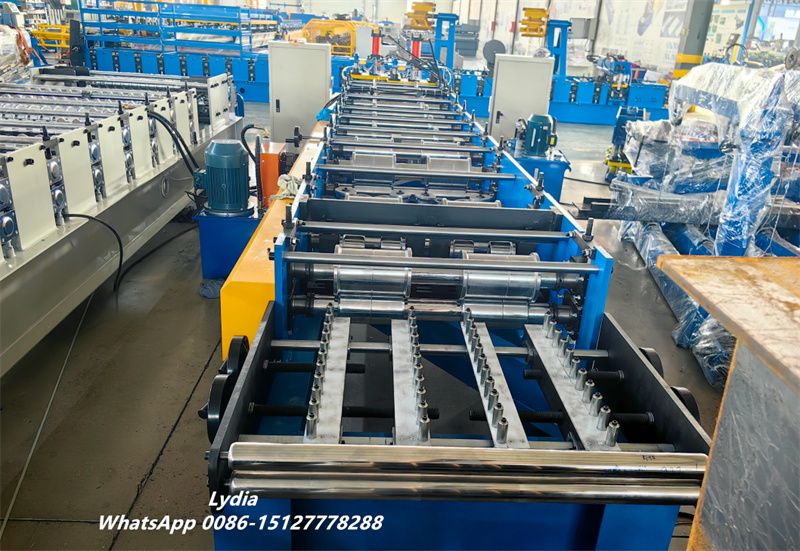

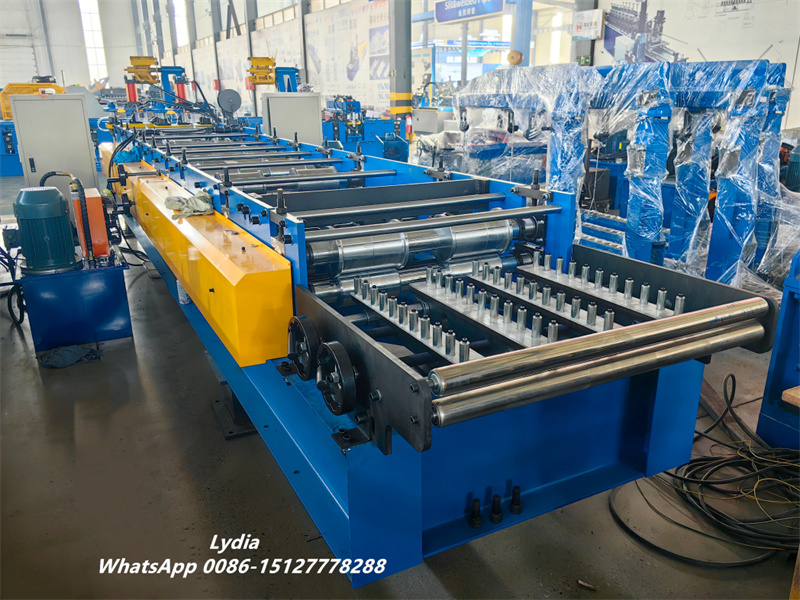

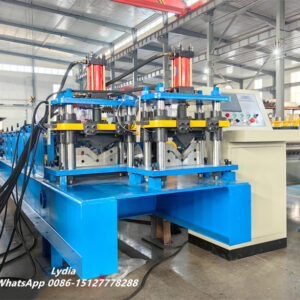

The Double Line Roof To Wall Roll Forming Machine achieves this by utilizing a dual-profile forming design. Metal coils are continuously fed into the machine and gradually shaped through a series of precision-engineered rollers. As a result, the finished profiles maintain excellent dimensional accuracy, smooth surfaces, and consistent quality.
Furthermore, the machine reduces labor requirements while increasing productivity, helping businesses improve profitability and shorten project lead times.
Typical Applications of Finished Profiles
The finished products manufactured by this machine are widely used in various building systems.
Steel Structure Buildings

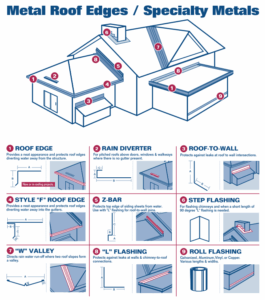

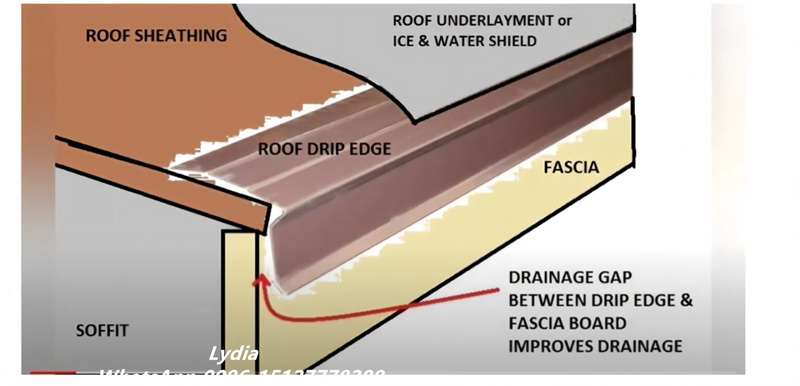

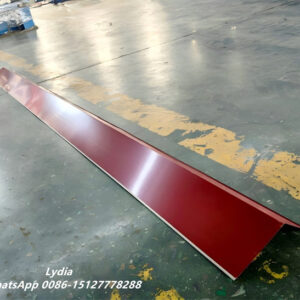

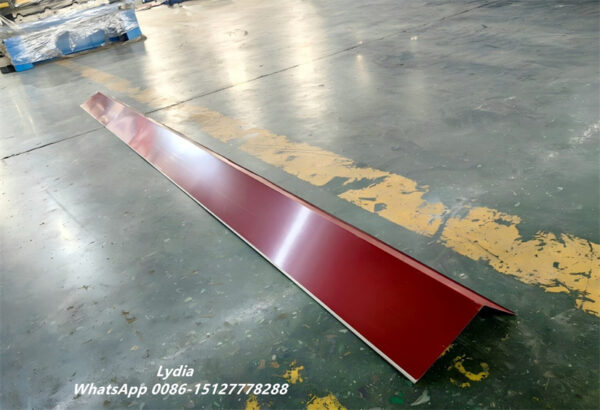

Drip edges, roof-to-wall flashings, and edge trims are installed at roof and wall connections to prevent water penetration and improve the overall appearance of industrial workshops, warehouses, and commercial buildings.
The machine produces metal finishing components used in modular housing systems, container homes, and portable buildings, ensuring quick installation and reliable structural performance.
In pharmaceutical plants, food processing facilities, and electronics factories, special edge profiles provide smooth transitions between walls and floors while maintaining hygienic environments.
Roof-to-wall flashings and side trims protect insulation panels and decorative cladding systems from moisture damage while enhancing weather resistance.
Key Advantages of the Machine
High-Speed Dual-Line Production
One of the most significant advantages of this equipment is its dual-line forming capability. Compared with traditional roll forming machines, the system can produce two profiles simultaneously or dramatically increase production output from a single coil feed.
Consequently, manufacturers can complete large-volume orders faster and reduce production costs per meter.
Excellent Forming Accuracy

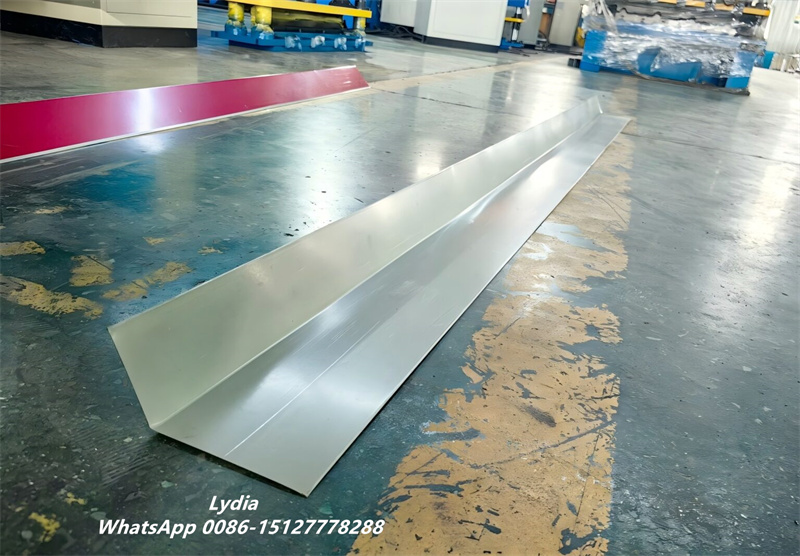

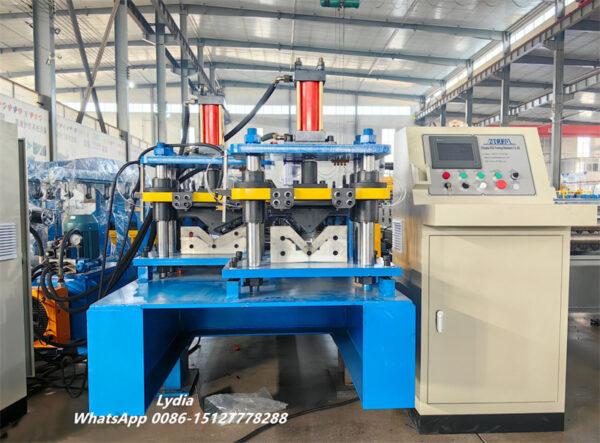

The precision-machined rollers ensure stable forming performance throughout the production process. In addition, the Cr12Mov cutting system delivers clean cuts without burrs, scratches, or profile deformation.
This makes the finished products suitable for visible architectural applications where appearance and dimensional consistency are critical.
Flexible Profile Manufacturing

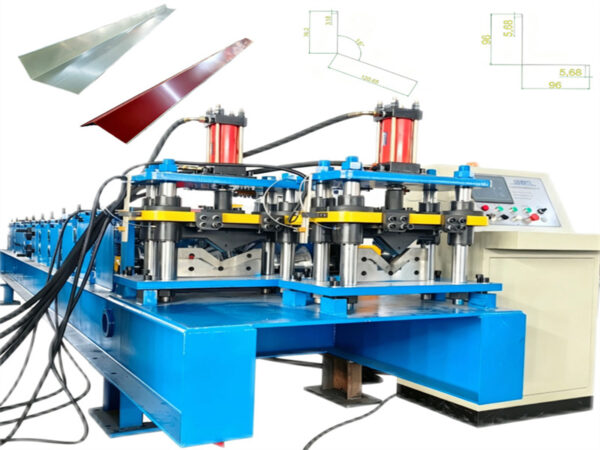

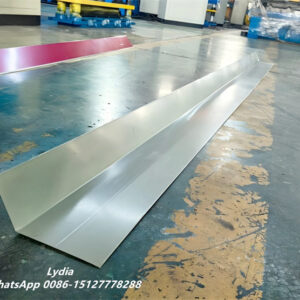

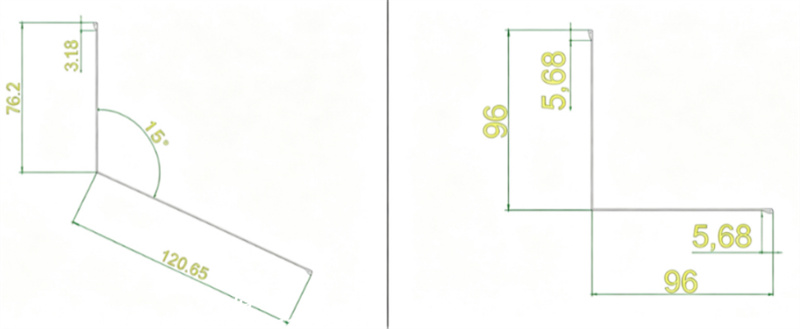

The machine can be customized according to customer profile drawings. By changing roller tooling or adjusting machine parameters, manufacturers can produce a variety of drip edge profiles, roof flashings, edge trims, and decorative metal components.
Therefore, the equipment provides excellent flexibility for serving different construction markets.
Fully Automated Operation
The PLC control system automates the entire production process, including length setting, quantity counting, batch production, and automatic cutting.
As a result, operators can easily manage production while minimizing manual intervention and reducing labor costs.
Durable Construction for Long-Term Performance
The machine frame adopts heavy-duty welded steel construction, while the rollers are manufactured from high-quality 45# steel with hard chrome plating. This combination ensures excellent wear resistance, long service life, and reliable operation even under continuous production conditions.
Technical Specifications
The following table outlines the standard configuration of the Double Line Drip Edge Roll Forming Machine:
| Item | Specification |
|---|---|
| Suitable Material | PPGI, GI, Aluminum Coil |
| Material Thickness | 0.4–0.8 mm |
| Decoiler Type | Hydraulic Automatic Decoiler |
| Free Accessory | Manual Decoiler |
| Forming Stations | 10 Stations |
| Shaft Diameter | 60 mm Solid Shaft |
| Roller Material | 45# Steel with Hard Chrome Coating |
| Frame Structure | Welded Steel Construction |
| Transmission Type | Chain Drive |
| Main Motor Power | 4 KW |
| Hydraulic Power | 4 KW |
| Cutting Blade Material | Cr12Mov |
| Production Speed | 40–100 m/min (Customizable) |
| Control System | PLC Automatic Control |
| Operating Language | English & Multi-Language Support |
| Voltage | 380V 50Hz 3 Phase (Customized Available) |
| Machine Size | 7800 × 800 × 1200 mm |
| Machine Weight | Approximately 4.5 Tons |
A Smart Investment for Roofing and Steel Structure Manufacturers
Whether you manufacture roofing accessories, flashing systems, prefabricated building components, or insulation finishing profiles, the Double Line Drip Edge Roll Forming Machine offers a practical solution for increasing productivity and maintaining consistent product quality.
With its high-speed performance, dual-output capability, and automated control system, this machine helps manufacturers respond quickly to growing market demand while reducing production costs.
At Zhongtuo Roll Forming Machinery, we provide complete project support, including machine customization, factory layout recommendations, installation guidance, operator training, and long-term technical service.
Contact our engineering team today to receive a customized solution and competitive quotation for your next production line.
