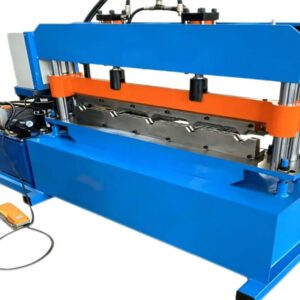

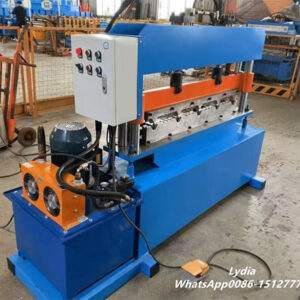

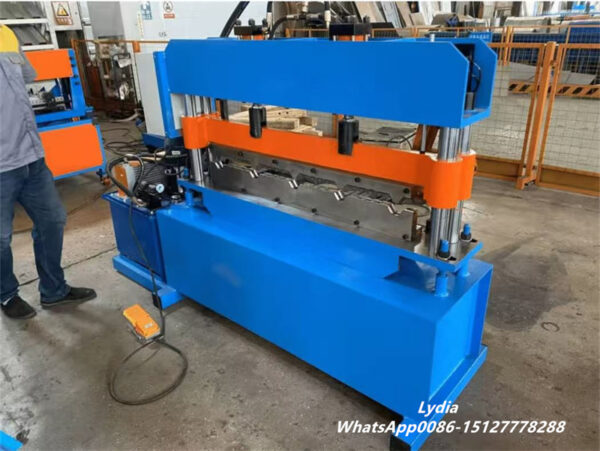

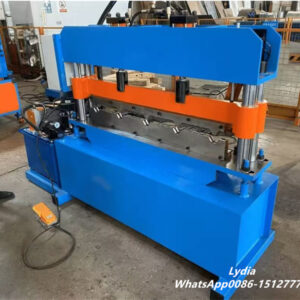

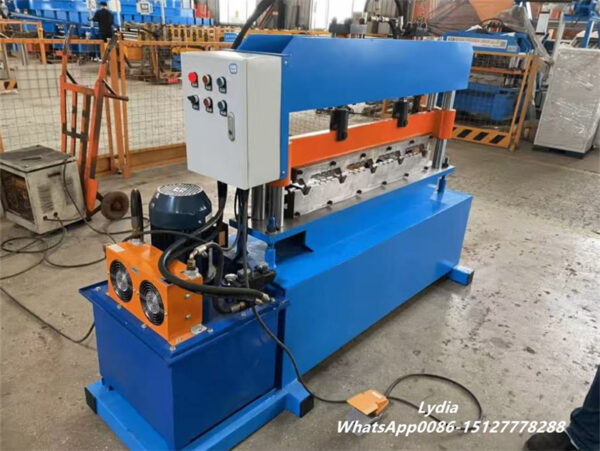

Zhongtuo Full Automatic Hydraulic PBR Ridge Cap Bending Machine for Metal Roofing

In today’s steel structure and metal roofing industry, contractors demand faster production, cleaner forming quality, and lower labor costs. Traditional manual bending methods often create inconsistent ridge caps, uneven overlap joints, and unnecessary material waste. Therefore, more roofing manufacturers are upgrading to intelligent hydraulic bending equipment.

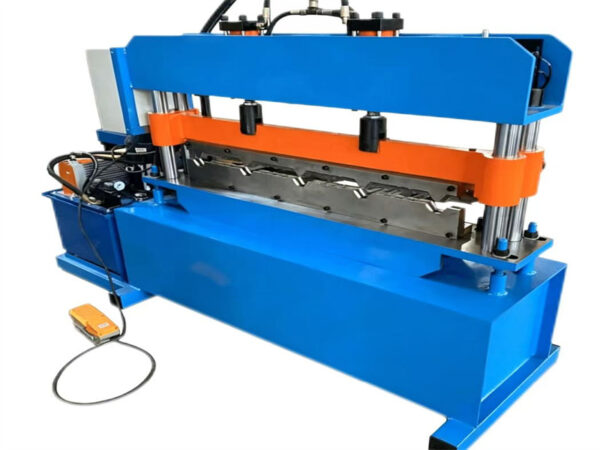

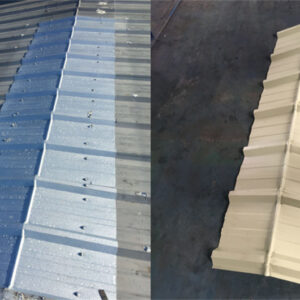

The Full Automatic Hydraulic PBR Ridge Cap Bending Machine is specially engineered to produce high-quality metal ridge caps, curved roof panels, and shaped roofing components with excellent accuracy and efficiency. This machine helps roofing companies streamline production while maintaining stable forming quality across different roof profiles.

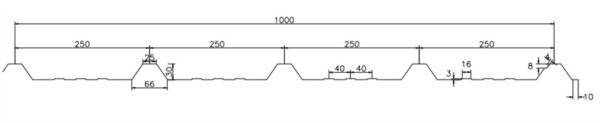

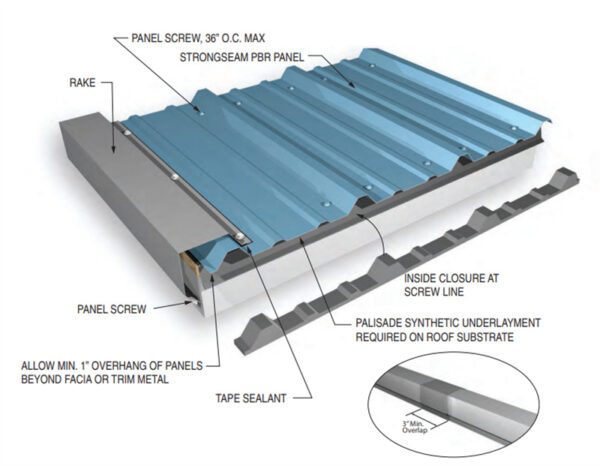

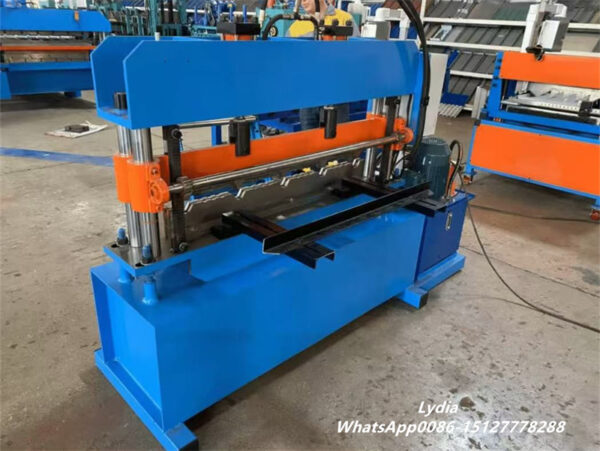

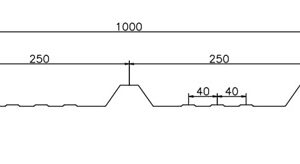

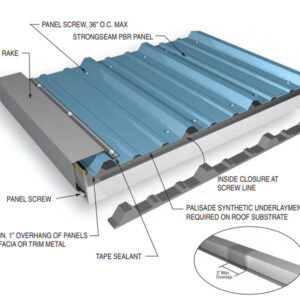

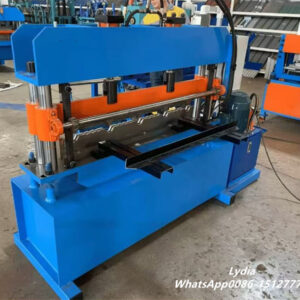

Designed for PBR and AG panel systems, the machine supports multiple roofing applications including industrial workshops, warehouses, agricultural buildings, steel sheds, and commercial roofing structures.

Main Features of the Hydraulic Ridge Cap Bending Machine

Unlike traditional bending tools, this machine combines hydraulic power, PLC automation, and precision forming technology into one integrated solution. As a result, operators can complete ridge cap production faster and with fewer manual adjustments.

Flexible Profile Adjustment

The machine features manually adjustable depth control, allowing operators to adapt quickly to different roof pitches from 1/12 to 4/12. This flexibility makes the equipment suitable for various roofing systems without requiring complicated tooling replacement.

Additionally, optional cassette-type mold structures enable faster future profile exchanges and reduce downtime during production changes.

Stable Hydraulic Forming System

The hydraulic forming unit delivers consistent pressure during continuous operation. Because of this, the finished ridge caps maintain smooth edges, accurate angles, and stable curvature without deformation.

The machine uses advanced hydraulic technology with a working pressure of up to 32 MPa, ensuring reliable forming performance even when processing stronger metal materials.

Intelligent PLC Control

To improve automation and operator convenience, the machine adopts a Taiwan DELTA PLC control system combined with a 5.7-inch touchscreen interface. Operators can monitor production status, adjust parameters, and control forming length efficiently.

Furthermore, the optional servo motor system automatically calculates arc length and improves forming precision for curved roofing applications.

Widely Used in Steel Structure Roofing Projects

As steel structure buildings continue to expand worldwide, demand for automated roof forming equipment is increasing rapidly. This hydraulic ridge cap machine can support multiple project environments efficiently.

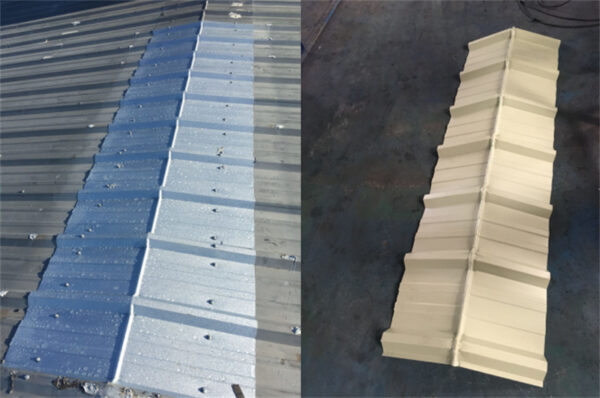

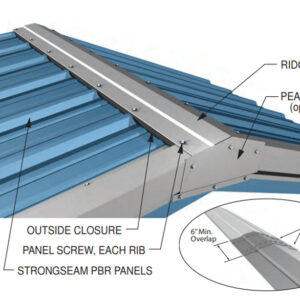

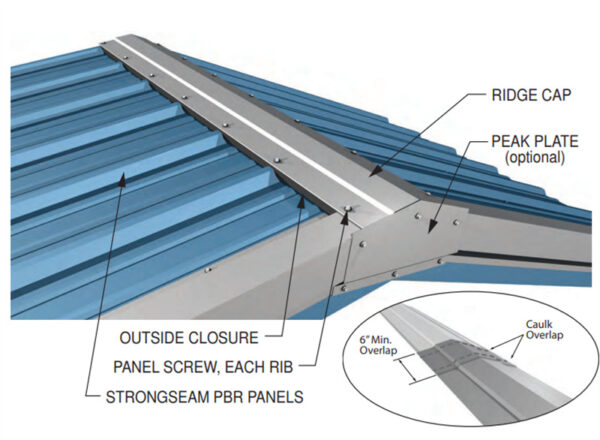

For large-span industrial buildings and sports facilities, the machine produces curved roof components with excellent structural consistency. Meanwhile, in residential and agricultural projects, the equipment delivers aesthetically pleasing ridge caps that improve roof waterproofing and durability.

In addition, lightweight curved roofing panels are ideal for temporary buildings, mobile houses, storage shelters, and emergency construction projects because they are easy to transport and install.

Thanks to its versatile forming capability, contractors can use one machine for multiple roofing applications while reducing labor dependency.

Advantages of Automatic Hydraulic Ridge Cap Production

Modern cold roll forming and hydraulic bending technology offer several important advantages over traditional manual processing methods.

First, the machine significantly reduces labor intensity. Operators no longer need repeated manual cutting and bending operations, which improves workplace safety and production efficiency.

Second, the equipment enhances forming consistency. Precision-machined rollers made from Cr12 quenched steel ensure stable shaping accuracy within tight tolerances. Consequently, finished ridge caps fit more precisely during installation and reduce leakage risks.

Moreover, the CNC-controlled cutting and forming process minimizes material waste. Compared with traditional fabrication methods, roofing companies can lower raw material consumption and improve overall project profitability.

Finally, the machine operates without heating during cold forming. This process preserves the material’s structural strength while reducing energy consumption.

Technical Specifications

Durable Construction for Long-Term Operation

The machine frame adopts a heavy-duty H-beam and middle plate welded structure to provide excellent stability during continuous production. Additionally, all key forming rollers undergo CNC machining and heat treatment to extend service life and maintain forming precision.

The feeding system uses chain transmission combined with stable motor drive technology to ensure smooth sheet movement throughout the production cycle.

Because of its strong structure and reliable hydraulic system, the machine can maintain long-term stable operation even under demanding production environments.

Why Choose This PBR Ridge Cap Bending Machine

For roofing manufacturers and steel structure contractors, production speed and forming accuracy directly influence project delivery efficiency. This automatic hydraulic ridge cap bending machine helps businesses reduce labor costs, improve forming quality, and increase production flexibility simultaneously.

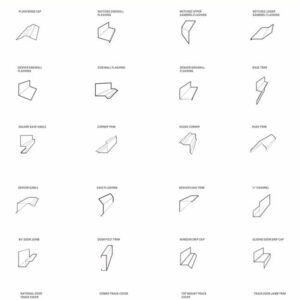

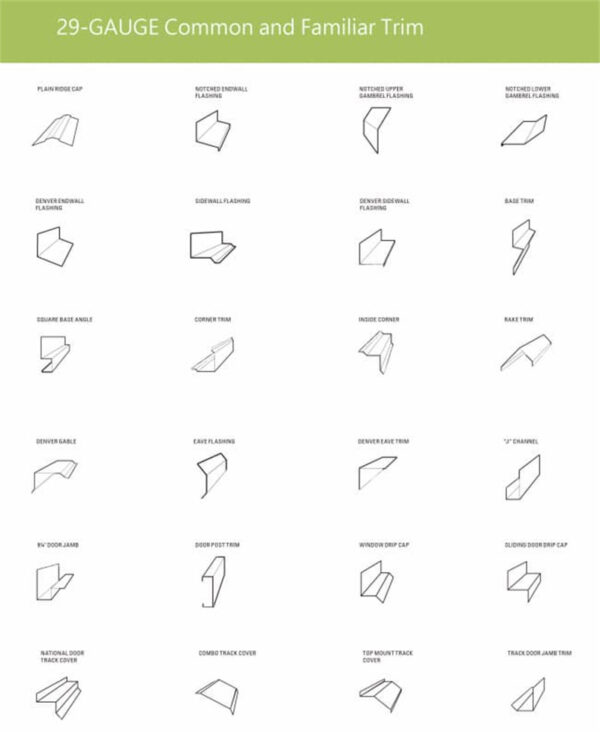

Whether producing standard ridge caps, curved roofing panels, or customized metal roof accessories, this machine provides a practical and cost-effective solution for modern metal roofing fabrication.

By integrating intelligent automation, durable construction, and versatile forming capability, the equipment becomes an essential production system for companies seeking higher efficiency and professional roofing results.
