Zhongtuo Fully Automatic CZ Purlin Roll Forming Machine C & Z Steel Purlin Making Machine for Steel Structures

With the rapid development of prefabricated buildings, warehouses, industrial plants, and steel structure projects, the demand for high-quality C & Z purlins continues to grow. ZTRFM designs and manufactures advanced CZ Purlin Roll Forming Machines that help steel fabricators produce accurate, durable, and efficient secondary framing components.

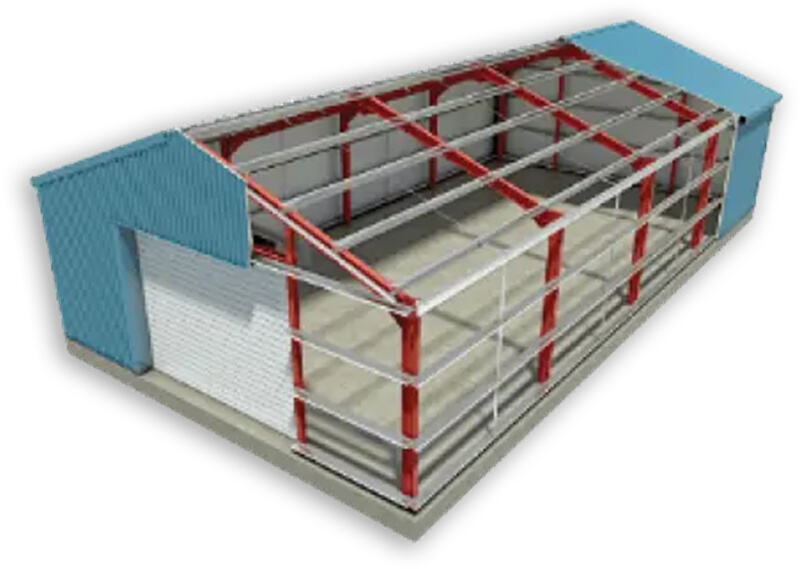

A purlin plays a critical role in steel buildings by transferring roof and wall loads to the main frame structure. Installed parallel to the building eaves, purlins support roofing panels, wall cladding, and other structural components, improving overall stability and load-bearing performance.

Our Fully Automatic CZ Purlin Roll Forming Machine can manufacture both C-shaped and Z-shaped purlins from galvanized steel or cold-rolled steel strips. The machine integrates material feeding, punching, roll forming, automatic size adjustment, hydraulic cutting, and finished product collection into one complete production line, providing a highly efficient solution for steel frame manufacturers.

Advanced Machine Design for C and Z Purlin Manufacturing

ZTRFM’s purlin forming equipment is specially developed for producing structural steel sections with high precision. The machine supports a wide range of profiles from 100mm to 400mm, allowing customers to manufacture different purlin sizes according to construction requirements.

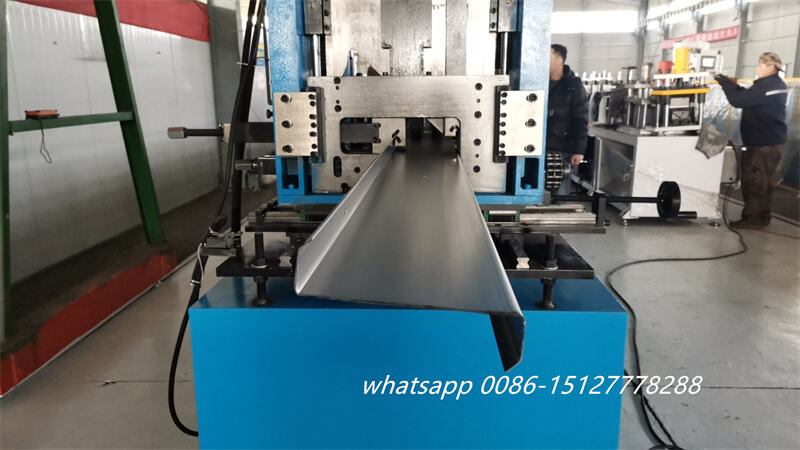

The C purlin forming process continuously shapes flat steel strips into C-shaped profiles through multiple forming stations. These C-shaped sections are widely used as roof supports, wall girts, floor joists, and secondary framing members.

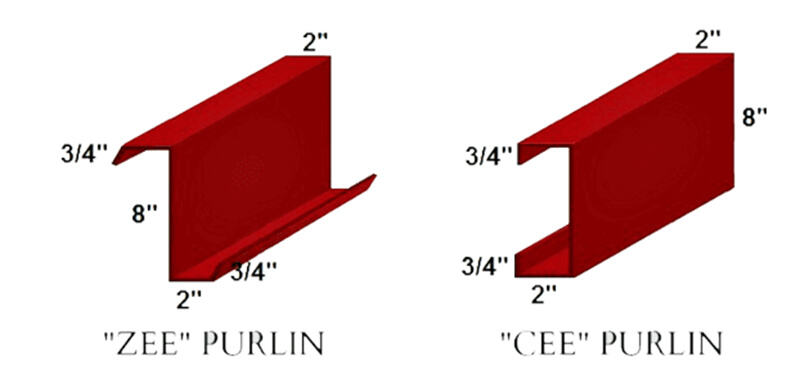

Meanwhile, the Z purlin production system creates Z-shaped profiles with different flange widths. Thanks to its unique design, Z purlins can overlap at internal supports, forming continuous structural lines with improved strength and rigidity.

To increase production flexibility, the machine allows quick conversion between C and Z profiles. Operators can adjust the upper rollers through a handwheel system, while the complete roller line can be repositioned through the bottom adjustment mechanism. Therefore, manufacturers can switch between different profiles and sizes with less downtime.

High Precision Performance Ensures Stable Production

ZTRFM focuses on improving accuracy and durability throughout the entire machine design. The specially engineered forming system solves common problems found in small-size Z purlin production, such as bending deformation and poor straightness.

The machine uses a 75mm solid shaft structure combined with an H-shaped steel frame base. This heavy-duty construction provides excellent stability during continuous operation and prevents the equipment from losing accuracy after long-term production.

In addition, the forming rollers are manufactured from GCR15 bearing steel and processed by CNC machining technology. These precision rollers maintain consistent forming pressure, ensuring that every finished purlin achieves accurate dimensions and smooth surfaces.

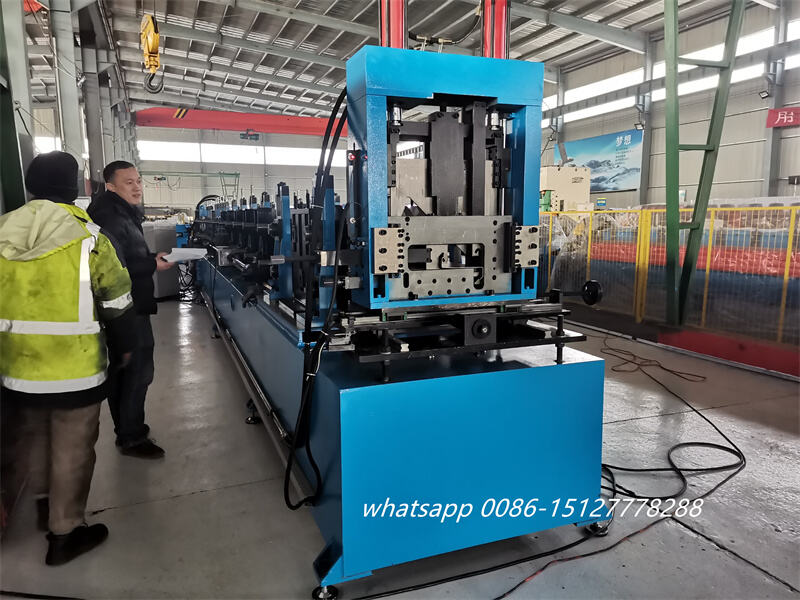

Furthermore, the cutting frame receives stress-relief treatment before assembly. This process reduces deformation risks during high-speed operation and helps maintain reliable cutting performance throughout the machine’s service life.

Intelligent Automation Improves Manufacturing Efficiency

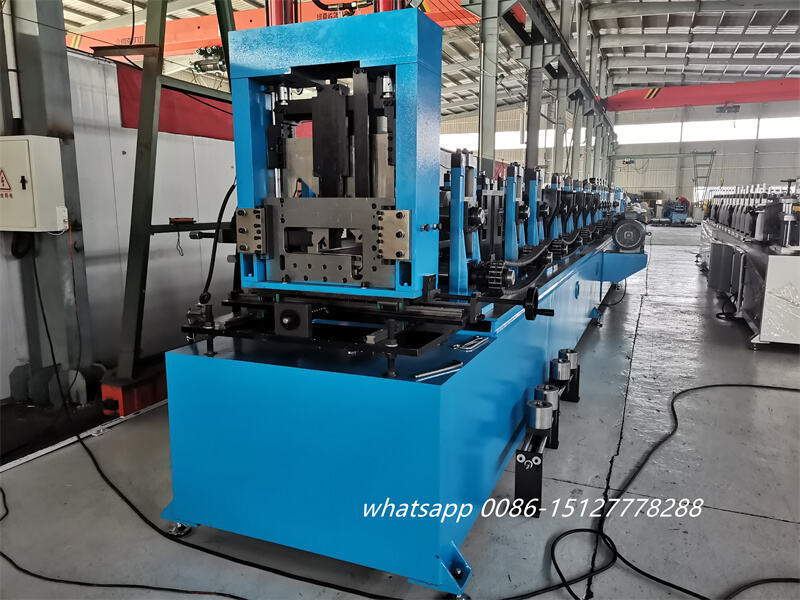

The CZ purlin roll forming machine adopts an advanced PLC control system with a user-friendly HMI interface. Operators can easily set production parameters, adjust profile sizes, and monitor the complete manufacturing process through the touch screen.

The automatic system controls feeding, punching, forming, and cutting operations, reducing manual intervention and improving production efficiency. Compared with traditional fabrication methods, roll forming technology provides faster output, lower material waste, and more consistent product quality.

The integrated punching system also improves convenience for steel structure manufacturers. Customers can select customized punching patterns according to installation requirements, including standard holes or specially designed hole layouts.

Wide Applications in Steel Building Projects

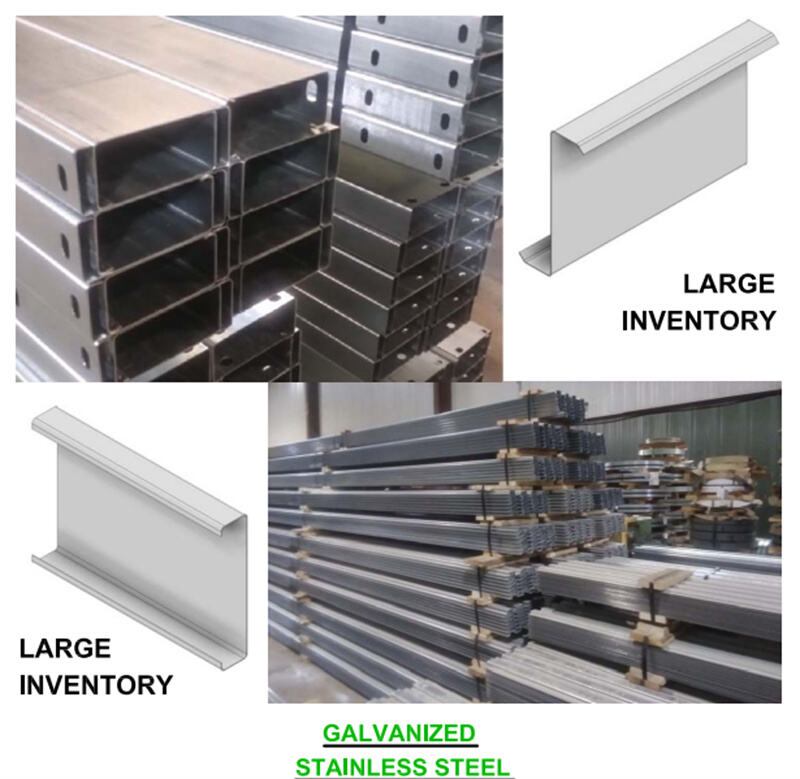

C and Z purlins produced by ZTRFM machines are widely used in various steel construction applications. These lightweight yet strong structural components provide reliable support for roofing systems, wall systems, and industrial structures.

Typical applications include steel warehouses, factory buildings, agricultural buildings, commercial facilities, storage structures, and prefabricated steel frames.

Because of their excellent strength-to-weight ratio, corrosion resistance, and easy installation, C and Z purlins have become an important choice for modern construction projects. With a professional purlin roll forming machine, manufacturers can efficiently supply high-quality steel framing solutions for different markets.

ZTRFM combines advanced manufacturing technology with years of experience in cold roll forming equipment production. Our C Z Purlin Roll Forming Machine delivers high precision, strong durability, and flexible production capabilities for global steel structure manufacturers.

From customized profile sizes to punching solutions and automatic production systems, we provide complete support based on each customer’s project requirements. By choosing ZTRFM, customers can achieve stable production, reduce manufacturing costs, and improve competitiveness in the steel construction industry.
