Modern construction increasingly depends on faster production, standardized components, and efficient material use. As prefabricated and modular building systems continue to expand, light gauge steel framing has become an important solution for manufacturers producing structural components for residential, commercial, and industrial projects.

The Light Steel Framing Machine from Zhongtuo is designed to convert high-tensile galvanized steel coils into accurately formed structural profiles through an automated production process. Instead of relying on multiple separate machines and manual operations, the production line can integrate coil feeding, punching, roll forming, secondary processing, cutting, and finished-product output.

As a result, manufacturers can improve production consistency while reducing unnecessary manual handling. Moreover, CNC-controlled processing allows the machine to follow programmed structural requirements and produce components with complex punching patterns and precise profile dimensions.

Zhongtuo provides light gauge steel framing machines for manufacturers involved in prefabricated houses, modular buildings, warehouses, industrial facilities, agricultural structures, logistics buildings, and other light steel construction projects.

What Is a Light Steel Framing Machine?

A Light Steel Framing Machine, also called a Light Gauge Steel Frame Machine or LGS Roll Forming Machine, is an automated production system that shapes galvanized steel coils into structural framing profiles.

The machine gradually transforms flat steel strip into the required profile through a series of forming rollers. At the same time, integrated punching stations can create service holes, web notches, lip cuts, truss openings, anchor holes, bolt holes, dimples, swages, crimping features, and other customized details.

Zhongtuo can configure the machine for multiple C and U profile sizes. For example, the system can support a framing solution with six web sizes, including C profiles of 89/100/150/200/250/300 × 50 × 15 mm and U profiles of 89/100/150/200/250/300 × 50 mm.

The machine is designed for high-tensile galvanized steel such as G350–G550, with a standard material thickness range of approximately 1.0–2.5 mm. Different machine configurations can also be designed according to specific production requirements.

Main Features and Technical Advantages

Zhongtuo combines automated processing and durable machine components to create an efficient production line for light steel profile manufacturers.

Specification	Zhongtuo Light Steel Framing Machine
Raw Material	High-tensile galvanized steel G350–G550
Material Thickness	1.0–2.5 mm, configurable according to requirements
Profile System	Multiple C + C and C + U framing combinations
Available Web Sizes	6 profile web sizes
C Profile	89/100/150/200/250/300 × 50 × 15 mm
U Profile	89/100/150/200/250/300 × 50 mm
Forming Speed	Up to 30 m/min
Control System	CNC control
Roller Drive	Servo motor with individual reduction gear transmission
Forming Stations	Approximately 12–13 stations
Forming Roller Material	SKD11 alloy steel with vacuum heat treatment
Punching Features	Service hole, notch, lip cut, truss, anchor hole, dimple, swage, crimp, bolt hole and oval hole

One of the key advantages of the Zhongtuo system is its servo-driven forming roller transmission. Each forming stand can operate with an individual reduction gear while the rollers work in synchronization. Consequently, the production line can maintain stable forming performance during continuous operation.

In addition, Zhongtuo uses wear-resistant alloy steel tooling for forming and punching. Vacuum heat treatment improves tooling hardness and durability, helping manufacturers maintain reliable production performance over extended operating periods.

How the Zhongtuo Light Steel Framing Machine Works

The production process starts when the operator loads the galvanized steel coil onto the automatic uncoiler. The entry and guiding system then directs the steel strip into the production line while helping maintain stable material alignment.

Next, the material enters the first punching section. At this stage, the machine can perform operations such as truss punching, notch punching, lip cutting, service hole punching, index hole punching, flange cutting, large oval hole punching, and dimpling.

After the first punching operations, the steel strip moves into the roll forming section. Multiple forming stations gradually bend the material into the required structural profile. This progressive forming method helps maintain profile accuracy and reduces unnecessary stress on the steel.

The formed profile then enters the secondary punching section. Depending on the design, Zhongtuo can integrate additional operations such as notching, oval hole punching, swaging, crimping, and other profile-specific processing.

Finally, the cutting system performs the required shear operation and releases the finished profile. The production sequence can therefore follow a continuous process:

Coil → Entry Guide → Punching Section A → Roll Forming → Punching Section B → Crimping and Shearing → Finished Light Steel Profile

Because Zhongtuo integrates several production stages into one line, manufacturers can reduce secondary processing and improve the overall efficiency of their steel framing workflow.

Major Components of the Light Gauge Steel Framing Production Line

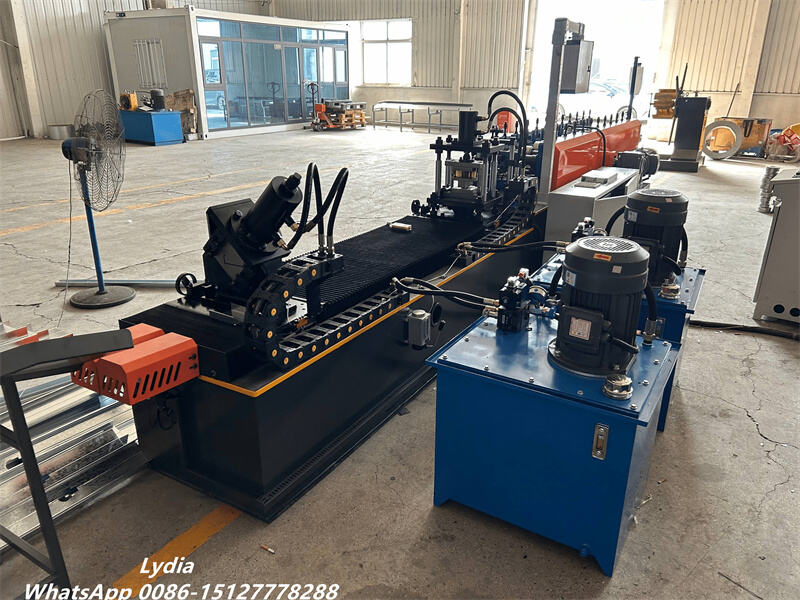

A complete Zhongtuo Light Steel Framing Machine can include several coordinated production units.

The automatic single-head uncoiler supports coil loading and material feeding. Depending on the configuration, the system can include a loading capacity of approximately 2,200 kg, with coil specifications designed for industrial steel processing.

The entry and lubrication system prepares the material before it reaches the punching and roll forming sections. An entry guide and counter wheel help control material movement, while the lubrication system supports smoother processing.

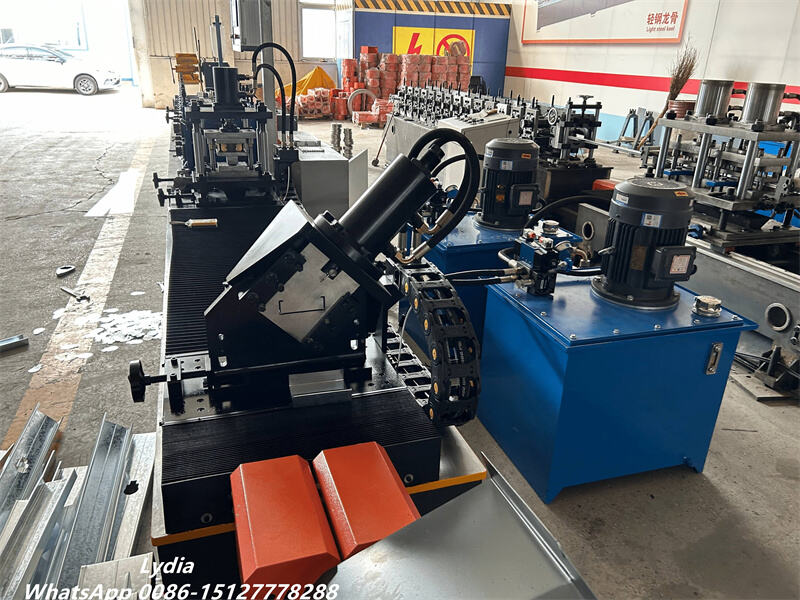

The punching die system performs structural processing before and after roll forming. Zhongtuo can use SKD11 alloy steel punching dies with vacuum heat treatment to provide wear resistance and long-term durability.

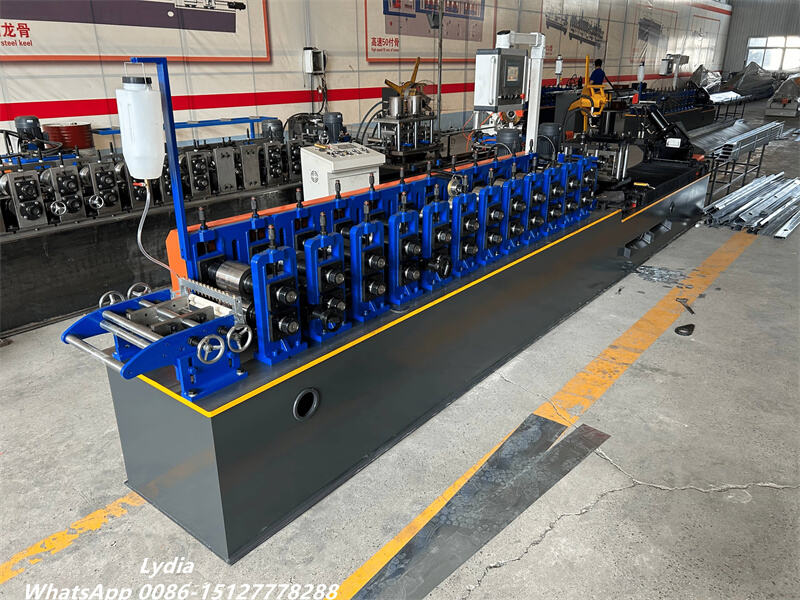

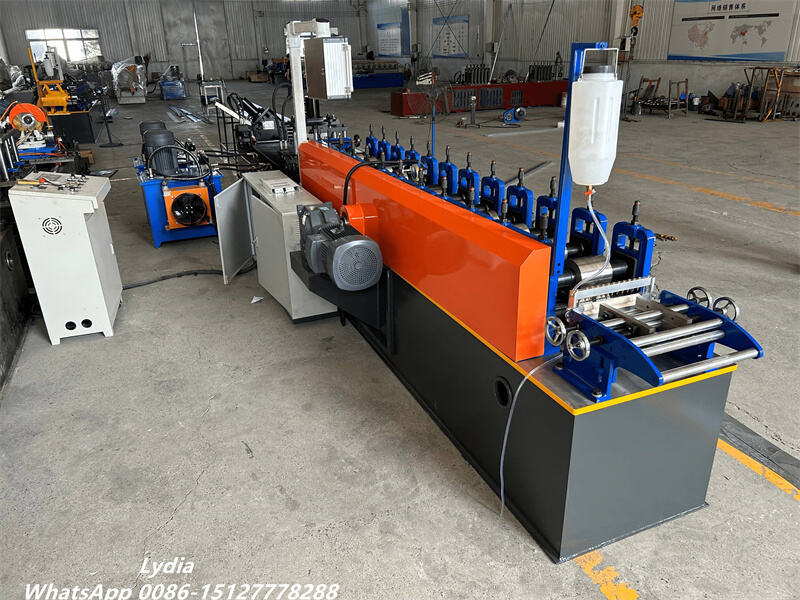

The cold roll forming section includes approximately 12–13 forming stations. A servo motor drives the forming system, while heat-treated and ground shafts support stable roller operation. The forming rollers can also use SKD11 alloy steel to improve wear resistance.

Furthermore, the production line can include a hydraulic system, run-out table, industrial computer control system, CNC controller, touch-screen interface, and design software for production management.

For customers requiring a more integrated digital workflow, design software can support C + C and C + U framing designs, as well as 2D and 3D design functions. CAD design information can then be converted into manufacturing data for automated production.

Applications of Light Steel Framing Machines

The Zhongtuo Light Gauge Steel Framing Machine supports manufacturers serving a wide range of construction markets.

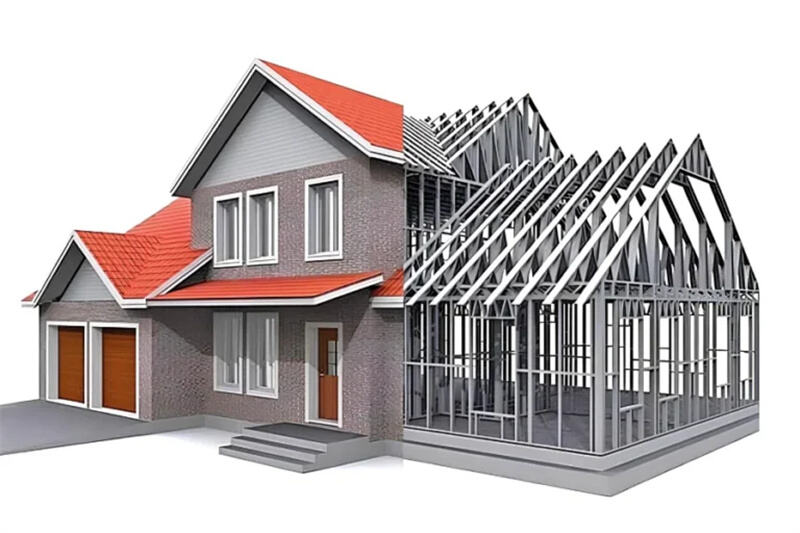

For prefabricated houses, the machine produces standardized steel framing members that can be manufactured in advance and assembled efficiently at the construction site. This reduces the amount of on-site fabrication required.

For modular construction, accurate steel components are particularly important because individual building modules must connect correctly during installation. Automated punching and CNC-controlled production can help improve consistency between structural components.

The equipment is also suitable for commercial buildings, warehouses, offices, industrial facilities, logistics centers, agricultural buildings, barns, and greenhouses. Since different C and U profile sizes can be produced, manufacturers can adapt the production system to different structural requirements.

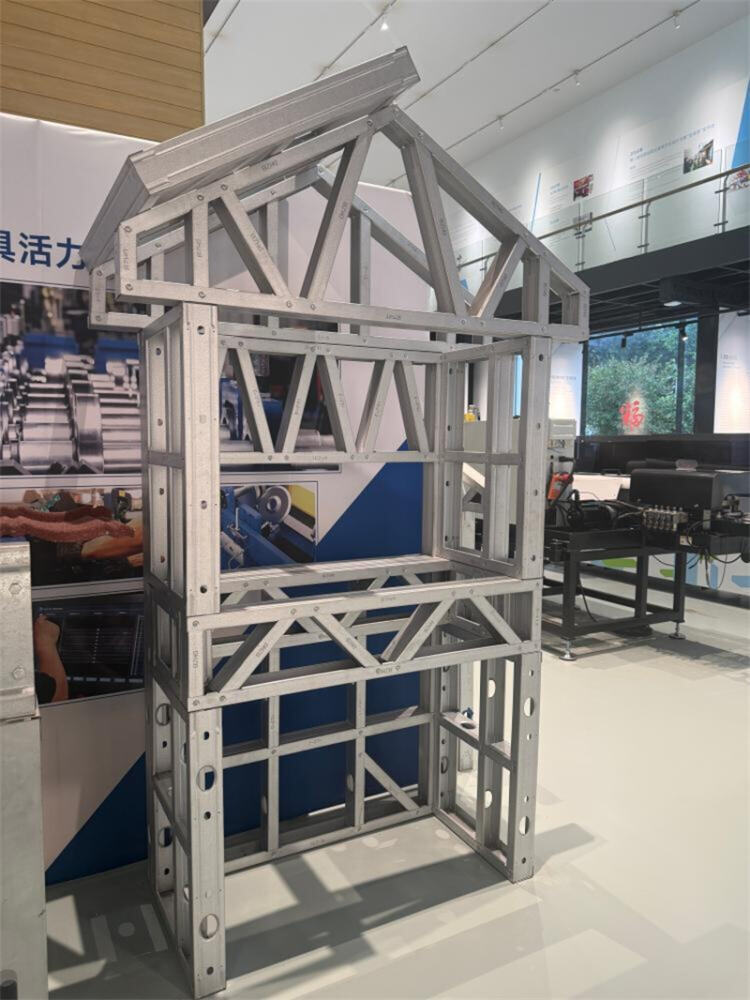

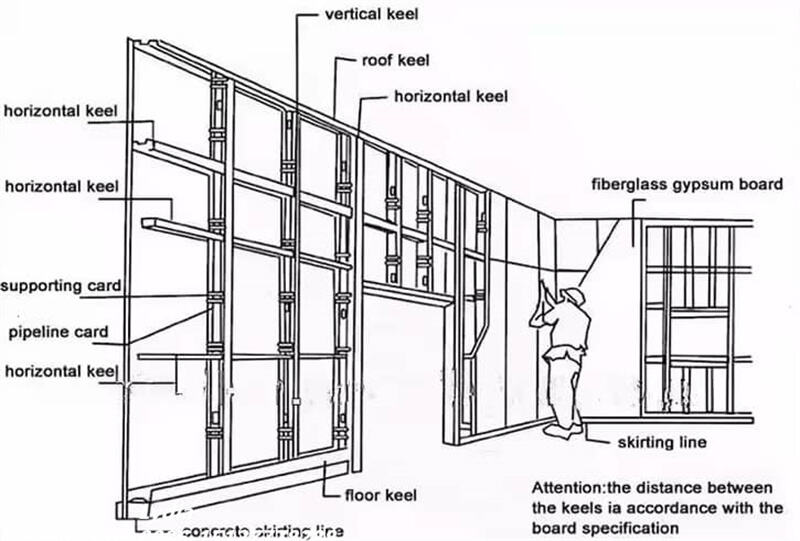

In addition, light steel framing technology can support steel roof structures, wall framing systems, floor structures, and other prefabricated building components. Therefore, the machine provides a flexible production platform for companies looking to expand their light steel construction capabilities.

Why Choose Zhongtuo Light Steel Framing Machines?

A successful light steel production project depends on more than forming speed alone. Manufacturers also need stable material feeding, accurate punching, reliable roll forming, durable tooling, flexible profile capability, and efficient production control.

Zhongtuo designs Light Steel Roll Forming Machines with these production requirements in mind. By combining automated punching, servo-driven forming, CNC control, and customized profile solutions, Zhongtuo helps customers build more efficient light steel manufacturing operations.

Furthermore, the integrated production concept allows companies to process galvanized steel coils and produce finished structural profiles with fewer separate manufacturing steps. This can improve workflow efficiency, reduce manual handling, and support more standardized production.

Whether you manufacture prefabricated houses, modular buildings, commercial structures, or industrial framing systems, Zhongtuo can provide a customized Light Steel Framing Machine solution based on your material specifications, profile drawings, punching requirements, and production capacity.

With flexible configuration options, durable components, and automated processing technology, the Zhongtuo Light Gauge Steel Framing Machine provides an efficient solution for modern prefabricated construction and structural steel profile production.

Related Products

For complete light gauge steel framing solutions, Zhongtuo also provides various profile roll forming machines, including Light Steel Keel Roll Machine, Drywall C U Channel Primary Machine, Furring Channel Machine, Other Metal Channel Machine, Steel Wall Angle Machine, and Tee Bar Machine.

These machines are designed for producing drywall profiles, ceiling systems, and customized metal channels with high precision, stable performance, and efficient production.

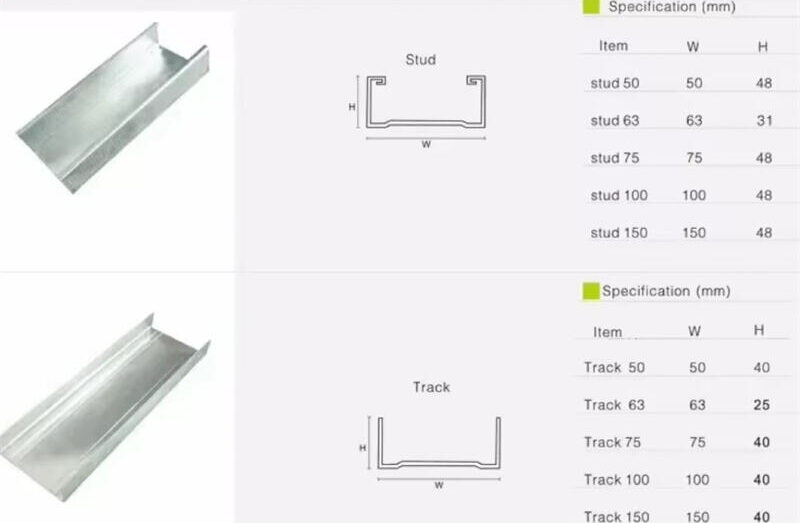

By combining automatic size change technology, precision roll forming, intelligent PLC control, and automatic palletizing, the drywall metal stud and track roll forming machine provides an efficient solution for companies producing high-volume light steel framing products.

FAQ

1. What is a light steel framing machine used for?

A Light Steel Framing Machine is used to produce structural light gauge steel profiles for prefabricated houses, modular buildings, commercial structures, warehouses, and other steel framing projects. The machine can automatically perform feeding, punching, roll forming, cutting, and other profile-processing operations.

2. What materials can a Zhongtuo light gauge steel framing machine process?

Zhongtuo Light Gauge Steel Framing Machines can process high-tensile galvanized steel, including G350–G550 material. Standard material thicknesses can be configured according to the production requirements and machine design.

3. What types of profiles can the machine produce?

The machine can produce different structural framing profiles, including C profiles and U profiles. Multiple web sizes and customized profile dimensions can be configured according to customer requirements, making the machine suitable for different prefabricated and modular construction systems.

4. Can the light steel framing machine perform punching automatically?

Yes. Zhongtuo can integrate automatic punching systems into the production line. Depending on the profile design, the machine can process service holes, web notches, lip cuts, truss holes, anchor holes, bolt holes, dimples, swages, crimping features, oval holes, and other customized punching patterns.

5. How fast is a light steel roll forming machine?

Production speed depends on the material thickness, profile design, punching requirements, and machine configuration. Zhongtuo’s Light Steel Framing Machine can achieve high-speed continuous production, with certain configurations reaching speeds of up to approximately 30 meters per minute, helping manufacturers improve output and production efficiency.
