Zhongtuo Metal Coil Slitting Line 1250mm Steel Coil Slitting Machine Manufacturer

Metal Coil Slitting Line (0.4–2.0mm | 1250mm)Steel Coil Slitting Production Line

Our Metal Coil Slitting Line is a fully automatic and industrial‑grade solution designed specifically for steel service centers and metal processing factories. By integrating precise slitting technology with stable tension control, this line actively improves productivity, reduces labor dependency, and ensures consistent strip quality.

Moreover, the machine is engineered to process both carbon steel and galvanized steel coils efficiently. As a result, manufacturers can respond faster to market demand, while maintaining low operating costs and high output accuracy.

Basic Technical Parameters

Item	Specification
Material Thickness	0.4–2.0 mm
Max Material Width	1250 mm
Raw Material	Carbon Steel / Galvanized Steel
Slitting Strips	Up to 10 pieces
Minimum Slitting Width	30 mm
Working Speed	Max. 20 m/min
Control System	PLC Automatic Control
Reference Price	FOB Tianjin USD 53,000

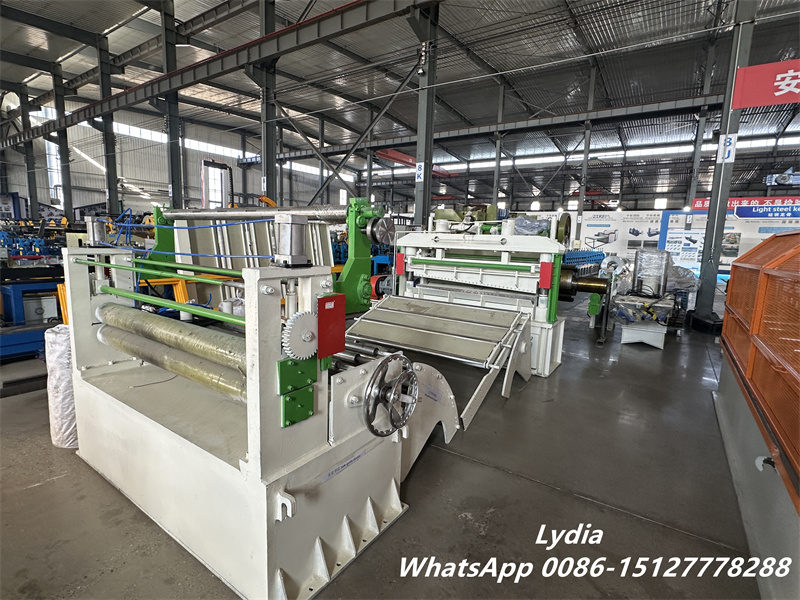

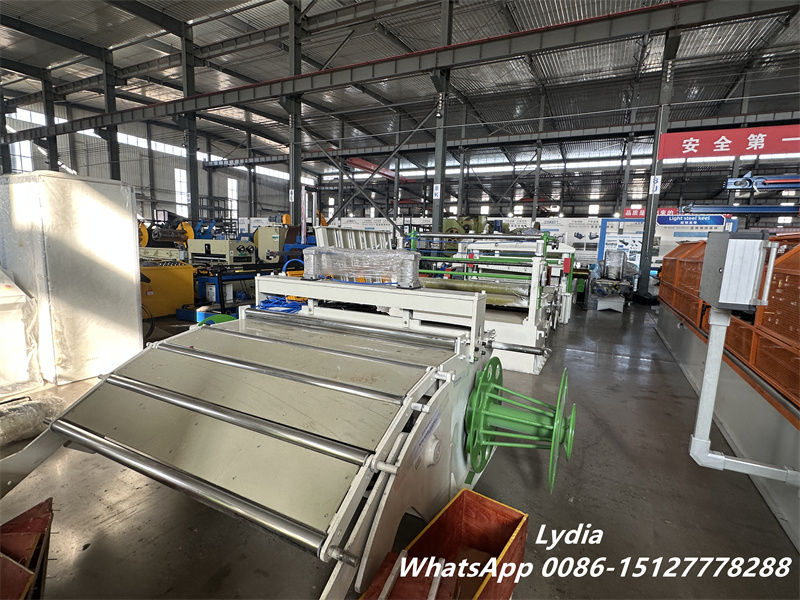

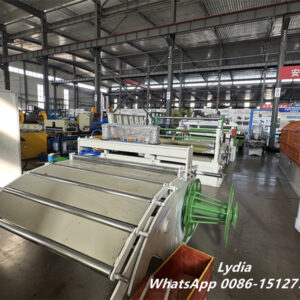

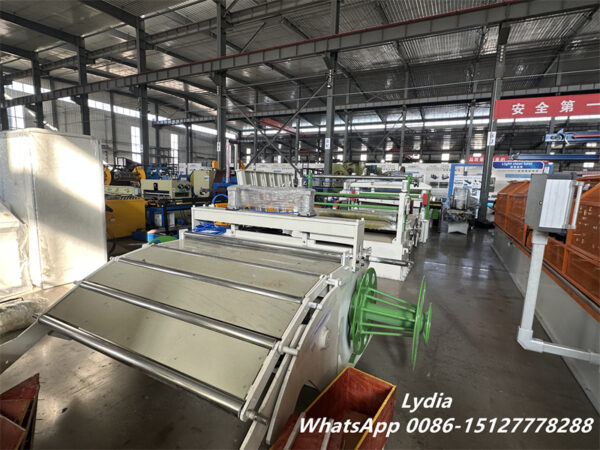

Production Line Working Process

Decoiling → Feeding → Leveling → Head Cutting → Guiding → Slitting → Scrap Collecting → Damping → Recoiling

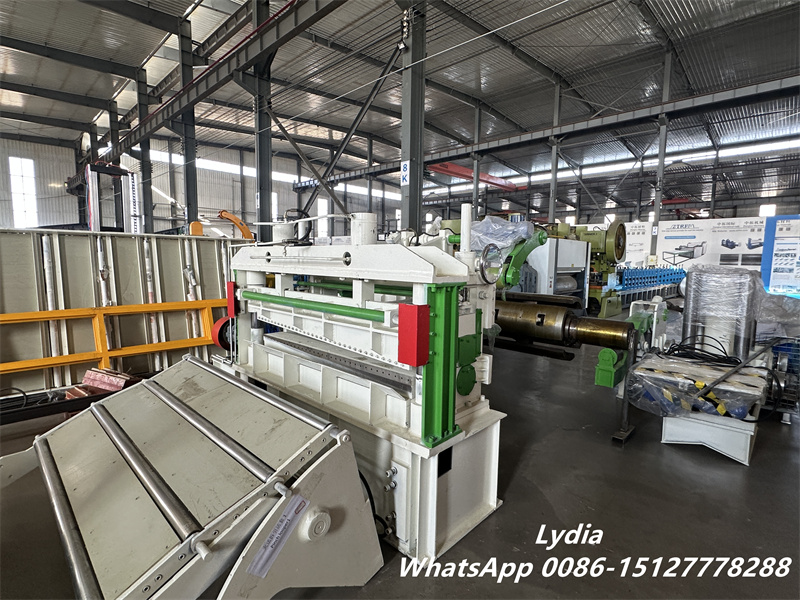

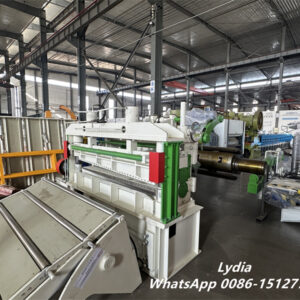

During operation, each section works in coordination to ensure smooth material flow. First, the decoiler releases the steel coil steadily. Then, the leveling and guiding systems correct flatness and alignment. Finally, the slitting and recoiling units actively maintain strip tension, producing neat and uniform finished coils.

Complete Production Line Configuration

1. 7‑Ton Hydraulic Decoiler – 1 set
2. Heavy‑Duty Hydraulic Coil Loading Car – 1 set
3. Feeding, Leveling & Shearing System – 1 set
4. Guiding & Slitting System – 1 set
5. Scrap (Waste) Collecting System – 2 sets
6. Pre‑Damping Device – 1 set
7. 7‑Ton Hydraulic Recoiler with Car – 1 set
8. Electric Control System – 1 set

Detailed Machine Specifications

PART 1 & 2 – Hydraulic Decoiler with Heavy Coil Car

Hydraulic Entry Coil Car

• Horizontal and vertical movement for easy coil loading
• Hydraulic lifting with 4 guide pillars
• Motor‑driven horizontal movement
• Loading capacity: 7 tons
• Traveling speed: 6–7 m/min
• Motor power: 4 kW

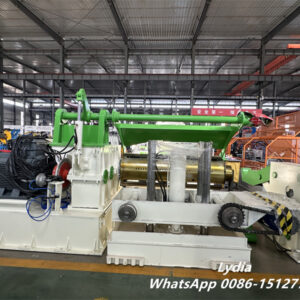

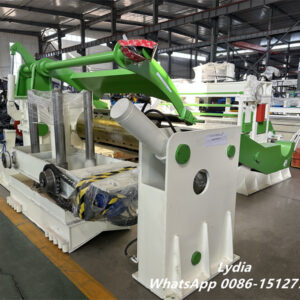

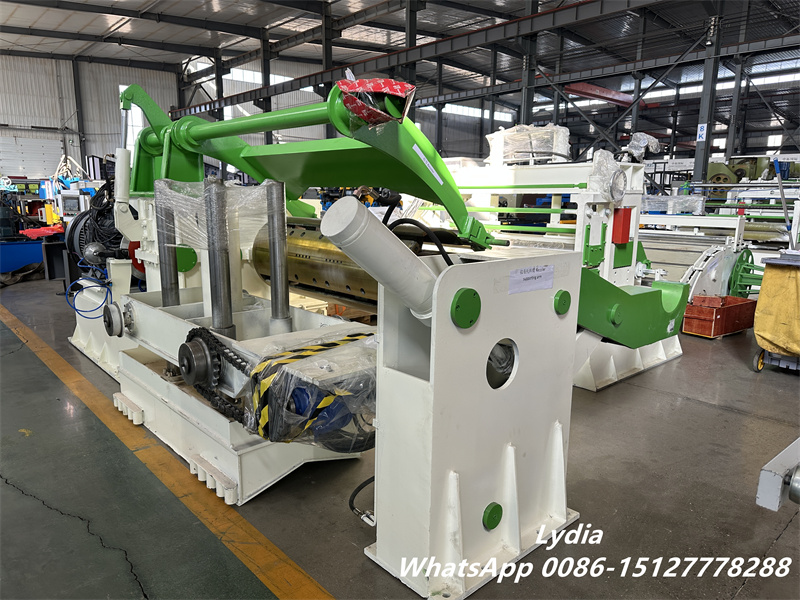

Hydraulic Decoiler

• Max coil capacity: up to 10 tons
• Coil inner diameter: Φ450–550 mm
• Max coil width: 1250 mm
• Feeding speed: 0–25 m/min (adjustable)
• Drive motor: 4 kW | Hydraulic motor: 5.5 kW
• Equipped with braking system for stable decoiling

Advantages:

• Arm‑type support structure for higher load and longer service life
• Heavy‑duty coil car suitable for large steel coils

PART 3 – Hydraulic Pressing & Feeding System

• Hydraulic telescopic shovel head for smooth feeding
• 7‑roller leveling system with upper worm‑gear pressing
• Leveling roller diameter: Φ120 mm
• Main motor power: 11 kW
• Pressing motor: 1.5 kW
• Speed: ≤25 m/min

Advantages:

• Pneumatic pressing and pinch device for easy feeding
• Optional servo leveling for thicker materials up to 2.0 mm

Guiding & Shearing System

Hydraulic Head Shear

• Gantry structure with material pressing device
• Cutting capacity: 2.0 mm × 1250 mm
• Blade material: Cr12
• Adjustable blade clearance

Guiding System

• Vertical guide rollers on both sides
• Manual screw adjustment for precise centering

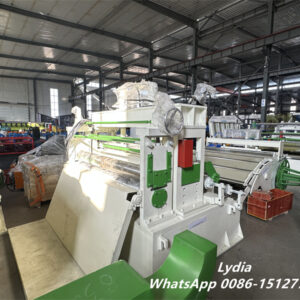

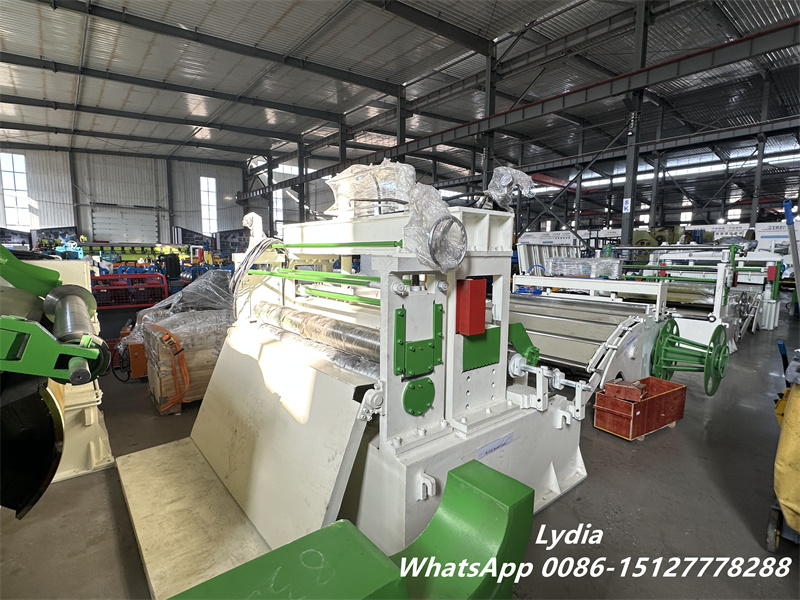

PART 4 – Guiding & Slitting System

• Active and tensile slitting modes available
• Slitting speed: ≤25 m/min
• Main motor power: 15 kW (frequency controlled)
• Includes power seat, reducer, distribution gearbox, universal coupling, and clutch

Standard Accessories:

• 8 pairs of slitting blades
• Complete spacers and rubber rings
• Slitting specifications customized by customer

PART 5 – Scrap (Waste) Collecting System

• Torque motor + reducer + take‑up disc structure
• Automatic speed matching with slitting section
• Ensures smooth and synchronized scrap winding

PART 6 – Pre‑Damping Device

• Separates slitted strips for stable rewinding
• Pneumatic damping mechanism for tension control
• Especially effective for thin material processing

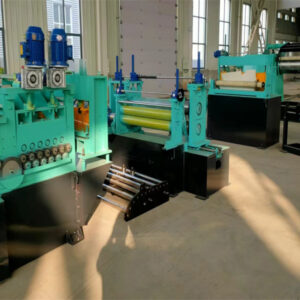

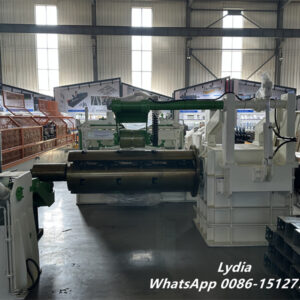

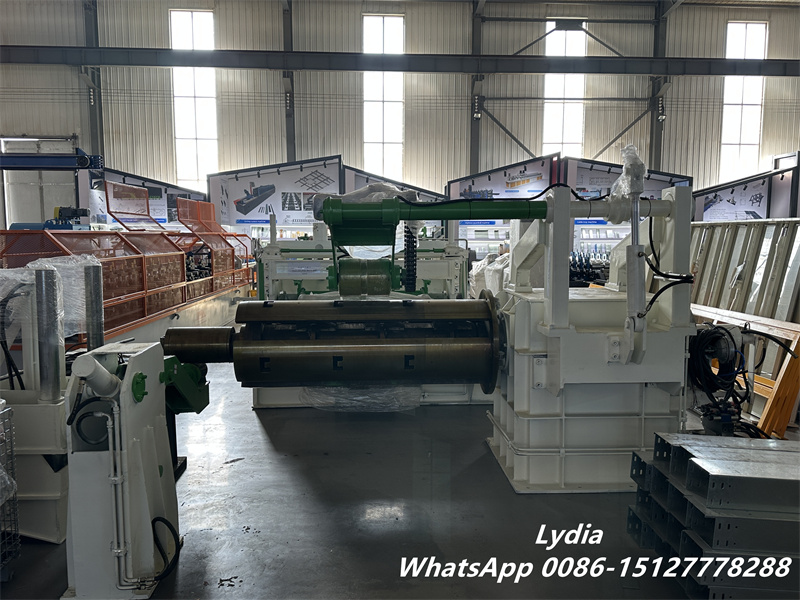

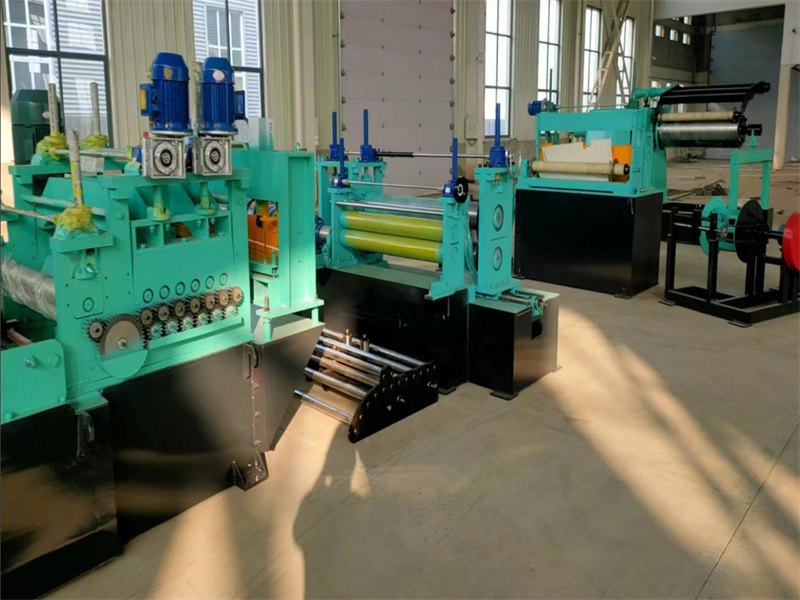

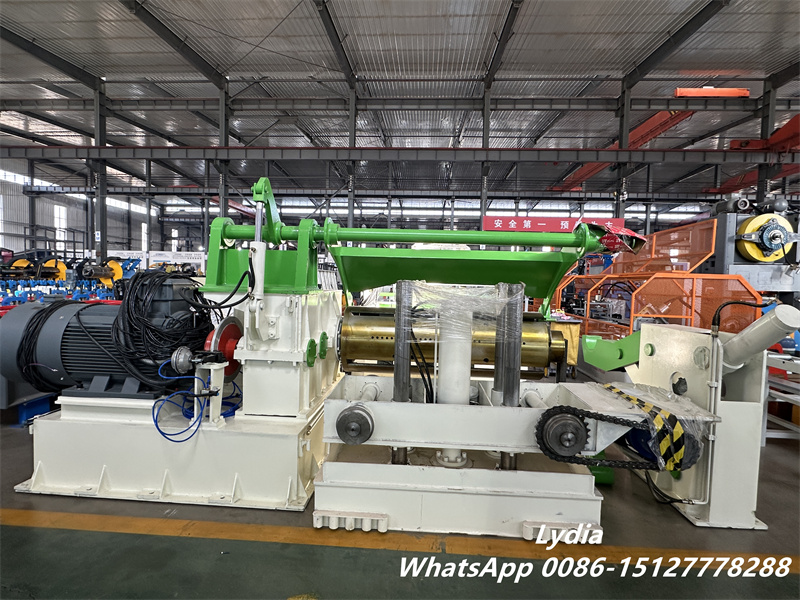

PART 7 – Hydraulic Recoiler with Car

• Max load: 7 tons
• Inner diameter: Φ450–550 mm
• Recoiling speed: ≤20 m/min
• Adjustable tension and speed control

Hydraulic Recoiling Car

• Loading capacity: up to 9 tons
• Fully hydraulic lifting and traveling
• Motor power: 15 kW

PART 8 – Electric Control System

• PLC: Delta
• Touch Screen: Delta
• Inverter: Delta
• Encoder: Omron
• Low‑Voltage Components: Schneider

Ensures reliable automation, accurate speed synchronization, and easy operation.

Typical Applications & Industry Use Cases

This metal coil slitting line is widely applied in steel service centers and manufacturing plants that require efficient and accurate strip processing. By handling carbon steel and galvanized steel coils with stable tension control, the production line actively supports continuous industrial operation.

Common application scenarios include:

• Steel service centers processing master coils into narrow strips for resale
• Cable tray, roll forming, and profiling machine raw material preparation
• Construction material factories producing steel components and panels
• Automotive and appliance industries requiring consistent strip width and flatness

As production demand increases, this steel coil slitting machine enables manufacturers to shorten delivery cycles, reduce material waste, and improve overall output quality.

Why Choose Zhongtuo Coil Slitting Line?

• Actively delivers high‑precision slitting for carbon steel and galvanized steel coils
• Enhances production efficiency with automatic tension control
• Reduces downtime through a robust heavy‑duty structure
• Supports flexible slitting specifications for different steel service center needs
• Optimized for SEO keywords such as coil slitting line, metal coil slitting machine, and steel slitting production line

In conclusion, this 1250mm metal coil slitting line combines performance, durability, and cost efficiency in one complete solution. It is an ideal choice for manufacturers seeking a reliable steel coil slitting machine for long‑term industrial production.
