Metal Stud and Track Making Machine Light Keel C U Channel Roll Forming Machine
In today’s fast-growing architectural decoration and drywall construction industry, light steel keels (metal studs and tracks) have become the core materials for ceiling systems and partition walls. With the increasing demand for high efficiency, standardization, and cost control, traditional manual or semi-automatic production methods are no longer sufficient.

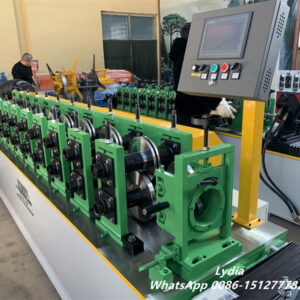

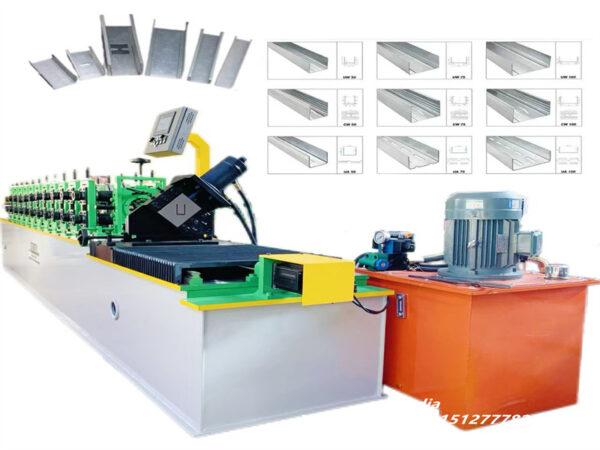

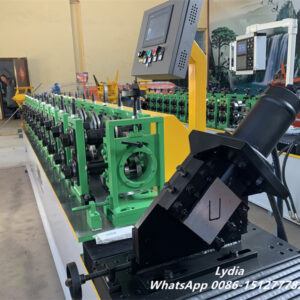

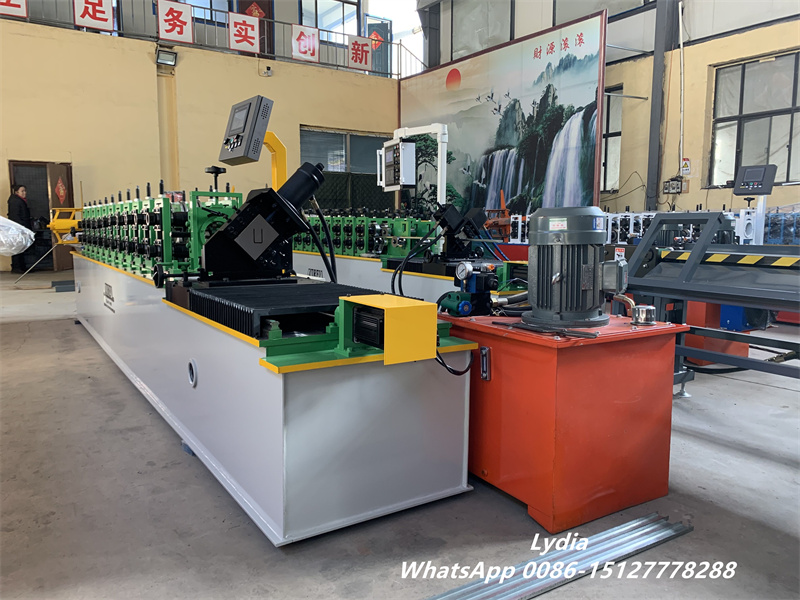

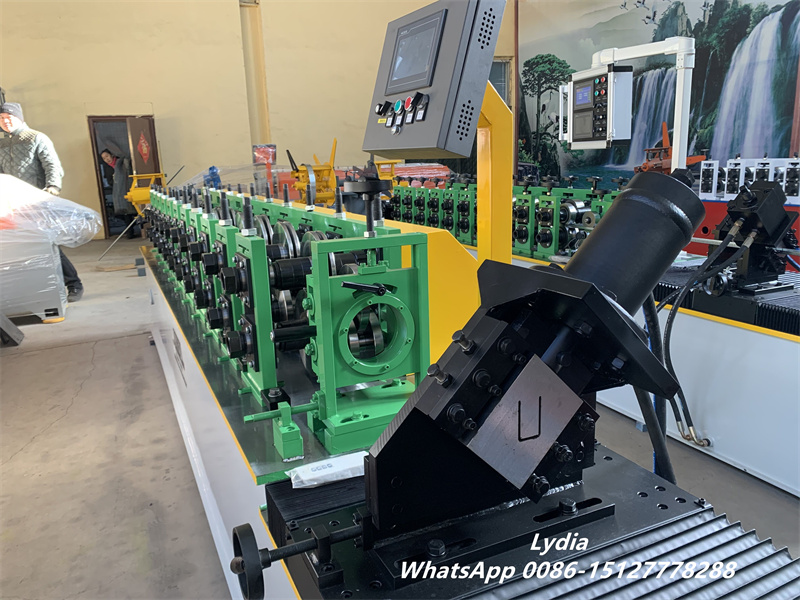

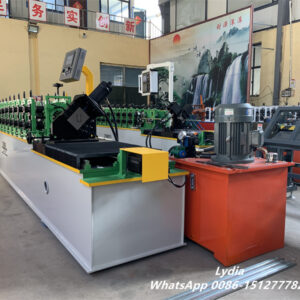

The Zhongtuo Metal Stud and Track Making Machine – Light Keel C U Channel Roll Forming Machine is designed to provide a high-speed, fully automatic, and flexible production solution for C and U channel profiles widely used in drywall systems.
This machine integrates intelligent control, stable forming performance, and multi-profile compatibility, making it an ideal choice for drywall contractors, light steel frame manufacturers, and prefabricated building suppliers.
What Is a Light Keel C U Channel Roll Forming Machine?

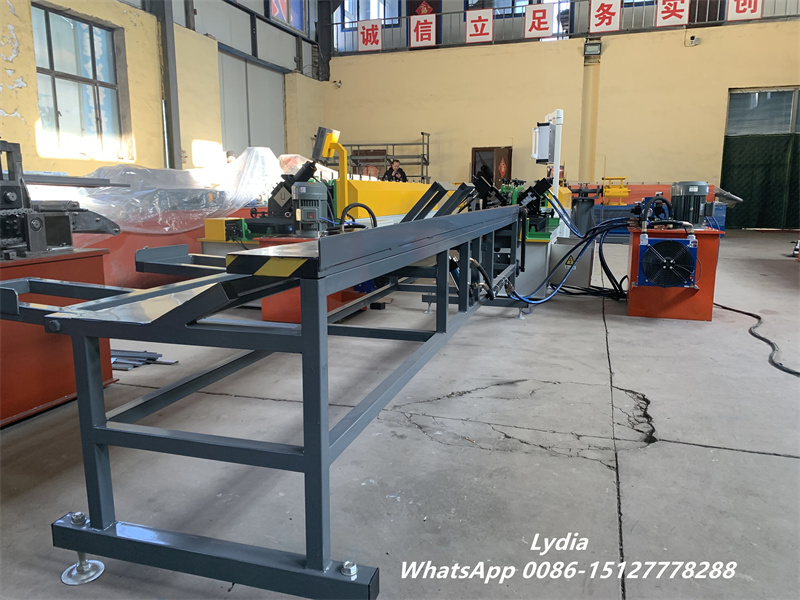

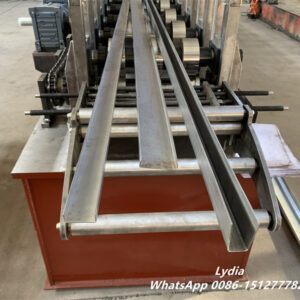

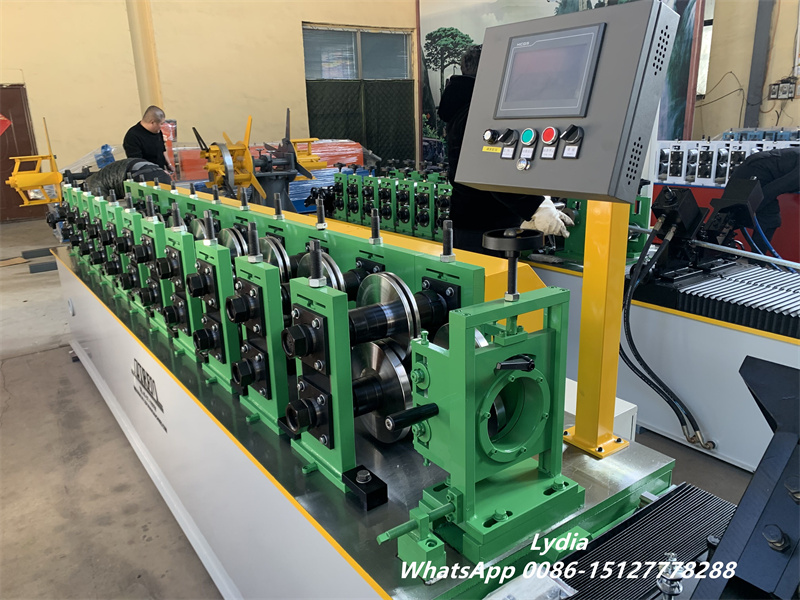

The Light Keel C U Channel Roll Forming Machine is a specialized cold roll forming production line used to manufacture C-shaped studs and U-shaped tracks from galvanized steel, pre-painted steel, or aluminum coils.

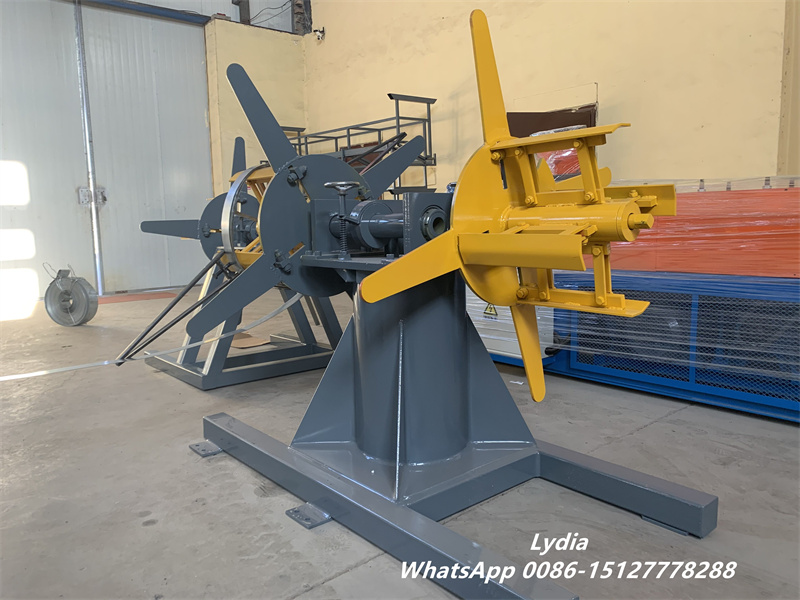

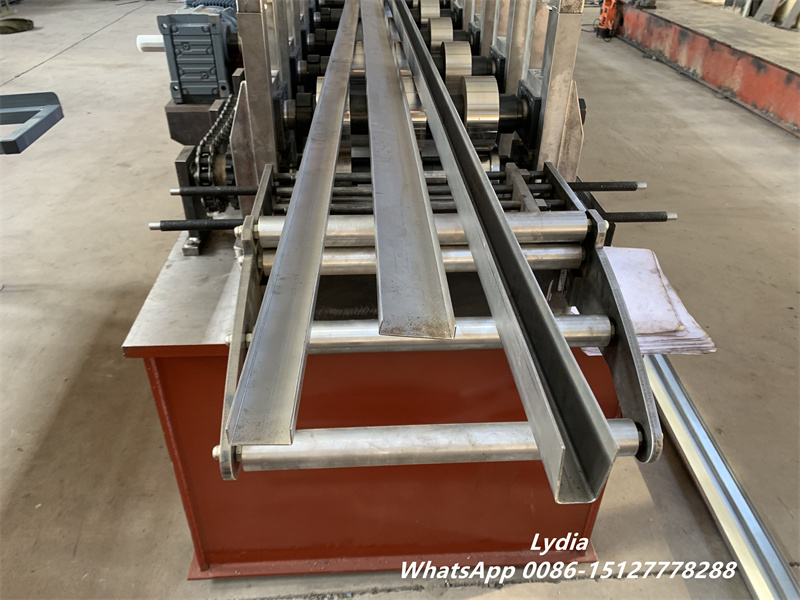

Through continuous feeding, precision rolling, automatic length control, and hydraulic cutting, the machine produces uniform, accurate, and high-strength drywall profiles suitable for modern construction projects.
Key Advantages of Zhongtuo Metal Stud and Track Making Machine

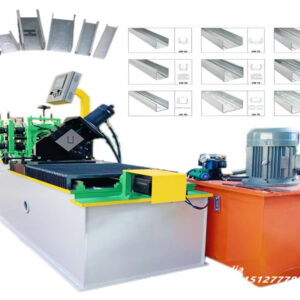

1. One Machine, Multiple Profiles

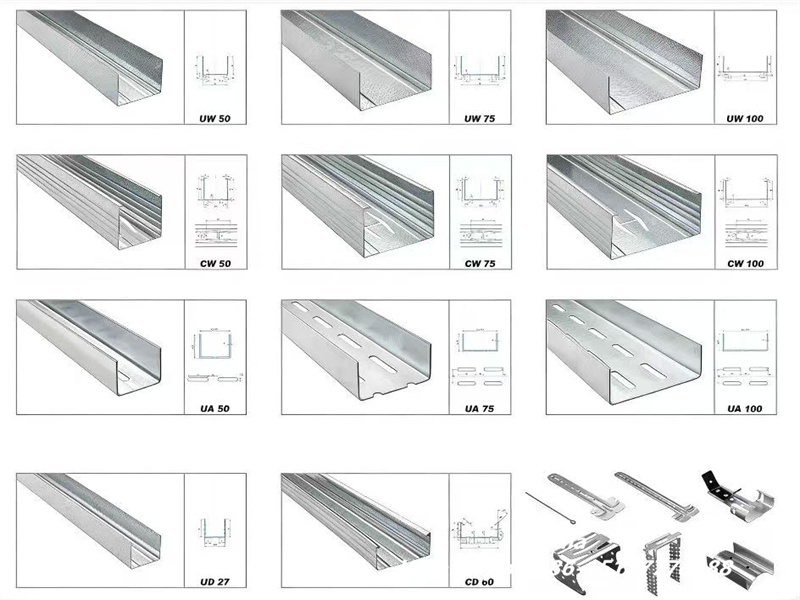

- Supports C channel and U channel production
- Roller stations and profile sizes can be customized
- Reduces equipment investment and floor space
2. Intelligent & Fully Automatic Operation

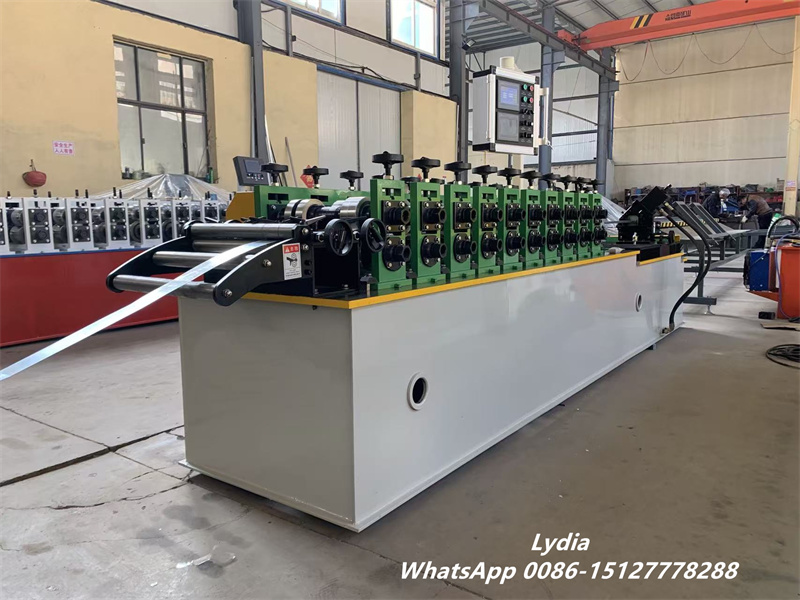

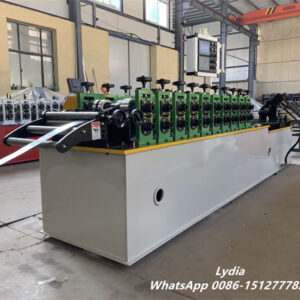

- PLC control system with touch screen
- Automatic length setting, batch production, and quantity control
- Stable operation with minimal manual intervention
3. High-Speed & Cost-Effective Production
- Forming speed up to 40–100 m/min (customized)
- Consistent quality reduces material waste
- Lower labor cost and higher output efficiency
4. Durable Structure & Precision Forming
- Solid shaft with hard chrome plated rollers
- Heavy-duty welded steel frame
- CR12MOV hydraulic cutter ensures clean cuts without deformation
5. Energy Efficient & Environment Friendly
- Optimized motor and hydraulic system
- Lower power consumption per meter
- Suitable for green building material production
Application Scenarios

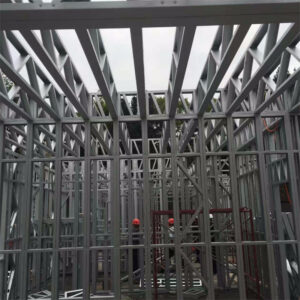

● Indoor Partition Wall Systems

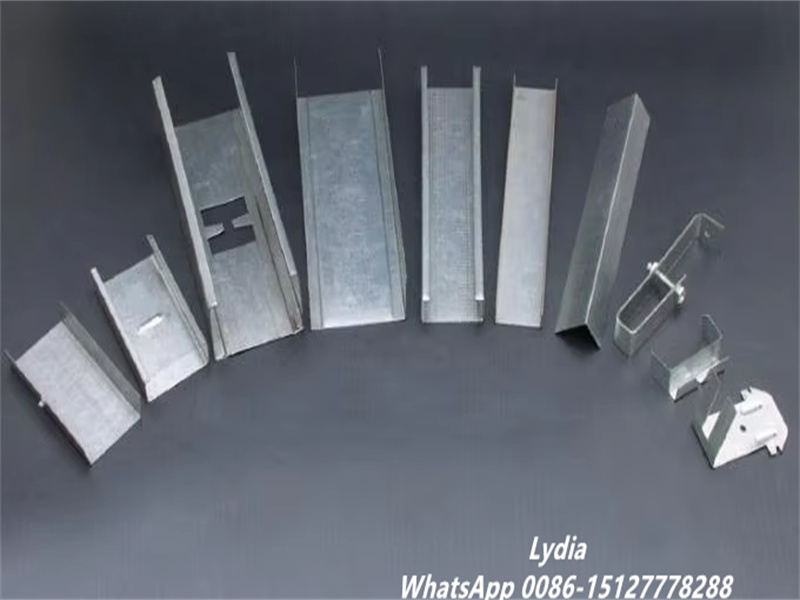

C-shaped studs act as vertical framing members, while U-shaped tracks fix the top and bottom edges, forming a lightweight, fire-resistant, and sound-insulated wall structure.

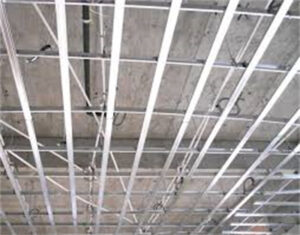

● Ceiling Engineering
U channels serve as main load-bearing keels, and C channels are used as secondary keels to fix gypsum boards, PVC panels, or aluminum ceiling panels.
● Prefabricated & Modular Construction
Widely used in light steel villas, commercial buildings, and modular housing, significantly improving production efficiency and installation speed.
Key Attributes of Light Keel C U Channel Roll Forming Machine
| Key Attributes | Specification |
|---|---|
| Type | Drywall CU/CW Roll Forming Machine |
| Tile Type | Steel |
| Use | Drywall System |
| Voltage | 380V / 50Hz / 3 Phase (or as required) |
| Rolling Thickness | 0.3–1.0 mm |
| Feeding Width | As requested |
| Place of Origin | Hebei, China |
| Weight | About 6500 kg |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| Core Components | Motor, Bearing, Pump |
| Brand Name | Zhongtuo |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Product Name | Light Keel C U Channel Roll Forming Machine |
| Main Motor Power | 7.5 KW (normally) |
| Machine Color | Customized according to requirement |
| Feeding Material | Color steel coils, galvanized steel, aluminum |
| Material Thickness | 0.3–1.0 mm (customized) |
| Shaft Material | 45# steel, hard chrome plated |
| Cutting System | CR12MOV, no scratches, no deformation |
| Roller Stations | Customized according to profile |
| Hydraulic System Power | 5.5 KW |
| Drive System | Chain transmission |
Why Choose Zhongtuo Roll Forming Machine?
- Over 15+ years of experience in roll forming machine manufacturing
- Exported to 90+ countries worldwide
- ISO9001, CE, and international quality standards
- Complete service system: design, production, installation, and after-sales support
Zhongtuo provides not only machines, but complete production solutions tailored to your market, profile drawings, and capacity requirements.
Get Your Customized Light Keel Production Line
Whether you need a standard drywall CU/CW production line or a fully customized high-speed solution, Zhongtuo is ready to support your project from design to delivery.
Contact us now to get technical details, videos, and a competitive quotation.
