The PU Garage Door Roll Forming Machine is an advanced automatic production line designed for manufacturing insulated sectional garage door panels. It integrates multiple processes including decoiling, embossing, leveling, punching, roll forming, polyurethane foaming, cutting, and automatic control.Compared with traditional garage door panel production methods, this complete production line improves forming accuracy, reduces manual operation, and ensures stable product quality. The machine can produce various sectional garage door panels with different surface patterns, thicknesses, and widths, making it suitable for residential garages, commercial buildings, industrial facilities, and public construction projects.

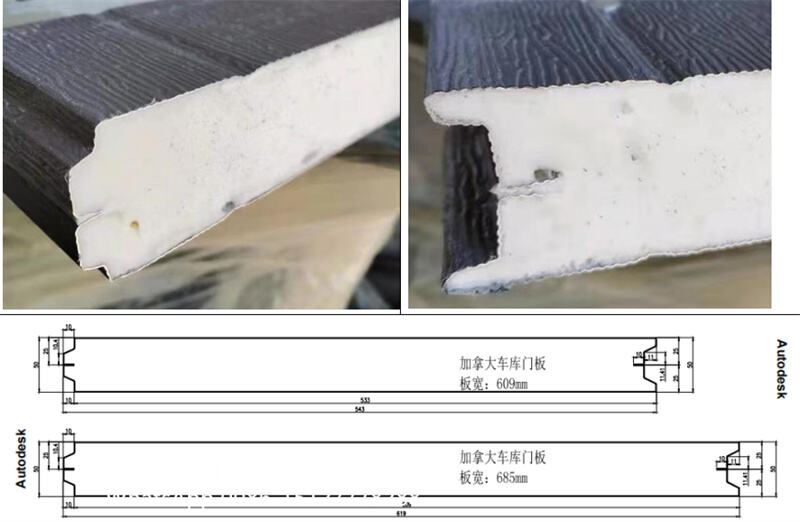

ZTRFM provides a complete solution for garage door manufacturers, from individual door skins to fully insulated door sections. The production line supports customized panel designs, including wood grain, stucco, micro-rib surfaces, standard panels, ranch styles, and carriage house profiles.

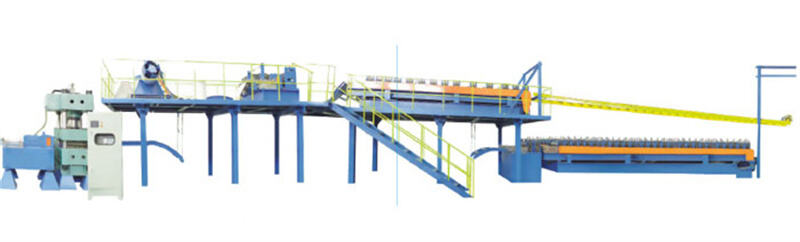

Working Process of the PU Garage Door Production Line

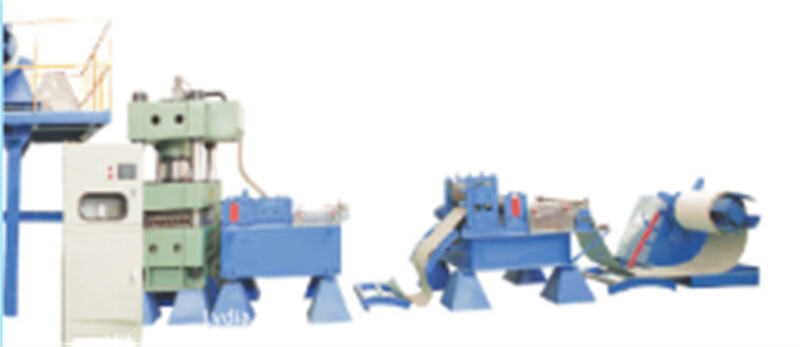

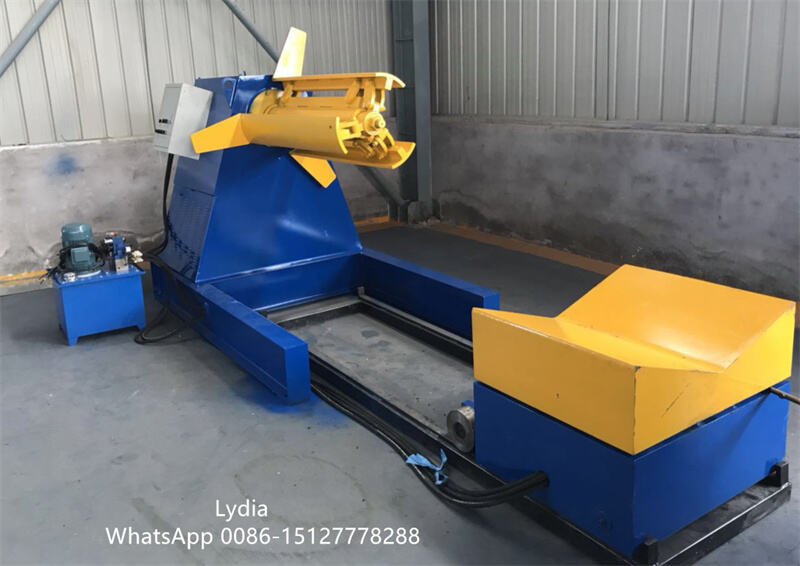

The production process starts with the 5-ton hydraulic decoiler, which smoothly feeds the steel coil into the production line. The hydraulic expansion system securely fixes the coil and ensures continuous material supply.

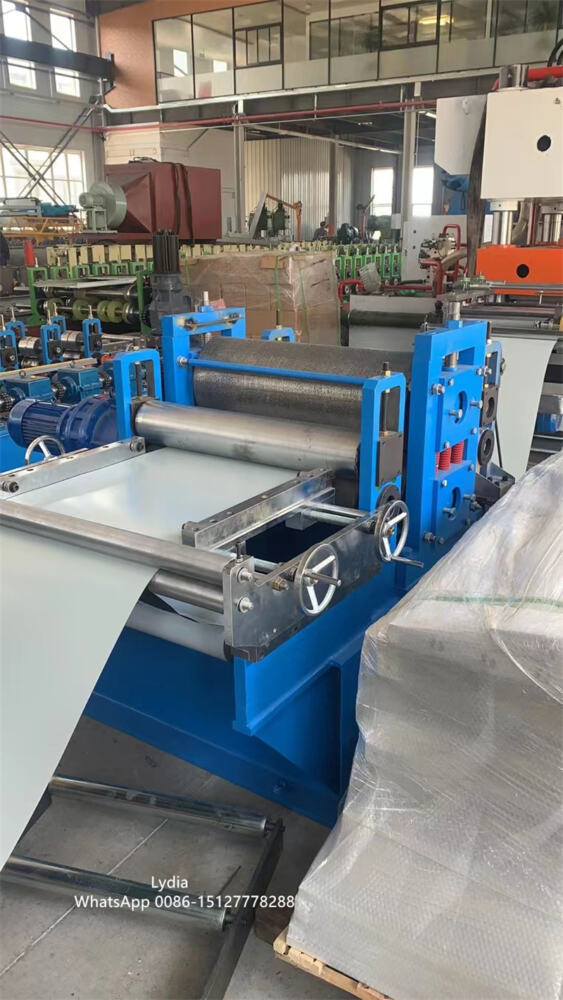

After decoiling, the steel sheet passes through the embossing machine and leveling system. The embossing unit creates decorative surface textures, while the leveling machine removes coil deformation and improves flatness before forming.

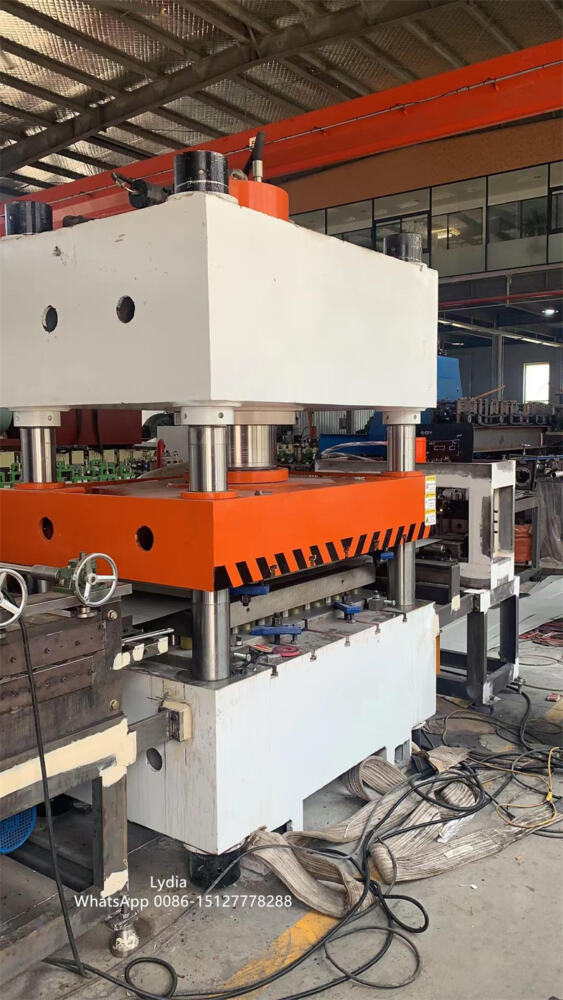

Next, the servo feeding system sends the sheet accurately into the hydraulic press. The punching unit forms the required panel structures, and the roll forming machine gradually bends the sheet through multiple forming stations to achieve the final garage door panel profile.

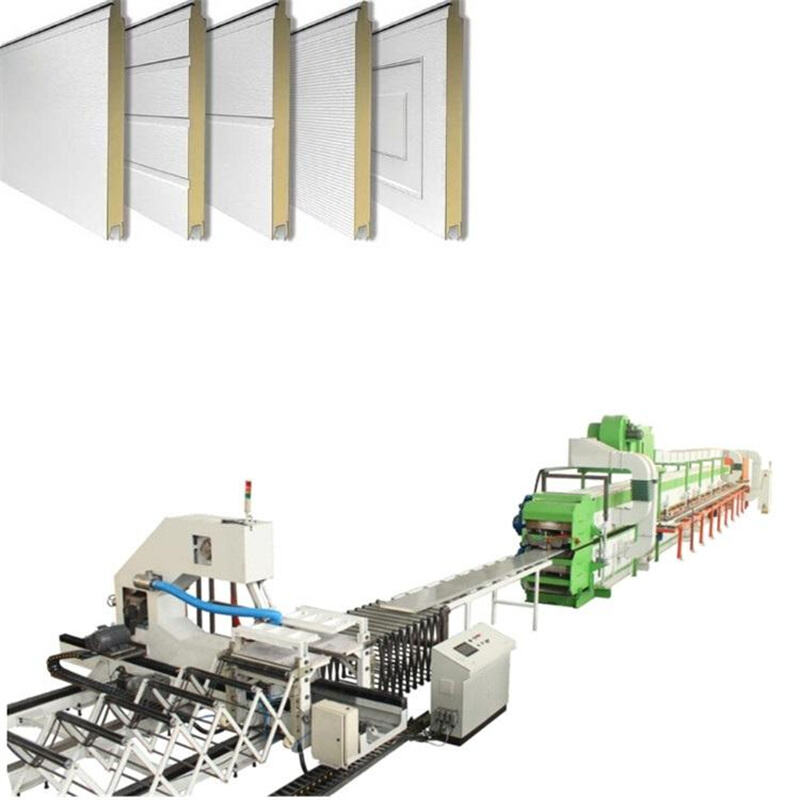

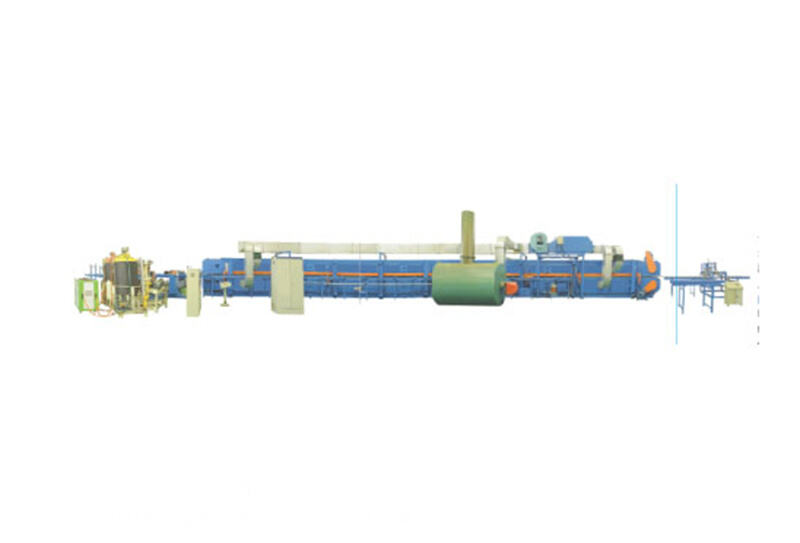

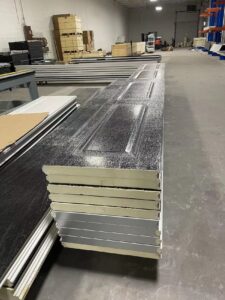

Finally, the formed panels enter the polyurethane foaming section. The high-pressure foaming machine injects PU material between the metal skins, creating insulated garage door panels with excellent thermal performance and structural strength.
The complete production process is controlled by PLC automation, allowing operators to monitor production parameters, adjust panel length, and achieve continuous high-efficiency manufacturing.
Main Components and Technical Specifications
The PU garage door manufacturing line combines mechanical forming technology with automatic insulation production. Each unit is designed for reliable operation and long service life.
| Component | Function | Main Features |
|---|---|---|
| 5T Hydraulic Decoiler | Coil feeding | Hydraulic expansion, max 5 tons loading capacity |
| Embossing Machine | Surface pattern forming | GCr15 rollers, HRC56-62 hardness, 5.5kW motor |

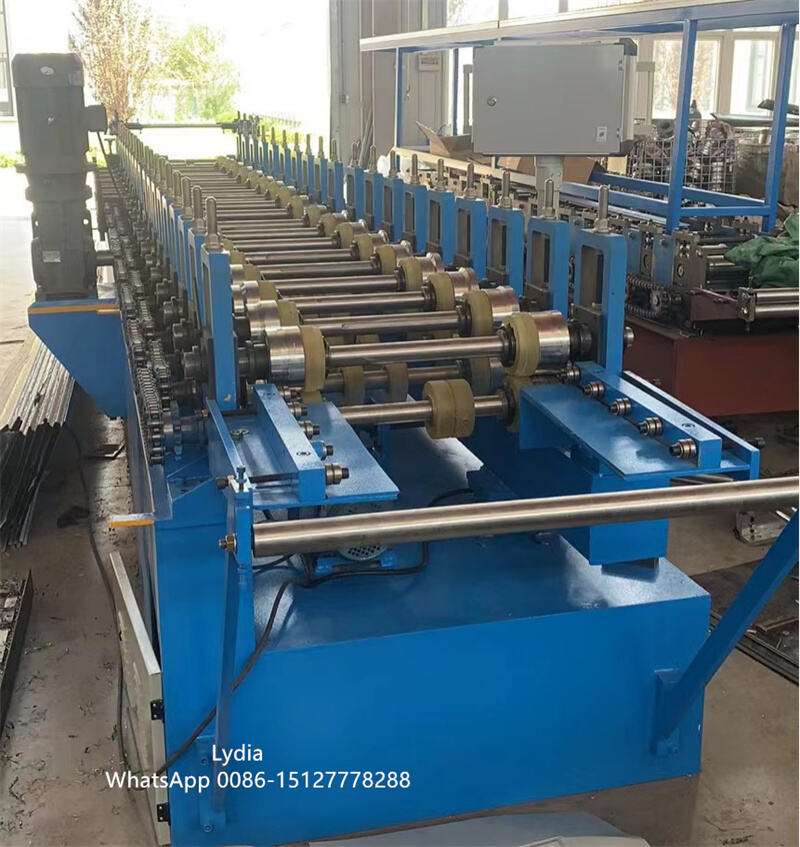

| Servo Feeding & Leveling Unit | Sheet correction and feeding | High precision feeding, improved forming stability |
| Hydraulic Press & Punching System | Panel hole and shape forming | 315T hydraulic press, customized molds available |
| Garage Door Roll Former | Panel profile forming | 20 forming stations, chain transmission, high accuracy |
| PU Foaming System | Insulation production | High-pressure injection, automatic material control |
| Hydraulic Cutting System | Panel length cutting | PLC controlled, accurate length setting |
| Electrical Control System | Full line automation | Delta PLC, touch screen, Omron encoder |
Advantages of ZTRFM PU Garage Door Roll Forming Machine
The PU Garage Door Roll Forming Machine offers several advantages for manufacturers who require high productivity and consistent quality.
First, the machine uses a synchronized roll forming process. Multiple forming stations gradually shape the metal sheet, which prevents surface damage, deformation, and profile errors. Therefore, manufacturers can achieve smooth panel surfaces and accurate dimensions.
Second, the production line adopts automatic control technology. Operators can set production parameters through the touch screen, monitor machine status, and switch between manual and automatic modes. This reduces labor requirements while improving production efficiency.
In addition, the forming rollers are manufactured from high-quality GCr15 steel. After heat treatment and precision machining, the rollers provide excellent wear resistance and maintain stable forming performance during long-term operation.
The polyurethane foaming system also improves the final product quality. The insulated panels provide better heat insulation, sound reduction, and structural strength, meeting the requirements of modern energy-saving buildings.
How to Improve Garage Door Production Efficiency
To maximize the performance of a garage door roll forming line, manufacturers should focus on three key areas: machine adjustment, operation management, and regular maintenance.
Proper roller adjustment is essential because incorrect roller spacing may cause panel distortion or surface defects. Operators should adjust forming stations according to material thickness, steel grade, and panel design.
Production speed should also be optimized. Running the machine too fast may affect forming quality, while running too slowly reduces productivity. Finding the correct balance between speed and forming stability helps achieve higher output.
Moreover, regular maintenance keeps the equipment operating efficiently. Operators should inspect transmission components, hydraulic systems, electrical parts, and forming rollers regularly. Cleaning metal debris and lubricating moving parts can significantly extend machine service life.
Reliable Automation for Different Garage Door Applications
ZTRFM designs garage door roll forming solutions according to different market requirements. The production line can manufacture sectional garage doors with panel heights from 18 inches to 32 inches and supports various door widths through customized designs.
The system can also integrate additional equipment such as cavity presses, bottom bar roll forming machines, door slat forming machines, and insulated panel production units.
With automatic setup, precise forming technology, and flexible configuration options, the PU Garage Door Roll Forming Machine helps manufacturers produce high-quality garage door panels efficiently and competitively.
Whether producing residential garage doors or large-scale commercial door systems, ZTRFM provides complete equipment solutions to support global garage door production
Related Roll Forming Machines
For manufacturers looking to build a complete shutter door production system, ZTRFM also provides a range of specialized roll forming machines for different door components. These machines can be integrated into a customized production line according to panel design and manufacturing requirements.
- Shutter Door Bottom Slat Machine – Designed to produce bottom slats for rolling shutter doors with accurate dimensions and consistent profiles.
- Door Frame Making Machine – Used for forming durable and precise door frames for industrial, commercial, and residential door systems.
- Shutter Door Guide Rail Machine – Produces guide rails that ensure smooth and stable movement of rolling shutter doors during opening and closing.
- Shutter Door Machine – A flexible solution for manufacturing various rolling shutter door profiles and components, with customized configurations available for different applications.
Together with the PU Garage Door Roll Forming Machine, these solutions allow manufacturers to establish a more complete and efficient door production system, covering major components from door panels and frames to bottom slats and guide rails.
