Electrical Cabinet Frame Roll Forming Machine by Zhongtuo Machinery

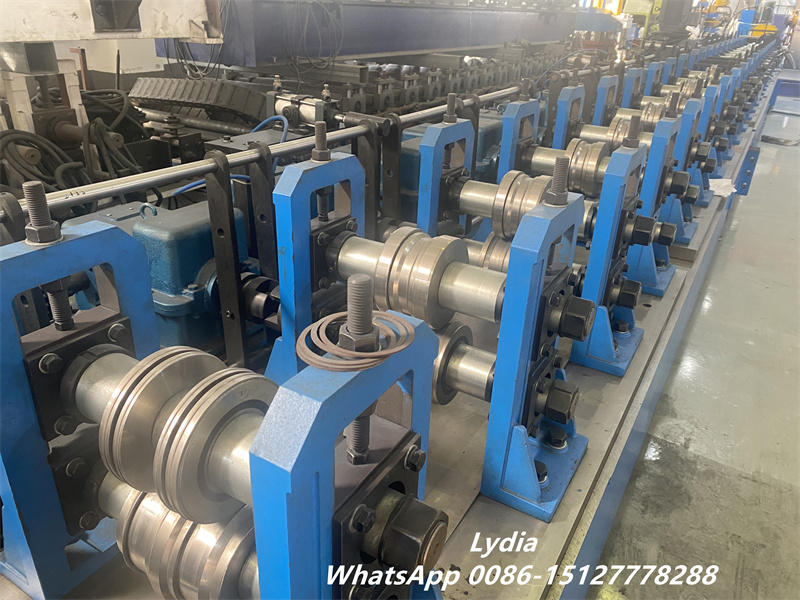

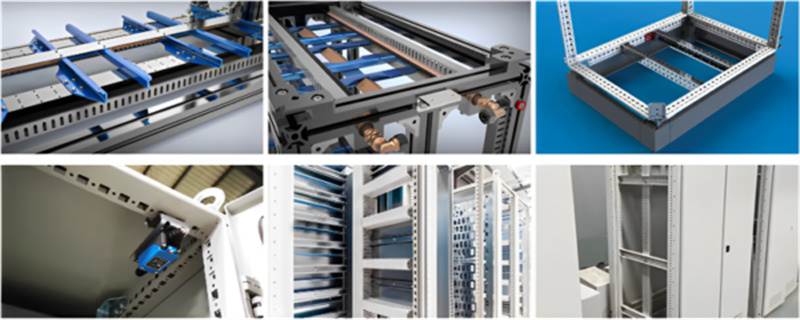

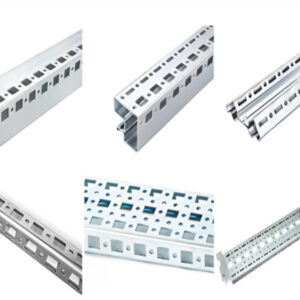

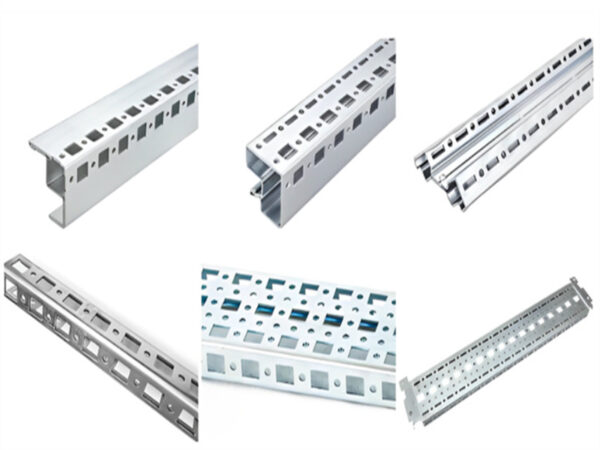

The Electrical Cabinet Frame Roll Forming Machine from Zhongtuo Machinery is designed to transform flat metal coils into strong, precise, and durable cabinet frames. With this machine, you can produce a wide range of profiles, including 17-sided profiles, standard side profiles, nine-fold profiles, 9/13/16-fold metal profiles, and Rittal bay enclosures. Its advanced engineering ensures enhanced structural integrity and improved safety for operators during assembly and maintenance.

By using this machine, manufacturers can efficiently produce high-quality frames that meet both industrial standards and custom requirements. Furthermore, the machine is adaptable for various electrical cabinet applications, ensuring optimal productivity and consistency.

Key Features of Roll Forming Machine

• Versatile Profile Production: Easily manufacture multiple electrical cabinet frame types to meet diverse design needs.
• Stronger Structure: Each column includes at least one sealing groove, while the three-dimensional angular connector perfectly matches both the column and beam grooves.
• Enhanced Safety & Maintenance: Precisely formed profiles improve installation and replacement of electrical components, keeping operators safe.
• Automatic Operation: The machine integrates roll forming and optional welding to produce electrical cabinet racks, electronic box poles, metal case frames, and components for switchgear, low voltage panels, and control cabinets.

Technical Specifications of Roll Forming Machine

How the Machine Works

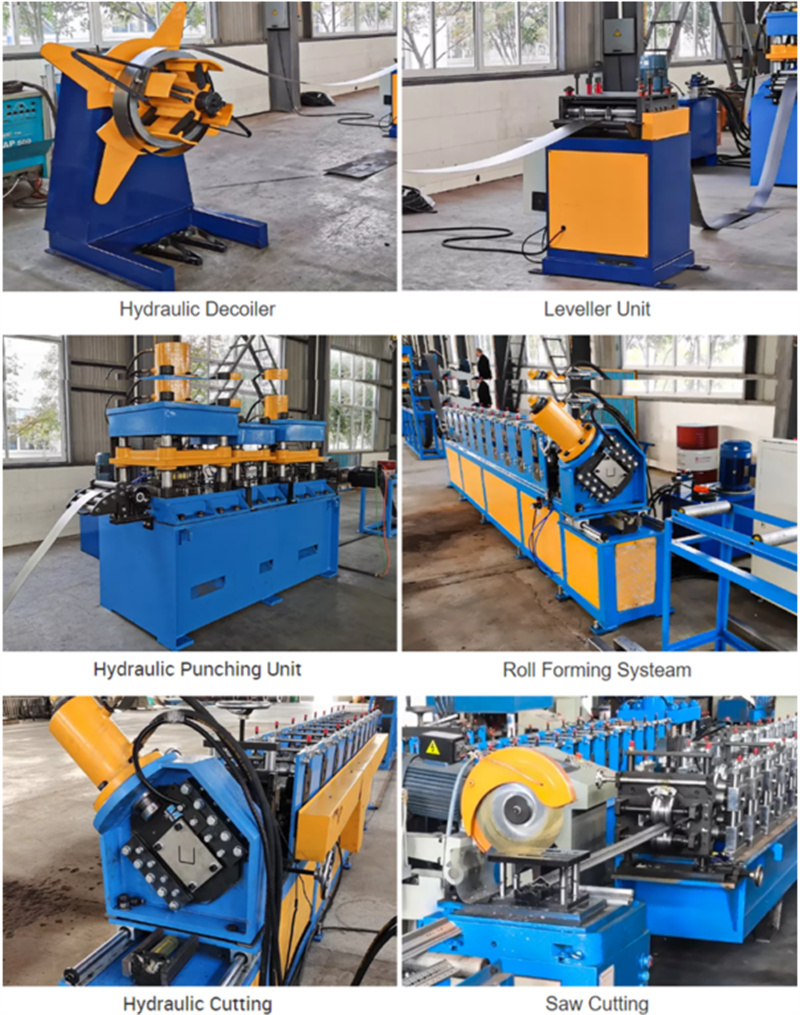

1. Coil Loading: First, steel coils are loaded onto the uncoiler. These coils are typically galvanized or cold-rolled steel, which serves as the raw material.
2. Material Straightening: Next, the steel strip passes through a leveling process to remove bends and deformations, ensuring smooth feeding.

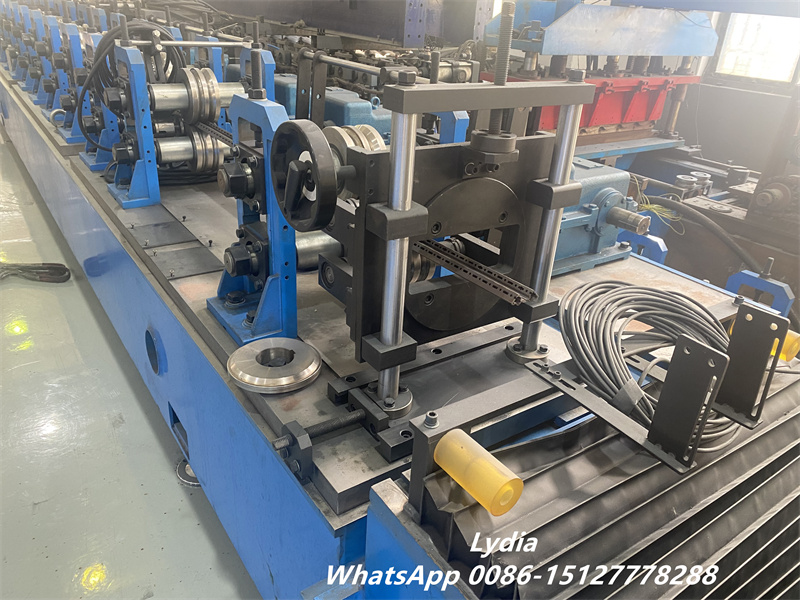

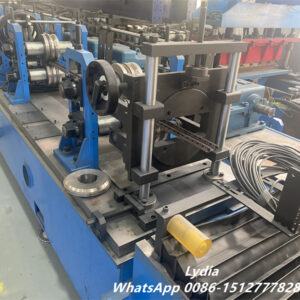

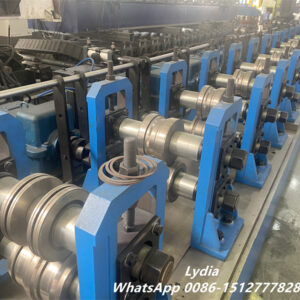

3. Roll Forming: Then, the strip enters the roll forming section. Each roller gradually bends and shapes the strip into the desired cabinet frame profile.
4. Cutting & Length Control: Once formed, the profiles are cut to precise lengths using hydraulic shears or flying cutoff saws. A length measurement system ensures consistency for every piece.
5. Output & Stacking: Finally, finished profiles are discharged, automatically collected, and stacked for packaging or assembly.
6. Control System: Throughout the process, the integrated PLC system actively regulates speed, roller movements, punching, and cutting, ensuring accuracy and efficiency.

Why Choose Zhongtuo Machinery

At Zhongtuo Machinery, we provide solutions that combine precision, efficiency, and reliability. By selecting our Electrical Cabinet Frame Roll Forming Machine, you gain:

• Customizable solutions for any drawing, tolerance, or production volume
• High-quality output with consistent dimensions
• Operator safety with precision engineering and automated processes
• Comprehensive support from design to production

Whether you need standard electrical frames or fully customized profiles, our machines ensure maximum productivity and long-term performance.

Applications of the Roll Forming Machine

This machine serves a wide range of applications in the Electrical & Energy Industry, including:

• Electrical cabinet racks and frames
• Metal enclosures for switchgear systems
• DIN rails and electrical enclosure boxes
• Solar strut channels and custom metal profiles

Additionally, Zhongtuo Machinery provides tailored solutions according to your drawings, tolerance, and budget, offering one-to-one professional support to ensure every profile meets your exact needs.
