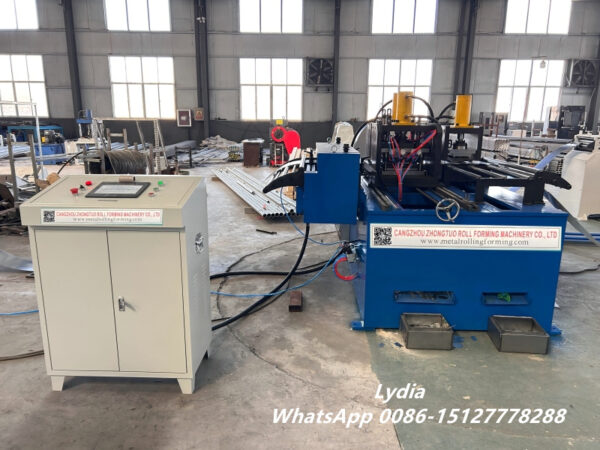

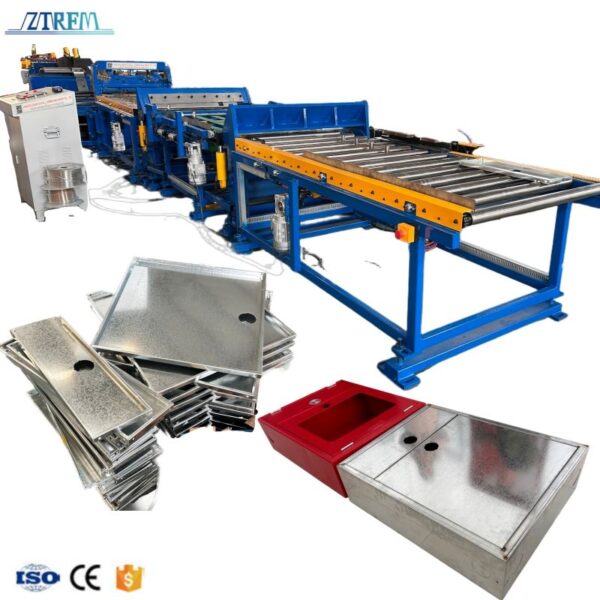

The Surface Mount Steel Fire Extinguisher and Hose Cabinet Machine from ZTRFM is a fully automated solution designed to manufacture high-quality fire safety cabinets for commercial kitchens, schools, hospitals, restaurants, and other facilities. This machine combines precision roll forming, hydraulic punching, and automated bending to ensure each cabinet meets strict safety standards and aesthetic requirements.
Premium Cabinet Features

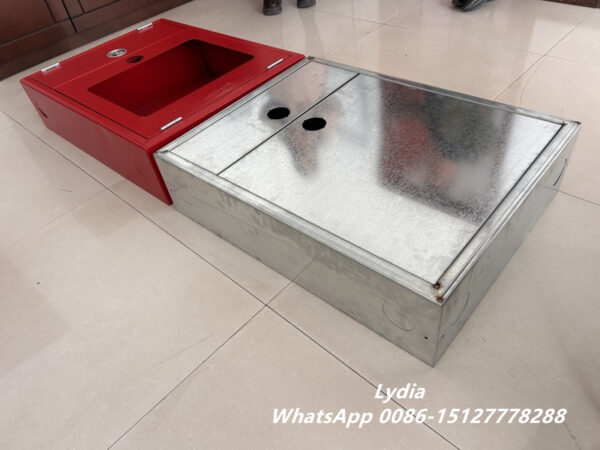

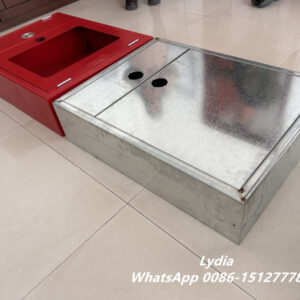

Our machine produces surface-mount steel fire extinguishers and hose cabinets with superior durability and design flexibility. Standard cabinets feature cold-rolled steel construction with a white powder coat finish. Optional features include:
- Rolled or square edges
- Engraved metal or etched glass doors
- Custom finishes to match your project requirements
The flush cabinet doors come with a 5/8″ door stop, continuous hinges, and a zinc-plated handle, providing secure and easy access to valves and safety equipment in case of emergency.
High-Precision Feeding and Punching

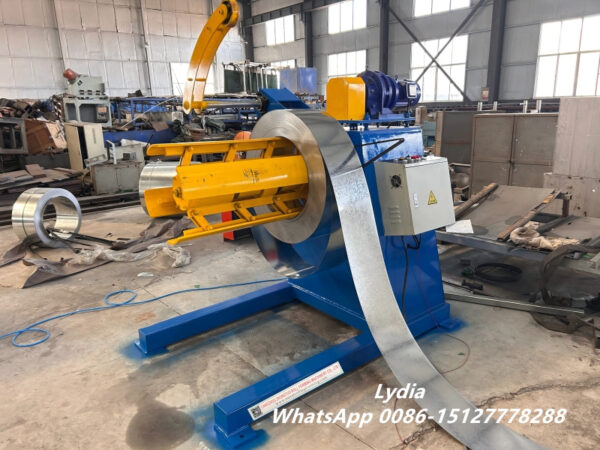

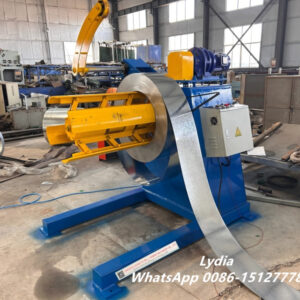

The machine integrates a servo feeding system with DELTA motors to ensure precise material positioning. Its hydraulic cantilever punching device handles multiple stations simultaneously, producing accurate holes and notches in cabinet doors.
A sensor system monitors the production line in real-time. If an irregularity occurs, the system automatically stops the punching process, protecting the equipment and maintaining consistent quality. This feature makes the machine both reliable and safe for continuous operation.

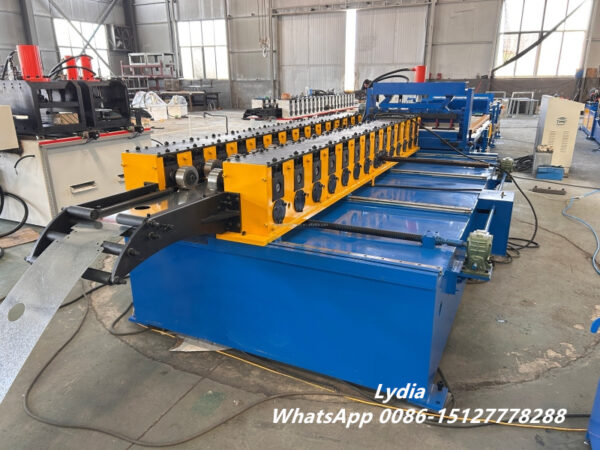

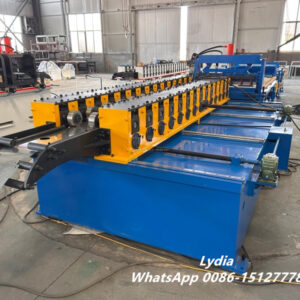

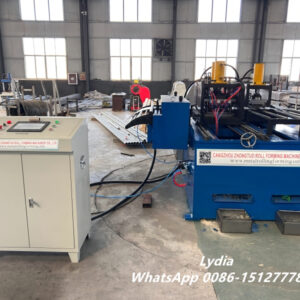

Roll Forming and Hydraulic Cutting
The main roll forming unit uses 45# steel shafts and GCR15 rollers for long-lasting performance. With 14 roller stations, the machine forms panels at a speed of 300 pieces per hour.
After forming, a hydraulic post-cutting system trims panels and creates precise step features. The channel steel knife holder ensures smooth, burr-free cuts and a stable cutting process, which is essential for producing fire extinguisher cabinet doors that fit perfectly.

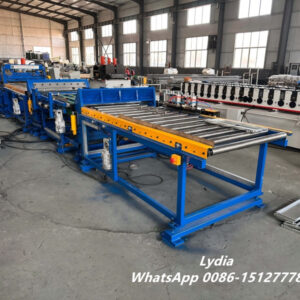

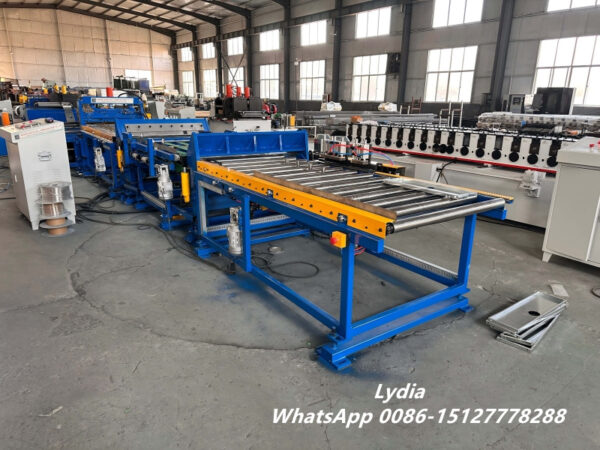

Automated Conveying and Dual Bending

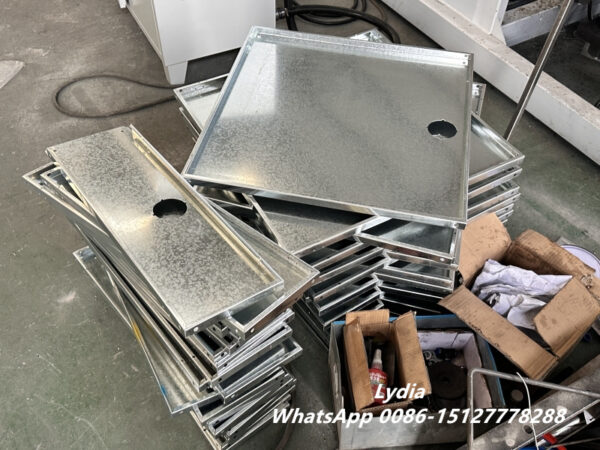

After forming and cutting, panels move automatically to the electric conveyor table and then to dual bending stations. Pneumatic clamping devices hold panels securely during bending, shaping the two ends of each cabinet door accurately.

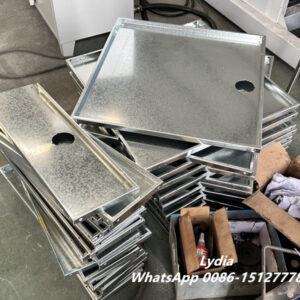

A production receive table makes it easy to collect finished products, reducing manual labor and improving worker safety. This fully integrated system ensures consistent door quality and efficiency throughout production.

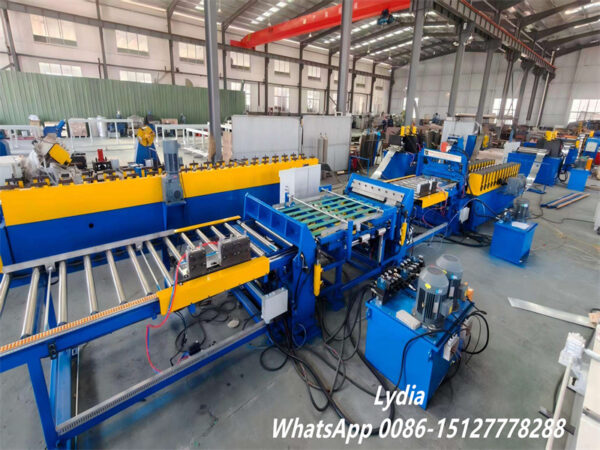

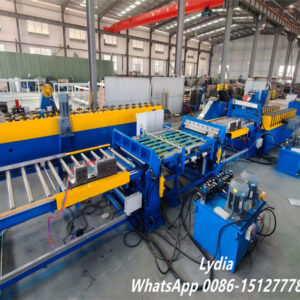

Advanced Hydraulic and PLC Control Systems
The hydraulic station features:
- Dual-motor configuration for higher power and reliability
- Independent cooling fan to maintain optimal oil temperature
- Real-time thermometer for precise monitoring
- Optimized noise control for a better workshop environment
The PLC control cabinet, powered by Siemens electronics, supports touch screen operation, remote control, and multi-language options. Operators can adjust production settings easily, making the system intuitive for international manufacturing environments.
Technical Specifications
Why ZTRFM Cabinet Roll Forming Machine Stands Out
This machine is designed for easy operation, high productivity, and consistent quality. It supports automatic width adjustment, allowing manufacturers to produce different cabinet sizes without changing molds. Each stage—from feeding to bending—is fully automated, reducing manual labor and ensuring safety.
Whether you are a manufacturer of fire extinguisher cabinets or steel door panels, this machine guarantees efficient production while meeting international safety standards.
