ZTRFM Octagon Pipe Roll Forming Machine Automatic Roller Shutter Door Shaft Production Line

The Octagon Pipe Roll Forming Machine is a fully automatic production line designed for manufacturing high-precision octagonal tubes used in roller shutter systems and related industrial structures. At ZTRFM, we focus on building reliable equipment that improves production efficiency, ensures consistent product quality, and supports long-term factory operation. By integrating forming, punching, cutting, and automatic control into one continuous line, this machine helps manufacturers achieve stable output with lower labor cost and higher productivity.

1. Complete Automatic Production Line Integration

The machine works as a complete production line starting from a decoiler that feeds galvanized or cold-rolled steel coils into the system. The material then passes through a punching unit that accurately creates required holes according to design specifications before entering the roll forming section. In the forming process, multiple precision rollers gradually shape the flat steel strip into a perfect octagonal profile without causing deformation or surface damage. After forming, an adjusting device ensures straightness and dimensional stability, and then a servo following saw cutting system cuts the pipe into precise lengths while the machine is still running, ensuring high efficiency and continuous production. Finally, the finished pipes are automatically transported to the output table for easy collection and stacking.

2. High-Precision Roll Forming System

This machine is built with high-precision engineering standards. It uses GCr15 roller material with hardened and chrome-plated surfaces reaching hardness levels of HRC58–62, ensuring excellent wear resistance and long service life. The shafts are made from 45# steel with heat treatment for additional strength, and the transmission system adopts a stable chain drive system. The forming line typically includes 21 stations, which ensures smooth and accurate shaping even during high-speed operation. With a 7.5KW motor power and PLC intelligent control system, the machine delivers stable performance while remaining easy to operate through a touch screen interface.

3. Technical Parameters Overview

Below is a clear specification summary of the Octagon Pipe Roll Forming Machine:

This configuration ensures stable production and long service life, even under continuous industrial use.

4. Wide Applications of Octagon Pipes

Octagon pipes produced by this machine are widely used in many industries due to their strong structure, smooth rotation performance, and high load-bearing capacity. Their versatility makes them essential in modern construction and mechanical systems.

Main application areas include:

• Roller shutter door shaft systems for residential, commercial, and industrial buildings
• Garage door rolling systems requiring smooth and stable rotation
• Industrial warehouse shutter systems for security and insulation control
• Security grill and anti-theft shutter structures
• Door and window support rolling mechanisms in commercial facilities
• Sunshade and awning systems for buildings and outdoor shading structures
• Agricultural storage buildings requiring durable rolling door systems
• Logistics and factory warehouse entrance systems
• Mechanical transmission shafts in light industrial equipment

Because of their strength and precision, octagon pipes are especially important in high-cycle shutter door systems where long-term durability and smooth operation are required.

5. Flexible Size Adjustment and Custom Design

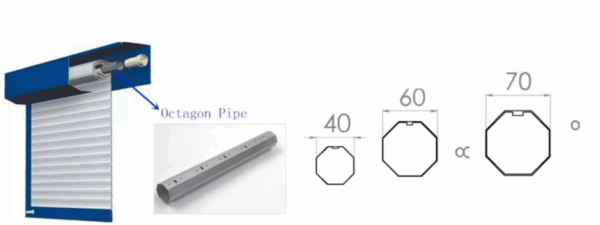

One major advantage of this machine is its flexible size-changing system. It can produce multiple octagon pipe sizes, such as 40mm, 60mm, and 70mm, by using a quick-change cassette system.

This design allows operators to switch production sizes quickly without complex mechanical adjustments, which significantly reduces downtime and improves productivity.

In addition, we offer full customization options, including:

• Special diameter requirements
• Different material thickness ranges
• Higher-speed production configurations
• Automatic coil loading systems
• Customized punching hole positions

The machine also supports flexible production requirements. It can produce common sizes such as 40mm, 60mm, 70mm, and 102mm octagon pipes, and special sizes can be customized according to customer drawings. Thickness ranges from 0.5mm to 1.5mm depending on production needs. With a quick-change cassette system, operators can switch between different pipe sizes efficiently without complicated adjustments, which significantly reduces downtime and improves production flexibility.

The entire machine is controlled by a PLC system with a touch screen interface, allowing operators to easily set parameters such as cutting length, production speed, and forming adjustments. It also includes automatic length measurement, fault alarm, and real-time monitoring functions, which ensure safe and stable operation even during long production shifts. Because of its intelligent control system, the machine requires minimal training for operators while maintaining high precision and consistency in output.

6. Reliable Performance and Global Service Support

At ZTRFM, we not only focus on machine performance but also on long-term service support. Each Octagon Pipe Roll Forming Machine is fully tested before delivery to ensure stable operation in real production environments. We provide installation guidance, operator training, spare parts supply, and fast technical support to help customers maintain continuous production. The standard delivery time is around 60 days, including manufacturing and testing, and our equipment has been exported to many countries worldwide, helping shutter door manufacturers build efficient and profitable production lines.
