As the transportation and logistics industries continue to demand stronger and lighter trailer structures, manufacturers are increasingly adopting roll-formed steel components to improve vehicle performance. Among these components, U trailer planks are widely used in trailer flooring systems, chassis reinforcements, and load-bearing platforms due to their excellent structural strength and durability.

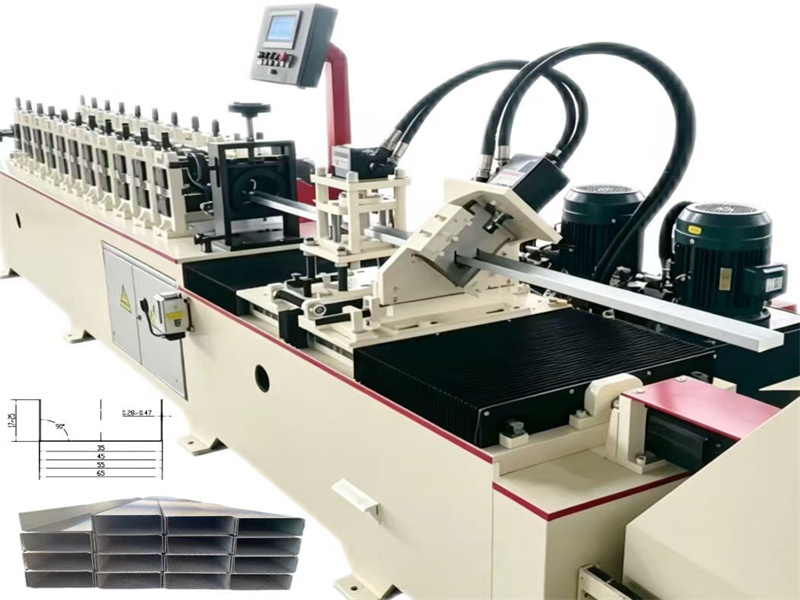

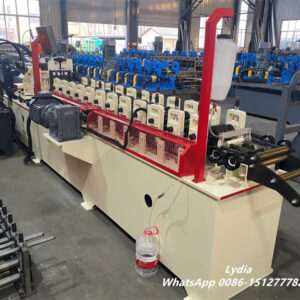

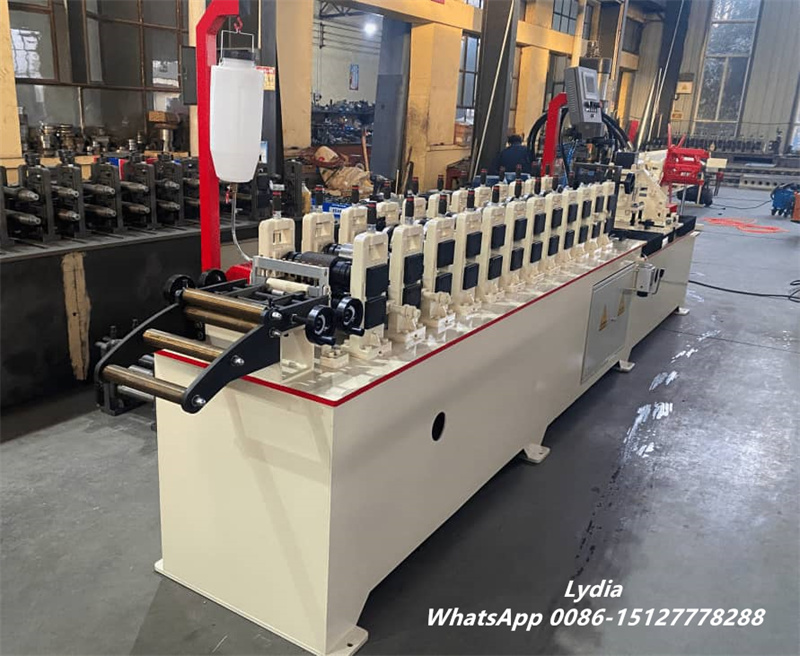

The U Trailer Plank Roll Forming Machine is a fully automated cold roll forming production line specifically engineered to manufacture high-strength U-shaped steel planks with consistent dimensions and superior surface quality. Instead of relying on traditional welding or press-forming methods, this machine continuously forms steel coils into finished trailer planks through a series of precision roller stations, significantly improving production efficiency and product consistency.
By integrating decoiling, feeding, leveling, roll forming, straightening, and hydraulic cutting into one automated workflow, manufacturers can achieve stable mass production while reducing labor costs and material waste.
Why U Trailer Planks Are Important in Modern Trailer Manufacturing
Trailer flooring and support structures must withstand heavy loads, repeated vibrations, and harsh operating environments. Therefore, manufacturers require structural components that provide both strength and dimensional accuracy.
U-shaped trailer planks offer several advantages:
- Excellent load distribution capability
- Increased bending resistance
- Higher structural rigidity
- Reduced material consumption
- Improved vehicle durability
- Easy welding and assembly

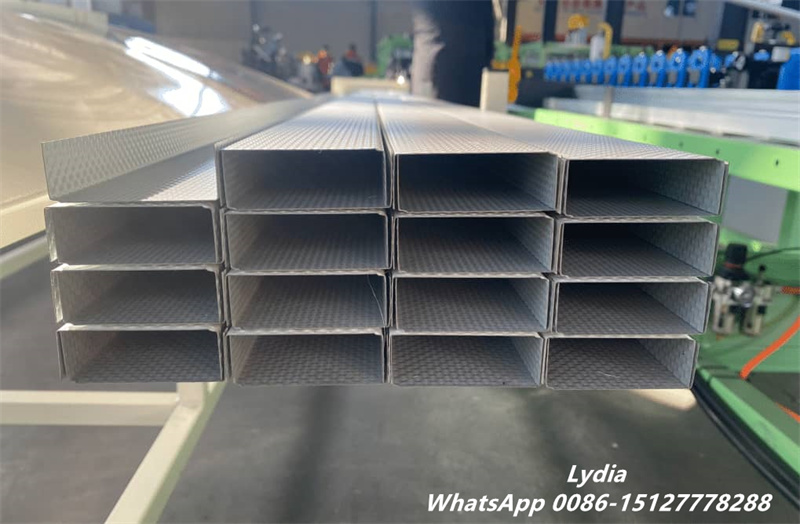

Furthermore, the optimized U-profile design creates an ideal balance between weight and strength, helping trailer manufacturers improve payload capacity without compromising safety.
As a result, U trailer planks have become a preferred solution for semi-trailers, flatbed trailers, cargo transport vehicles, agricultural trailers, and industrial transportation platforms.
Fully Automated Production Process
To ensure reliable production quality, the U Trailer Plank Roll Forming Machine utilizes a continuous automated forming process.
Standard Working Flow

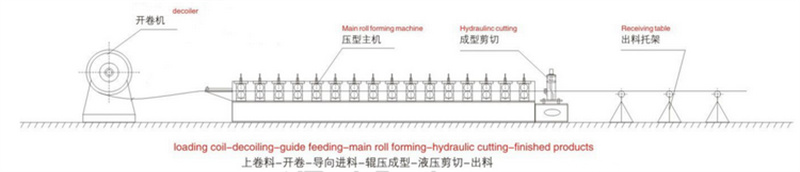

Hydraulic Decoiler → Feeding & Clamping → Precision Leveling → Roll Forming → Straightening → Hydraulic Cutting → Output Table

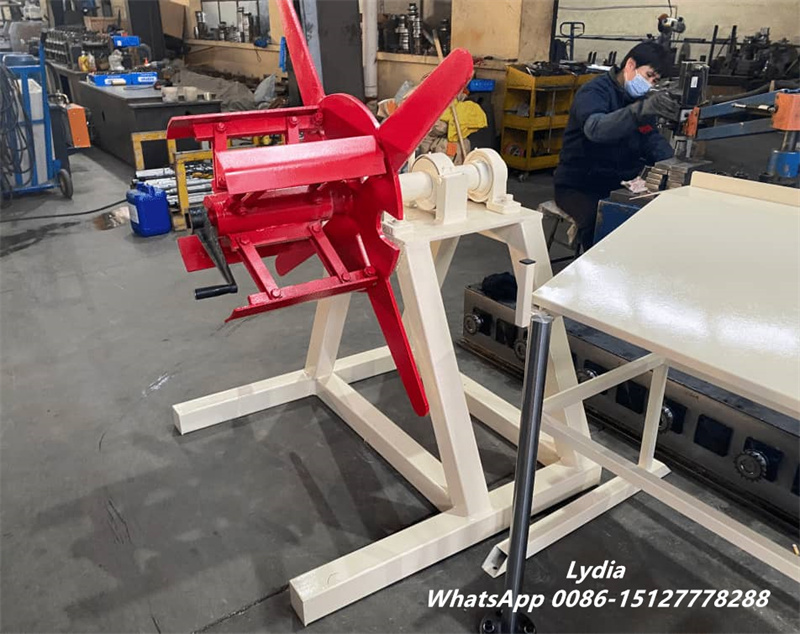

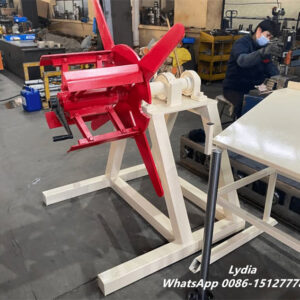

During operation, the hydraulic decoiler releases the steel coil under controlled tension. The feeding system accurately guides the material into the leveling section, where multiple leveling rollers remove internal stress and improve flatness.

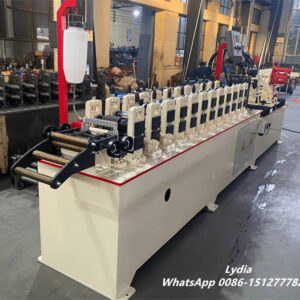

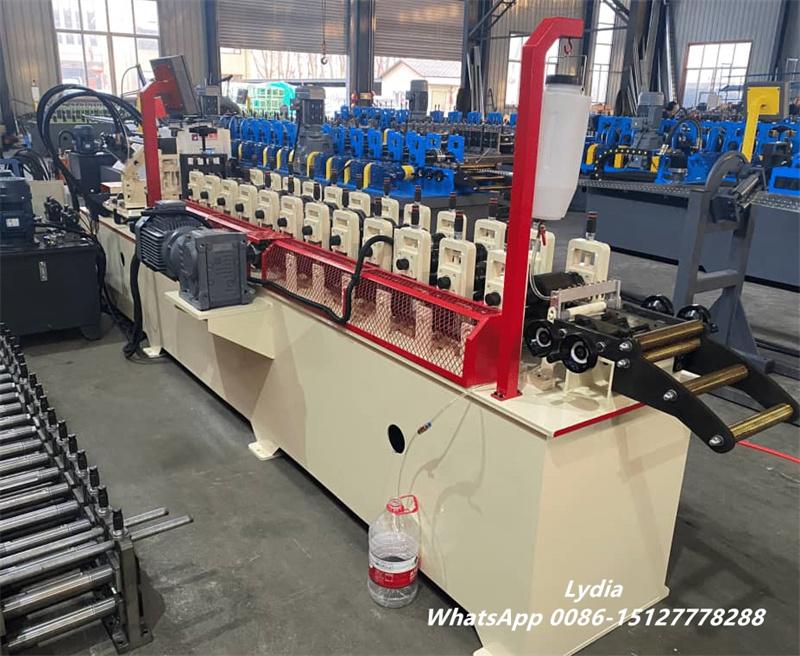

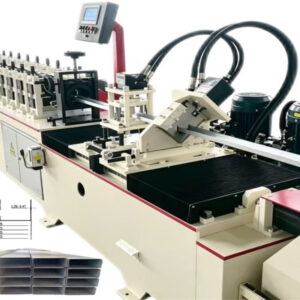

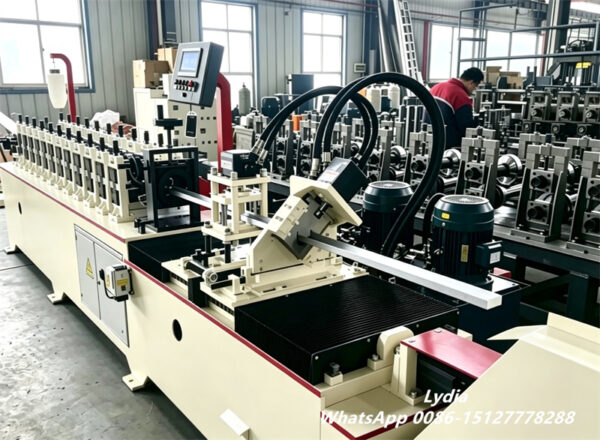

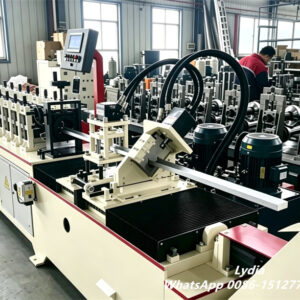

Next, the strip passes through several roll forming stations. Each roller gradually shapes the steel into the final U-profile without damaging the material’s mechanical properties. After forming, the straightening unit corrects any deformation before the hydraulic cutting system cuts the profile to the programmed length.

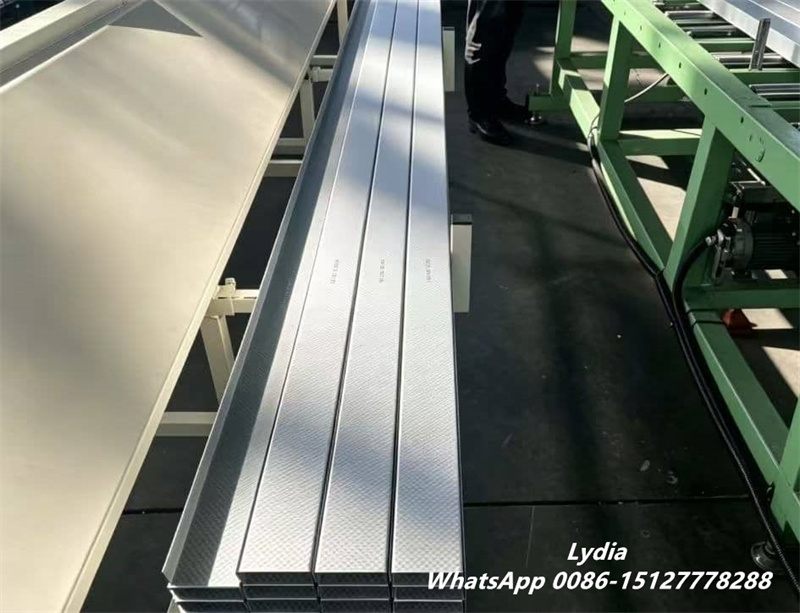

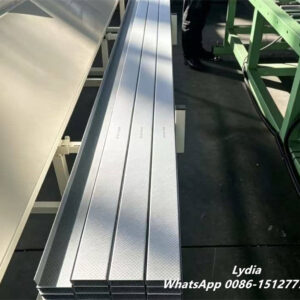

Consequently, the machine produces trailer planks with excellent dimensional consistency and clean cutting edges.
Main Technical Specifications
The machine adopts a heavy-duty structure and high-quality forming components to ensure long-term production stability.
| Item | Specification |
|---|---|
| Forming Stations | 8 Stations |
| Roller Material | GCr15 Bearing Steel |
| Roller Hardness | HRC 58–62 |
| Shaft Diameter | Φ85 mm |
| Shaft Material | 40Cr Quenched & Tempered |
| Main Motor Power | 15 kW |
| Hydraulic Cutting Power | 7.5 kW |
| Decoiler Capacity | 5 Tons |
| Coil Inner Diameter | Φ480–Φ508 mm |
| Maximum Coil Diameter | Φ1800 mm |
| Frame Structure | Reinforced Steel Frame |
| Cutting Type | Hydraulic Stop Cutting |
Additionally, all machine specifications can be customized according to the customer’s trailer plank design and production requirements.
Key Features and Production Advantages
The U Trailer Plank Roll Forming Machine combines robust construction with advanced automation technology to help manufacturers increase productivity and reduce operating costs.
High Forming Accuracy ：The machine utilizes precision-machined rollers and a PLC-controlled production system to maintain consistent profile dimensions. Finished products typically achieve length tolerances within industry requirements, ensuring easier assembly during trailer manufacturing.
Heavy-Duty Machine Structure：A reinforced frame, portal support structure, and large-diameter shafts provide excellent rigidity during operation. Therefore, the machine remains stable even when processing high-strength steel materials.
Flexible Profile Customization：Manufacturers can customize:
- Plank width
- Profile height
- Material thickness
- Reinforced edge design
- Punching holes
- Slot patterns
This flexibility allows the machine to adapt to various trailer and transport equipment designs.
Reduced Production Costs
Because roll forming is a continuous manufacturing process, it minimizes scrap generation and reduces labor dependency. At the same time, automated operation increases daily output while maintaining consistent quality.
Long Service Life
The forming rollers are manufactured from hardened GCr15 bearing steel and undergo precision heat treatment. Consequently, they deliver excellent wear resistance and extended operational life even under demanding production conditions.
Applications Across Transportation and Industrial Sectors
The U Trailer Plank Roll Forming Machine is suitable for producing a wide range of structural steel components used in transportation and heavy-duty industrial applications.
Common applications include:

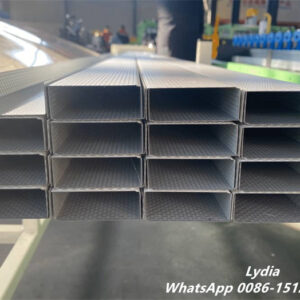

- Trailer floor planks
- Semi-trailer chassis components
- Flatbed trailer decking systems
- Cargo trailer support panels
- Agricultural transport trailers
- Logistics transport platforms
- Heavy-duty storage systems
- Industrial steel support structures
- Modular transportation equipment
Because of its versatility, the machine enables manufacturers to expand their product offerings while maintaining efficient and reliable production.
Reliable Solution for Trailer Plank Manufacturing
For manufacturers seeking higher productivity, consistent product quality, and lower manufacturing costs, the U Trailer Plank Roll Forming Machine provides an efficient and dependable solution. Its automated production process, precision forming capability, and durable machine construction make it ideal for large-scale trailer plank manufacturing projects.
Whether producing standard trailer floor planks or customized heavy-load structural components, this roll forming machine delivers the accuracy, strength, and production efficiency required by modern transportation equipment manufacturers worldwide.
