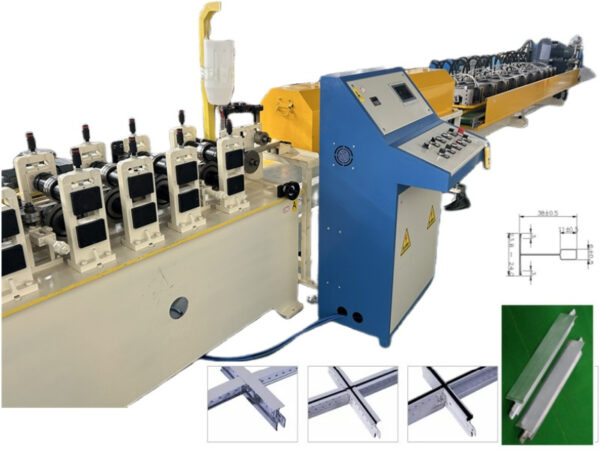

The Cross Tee Roll Forming Machine is specialized equipment designed to manufacture cross tee profiles used in suspended ceiling systems. These metal cross tees work together with main tees and wall angles to form a stable grid structure that supports ceiling tiles such as gypsum boards, mineral fiber panels, or aluminum ceiling panels.By adopting advanced cold roll forming technology, the machine continuously processes metal coils into precise cross tee profiles with high dimensional accuracy and stable quality. The system integrates feeding, roll forming, punching, and hydraulic cutting, enabling efficient mass production for modern ceiling construction projects.
Cross tee products produced by this machine are widely used in:
- Commercial buildings
- Office ceilings
- Shopping malls
- Airports and hospitals
- Residential suspended ceiling systems
With automated control and reliable transmission design, the cross tee forming machine significantly improves production efficiency while reducing labor costs.
How Does a Cross Tee Making Machine Work?

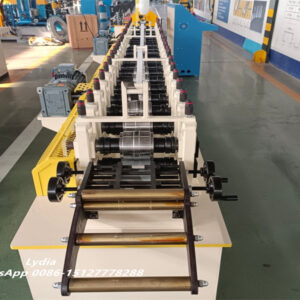

The machine uses the cold roll forming process, in which a metal strip is gradually shaped into the required profile through multiple roller stations. Each set of rollers performs a small deformation step until the final T-shaped structure is formed.
During operation, the coil material passes through feeding and forming units, where punching holes and connection slots can also be completed automatically. After forming, the finished profiles are cut to the required length and discharged to the output table.
Production Flow

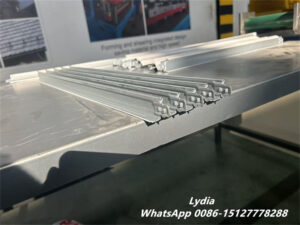

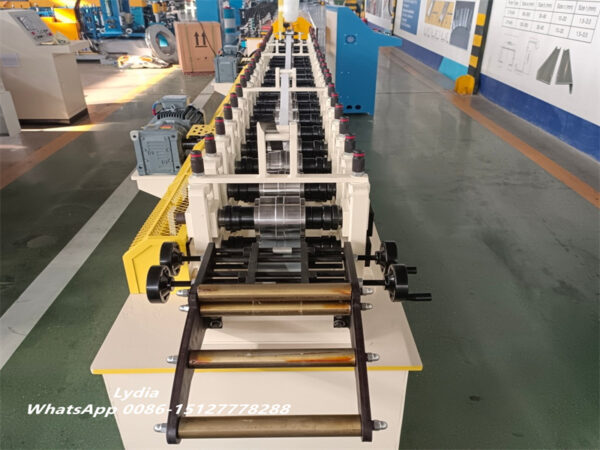

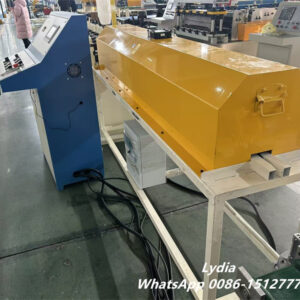

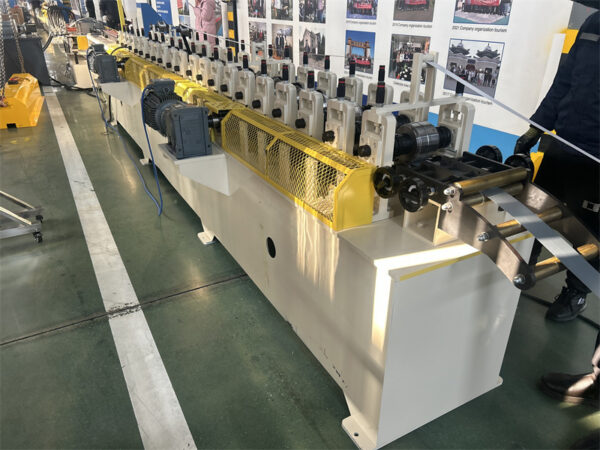

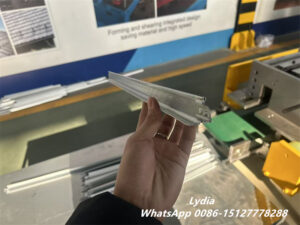

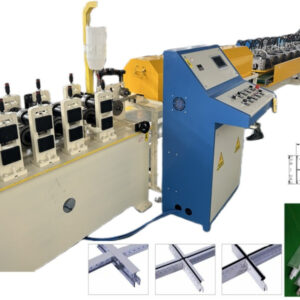

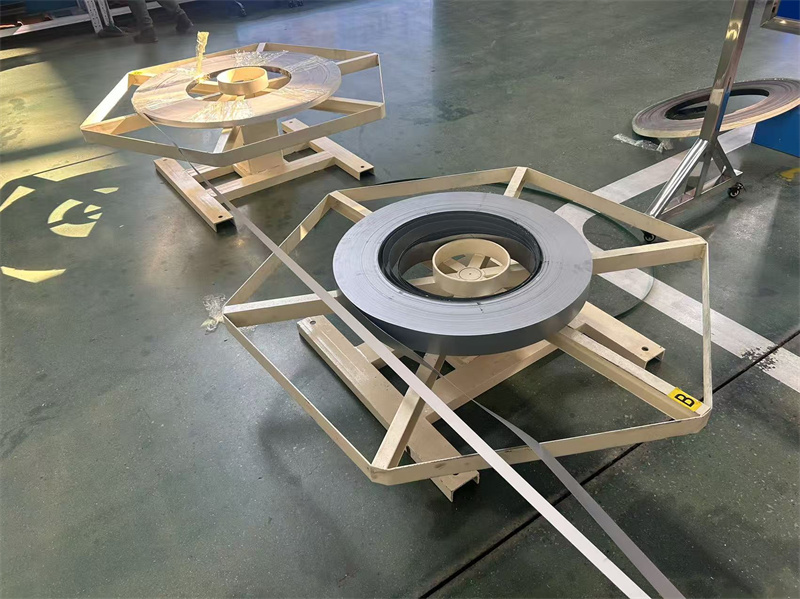

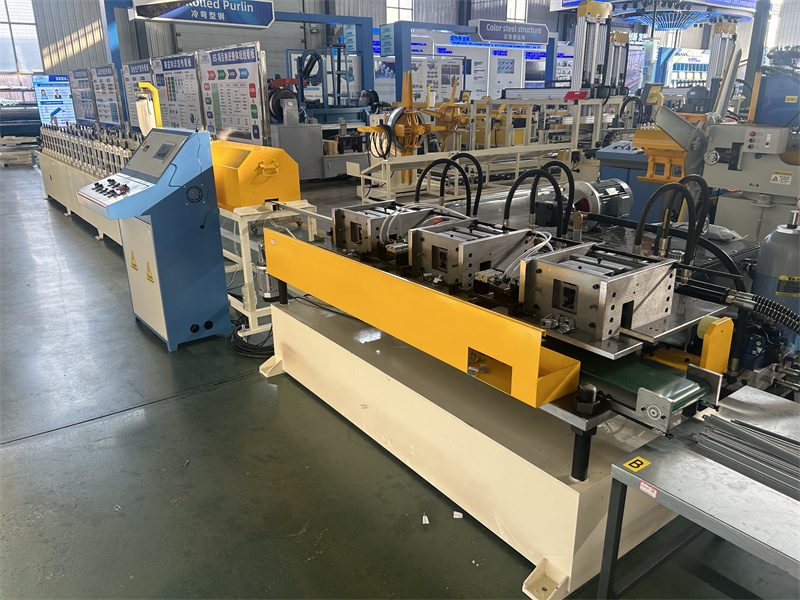

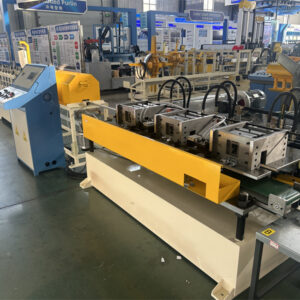

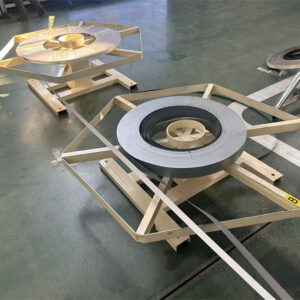

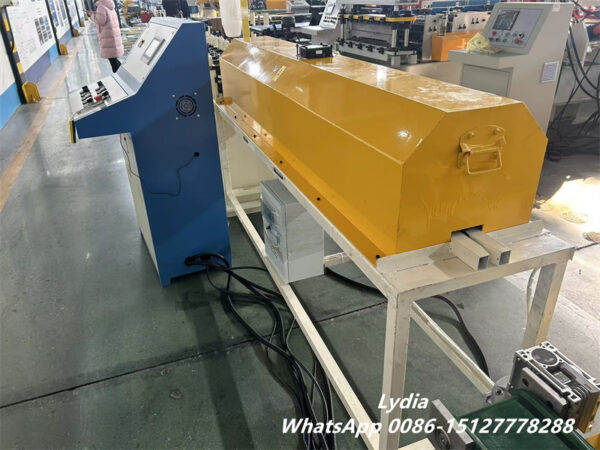

→ Decoiler→ Feeding System→ Main Roll Forming Machine→ Chain Drive Transmission→ Hydraulic Punching→ Hydraulic Cutting→ Output Table

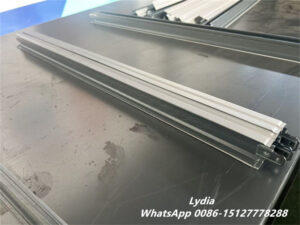

This fully automated production line allows continuous manufacturing of cross tee profiles with high precision and stable speed.

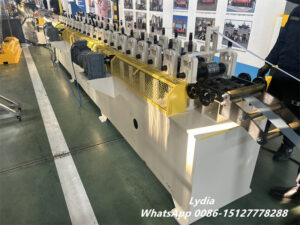

Key Features of the Cross Tee Roll Forming Machine

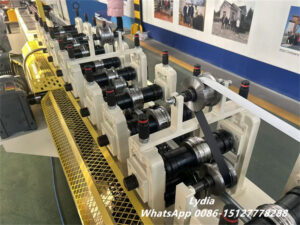

Multiple forming stations gradually shape the metal strip to ensure accurate dimensions and smooth profile edges.Fully Automatic Production,The line integrates feeding, forming, punching, and cutting, reducing manual intervention and improving production efficiency.PLC Intelligent Control System,The machine adopts PLC control with an easy-to-use interface, allowing operators to adjust speed, length, and production parameters conveniently.Stable Structure,The machine frame is built with high-strength steel, ensuring long-term stability during continuous production.Compatible Materials:
Suitable for various materials, including:
- Galvanized steel (GI)
- Pre-painted galvanized steel (PPGI)
- Aluminum coil

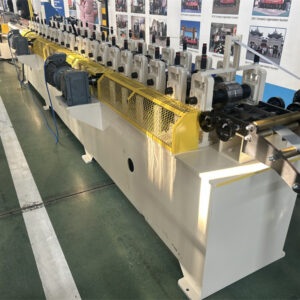

Advantages of Chain Drive Transmission
One of the notable design features of this cross-tee roll-forming machine is the chain drive transmission system, which offers several benefits for manufacturers.
Energy Efficiency
Chain transmission provides efficient power transfer with minimal energy loss, helping reduce operating costs.
High Transmission Efficiency
The system converts motor power effectively into mechanical motion, ensuring stable forming performance and consistent production output.
Reliable Operation
Chain drive mechanisms offer excellent durability and stability, reducing the risk of mechanical failure and lowering maintenance costs.
Cost-Effective Production
Compared with gear-based transmission systems, chain drive solutions are simpler and more economical, making them ideal for medium-speed roll forming lines.
Technical Specifications of Cross Tee Roll Forming Machine
| Item | Specification |
|---|---|
| Material Thickness | 0.3 – 0.4 mm |
| Decoiler Weight | 2 Tons |
| Loading Capacity | 250 kg |
| Driving System | Chain Drive |
| Main Motor | 10 HP Motor with 10 HP Inverter |
| Cutting Method | Hydraulic Cutting |
| Punching System | Hydraulic Punching |
| Roll Forming Speed | Up to 40 m/min |
| Length Tolerance | ±0.2 mm |

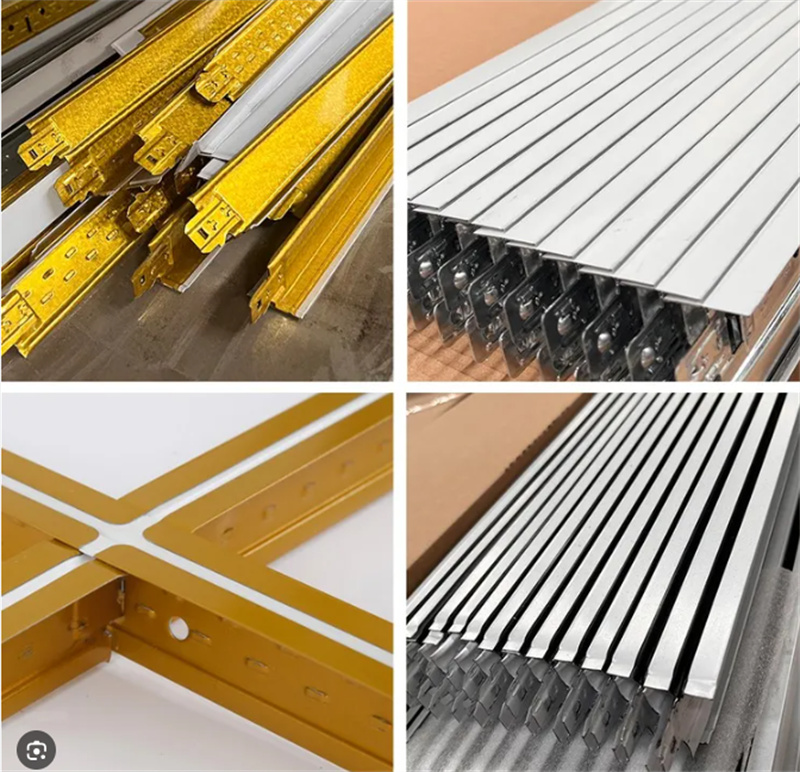

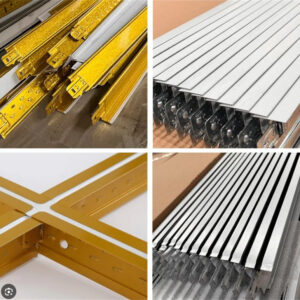

Applications of Cross Tee Profiles

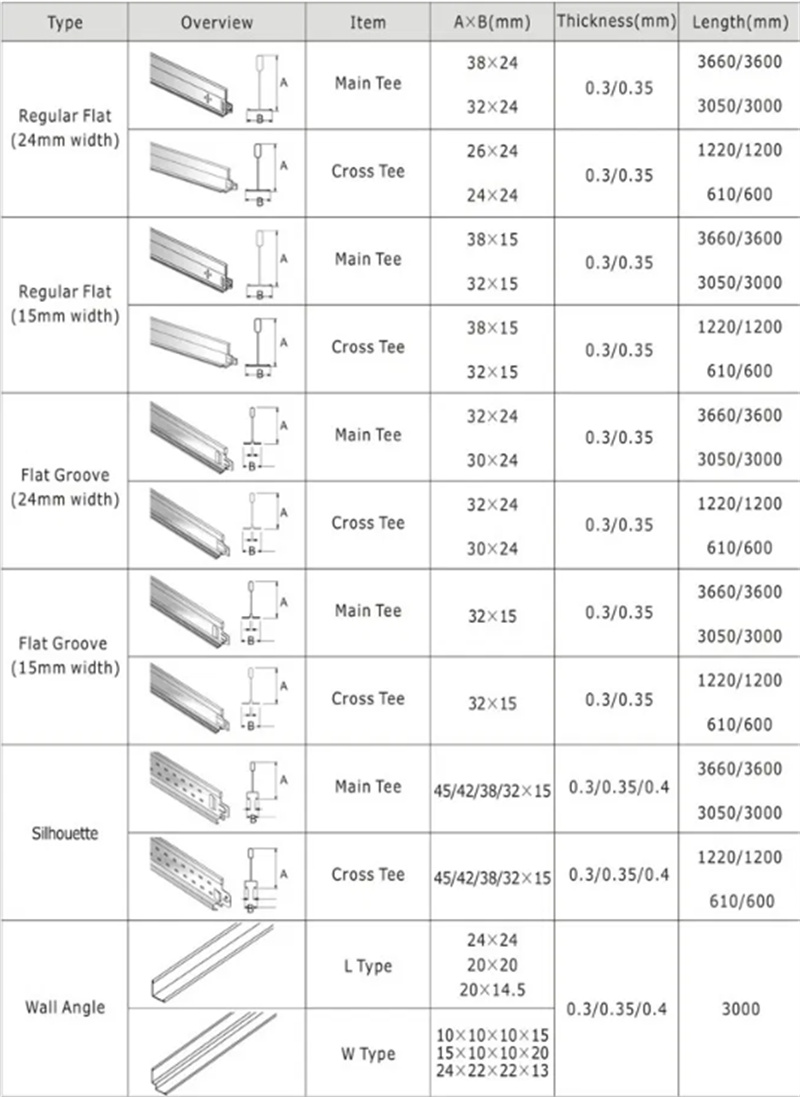

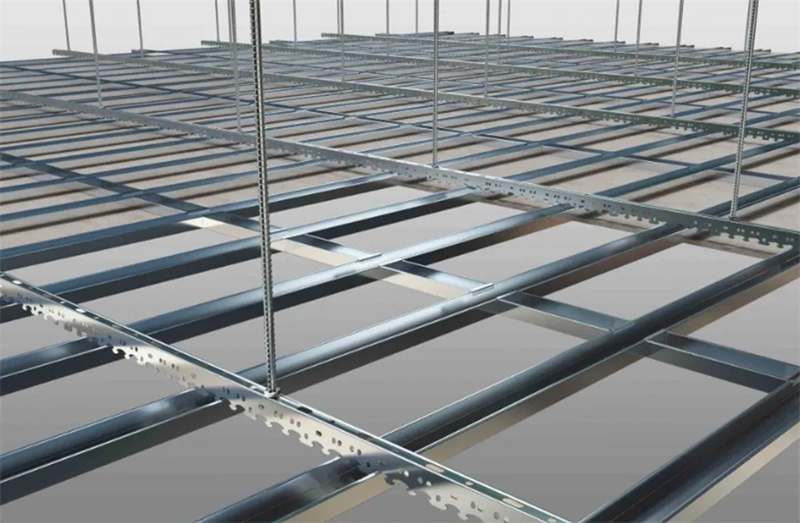

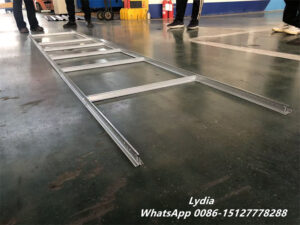

Cross tee profiles are essential components of suspended ceiling grid systems. They connect with the main runners to form square or rectangular grids that hold ceiling panels securely in place.
Typical grid sizes include:
- 600 × 600 mm ceiling grid
- 600 × 1200 mm ceiling grid
These systems are widely used due to their easy installation, clean appearance, and convenient maintenance.
Complete Ceiling T Grid Production Line
In addition to the Cross Tee Roll Forming Machine, a full ceiling grid production line usually includes the following equipment:
- Main Tee Roll Forming Machine – Produces the main runner profiles
- Spring Tee Making Machine – Manufactures flexible connection tees
- Light Steel Keel Roll Forming Machine – Produces framing components
- Drywall Stud and Track Roll Forming Machine – Used for partition wall structures
Together, these machines provide a complete solution for suspended ceiling and drywall framing production.
The Cross Tee Roll Forming Machine is an essential piece of equipment for manufacturers of suspended ceiling systems. With its automated production process, stable chain drive transmission, and precise roll forming technology, it enables high-efficiency manufacturing of ceiling grid components while maintaining excellent product quality.
