Zhongtuo DIN Rail Roll Forming Machine Automatic Top Hat, C & G Type DIN Rail Making Machine Manufacturer

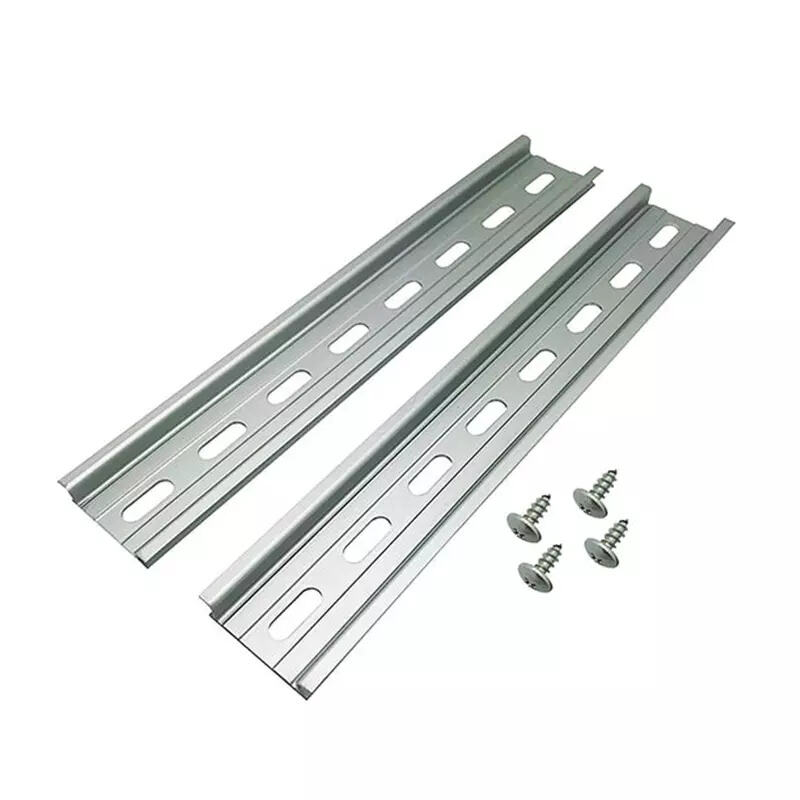

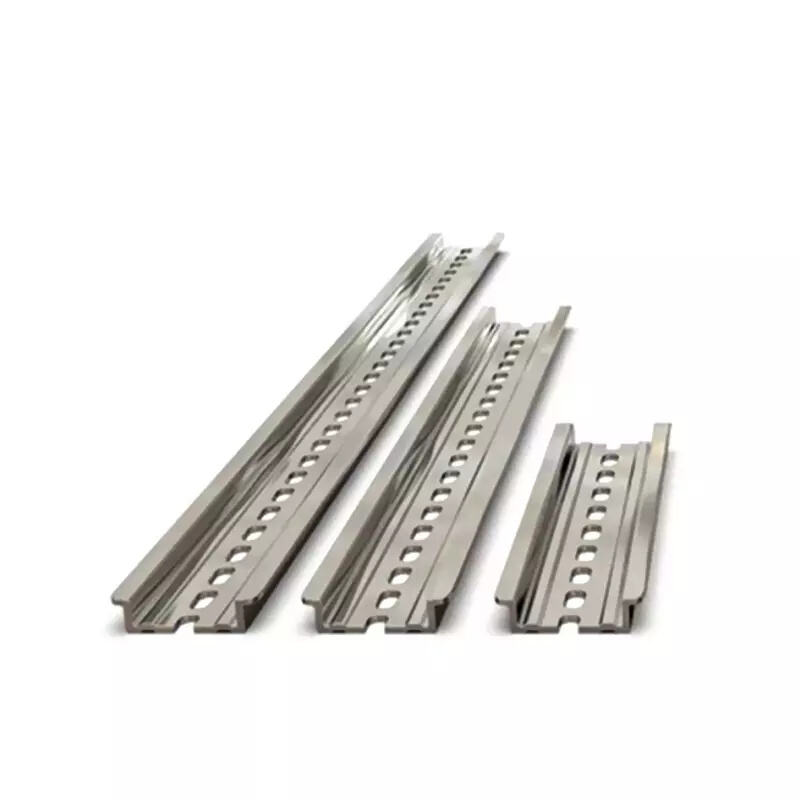

DIN rails are essential components in electrical control cabinets, switchboards, automation systems, and industrial distribution panels. They provide a standardized mounting base for circuit breakers, terminal blocks, relays, power supplies, PLCs, and other electrical devices. A DIN Rail Roll Forming Machine is specifically engineered to manufacture these precision metal rails with high efficiency, consistent dimensions, and excellent surface quality.Automatic DIN rail Making Machine

At Zhongtuo Roll Forming Machinery , we design fully automatic DIN rail production lines capable of producing standard Top Hat (TS35), C Section, and G Section DIN rails, as well as customized profiles according to customer drawings. With intelligent PLC control, high-precision punching, and stable roll forming technology, the machine helps manufacturers improve productivity while reducing production costs.

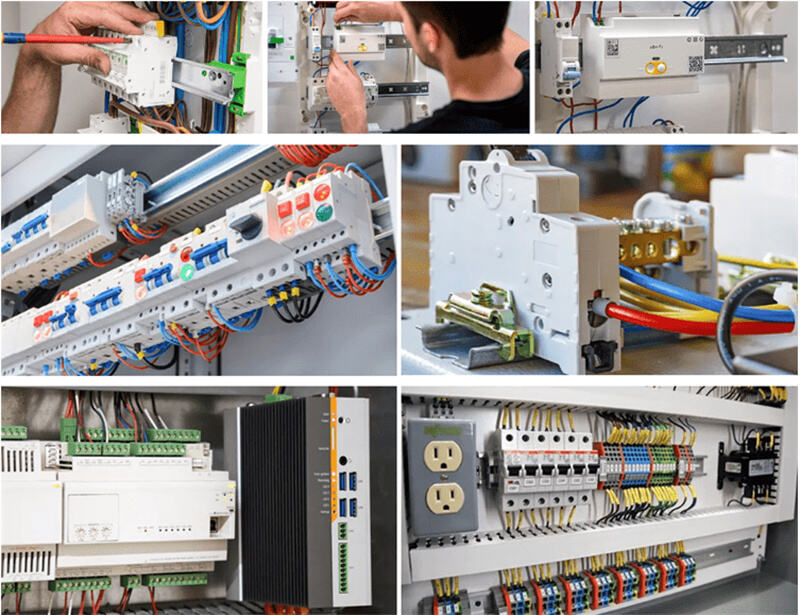

Applications of DIN Rails

DIN rails have become the global standard mounting solution for electrical and industrial control equipment. They are widely installed in both commercial and industrial environments.

Typical applications include:

• Electrical control cabinets
• Distribution boxes
• Switchgear panels
• Industrial automation systems
• PLC control cabinets
• Renewable energy equipment
• Solar PV electrical systems

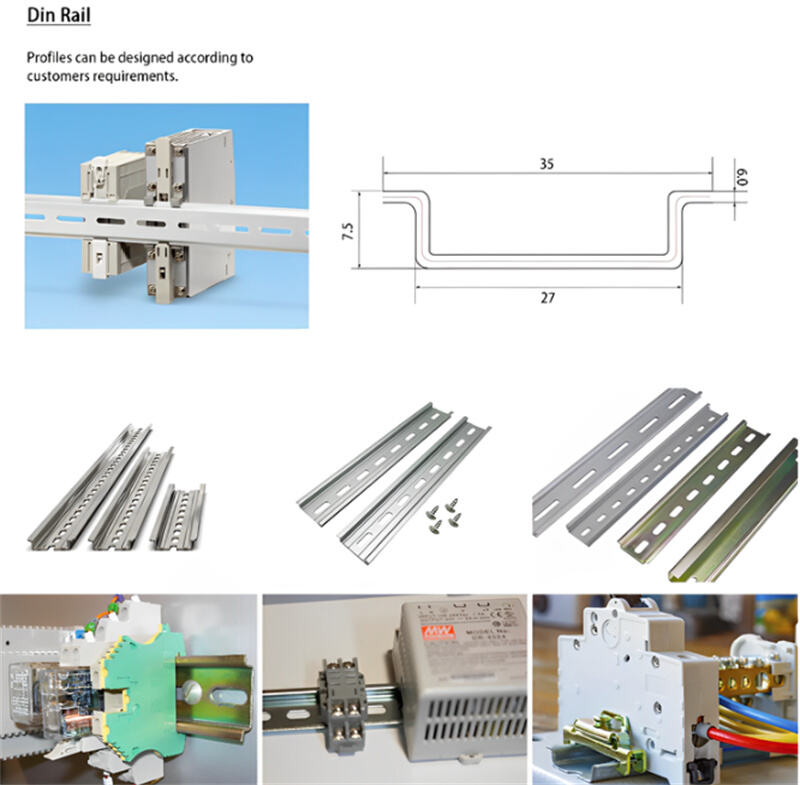

Besides manufacturing traditional TS35 rails, the machine can also produce customized guide rails, slide rails, and special mounting channels based on customer drawings for various industrial applications.

Key Features and Advantages

Our DIN Rail Roll Forming Machine combines advanced mechanical design with intelligent automation to deliver stable production performance.

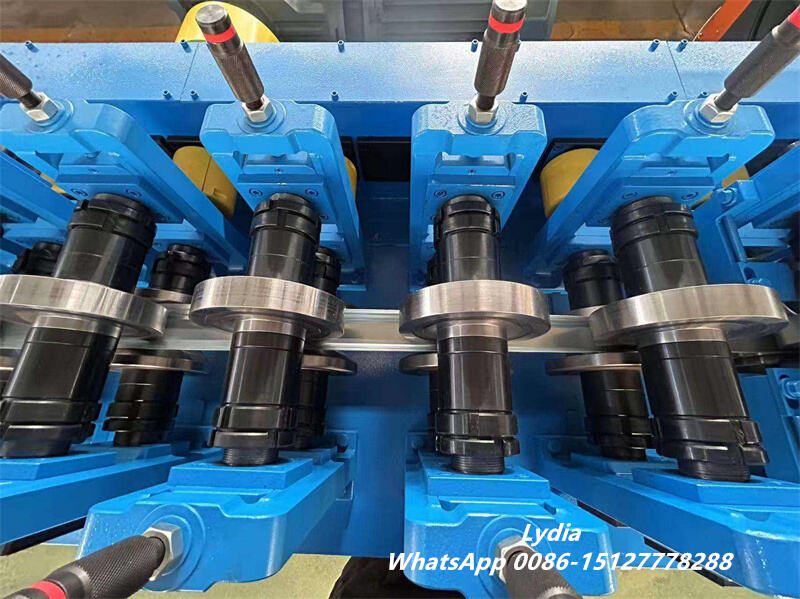

The hydraulic punching system accurately creates mounting holes before the forming process, ensuring excellent positioning accuracy. Meanwhile, precision-machined rollers gradually shape the strip into the required DIN rail profile without damaging the material surface.

The PLC control system automatically manages feeding length, punching sequence, production speed, and cutting accuracy. As a result, operators can quickly switch between production batches while maintaining high repeatability.

Furthermore, the production line supports multiple profile types by replacing roller sets, making it suitable for manufacturers supplying different international DIN rail standards.

Main advantages include:

• Continuous automatic production
• High dimensional accuracy
• Stable hole positioning
• Low maintenance requirements
• Easy profile changeover
• Reduced labor costs
• Long service life
• Custom profile development available

Why Choose a DIN Rail Roll Forming Machine?

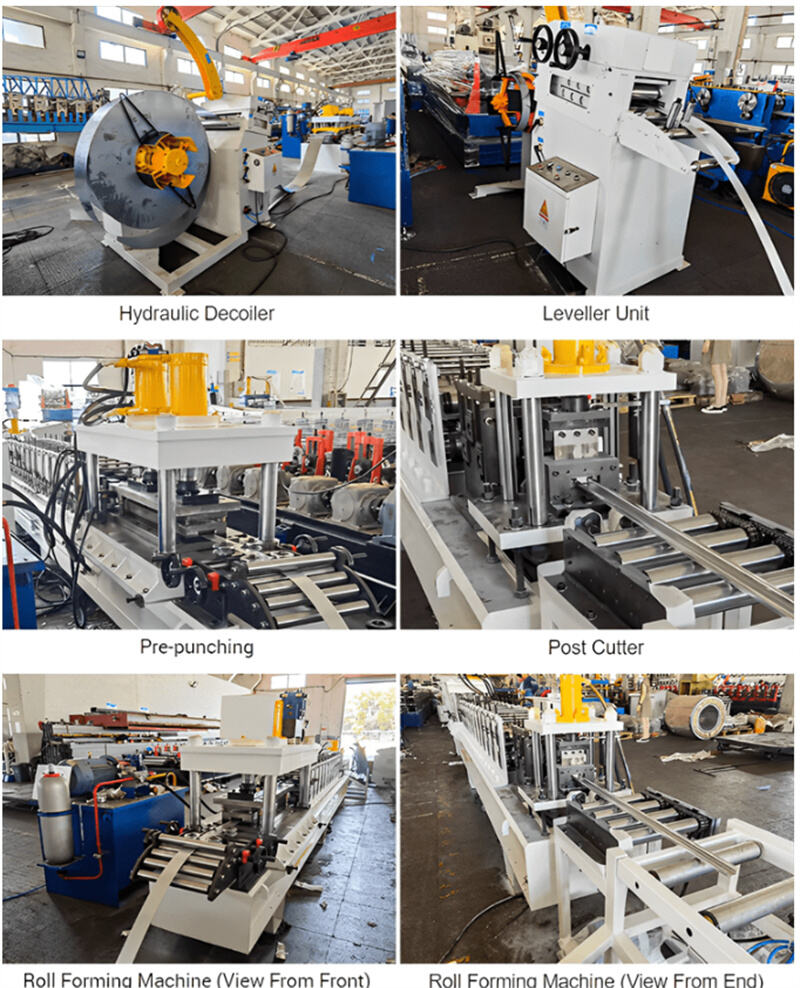

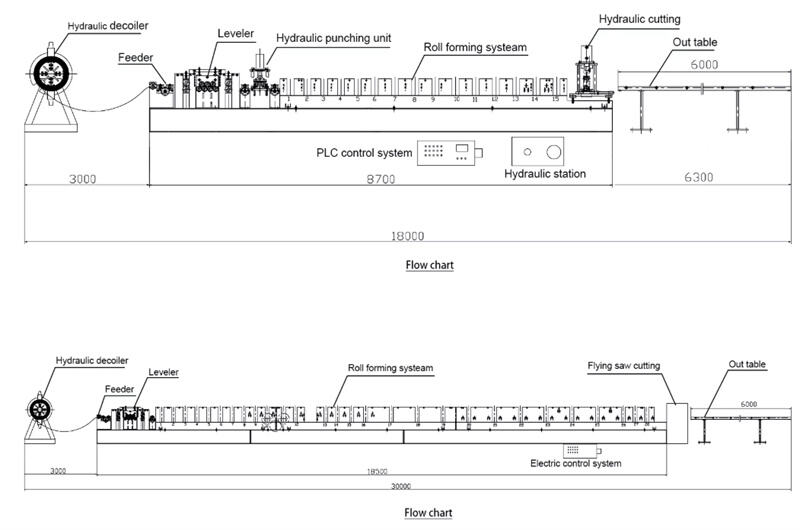

Modern electrical equipment requires standardized mounting rails with tight dimensional tolerances. Traditional fabrication methods involve multiple manufacturing steps, resulting in lower efficiency and inconsistent quality. In contrast, a roll forming production line integrates feeding, punching, roll forming, cutting, and product discharge into one continuous process.

The machine produces rails with excellent straightness, smooth edges, and accurate hole positions, ensuring easy installation of electrical components. Moreover, automated production minimizes manual labor, reduces material waste, and delivers repeatable product quality throughout long production runs.

Manufacturers serving electrical equipment, renewable energy, industrial automation, and switchgear industries can significantly increase production capacity while maintaining consistent quality standards.

Technical Specifications

Why Zhongtuo DIN Rail Roll Forming Machine?

With years of experience in cold roll forming technology, Zhongtuo provides complete production solutions rather than simply supplying machinery. Every production line undergoes full testing before shipment to ensure reliable operation at the customer’s factory.

We offer customized machine layouts, profile design optimization, overseas installation, operator training, and long-term technical support. Whether you produce standard DIN rails or require OEM customized guide rail solutions, our engineering team can develop the most suitable production line for your business.

If you are looking for a reliable DIN Rail Roll Forming Machine that delivers precision, efficiency, and long service life, Zhongtuo is your trusted manufacturing partner.
