The grouting light keel roll forming machine is designed for the efficient production of light steel keels used in modern construction support systems. In architectural decoration and structural construction, keels are widely used in walls, ceilings, partitions, flooring systems, and reinforcement structures. Their quality directly affects the stability, durability, and service life of the final building.
Compared with traditional manual fabrication and grouting methods, an automatic light keel roll forming machine can greatly improve production efficiency, maintain forming accuracy, and reduce labor costs. It is especially suitable for manufacturers and contractors who need standardized keel products for prefabricated buildings, interior decoration projects, industrial structures, and renovation works.
What Is a Grouting Light Keel Roll Forming Machine?

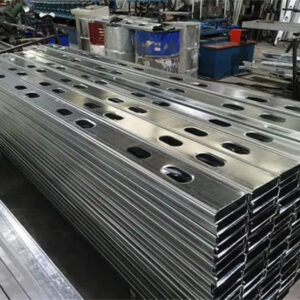

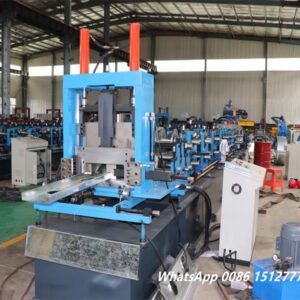

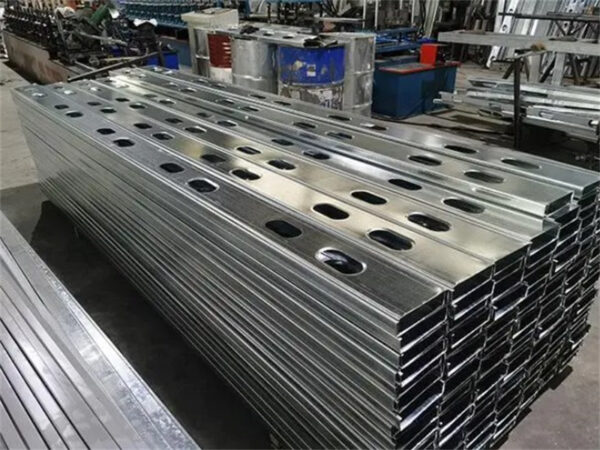

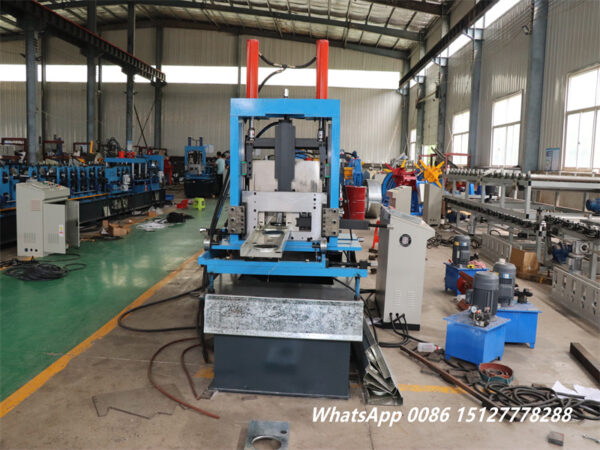

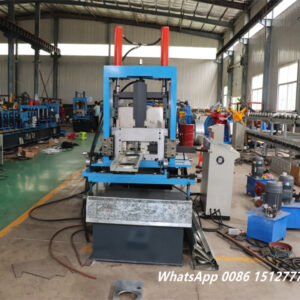

A grouting keel roll forming machine is a specialized roll forming production line used to manufacture light steel keels that require grouting reinforcement in practical construction applications. The machine feeds metal coil material through a series of forming rollers to create the required profile shape, then cuts the finished product automatically according to the preset length.
This type of machine is suitable for processing PPGI, GI, and AI materials with a thickness range of 0.5–1.2 mm. With automatic control and stable transmission, it can produce consistent keel profiles at high speed while meeting different project requirements.
Applications of Grouting Light Keel Roll Forming Machine
The grouting light keel roll forming machine is widely used in several construction fields.
Prefabricated Buildings

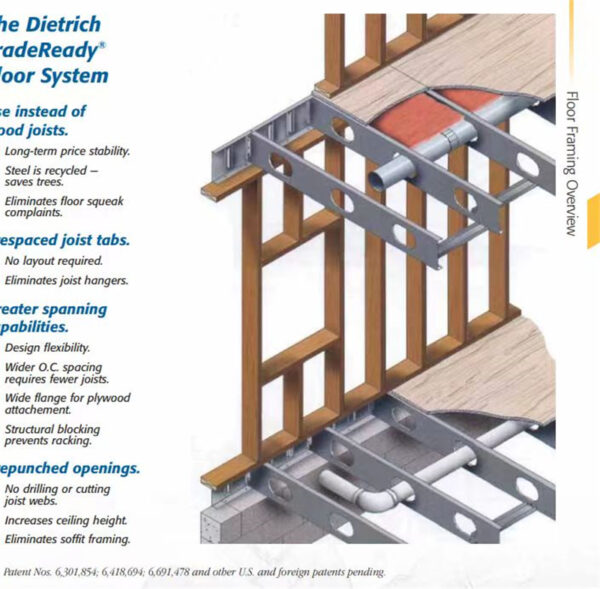

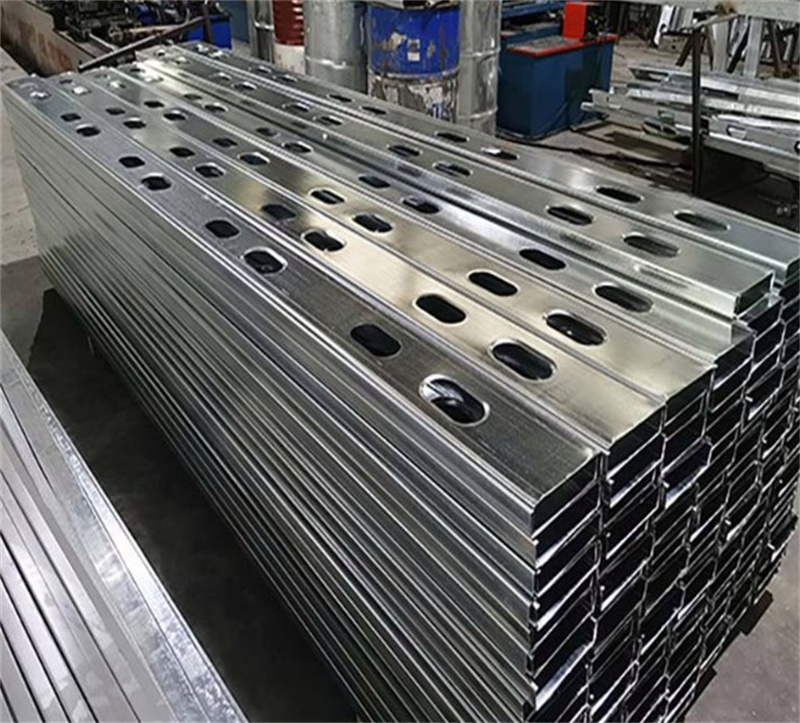

In prefabricated building systems, grouting light keels are often used for wall structures and composite floor support systems. The machine helps produce accurate keel profiles that can be installed quickly, improving construction efficiency and supporting modern industrialized building methods.
Interior Decoration
For ceiling systems and partition walls, light steel keels need to offer stable support and reliable installation quality. This machine is suitable for manufacturing keels used in interior decoration projects, helping improve consistency, reduce manual errors, and enhance the overall quality of ceilings and partition structures.
Industrial Plants
In industrial workshops and plant construction, grouting keels can be applied in support structures and reinforced installation areas. The machine provides uniform finished products that help ensure structural stability and long-term use.
Renovation Projects
In old house renovation and reinforcement projects, grouting light keels can be used for wall upgrading, floor support, and structural repair. Standardized keel production helps improve installation quality and reduce overall construction costs.
Main Features of the Grouting Light Keel Roll Forming Machine
This light steel keel forming machine is designed with practical structure, reliable components, and customizable options to meet different production needs.

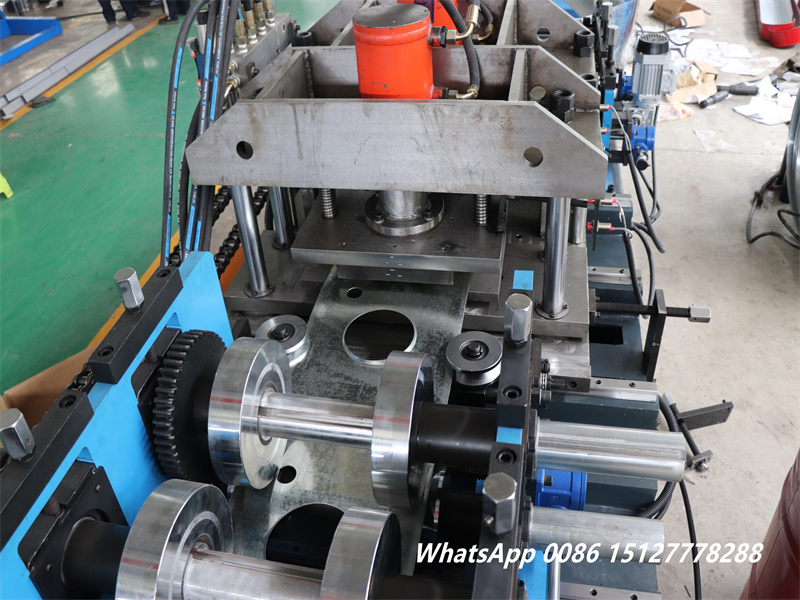

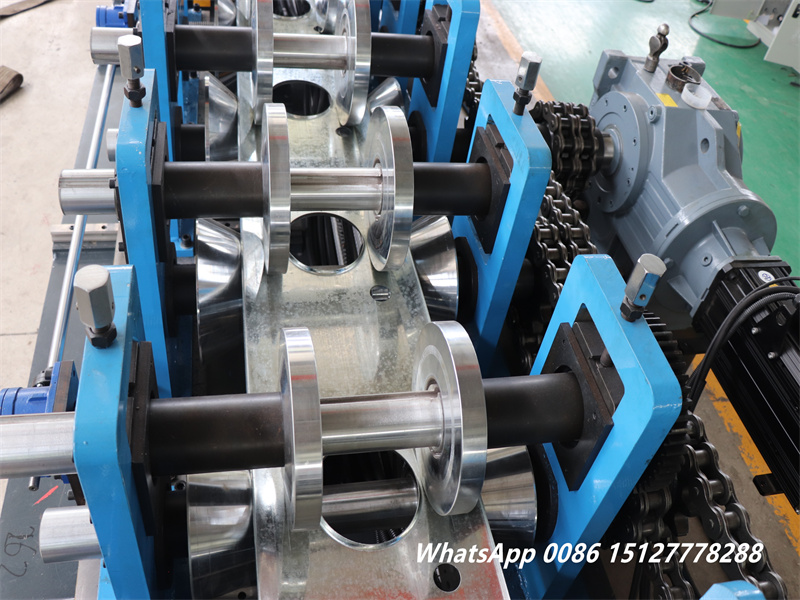

The machine is equipped with a hydraulic automatic decoiler, while a manual decoiler can also be provided free of charge. The forming section includes 16 roller stations, which can be adjusted according to the customer’s profile design. The rollers are made of 45# steel with hard chrome plating, helping improve wear resistance and extend service life.
The shaft adopts a 50 mm solid shaft design for stable operation. The machine frame is made of welded steel structure, and the drive system uses gear transmission, which supports smooth running and accurate forming.

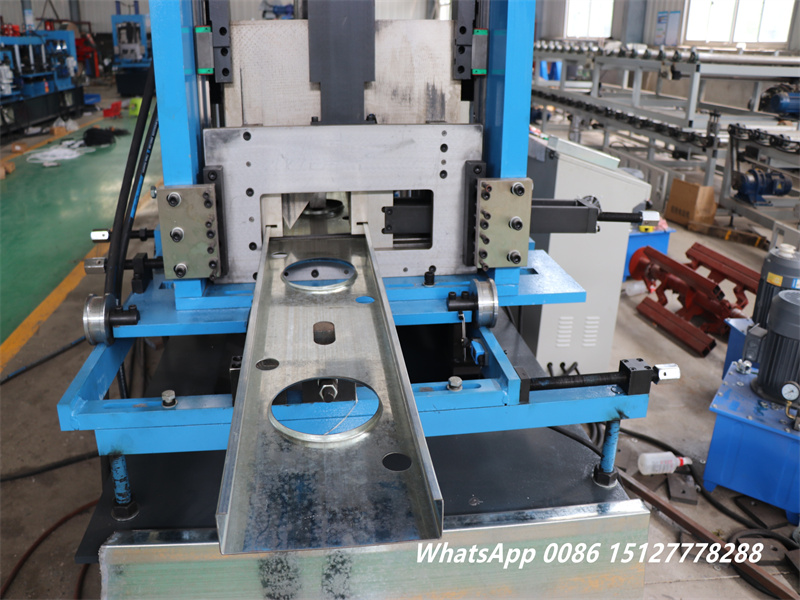

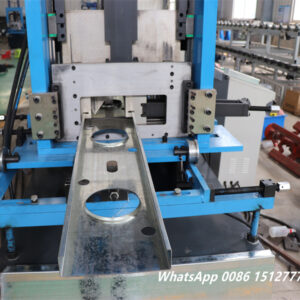

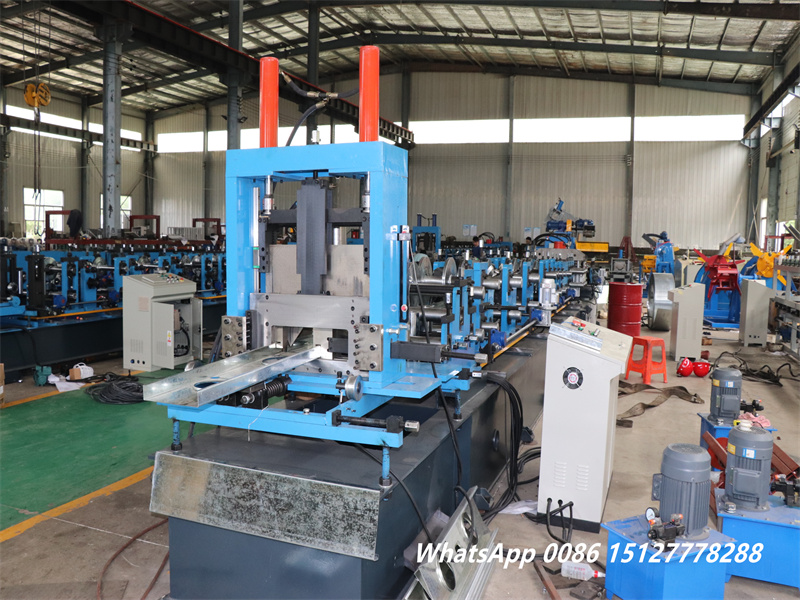

The cutting system is automatic, with the cutter made of Cr12Mov material, ensuring clean cutting performance without scratches or deformation. The control system uses a PLC automatic control cabinet with English interface and support for multiple languages. Operators can set production length, quantity, and batch parameters directly on the system.
The forming speed can reach 40–45 m/min, depending on the profile design and material thickness, making it a high-efficiency solution for mass production.
Technical Parameters
| Item | Specification |
|---|---|
| Formed Material | PPGI, GI, AI |
| Thickness | 0.5–1.2 mm |
| Decoiler | Hydraulic automatic decoiler |
| Free Accessory | Manual decoiler |
| Roller Station | 16 rows (customized) |
| Shaft Diameter | 50 mm solid shaft |
| Roller Material | 45# steel, hard chrome plated on the surface |
| Machine Frame | Metal steel welded |
| Drive | Gear transmission |
| Machine Size | 5500 × 800 × 1200 mm (customized) |
| Weight | About 4.5T |
| Cutter | Automatic |
| Cutter Material | Cr12Mov |
| Main Motor Power | 7.5KW × 2 sets |
| Hydraulic Power | 5.5KW |
| Voltage | 380V 50Hz 3Phase (customized) |
| Control System | Customized electric box |
| Language | English, multiple languages supported |
| PLC Function | Automatic production, batch, length, and quantity setting |
| Forming Speed | 40–45 m/min (customized) |
Advantages of the Grouting Light Keel Roll Forming Machine
One important advantage of this grouting light keel roll forming machine is its high efficiency. Automatic coil feeding, continuous roll forming, and automatic cutting help reduce manual operation and improve production output.
Another advantage is stable forming quality. With precision-machined rollers and PLC control, the machine can produce uniform keel profiles with accurate dimensions and smooth surface quality.
The machine also offers strong customization capability. Customers can customize the profile shape, machine configuration, voltage, language, and other details according to actual production requirements.
In addition, the machine is designed for reliable long-term use. Durable roller materials, solid shaft structure, and stable drive system help reduce maintenance needs and improve overall service life.
Why Choose Zhongtuo Roll Forming Machine?
Zhongtuo has extensive experience in the design and manufacturing of roll forming machines for the construction industry. The company focuses on practical machine solutions, stable production performance, and customized service for different markets.
For customers looking for a reliable grouting keel machine, Zhongtuo can provide profile-based design, machine manufacturing, installation guidance, and after-sales support. Whether your project is for prefabricated construction, ceiling production, partition systems, or renovation support structures, the machine can be tailored to your production needs.
The grouting light keel roll forming machine is a practical and efficient solution for producing light steel keels used in modern construction projects. It combines high-speed production, stable forming quality, automatic control, and flexible customization to help manufacturers improve productivity and reduce labor dependence.
With wide application in prefabricated buildings, interior decoration, industrial plants, and renovation projects, this machine is an ideal choice for customers who want reliable keel production equipment.
For more details about the machine configuration, finished product profiles, and quotation, please contact us with your profile drawing and production requirements.
