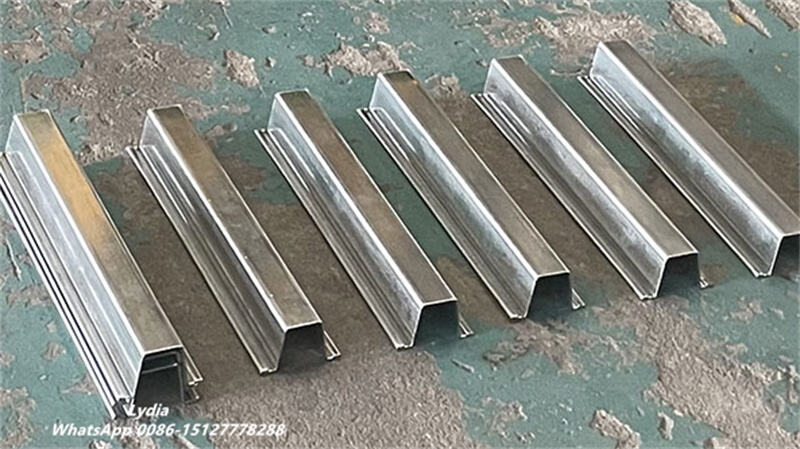

A Hat Channel Roll Forming Machine continuously converts galvanized steel and other metal coils into accurately shaped hat channels, also known as top hat sections or hat purlins. Manufacturers commonly use these profiles as secondary structural members in roofing, wall systems, ceilings, floor framing, and other light-gauge steel applications.
Unlike conventional solid structural members, hat channels combine a lightweight design with useful load-bearing performance. The machine gradually forms the strip through multiple roller stations, allowing each forming stage to control a specific part of the profile. As a result, the finished section maintains consistent dimensions and a clean appearance throughout long production runs.
For manufacturers looking to improve production efficiency, this type of hat purlin roll forming machine provides an automated solution that reduces manual forming work while maintaining repeatable product quality.
Hat Channel Machine Specifications

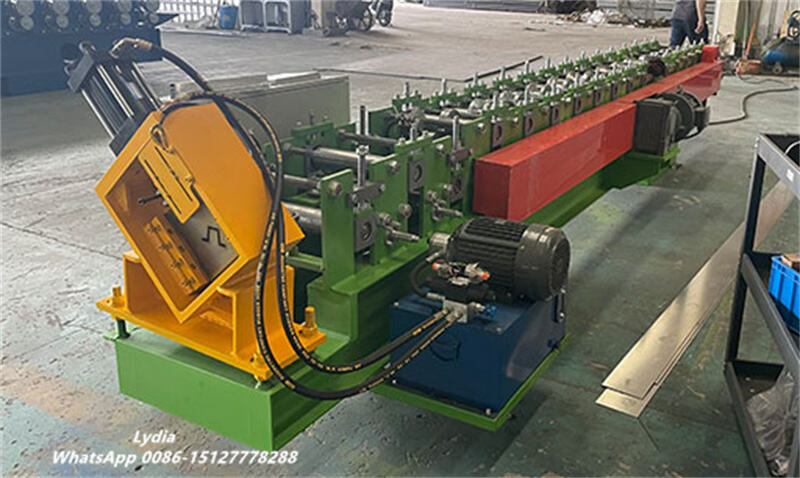

The following configuration represents a typical YX38-68 galvanized steel hat channel roll forming machine. Actual machine parameters can be adjusted according to the customer’s profile drawing, material, and production requirements.
| Item | Specification |
|---|---|
| Machine Model | YX38-68 Hat Channel Roll Forming Machine |
| Machine Dimension | 5500 × 1100 × 1400 mm |
| Machine Weight | Approx. 2,000 kg |
| Hydraulic Power | 1.5 kW |
| Main Motor Power | 7.5 kW |
| Power Supply | 380V / 3 Phase / 60Hz |
| Forming Stations | 14 |
| Forming Speed | 0–20 m/min |
| Purlin Height | 38 mm |
| Effective Width | 68 mm |
| Material Thickness | 1.2–1.6 mm |
| Material | Q235 GI Galvanized Steel |
| Cutting Tolerance | ±2 mm |
| Roller Material | 45# Forged Steel, Polished & Hard Chrome Plated |
The forming section uses carefully machined rollers to progressively shape the metal strip without requiring a single aggressive bending operation. This approach helps maintain profile accuracy and reduces deformation during continuous production.
How the Hat Purlin Roll Forming Machine Works
The production line follows a straightforward automated process. First, the material feeding system guides the metal coil into the forming section. Depending on the application, manufacturers can use galvanized steel, carbon steel, aluminum, or other compatible materials.

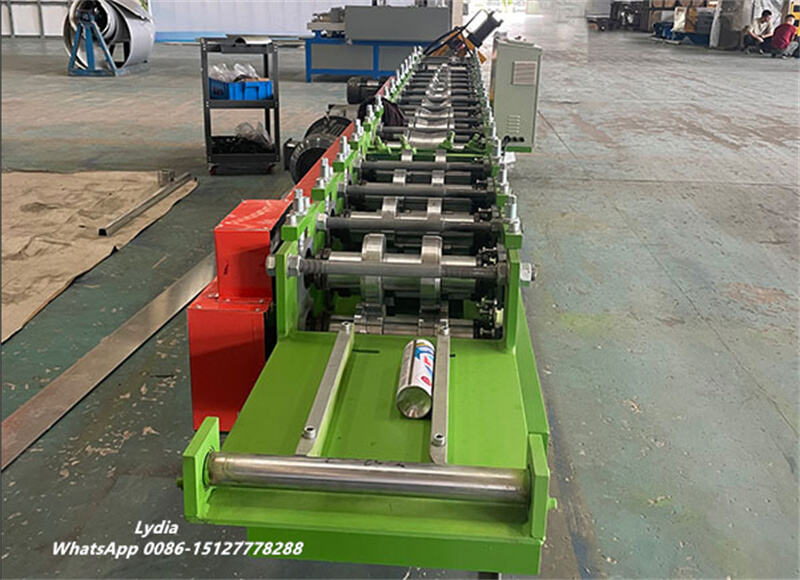

Next, the strip passes through the roll forming stations. Each roller station performs a controlled bending operation, gradually transforming the flat sheet into the required hat-shaped profile. Because the machine forms the section step by step, it can maintain a stable profile over extended production lengths.

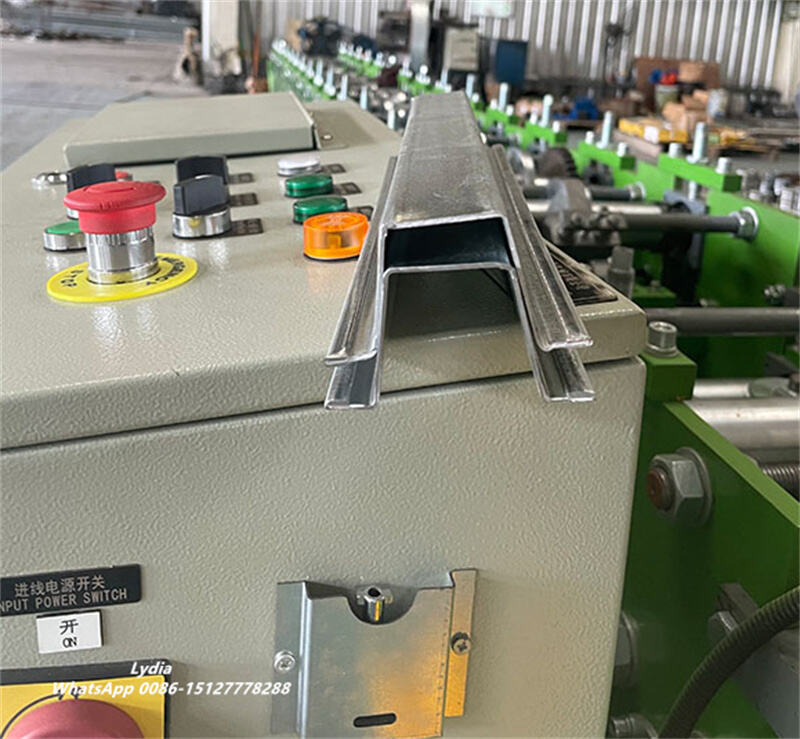

After forming, the cutting system separates the continuous section according to the preset length. Operators can enter the required cutting length through the control system, allowing the line to produce different finished lengths without manually measuring every piece.
Finally, the finished hat channels move to the run-out and stacking area, where workers can bundle or package them for storage and transportation. For higher-output projects, manufacturers can also integrate automatic stacking equipment into the production line.
Hat Purlin Sizes, Materials, and Applications
Hat purlins come in different widths, heights, and thicknesses to satisfy varying structural requirements. Common configurations may range from approximately 2–6 inches in width, 1–4 inches in height, and around 1–3 mm in thickness, although the actual dimensions depend on the intended application and local construction standards.
The profile’s geometry gives the section useful rigidity without adding unnecessary material weight. Therefore, engineers can select different dimensions according to span, load, installation method, and structural design.
Manufacturers can produce hat channels from galvanized steel, mild steel, pre-painted steel, or aluminum, depending on the required corrosion resistance, strength, and environmental conditions.
These profiles are widely used for:
- Roofing systems: Provide secondary support beneath roof panels.

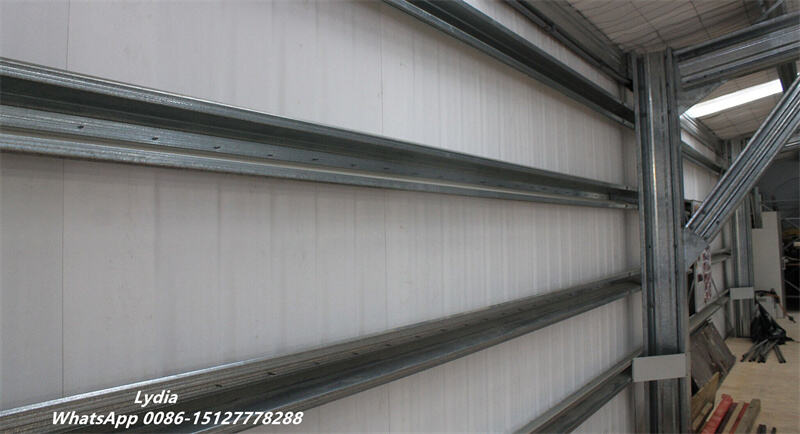

- Wall cladding: Create lightweight framing for exterior wall systems.
- Ceiling structures: Serve as support members for ceiling panels and boards.

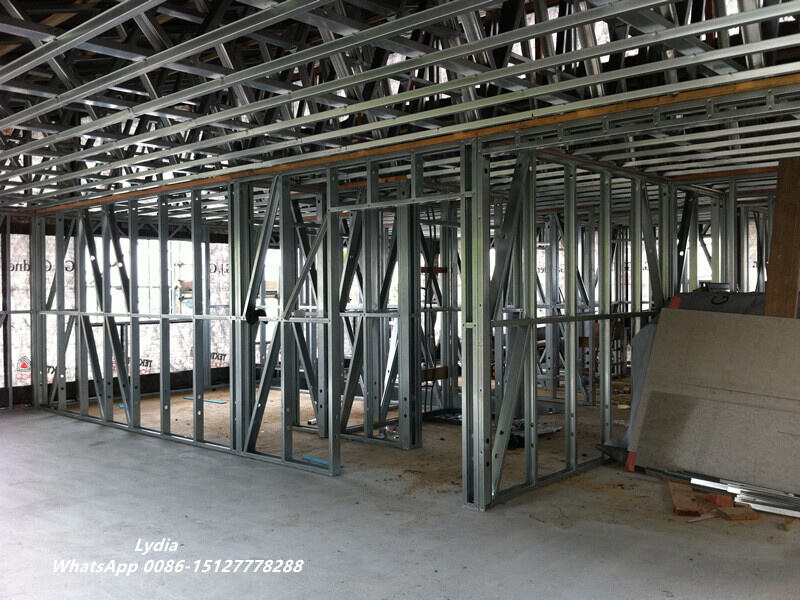

- Floor framing: Provide lightweight structural support in suitable applications.
- Interior partitions: Help construct lightweight framing systems.
- Carports and agricultural buildings: Offer practical support for roof and wall assemblies.
- Industrial and storage buildings: Support cladding and other lightweight building components.
Because the profile combines a relatively low weight with good structural stability, hat channels can simplify handling and installation while supporting efficient material usage.
Advantages of Our Hat Channel Roll Former
A well-designed hat channel roll forming machine does more than shape metal. It gives manufacturers better control over production consistency, speed, and material utilization.

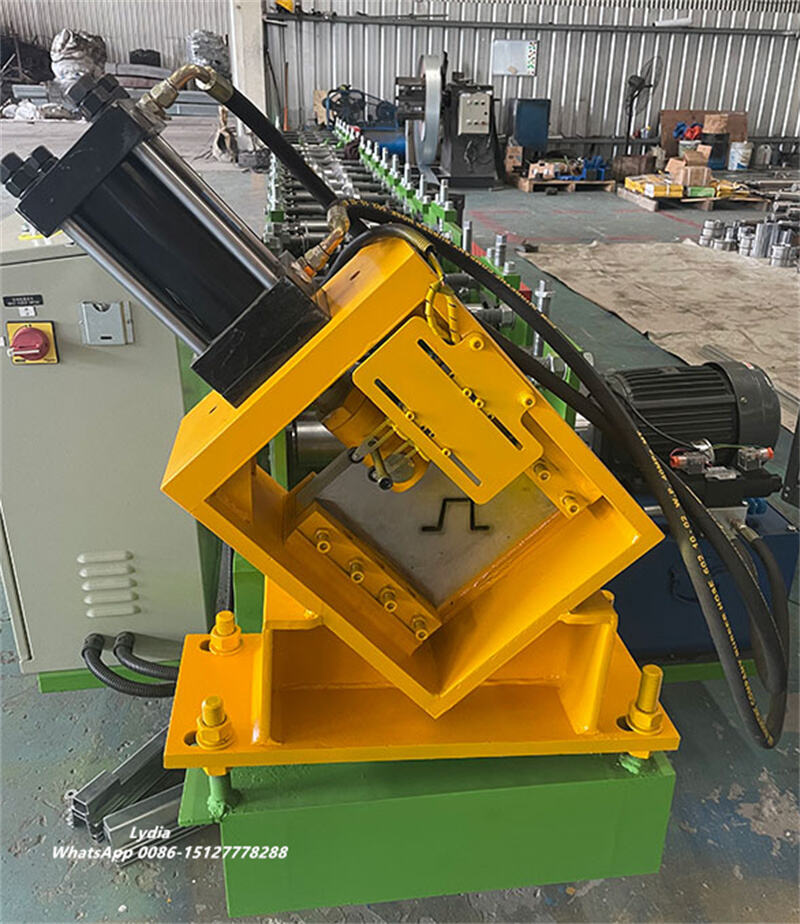

The 14-station forming system progressively bends the strip, helping the machine achieve a uniform profile. Meanwhile, the 7.5 kW main motor provides the driving force required for continuous forming, while the hydraulic system operates the cutting process.
The machine also uses 45# forged steel rollers with polishing and hard chrome plating. This roller construction improves surface hardness and wear resistance, which is particularly valuable for manufacturers operating the machine frequently.
Furthermore, the automated production process reduces repetitive manual operations. Once the required parameters are entered, the machine can continuously form, measure, and cut the profile. Consequently, manufacturers can increase output while maintaining consistent product dimensions.
The system also offers flexibility. Instead of producing only one fixed-length section, operators can change the cutting length according to different orders. For customized projects, we can further configure the forming section based on the customer’s hat channel profile drawing, material thickness, coil width, and required production speed.
Build Hat Channels to Your Requirements
Choosing the right Hat Channel Roll Forming Machine starts with the finished profile rather than simply the machine model. Profile height, flange width, material grade, thickness, hole patterns, cutting length, and required output can all influence the final machine configuration.
For this reason, we recommend providing a hat purlin profile drawing or sample when requesting a quotation. Our engineers can then evaluate the forming sequence and configure the roller stations, feeding system, cutting unit, drive system, and control system around the actual production requirements.
With a properly matched roll former, manufacturers can produce consistent hat channels for roofing, wall cladding, ceilings, floor systems, and other construction applications while improving production efficiency and reducing unnecessary material waste.
Other Models Available
Beyond the C/Z/U/W Purlin Roll Forming Machine, ZTRFM also provides a complete range of specialized cold roll forming solutions for different open-section steel profiles. Each machine is designed according to specific structural requirements, material thickness, and production applications.
From standard C and Z purlins to customized structural profiles, ZTRFM engineers develop reliable roll forming equipment with flexible configurations, including automatic size adjustment, punching systems, hydraulic cutting, and customized forming solutions. You can explore the detailed specifications, applications, and technical options of each model through the related product pages.
C Purlin Roll Forming Machine
The C Purlin Roll Forming Machine is specially developed for manufacturing C-shaped steel purlins used in modern steel structures. The machine continuously forms galvanized steel or carbon steel coils into accurate C profiles through multiple forming stations.
C purlins are widely applied as wall supports, roof supports, floor beams, and light steel framing components. ZTRFM provides automatic and customized C purlin production lines according to customers’ profile drawings, material requirements, and production capacity.
The Z Purlin Roll Forming Machine is designed for producing Z-shaped steel purlins with excellent strength and connection performance. Due to its convenient overlapping structure, Z purlins are especially suitable for long-span roofing systems and large steel buildings.
This machine can be equipped with punching units, automatic cutting systems, and customized size adjustment functions to meet different construction requirements. ZTRFM offers professional solutions for manufacturers requiring stable and efficient Z purlin production.
L Angle Roll Forming Machine
The L Angle Roll Forming Machine is designed for manufacturing L-shaped steel profiles used in construction and structural connection applications.
These L-shaped sections are commonly used for ceiling grid connections, wall and column finishing, edge protection, and various trimming applications. ZTRFM provides customized roll forming solutions according to profile dimensions and material specifications.
W Section Roll Forming Machine
The W Section Roll Forming Machine produces W-shaped steel profiles designed for special structural applications. These profiles provide excellent strength and stability, making them suitable for load-bearing roof systems and other steel framework projects.
With advanced cold roll forming technology, ZTRFM ensures accurate profile dimensions and consistent production quality for demanding structural applications.
Omega Section Roll Forming Machine
The Omega Section Roll Forming Machine produces Ω-shaped steel profiles, also known as top hat sections, which provide excellent strength-to-weight performance.
Omega profiles are commonly used in applications requiring higher structural performance, such as roofing systems, industrial frameworks, and special load-bearing structures. ZTRFM offers high-precision forming solutions for different thickness ranges and profile designs.
U Channel Roll Forming Machine
The U Channel Roll Forming Machine produces U-shaped steel channels with high dimensional accuracy and stable performance. These profiles are commonly used in non-load-bearing partition systems, ceiling frameworks, interior construction, and supporting structures.
According to different applications, ZTRFM can customize the machine with various forming stations, punching systems, and cutting methods to achieve efficient continuous production.
Custom Profile Cold Roll Forming Machine
For projects requiring special steel profiles, ZTRFM provides Custom Profile Cold Roll Forming Machines based on customer drawings and technical requirements.
With advanced technology, experienced engineers, and professional global service, ZTRFM provides reliable C/Z Purlin Roll Forming Machines that help customers improve production efficiency, reduce labor costs, and achieve long-term business growth.
