Highway guardrails play a vital role in modern transportation infrastructure by reducing the severity of vehicle collisions and improving roadside safety. To meet the growing demand for durable and precisely manufactured guardrail systems, manufacturers require efficient production equipment capable of delivering consistent quality and high output.

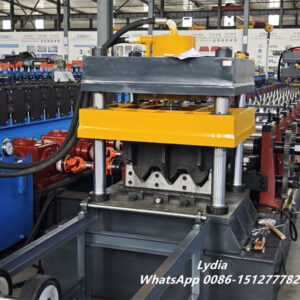

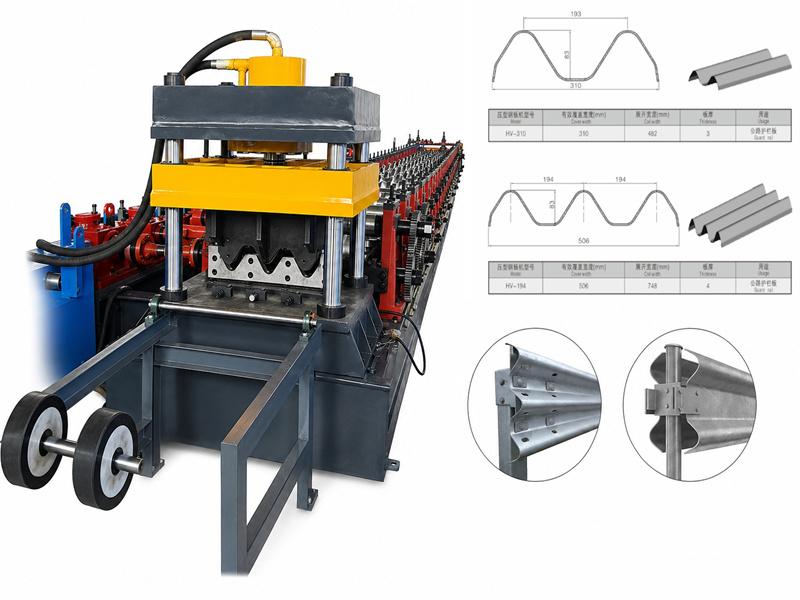

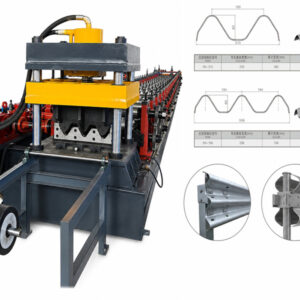

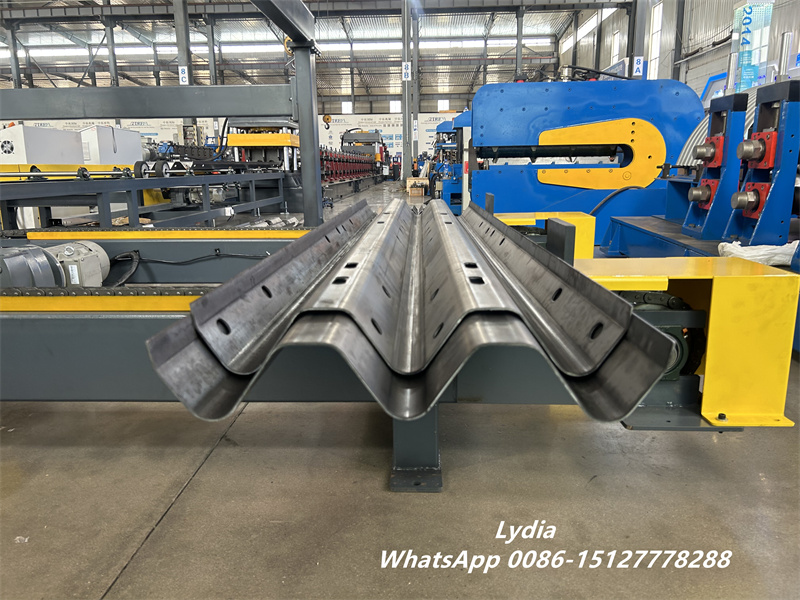

The Highway Guardrail Roll Forming Machine is engineered to produce both W-beam (two-wave) and Thrie-beam (three-wave) guardrails from galvanized steel and high-strength steel coils. By integrating feeding, leveling, punching, roll forming, cutting, and stacking into a continuous production process, the machine helps manufacturers increase productivity while maintaining strict dimensional accuracy. As a result, it has become an essential solution for companies involved in highway construction, bridge projects, and traffic safety barrier manufacturing.
Flexible Production for Different Guardrail Profiles

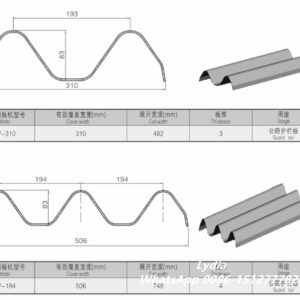

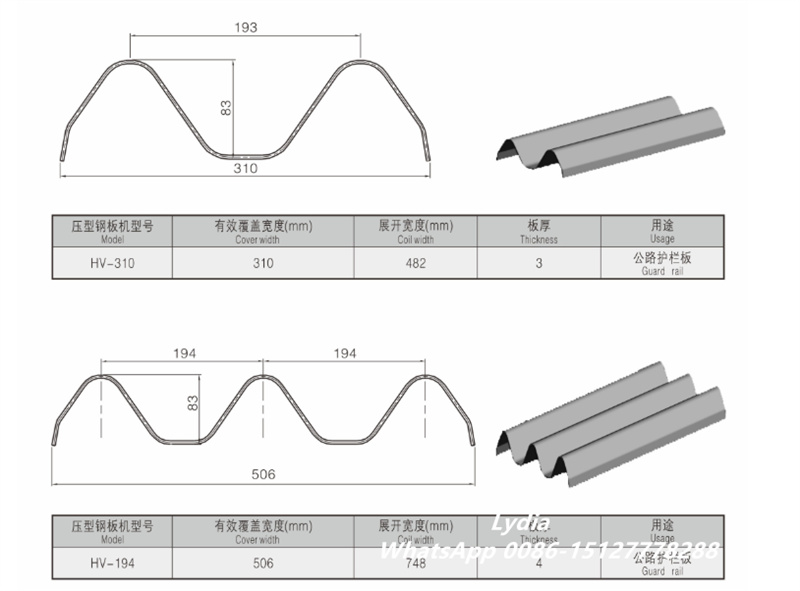

One of the key advantages of this production line is its ability to manufacture multiple guardrail profiles on the same machine platform. Through a carefully designed roll forming process, flat steel coils are gradually transformed into finished guardrail panels with smooth surfaces, uniform dimensions, and excellent structural strength.
Manufacturers can produce guardrails with different lengths, hole patterns, and specifications according to project requirements. Whether the project involves expressways, mountain roads, bridge approaches, or industrial traffic protection systems, the machine can be configured to deliver reliable production performance.
The finished guardrails provide effective roadside protection by absorbing impact energy and redirecting vehicles back toward the roadway, helping reduce accident damage and improve traffic safety.
Production Flow:

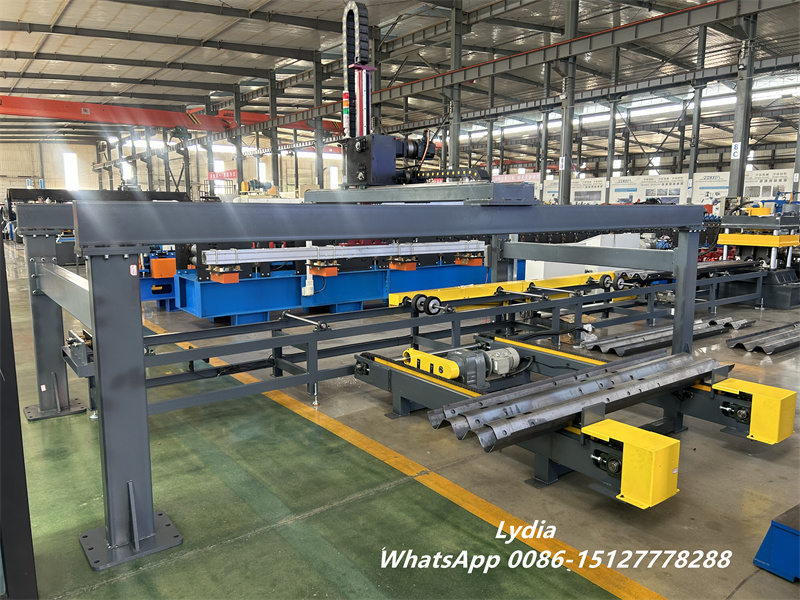

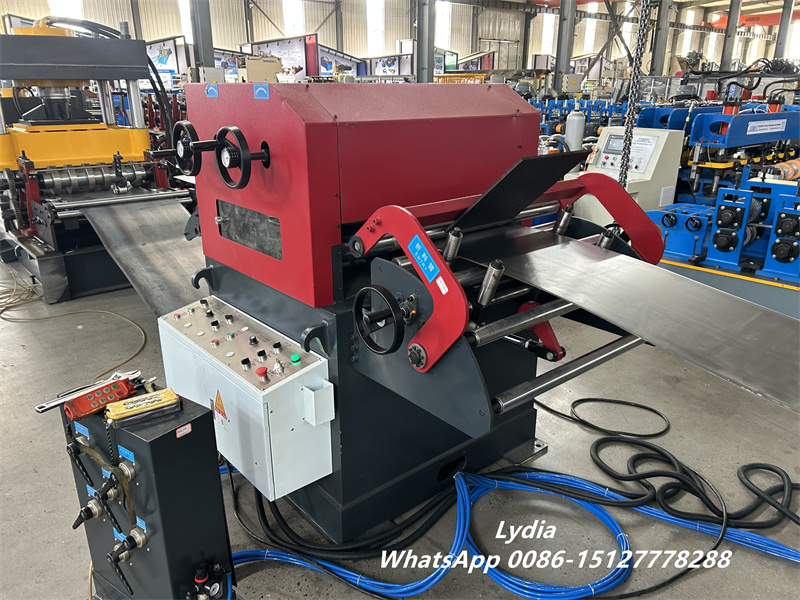

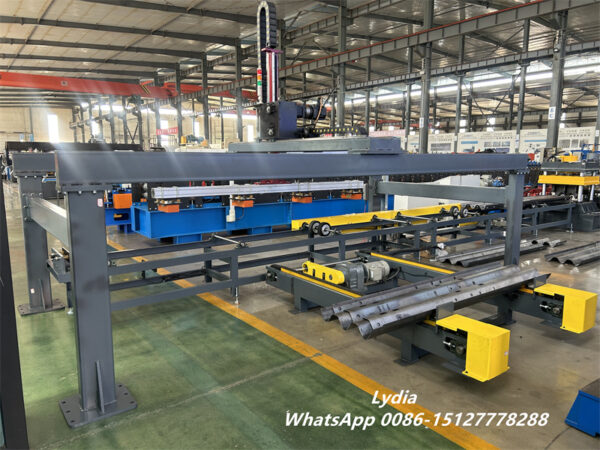

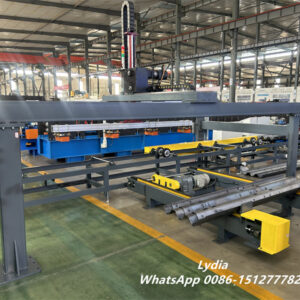

Hydraulic Decoiler → Leveling Machine → Hydraulic Punching System → Feeding Device → Roll Forming Machine → Hydraulic Cutting System → Conveyor Table → Automatic Stacking System
This integrated workflow minimizes manual handling while improving overall production efficiency.
Intelligent Automation Improves Manufacturing Efficiency
Modern guardrail production demands both speed and flexibility. Therefore, the machine is equipped with an advanced PLC control system that simplifies operation and reduces labor requirements.
Operators can enter production parameters directly through the touchscreen interface, including product length, production quantity, profile type, and running speed. Once the settings are confirmed, the entire production line automatically performs feeding, punching, forming, cutting, and stacking operations.
In addition, the automatic adjustment system allows quick profile changes, reducing downtime between production runs. This feature is particularly beneficial for manufacturers that produce multiple guardrail specifications for different projects.
Typical Production Capabilities
| Item | Specification |
|---|---|
| Product Type | W-Beam & Thrie-Beam Guardrails |
| Material Thickness | 3.0–4.0 mm |
| Material Type | Galvanized Steel, Hot Rolled Steel, High Strength Steel |
| Production Speed | Up to 10 m/min |
| Monthly Output | Up to 600 Tons |
| Control System | PLC + Touchscreen Interface |
| Forming Method | Continuous Roll Forming |
Advanced Punching and Precision Forming Technology

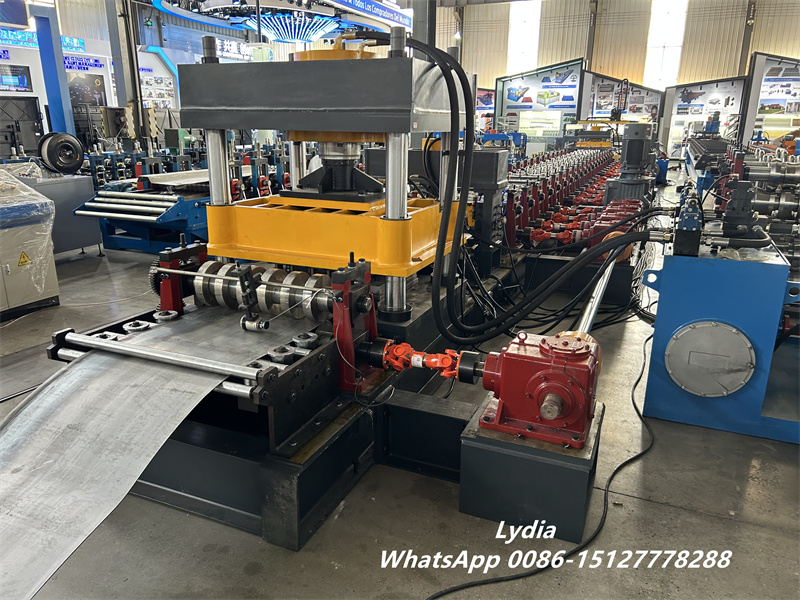

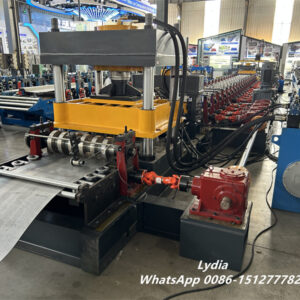

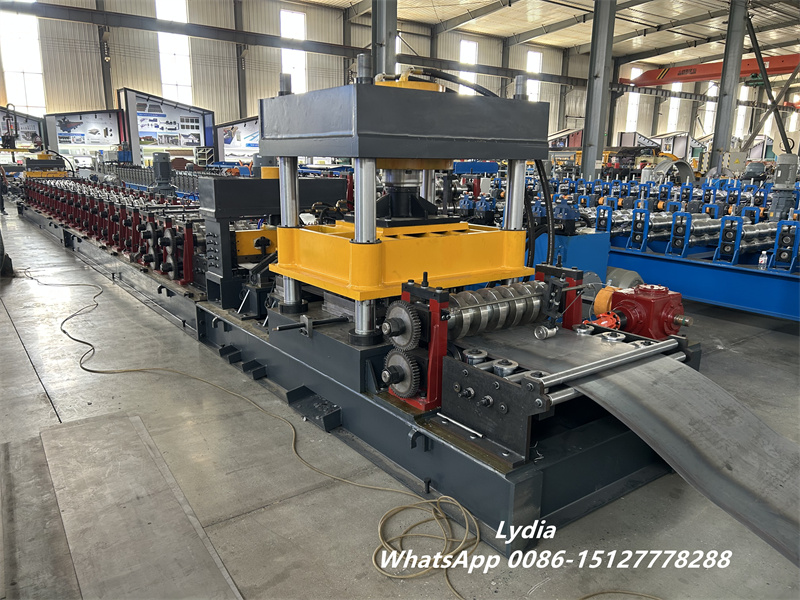

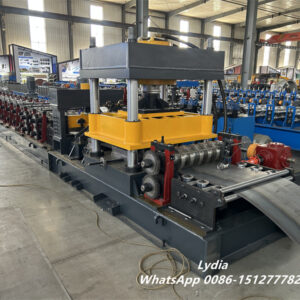

To ensure high-quality finished products, the production line combines precision punching technology with a heavy-duty roll forming system.

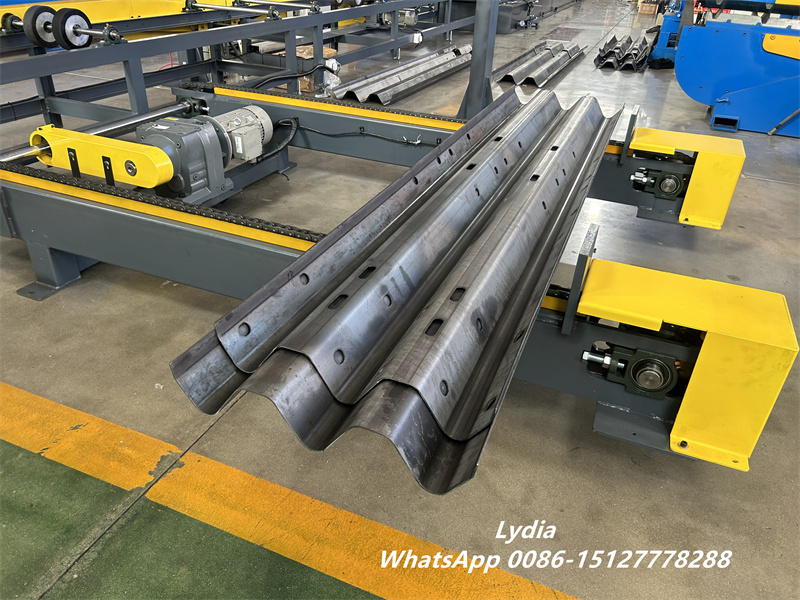

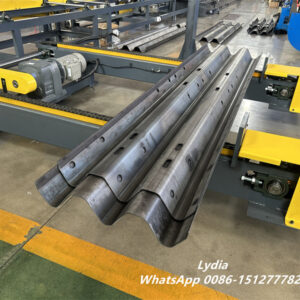

The hydraulic punching station can create oval holes, round holes, connection holes, and customized logo markings according to customer drawings. Furthermore, manufacturers can add traceability codes, product identification marks, or company logos directly onto the guardrail surface. This capability not only enhances brand recognition but also improves inventory management and quality tracking.
After punching, the steel strip enters the forming section, where a series of precision-machined rollers gradually shape the material into the required guardrail profile. Because the rollers are manufactured from high-quality alloy steel and undergo advanced heat treatment, they provide excellent wear resistance and long-term dimensional stability.

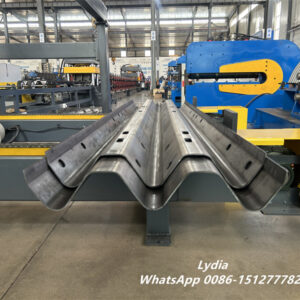

As a result, the machine consistently produces guardrails with accurate profiles, clean hole positioning, and smooth finished surfaces.
Heavy-Duty Components Ensure Long Service Life
The reliability of a guardrail production line depends largely on the quality of its core components. For this reason, the machine utilizes premium materials throughout the forming and punching systems.
The forming rollers are manufactured from hardened alloy steel, while the punching dies and cutting blades are designed to withstand continuous heavy-duty operation. Meanwhile, the main shafts are precision-machined and heat-treated to ensure stable performance under high forming loads.

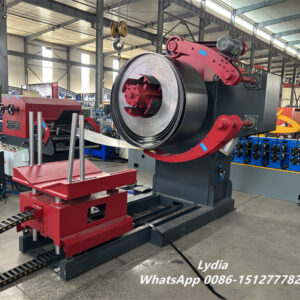

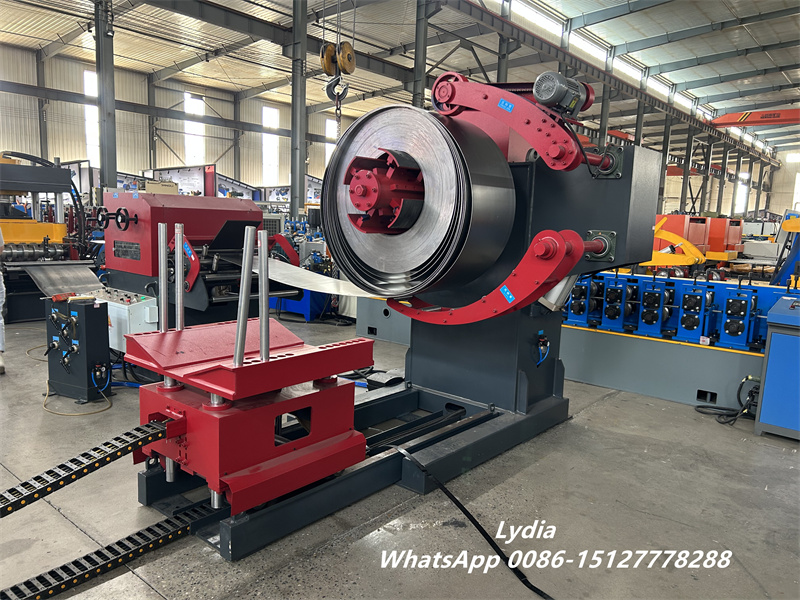

The hydraulic decoiler provides smooth and stable coil feeding, while the hydraulic cutting system delivers precise length control and clean cutting edges. Together, these components contribute to long service life, reduced maintenance requirements, and dependable production performance.

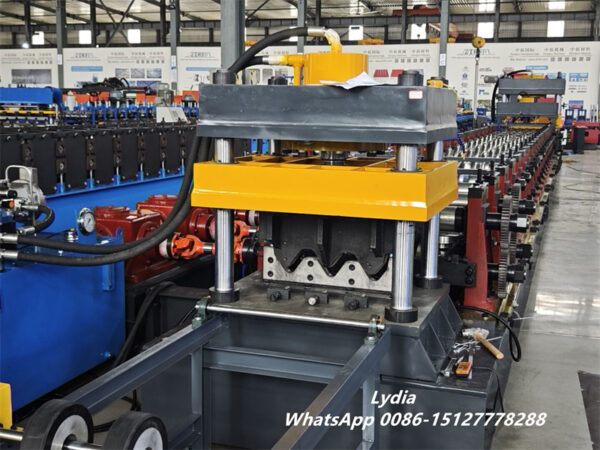

In addition, the gearbox-driven transmission system ensures consistent power delivery throughout the forming process, allowing the machine to process thick steel materials with excellent stability.
Complete Production Line Structure and Applications
The Highway Guardrail Roll Forming Machine is supplied as a complete production solution. The standard production process includes hydraulic decoiling, leveling, punching, roll forming, hydraulic cutting, product conveying, and automatic stacking.

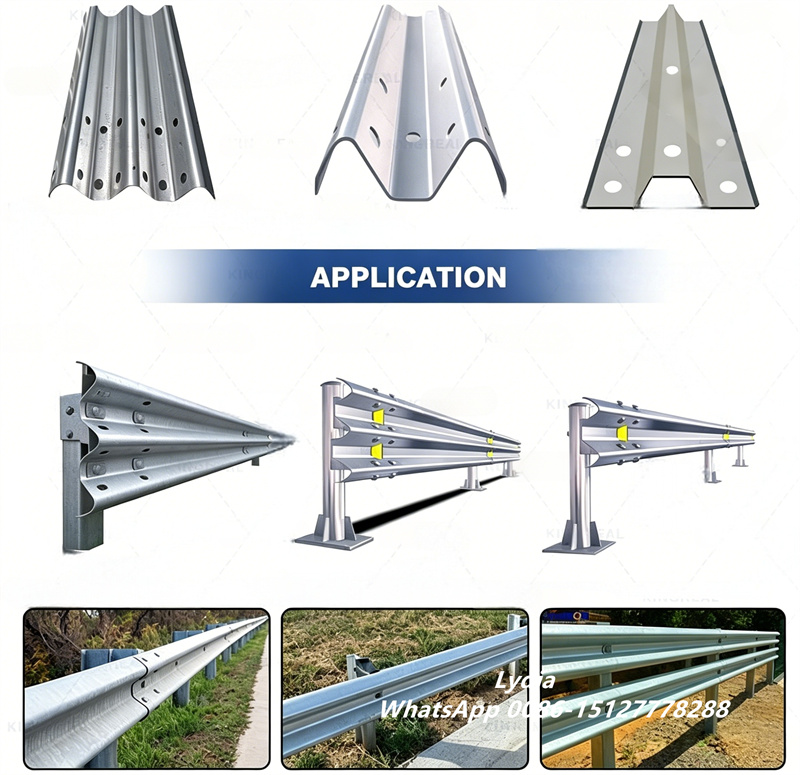

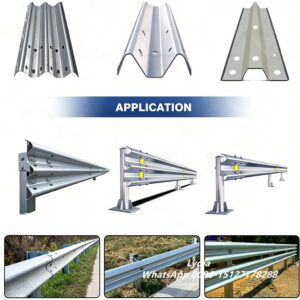

Today, guardrails manufactured by this equipment are widely used in highway construction projects, bridge protection systems, road intersections, parking facilities, industrial zones, and other traffic safety applications. With its combination of automation, flexibility, and precision manufacturing capabilities, the machine offers an ideal solution for companies seeking to expand their guardrail production capacity while maintaining superior product quality.
