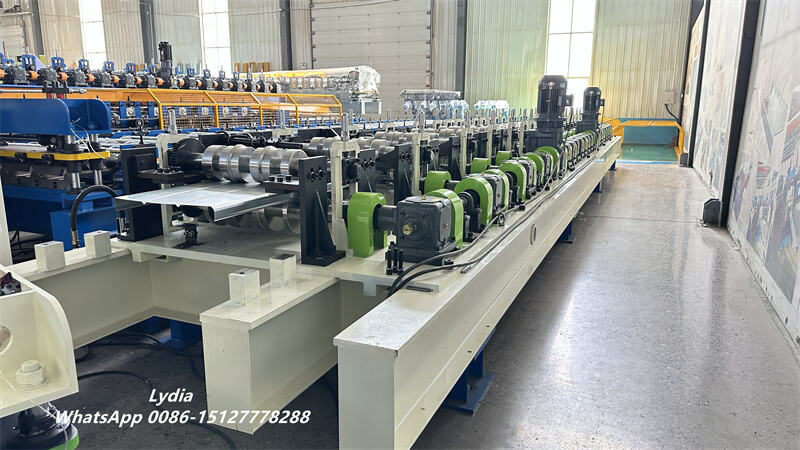

Zhongtuo Sound Barrier Panel Roll Forming Machine Automatic Acoustic Noise Barrier Production Line

The Sound Barrier Panel Roll Forming Machine is a specialized cold roll forming machine designed for manufacturing high-performance sound barrier panels, acoustic panels, and noise barrier walls. This automatic production line is widely used to produce metal panels for highway noise barriers, railway sound insulation systems, and industrial noise control projects.

With increasing global demand for environmental noise reduction, sound barrier production lines have become essential equipment for manufacturers supplying infrastructure and construction industries. The machine transforms aluminum coils, galvanized steel coils, and carbon steel coils into accurately shaped soundproof wall panels through continuous decoiling, punching, roll forming, and cutting processes.

Compared with traditional fabrication methods, the automatic sound barrier panel forming machine improves production efficiency, reduces labor costs, and ensures consistent panel quality. It provides a reliable manufacturing solution for companies producing highway sound barriers, railway noise barriers, and other acoustic protection systems.

Applications of Sound Barrier Panels and Noise Reduction Systems

The panels manufactured by the sound barrier panel roll forming machine are designed for effective sound insulation and noise reduction. These metal acoustic panels are commonly installed in areas with high traffic noise and industrial noise pollution.

Typical applications include:

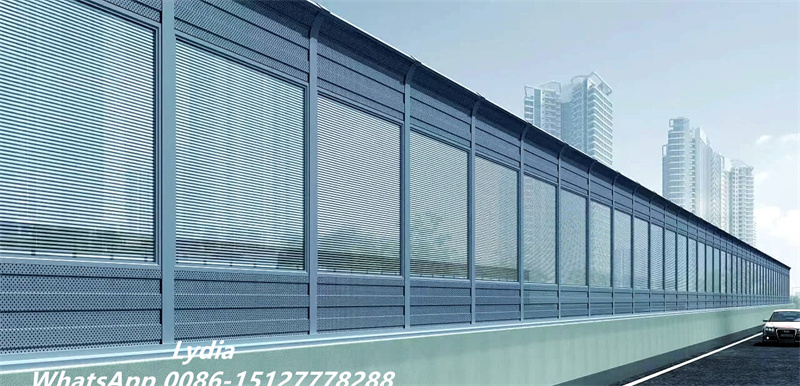

• Highway sound barrier walls and expressway noise protection systems
• Railway noise barriers and high-speed rail sound insulation projects
• Urban elevated road and bridge noise reduction facilities
• Industrial equipment soundproof enclosures
• Residential area noise control systems

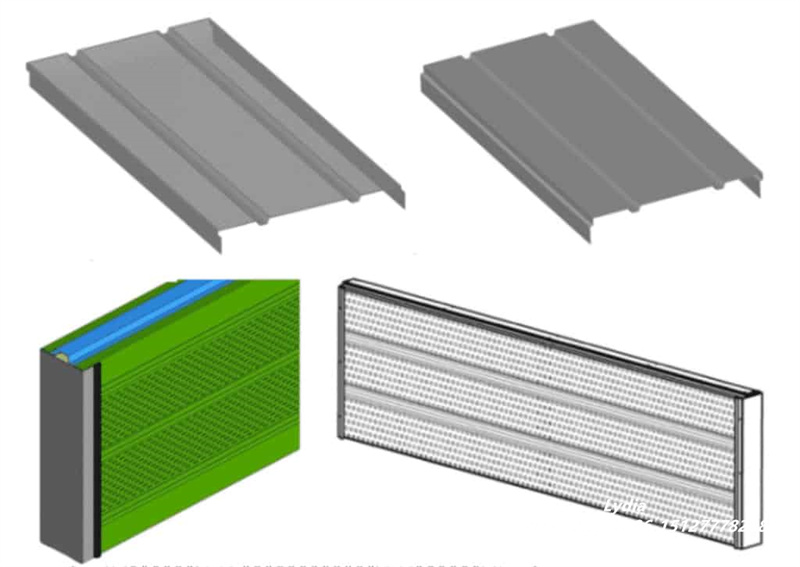

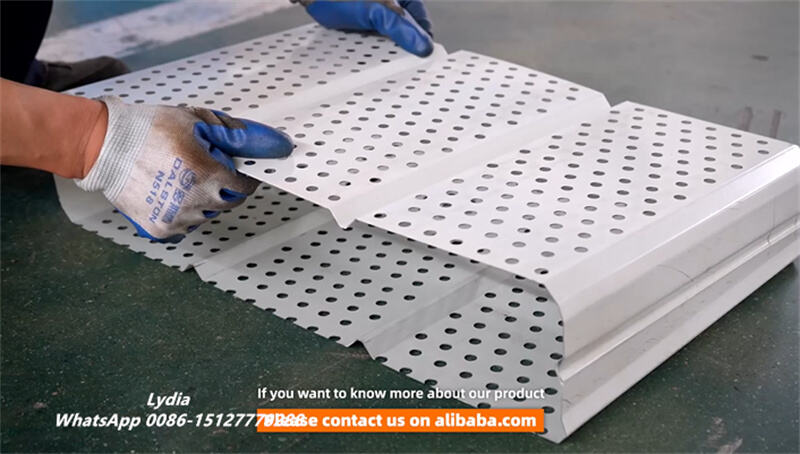

The finished acoustic sound barrier panels usually consist of perforated metal sheets combined with sound-absorbing materials such as mineral wool or glass wool. The perforated surface allows sound waves to enter the absorption layer, improving the overall sound absorption performance.

Depending on project requirements, the machine can manufacture different types of perforated sound barrier panels, reflective sound insulation panels, and composite acoustic barrier panels.

Working Process of Automatic Sound Barrier Panel Production Line

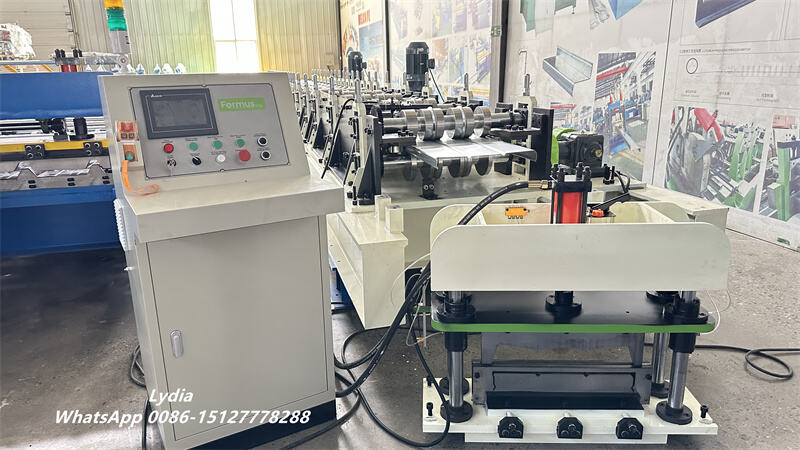

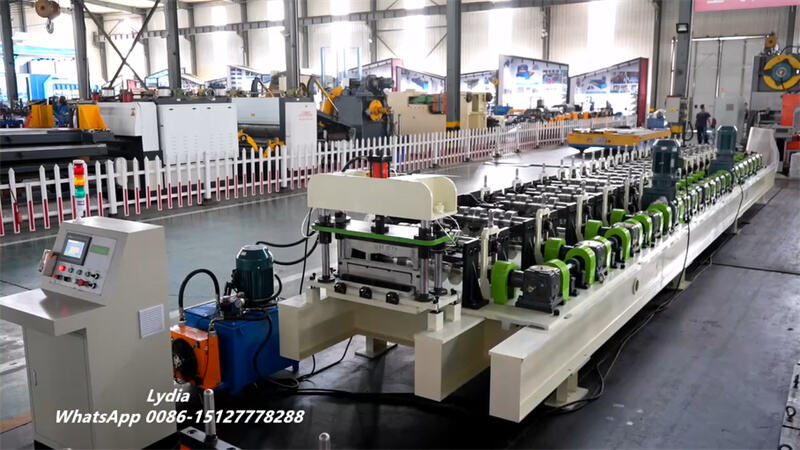

The automatic sound barrier panel production line integrates multiple manufacturing processes into a complete continuous system. The production process starts from metal coils and finishes with ready-to-install acoustic panels.

The complete workflow includes:

Coil Decoiling → Leveling and Feeding → Perforation Punching → Roll Forming → Hydraulic Cutting → Finished Panel Output

The hydraulic decoiler provides stable coil feeding and ensures smooth material supply. The leveling system removes material stress and improves feeding accuracy before the punching process.

The punching system creates customized perforation patterns according to acoustic design requirements. Different hole sizes and layouts can be produced to achieve better noise reduction performance.

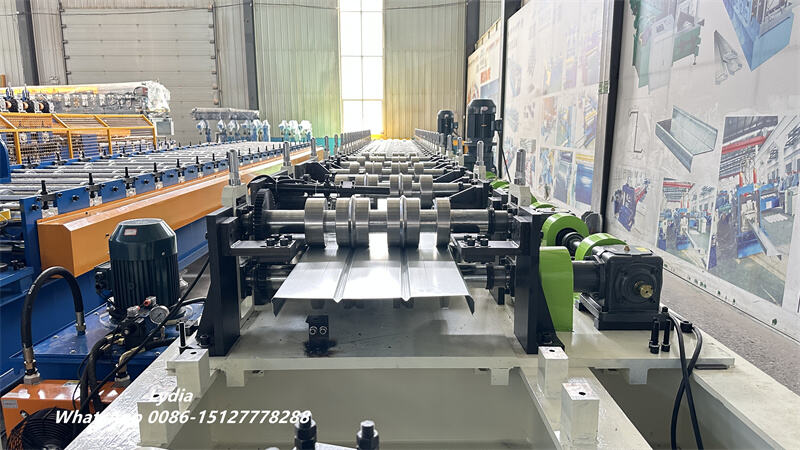

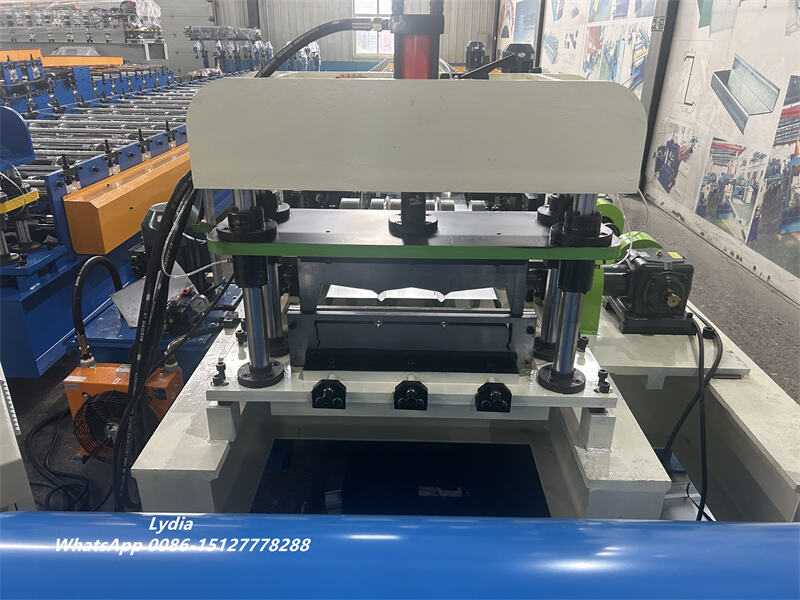

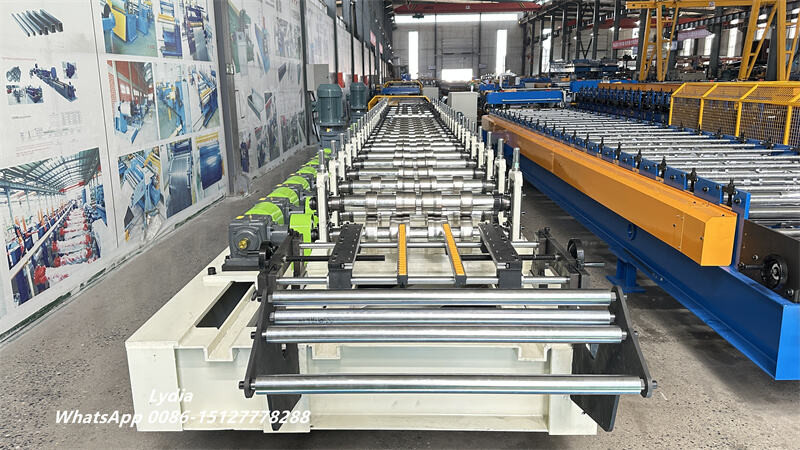

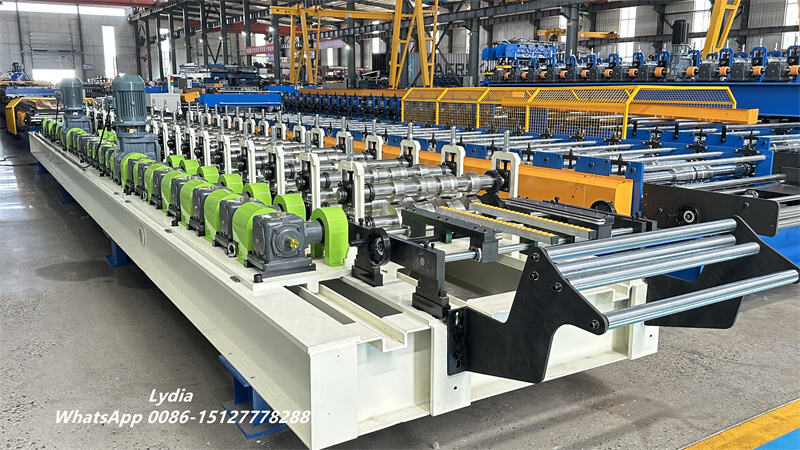

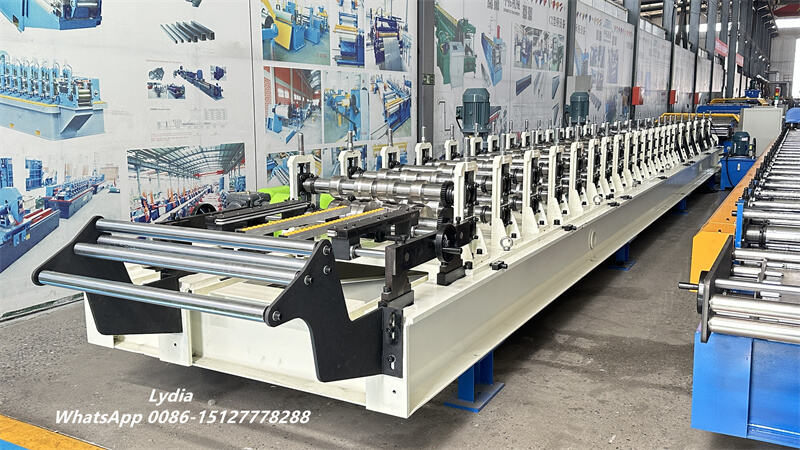

After punching, the cold roll forming system gradually shapes the metal strip through precision rollers. This process ensures accurate dimensions, strong panel structures, and excellent surface quality. Finally, the automatic cutting unit produces panels with precise lengths for easy transportation and installation.

Technical Specifications of Sound Barrier Panel Roll Forming Machine

The following specifications are reference parameters. The equipment can be customized according to different acoustic panel designs and production requirements.

Advantages of Sound Barrier Panel Forming Machine

The sound barrier panel forming machine offers significant advantages for manufacturers producing acoustic protection products.

1. High Production Efficiency
The fully automatic design reduces manual operation and improves manufacturing speed. The continuous roll forming process allows stable production for large-scale orders.

2. High Forming Accuracy
Precision-designed rollers ensure every sound barrier panel has consistent dimensions, smooth edges, and reliable structural strength.

3. Flexible Panel Customization
The machine supports different sound barrier panel profiles, widths, thicknesses, and perforation designs according to customer drawings.

4. Excellent Material Compatibility
The equipment can process various metal materials, including aluminum, galvanized steel, and carbon steel, meeting different environmental requirements.

5. Reduced Manufacturing Costs
By increasing automation and reducing material waste, the automatic roll forming machine helps manufacturers lower production costs and improve profitability.

Customized Acoustic Panel Roll Forming Solution

Different noise control projects require different panel structures, acoustic performance levels, and installation methods. Therefore, the acoustic panel roll forming machine can be customized according to customer requirements.

Available customization options include:

• Customized sound barrier panel profiles
• Different perforation hole patterns
• Adjustable panel widths and thicknesses
• Edge folding and bending systems
• Automatic stacking and packaging systems
• Compatibility with color-coated steel materials

Before manufacturing, professional engineers analyze customer drawings and design suitable roll tooling and production solutions. This ensures the final sound barrier panel production line can meet specific project requirements.

With advanced forming technology, stable automation, and flexible customization capability, the Sound Barrier Panel Roll Forming Machine provides an efficient manufacturing solution for producing noise barrier panels, acoustic sound walls, and modern environmental protection systems worldwide.
