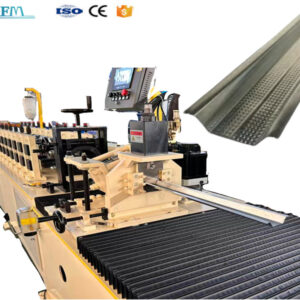

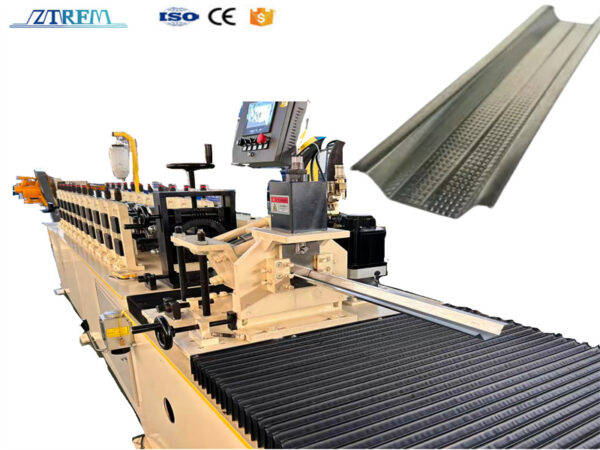

Metal Furring Channel Roll Forming Machine Omega Profile Roof Truss Making Machine
The ZTRFM Metal Furring Channel Roll Forming Machine is a professional solution designed for the mass production of metal furring channels (also known as hat channels or omega channels). These profiles are widely used in drywall, ceiling suspension systems, wall framing, and light roof truss structures for residential, commercial, and industrial construction projects.
Designed to meet U.S. and international construction standards, this machine delivers high accuracy, stable operation, and efficient automated production, helping manufacturers reduce labor costs while ensuring consistent product quality.
How the Metal Furring Channel Roll Forming Machine Works
The production process starts with a metal coil (galvanized steel or aluminum) mounted on the decoiler. The strip is fed into the roll forming section, where multiple precision rollers gradually bend the flat strip into a finished omega/hat channel profile.
After forming, the profile is cut to preset lengths by a hydraulic cutting system and transferred to the conveying table, stacking system, and automatic packaging unit. The entire line is controlled via a PLC automatic control system, allowing one operator to manage the full production process.
Key Features & Advantages
- High‑Accuracy Roll Forming – Uniform profile size, smooth surface, and excellent straightness
- High Production Efficiency – Forming speed up to 30 m/min (40 ft/min optional)
- Wide Material Compatibility – Suitable for galvanized steel, aluminum, and coated steel
- Labor‑Saving Automation – One operator can control the whole production line
- Customized Profiles – OEM / ODM design based on customer drawings or samples
- Durable Structure – Heavy‑duty frame, long service life, low maintenance cost
- Multi‑Language PLC Interface – Control box language can be customized

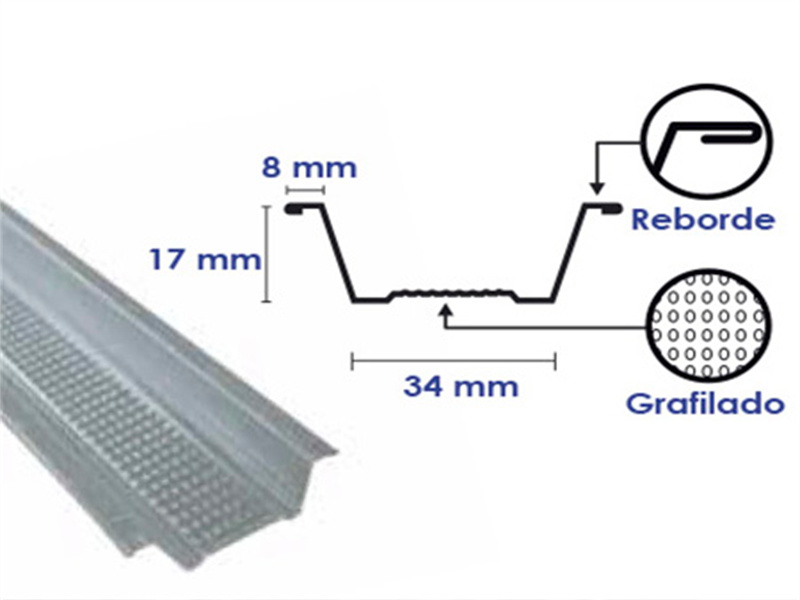

Typical Hat / Omega Channel Profile
- Profile size: 1″ × 2″ × 1″
- Channel depth: 1/2″
- Thickness range: 0.5 – 1.0 mm (customizable)
- Application: drywall framing, ceiling systems, wall support, light roof truss
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Roll Forming Machine |
| Material | Galvanized Steel / Aluminum |
| Thickness Range | 0.5 – 1.0 mm |
| Feeding Width | 200 mm (adjustable) |
| Forming Speed | 0 – 30 m/min |
| Roller Stations | 14 stations |
| Shaft Diameter | Ø80 mm |
| Roller Material | GCr12MoV |
| Shaft Material | 45# Steel (Heat Treated) |
| Cutting Type | Hydraulic Cutting |
| Control System | PLC (Delta) |
| Voltage | 220V / 380V / 440V |
| Machine Size | 6000 × 1200 × 1200 mm |
| Weight | Approx. 6500 kg |
| Certification | CE / ISO |
| Warranty | 2 Years |
Main Components Overview

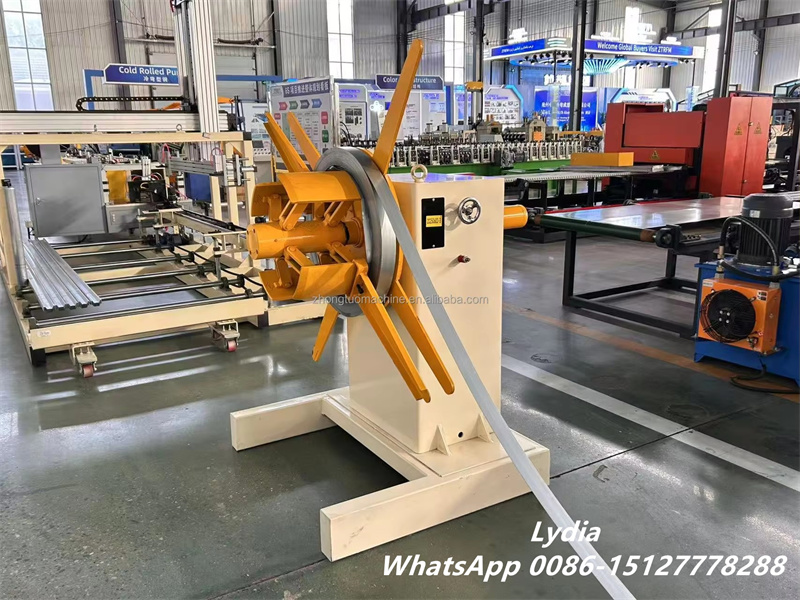

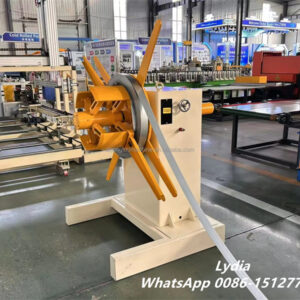

3‑Ton Manual Decoiler (Free)
- Loading capacity: 3 tons
- Coil inner diameter: 450 – 550 mm
- Max uncoiling width: 300 mm
- Stable rotation, easy operation
Feeding Device
- Coil surface protection
- Manual adjustment with handwheels
- Automatic oiling system to reduce friction and protect material

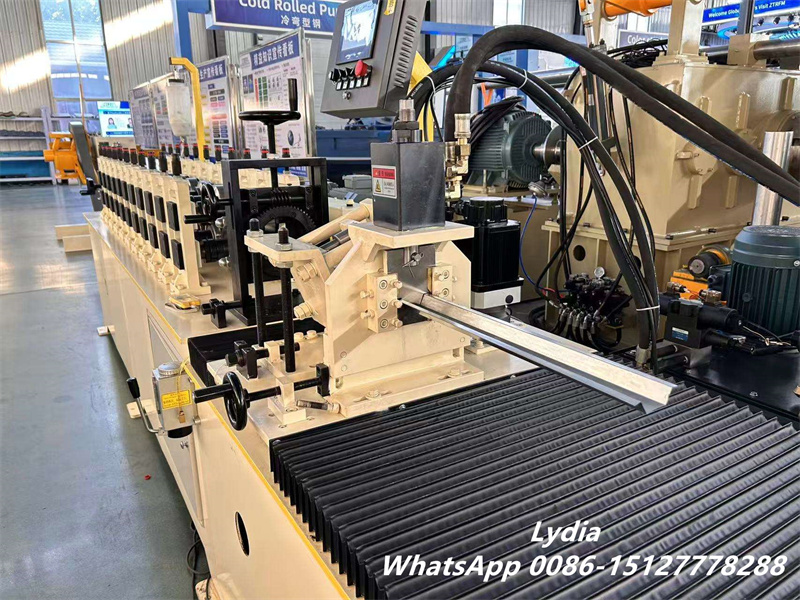

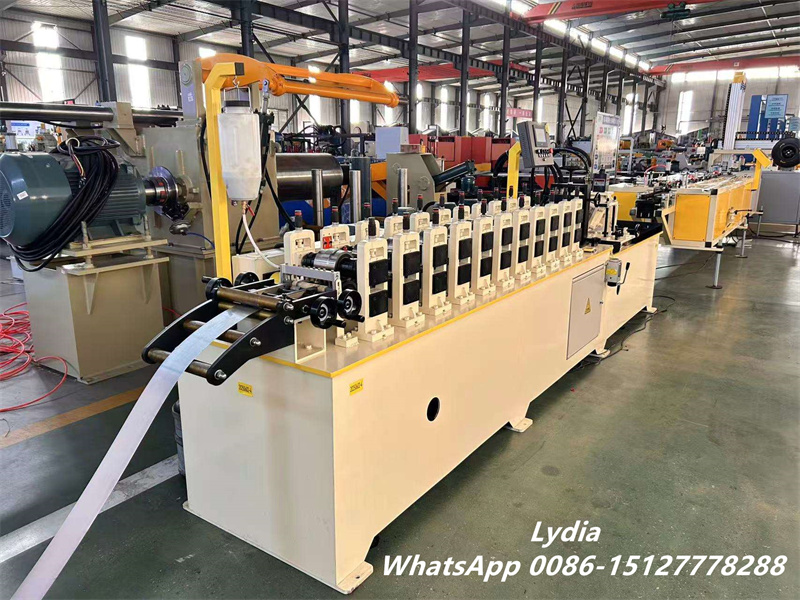

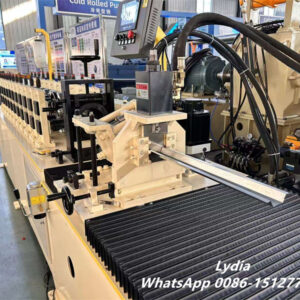

Roll Forming System
- Memorial arch frame with 20 mm thick side plates
- Gear‑driven transmission for stable power output
- High‑precision rollers ensure profile consistency

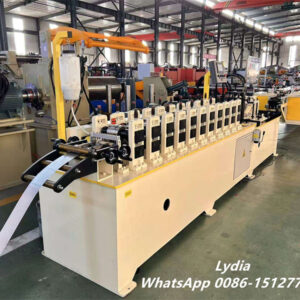

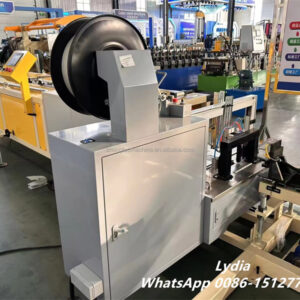

Hydraulic Cutting System
- GCr12MoV quenched cutting blades
- Pillar‑type frame with rack & pinion structure
- Non‑contact photoelectric length control
PLC Control System
- Delta PLC, inverter, and touch screen
- Stable performance, long service life
- Built‑in safety protections (air break, leakage protector, radiator)
Automatic Oil Filler
- Automatic lubrication for cutting system
- Reduces downtime and maintenance costs

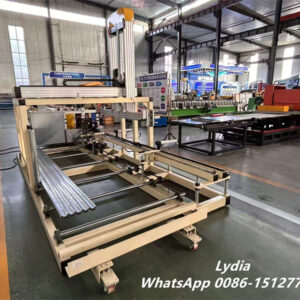

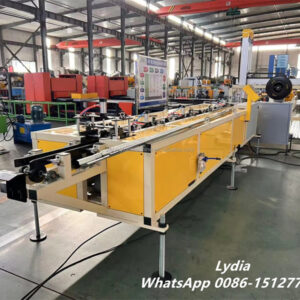

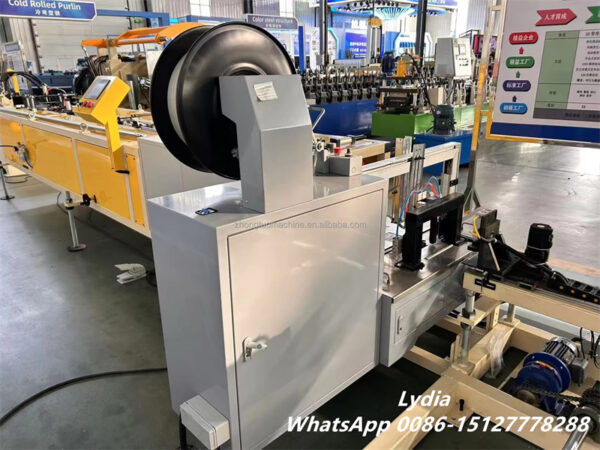

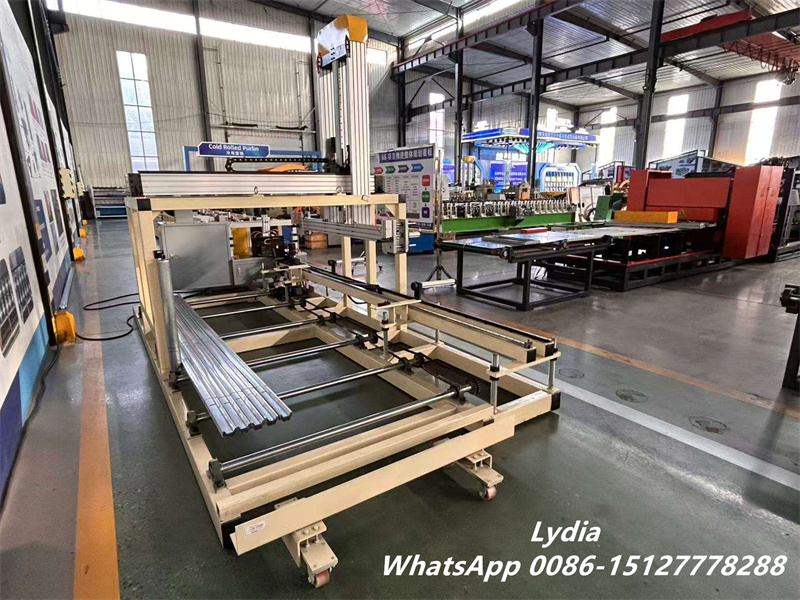

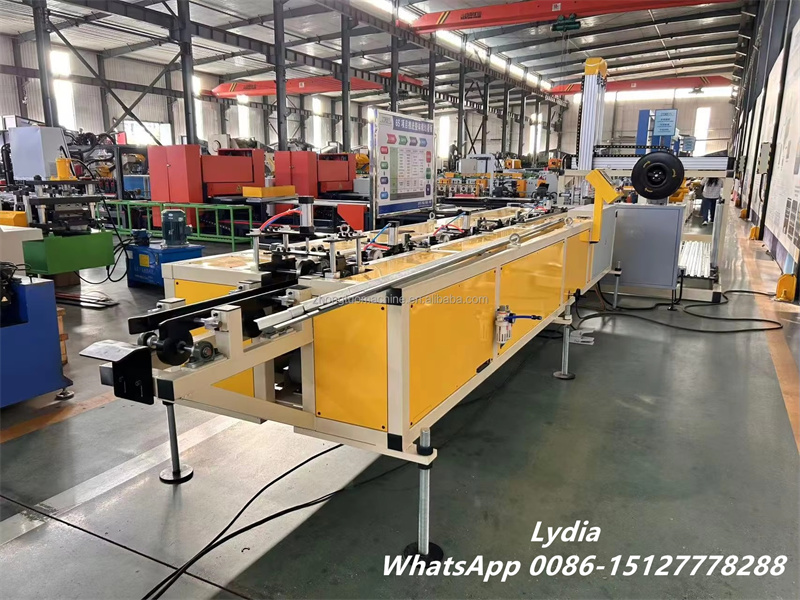

Conveying Table, Stacker & Packaging
- Smooth profile transfer after cutting
- Automatic stacking improves safety
- Nylon strap packing machine for finished products
Why Choose ZTRFM?
- Professional roll forming manufacturer from Hebei, China
- Rich experience in customized cold roll forming solutions
- High‑accuracy machines with stable long‑term performance
- Full technical support, installation guidance, and after‑sales service
If you are looking for a reliable Metal Furring Channel Roll Forming Machine price and solution, ZTRFM provides customized designs tailored to your production requirements.
