The Ridge Cap Roll Forming Machine is designed to produce high-precision metal ridge caps that protect and seal the peak of roofing structures. In modern steel buildings, ridge caps are essential components that cover the joint where two roof panels meet. A well-manufactured ridge cap not only prevents water penetration but also improves the visual appearance and durability of the entire roofing system.
At ZTRFM Roll Forming, we manufacture efficient and reliable ridge cap forming machines for customers in the global construction and metal roofing industry. Our machines deliver stable performance, precise shaping, and long service life, helping manufacturers achieve consistent production quality.

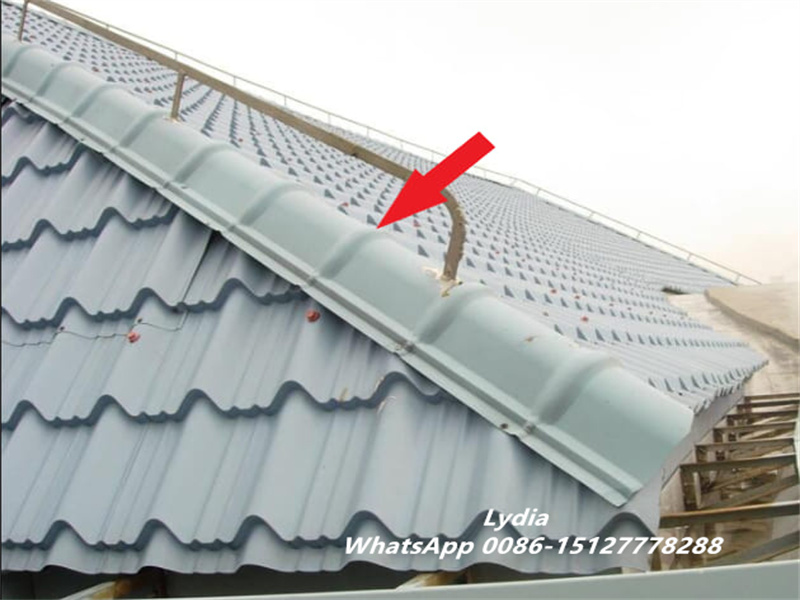

The roof ridge is the highest horizontal line of a sloped roof where two roofing panels intersect. Because this area remains exposed to wind, rain, sunlight, and temperature changes, it requires strong protective coverage.
Ridge caps serve as the final sealing component installed along the roof peak. When manufactured with high accuracy, they prevent water infiltration and protect internal building structures from weather damage.
Therefore, using a precision roll forming machine becomes essential. It ensures the ridge caps maintain consistent dimensions while protecting the metal coating from scratches or deformation during forming. As a result, the finished ridge caps provide long-lasting weather resistance and reliable sealing performance.
Flexible Ridge Cap Designs for Different Roofing Systems
Different construction projects require different ridge cap shapes. Our ridge cap roll forming machines can produce multiple profiles to meet diverse roofing designs and architectural requirements.
The most common ridge cap types include:

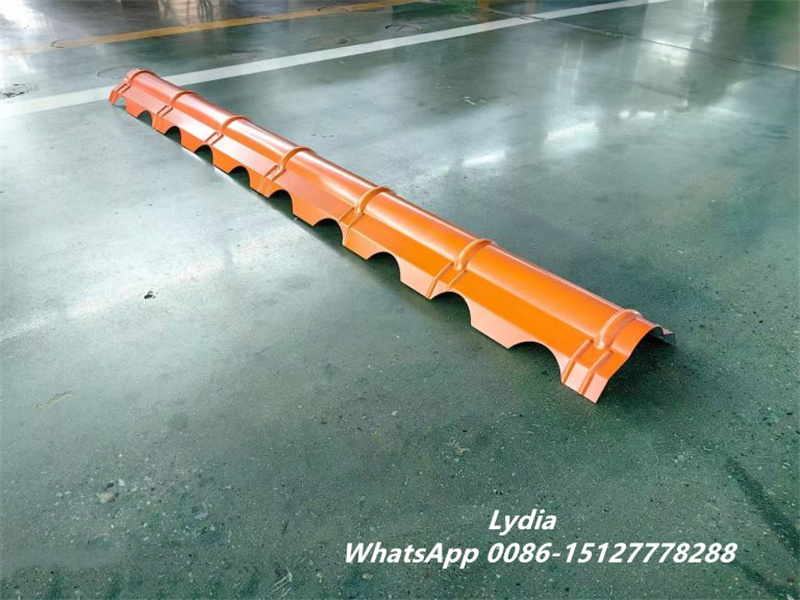

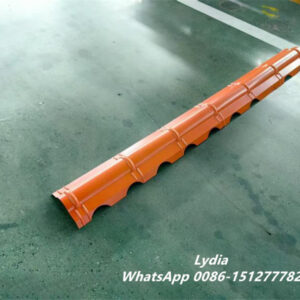

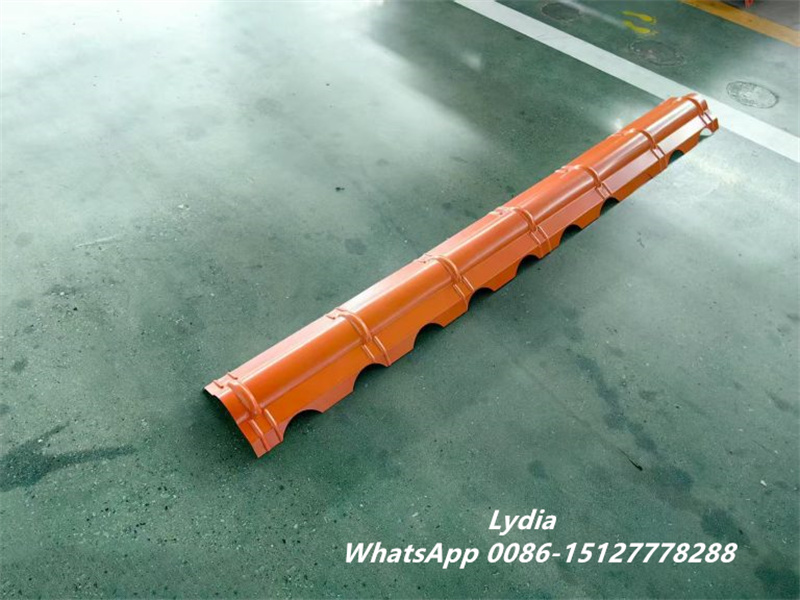

- Tile Ridge Caps – commonly used in residential and villa roofing systems that utilize stepped tile sheets.
- Metal Roof Ridge Caps – standard caps designed for trapezoidal or corrugated metal roofing panels.
- V-Shape Ridge Caps – simple and versatile profiles that can also function as valley flashings in roofing structures.
With customized rollers and cutting molds, the machine can easily produce ridge caps that match your roofing panel profile and installation requirements.
Ridge cap roll forming machines are widely used across the construction and metal roofing industries. Manufacturers rely on automated production to improve efficiency and maintain consistent product quality.
Industrial buildings
Factories, warehouses, and steel structure workshops require reliable roof sealing to protect equipment and materials.
Residential construction
Villas, residential communities, and rural housing projects use ridge caps to combine waterproofing performance with decorative roof finishes.
Public infrastructure
Large public facilities such as stadiums, exhibition centers, and transportation structures rely on ridge caps to ensure long-term roof durability.
Architectural restoration
For antique-style buildings, specially designed ridge tiles can replicate traditional roof structures while benefiting from modern manufacturing technology.
Automated roll forming technology significantly increases productivity compared with traditional manual fabrication. At the same time, standardized production improves installation accuracy and reduces potential leakage risks. Modern metal or resin ridge caps also support environmentally friendly construction because many materials are recyclable and comply with green building standards.

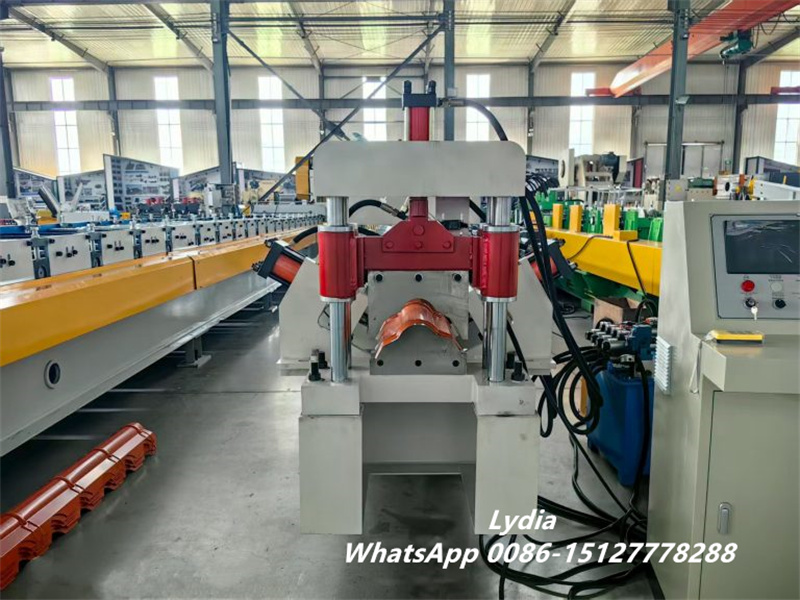

Machine Configuration and Technical Specifications

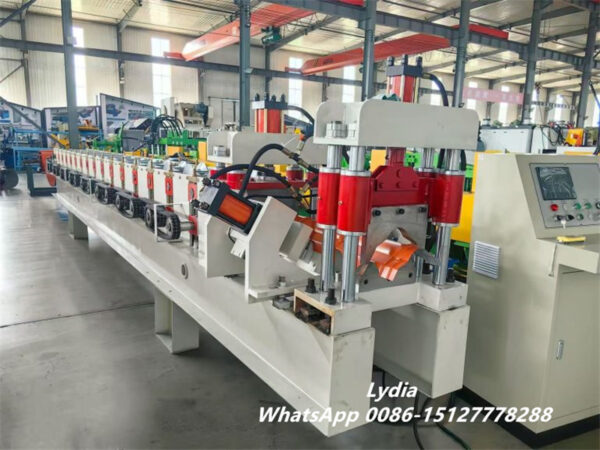

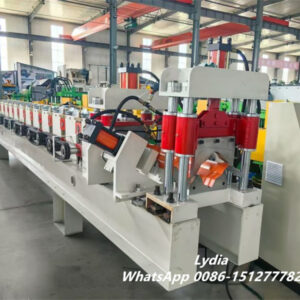

A standard ridge cap roll forming line includes several key components that work together to produce high-quality ridge caps efficiently.
| Component | Description |
|---|---|
| Forming Material | PPGI, PPGL, Aluminum and other coated metal sheets |
| Material Thickness | 0.3 – 0.8 mm |
| Decoiler | Manual decoiler (free) or optional hydraulic decoiler |
| Roller Stations | Customized based on ridge cap profile |
| Roller Material | High-grade 45# forged steel with hard chrome plating |
| Shaft Diameter | Customized according to profile design |
| Drive System | Chain transmission or gearbox transmission |

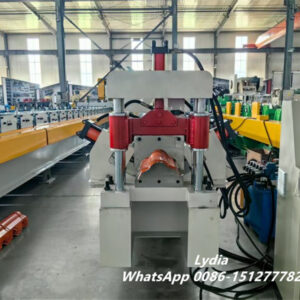

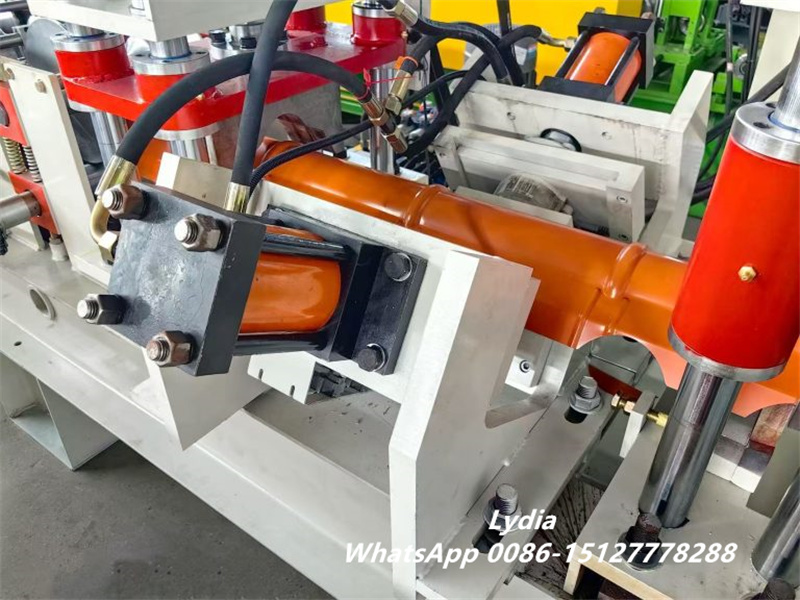

| Cutting System | Hydraulic cutter using CR12MOV steel |
| Main Motor Power | 7.5 kW |
| Hydraulic Power | 4.5 kW |
| Control System | PLC automatic control with multilingual interface |
| Forming Speed | 0 – 80 m/min (customizable) |
| Voltage | Customized according to customer requirements |
The machine automatically feeds, forms, and cuts ridge caps to the required length. Operators can easily set production parameters such as batch quantity, product length, and speed through the PLC control panel.
Efficient Production with Customizable Solutions

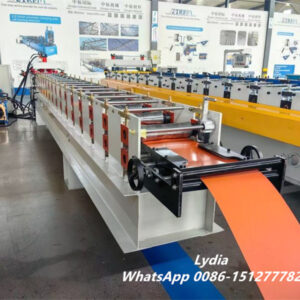

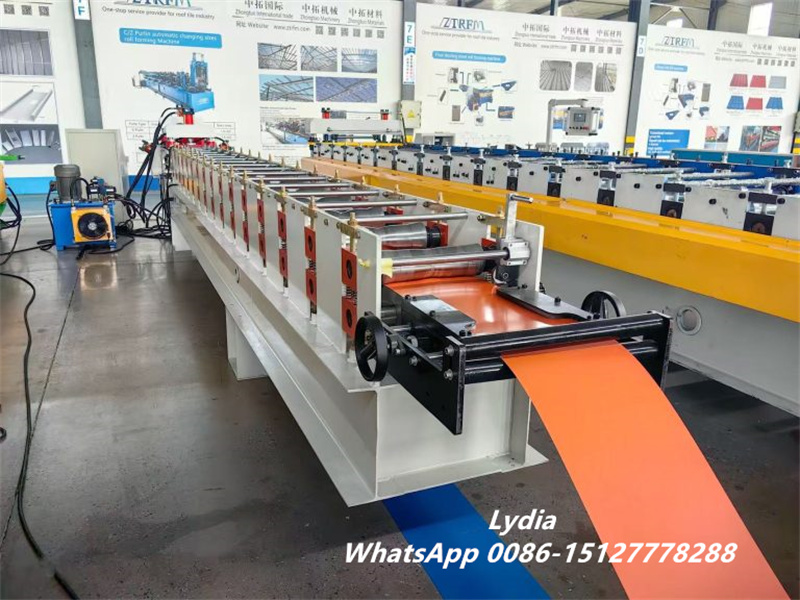

The ridge cap roll forming machine typically works together with a compact decoiler to ensure smooth material feeding. During operation, rollers gradually shape the metal sheet into the required ridge profile while maintaining coating integrity and dimensional precision.
Our engineering team can customize the machine according to your ridge cap design, material thickness, and production capacity requirements. Whether you produce roofing accessories for residential projects or large-scale industrial buildings, this machine offers a reliable and cost-effective manufacturing solution.
With stable performance, easy operation, and flexible profile customization, the Ridge Cap Roll Forming Machine helps manufacturers improve productivity while delivering high-quality roofing components to the construction market.
