As modern warehouses continue to pursue higher storage density and faster logistics operations, the demand for high-quality storage rack systems has grown significantly. The storage rack upright is the primary structural component of every pallet racking system, carrying the weight of stored goods while ensuring the stability and safety of the entire shelving structure. Our Storage Rack Upright Roll Forming Machine is specially designed to manufacture precision rack uprights for selective pallet racking, teardrop pallet racks, supermarket shelving, industrial warehouse racks, and automated storage systems. By integrating automatic feeding, punching, roll forming, and cutting into one production line, this machine enables manufacturers to produce durable rack columns with high efficiency, excellent accuracy, and lower production costs.
Why Storage Rack Uprights Are Essential for Warehouse Systems
Storage rack uprights form the vertical framework of warehouse shelving systems. Together with rack beams, cross braces, wire decks, and pallet supports, they create stable storage structures capable of handling heavy pallet loads while maximizing warehouse space.
Vertical storage systems have become an economical solution for businesses that need to organize timber, steel beams, pipes, tubes, long products, industrial materials, packaged goods, and even artwork. Compared with traditional floor storage, vertical rack systems improve accessibility, reduce product damage, simplify inventory management, and make better use of valuable warehouse floor space.
Our rack upright roll forming machine manufactures high-strength upright columns with consistent dimensions and precise hole patterns, making them suitable for a wide variety of warehouse applications, including:
- Selective pallet racking
- Teardrop pallet rack systems
- Supermarket shelving
- Warehouse storage racks
- Automated storage and retrieval systems (AS/RS)
- Distribution centers
- Manufacturing facilities
- Retail storage systems
- Industrial logistics warehouses
Because different markets require different rack standards, the machine can be customized according to customer drawings and local specifications.
Standard Rack Upright Dimensions and Industry Specifications
Warehouse rack systems are available in numerous sizes to accommodate different pallet dimensions and warehouse layouts. Our Storage Rack Upright Roll Forming Machine supports a wide range of standard and customized profiles used throughout North America, Australia, Europe, and other international markets.
Common upright depths include:
- 24″
- 36″
- 42″
- 48″
Standard upright heights include:
- 96″
- 120″
- 144″
- 192″
- 240″
One of the most common upright specifications is:
42″ × 120″, 3″ × 1-5/8″
Where:
- 42″ = Upright Depth
- 120″ = Upright Height
- 3″ = Upright Post Width
- 1-5/8″ = Upright Post Depth
These dimensions allow warehouses to maximize storage capacity while maintaining compatibility with standard pallet sizes, wire decks, and pallet supports.
Since different manufacturers require unique hole spacing, load ratings, and profile shapes, our roll forming line can be fully customized to produce various upright designs for different rack systems.
Complete Rack Components and Measuring Standards
A warehouse storage system consists of several structural components, each performing a specific function.
The upright frame serves as the primary vertical support and transfers the entire load directly to the floor through anchored base plates.
Rack beams connect between two uprights and carry pallet loads. One of the most common beam specifications is:
Fully Automatic Production Process
Our Storage Rack Upright Roll Forming Machine integrates multiple manufacturing processes into one fully automated production line. Instead of using separate punching and forming operations, the machine continuously processes steel coils from start to finish, significantly improving productivity while reducing labor requirements.
The production process includes:
Hydraulic Decoiler → Leveling → Servo Feeding → Hydraulic Punching → Roll Forming → Hydraulic Cutting → Finished Product Collection

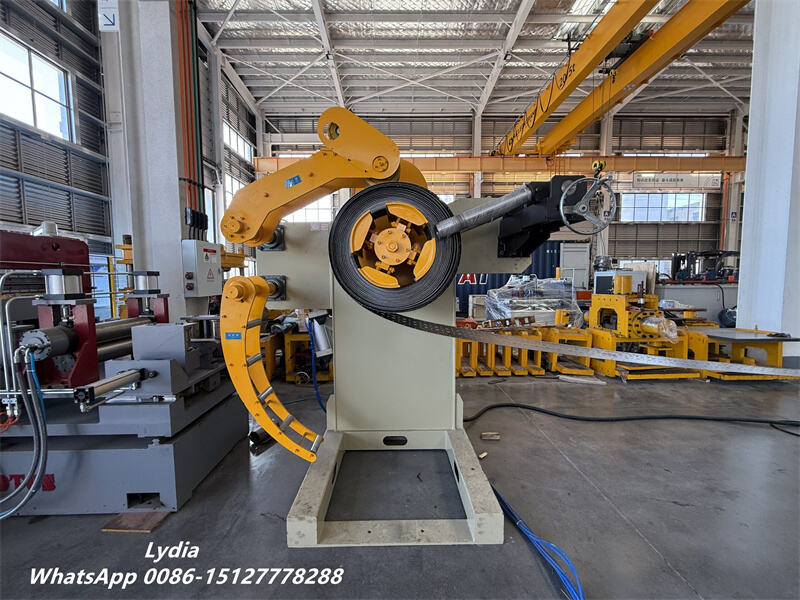

The hydraulic automatic decoiler ensures smooth material feeding, while the leveling section eliminates coil stress before forming begins. The punching system accurately creates all required mounting holes, allowing finished uprights to match standard rack beam connections.

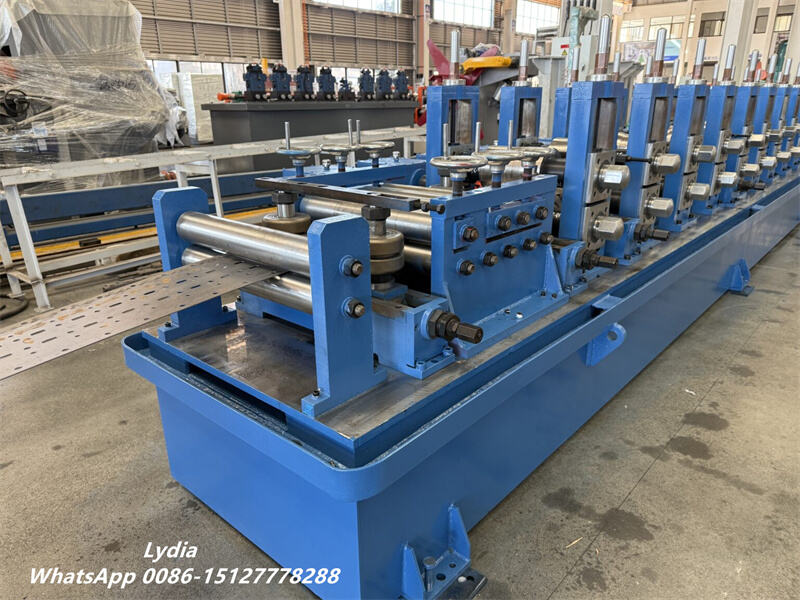

Next, multiple precision roll forming stations gradually shape the profile without scratching or deforming the material. Finally, the hydraulic cutting unit equipped with Cr12Mov blades cuts each upright to the programmed length with excellent accuracy.
The PLC control system automatically controls production length, quantity, and batch settings, making operation simple and efficient.
Technical Specifications
| Item | Specification |
|---|---|
| Formed Material | PPGI, GI, Aluminum |
| Material Thickness | 1.5–2.7 mm |
| Decoiler | Hydraulic Automatic Decoiler |
| Roller Stations | Customized According to Profile |
| Shaft Diameter | Customized |
| Roller Material | 45# Steel with Hard Chrome Plating |
| Machine Frame | Heavy-Duty Welded Steel Structure |
| Transmission | Gearbox Drive |
| Cutting System | Hydraulic Cutting, Cr12Mov Blade |
| Main Motor Power | 7.5 kW |
| Hydraulic Power | 5.5 kW |
| Voltage | 380V / 50Hz / 3 Phase (Customizable) |
| Control System | PLC Automatic Control with Multi-Language Interface |
| Forming Speed | Customized According to Profile Design |
| Machine Weight | Approximately 75 Tons |
| Machine Size | Customized |
Applications Across Multiple Industries
The rack uprights produced by our machine are widely used in modern logistics, manufacturing, retail, and industrial storage facilities.
In warehousing and logistics centers, they support selective pallet racking systems that allow forklifts and automated handling equipment to access goods efficiently while maximizing vertical storage capacity.
Manufacturing plants use rack systems to store raw materials, semi-finished products, finished products, molds, mechanical components, and production tools. Adjustable shelf heights allow operators to accommodate products of different sizes without changing the rack structure.
Retail distribution centers rely on rack uprights to organize packaged products and improve inventory turnover, while industrial facilities use heavy-duty rack systems for storing automotive parts, construction materials, steel products, pipes, and long structural components.
Additionally, vertical storage racks are ideal for storing:
- Timber
- Steel Beams
- Pipes
- Tubes
- Long-Length Materials
- Aluminum Profiles
- PVC Profiles
- Artwork
- Industrial Components
- Packaged Goods
The versatility of these rack systems makes them suitable for nearly every warehouse environment.
Key Advantages of Our Storage Rack Upright Roll Forming Machine
Our machine is designed for manufacturers who require reliable production, excellent profile quality, and long-term operational stability.
Key advantages include:
- Fully automatic production line with PLC intelligent control
- High-strength gearbox transmission for stable operation
- Precision punching and roll forming for excellent dimensional accuracy
- Heavy-duty welded machine frame for long service life
- Hydraulic cutting without scratches or profile deformation
Every machine undergoes comprehensive testing before shipment to ensure stable operation and reliable performance after installation.
Why Choose Our Storage Rack Upright Roll Forming Machine?
With increasing warehouse automation and rising storage demands, manufacturers require equipment capable of producing high-quality rack components efficiently and consistently. Our Storage Rack Upright Roll Forming Machine combines advanced roll forming technology, intelligent automation, and customizable engineering to meet the production needs of warehouse equipment manufacturers worldwide.
Whether you produce teardrop pallet rack uprights, warehouse shelving columns, supermarket shelf posts, selective pallet racking systems, or customized industrial storage racks, our machine delivers outstanding forming accuracy, high productivity, and reliable long-term performance.
If you are looking for a professional Storage Rack Upright Roll Forming Machine manufacturer, contact us today for customized solutions, technical consultation, and a complete production line tailored to your project requirements.
