As global logistics, e-commerce, and retail distribution continue to expand, warehouses face increasing pressure to improve storage density, strength, and operational efficiency. At the heart of any racking system lies the upright pillar—the main structural element that supports shelves, beams, and heavy loads. Its precision and durability are essential for safe and long-lasting storage systems.

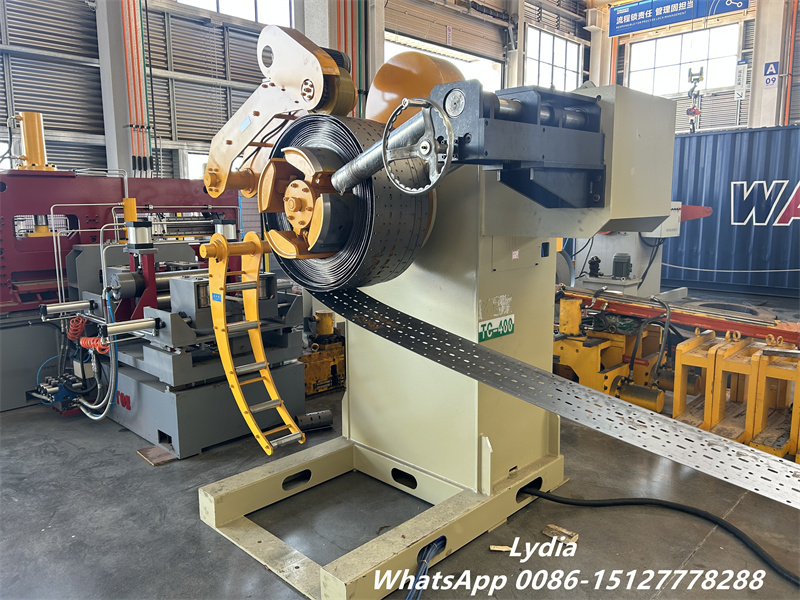

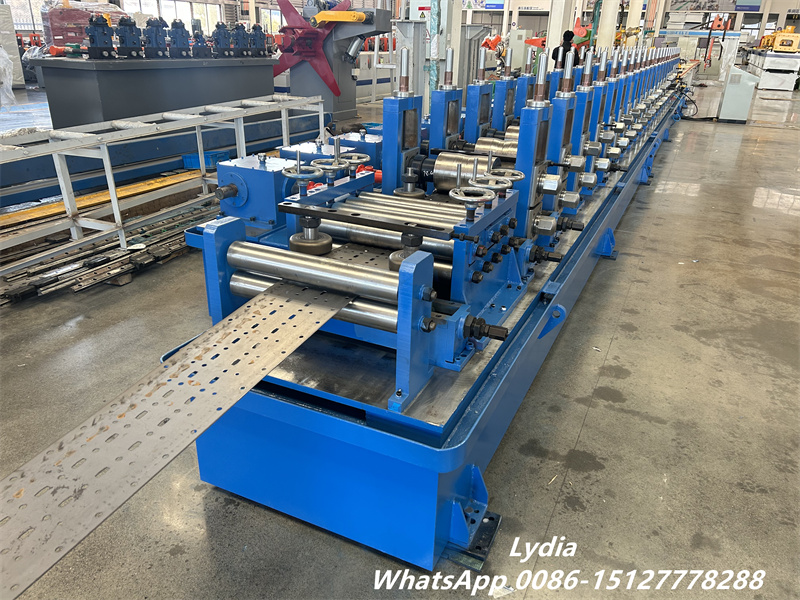

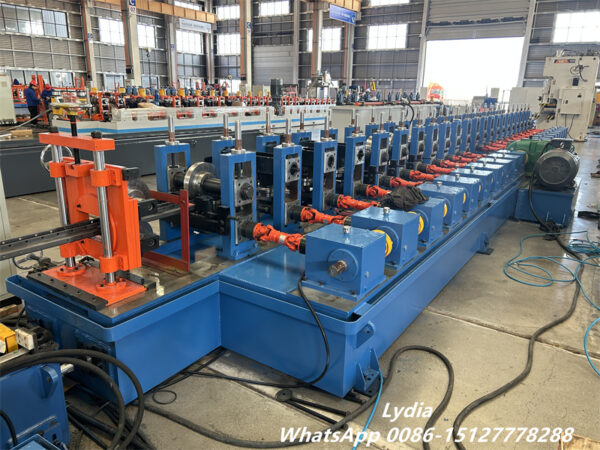

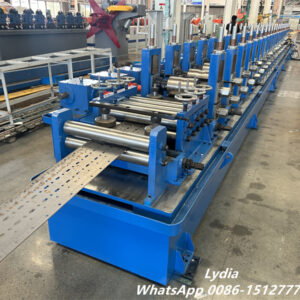

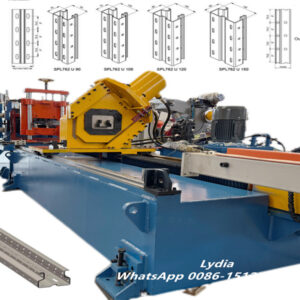

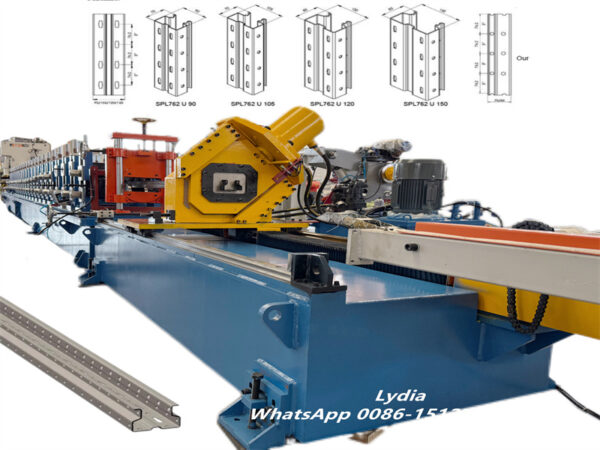

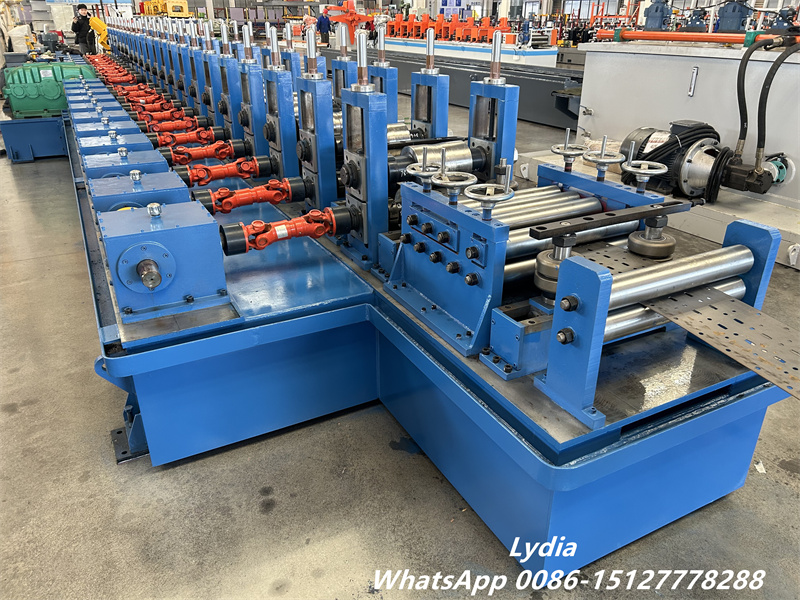

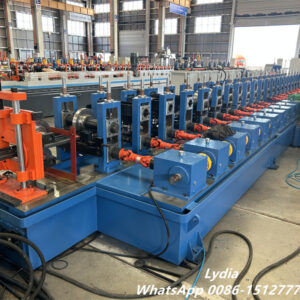

The Automatic Storage Rack Upright Roll Forming Machine is designed to manufacture steel upright pillars for supermarkets, industrial warehouses, and logistics centers. By combining decoiling, roll forming, punching, and automatic cutting into one streamlined production line, this machine ensures high accuracy, consistent quality, and faster production while reducing labor requirements.

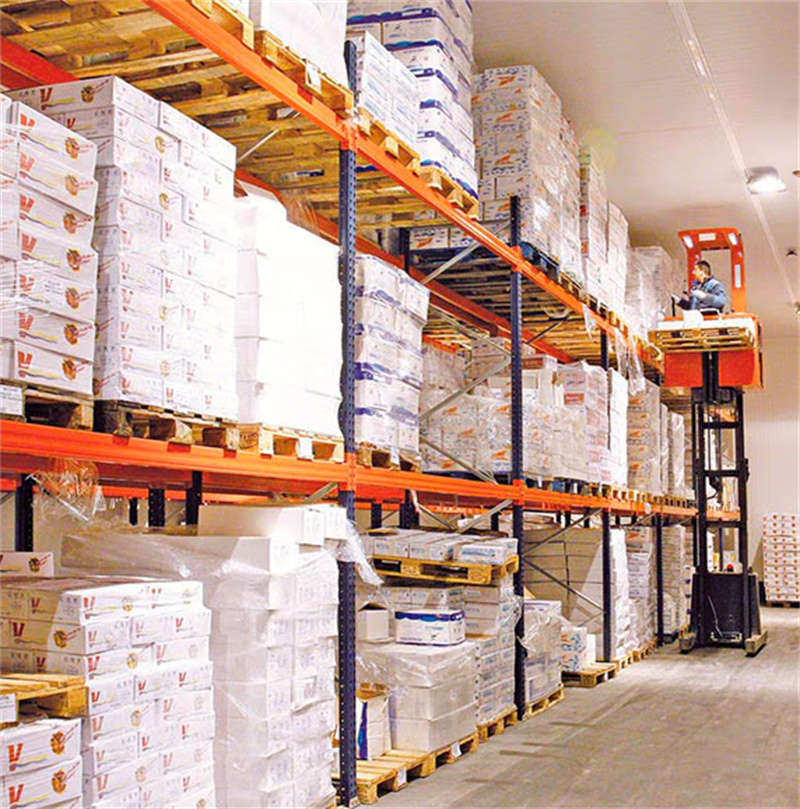

Versatile Applications of Rack Uprights

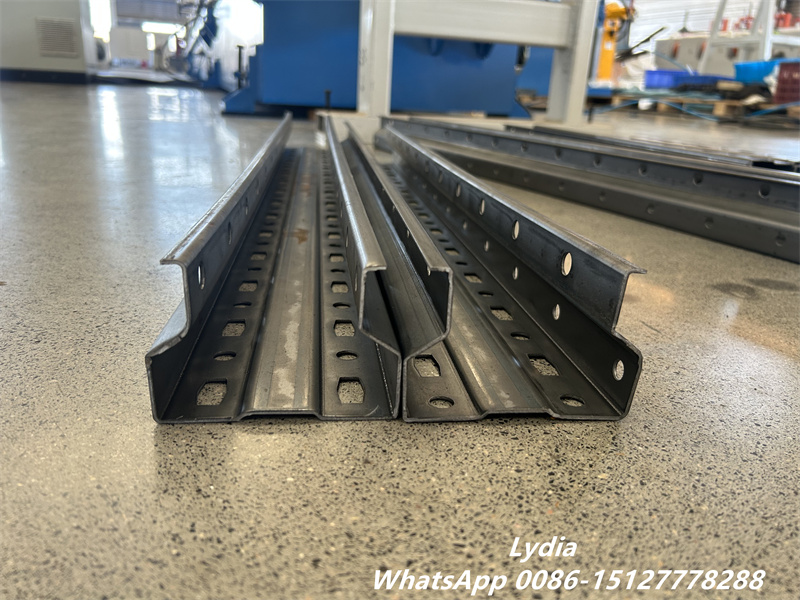

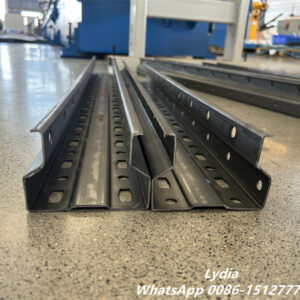

Rack uprights produced by this machine are highly versatile and widely used across multiple industries:

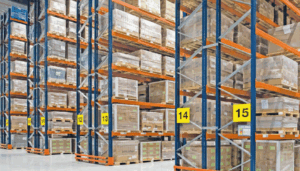

- E-commerce Fulfillment Centers: Support high-density pallet racks, enabling efficient storage and smooth forklift operations.
- Supermarket and Retail Distribution: Adjustable hole spacing allows flexible shelf height for different product sizes.
- Industrial Manufacturing Warehouses: Provide strong support for raw materials, components, and finished goods while maintaining safety and durability.
- Third-Party Logistics (3PL): Flexible uprights adapt to different client storage needs and frequent layout adjustments.
- Cold Storage & Food Logistics: Galvanized uprights perform well in low-temperature environments, suitable for refrigerated warehouses.
- Automotive Parts Storage: Heavy-duty columns maintain stability for dense and heavy components.
Key Features of the Rack Upright Roll Forming Machine

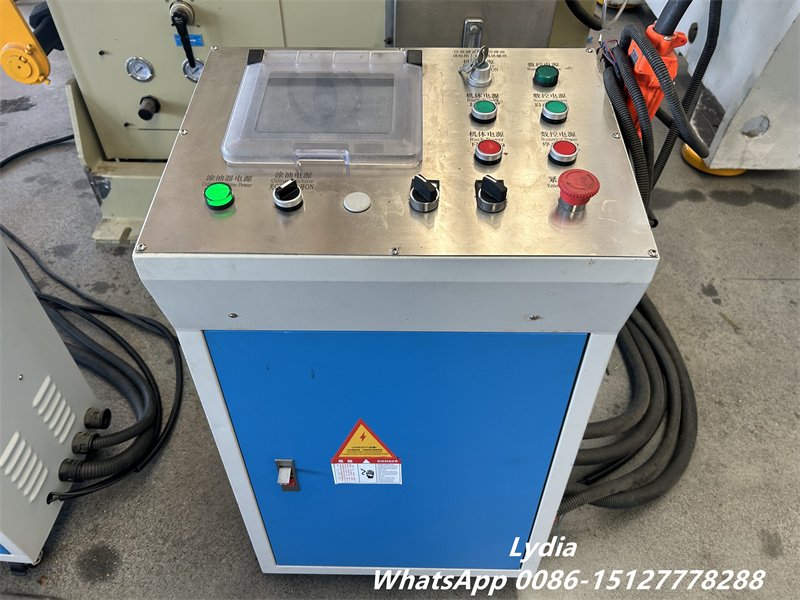

- Fully automatic operation controlled by a PLC system, allowing operators to manage multiple production parameters with ease.
- High-precision inline punching ensures all mounting holes are correctly aligned, eliminating secondary processing.
- Robust gearbox drive system provides stable operation, high torque, and long service life.
- Premium Yangli punching unit delivers clean, reliable holes for easy assembly.
- Flexible customization of material thickness, profile design, and production speed to meet diverse market demands.
Technical Specifications at a Glance
| Item | Specification |
|---|---|
| Machine Type | Roll Forming Machine |
| Application | Storage Rack Upright Pillar |
| Material | Carbon Steel / Galvanized / PPGI |
| Thickness | 1.5 – 2.7 mm (customizable) |

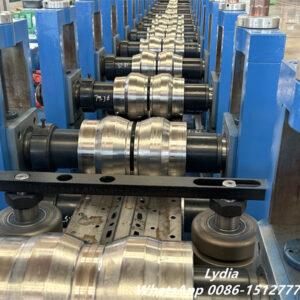

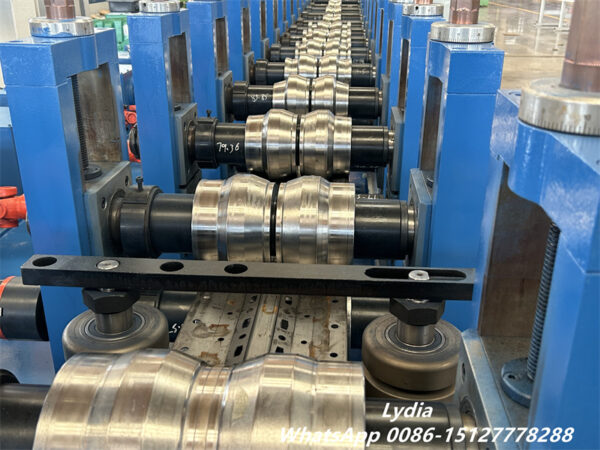

| Roll Stations | 16 (adjustable) |
| Shaft Diameter | 70 mm solid steel |
| Roller Material | Cr12, quenched and heat-treated |
| Drive System | Gearbox transmission |
| Punching System | Inline punching, Yangli brand |

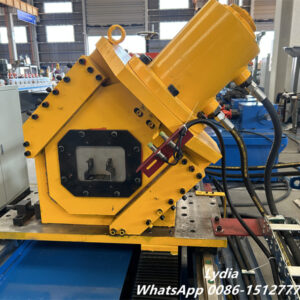

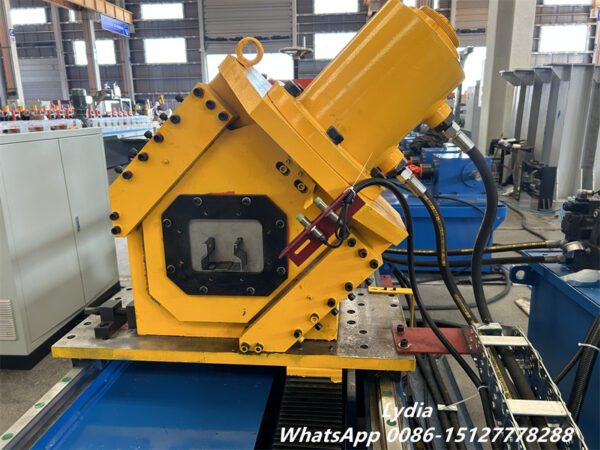

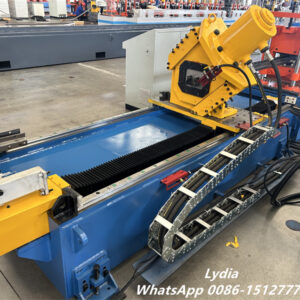

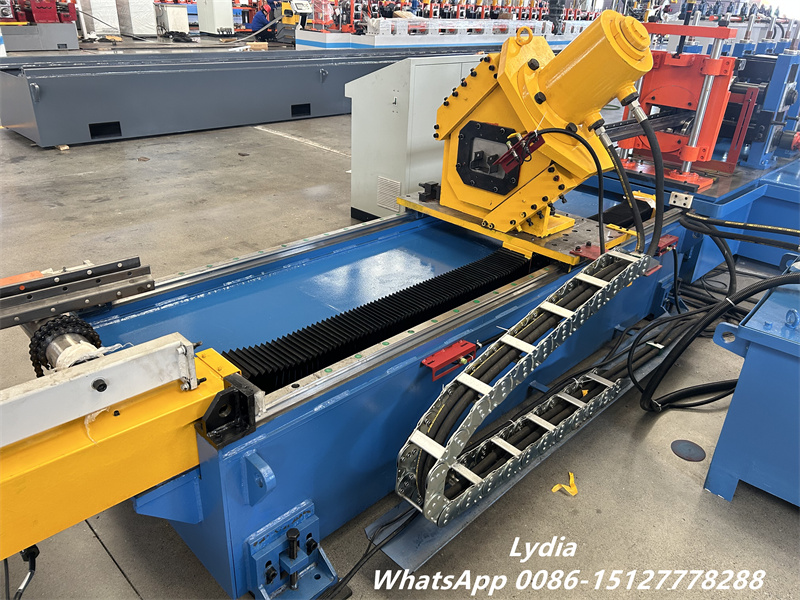

| Cutting Method | Automatic cutting with Cr12MoV blade |
| Forming Speed | Up to 15 m/min (depending on profile) |

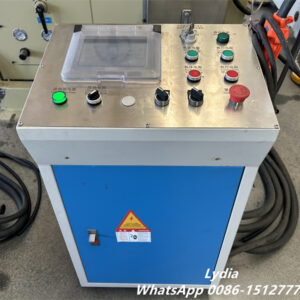

| Control System | PLC, multi-language support |
| Motor Power | 2 × 11 kW |
| Hydraulic Power | 5.5 kW |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Weight | Approx. 8 tons |
| Warranty | 1 year |
Benefits for Rack Manufacturers
Using this roll forming machine provides multiple advantages:
- Fast and efficient mass production of upright pillars
- High dimensional accuracy and hole alignment
- Reduced labor costs through automation
- Durable and heavy-load capable upright columns
- Customizable profiles for different shelving standards
Based in Hebei, China, ZTRFM specializes in cold roll forming machines for rack systems. We provide complete solutions, from profile design to machine customization and installation guidance. Every machine undergoes thorough testing, and inspection videos and reports are provided for customer verification.
By choosing ZTRFM’s Automatic Storage Rack Upright Roll Forming Machine, manufacturers can expand or upgrade their rack production lines efficiently while ensuring high-quality output.
Contact us today for layout drawings, customized profile design, or a quotation tailored to your production needs.
