As solar energy projects continue to expand worldwide, the demand for reliable and flexible solar mounting systems is growing rapidly. Adjustable solar panel mounting brackets play a critical role in supporting photovoltaic modules on rooftops, ground-mounted installations, carports, and agricultural solar structures. To meet large-scale production requirements, manufacturers need an efficient and precise Solar Panel Mounting Bracket Roll Forming Machine capable of producing durable profiles with consistent quality and high output.

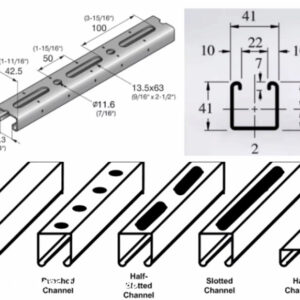

Our Adjustable Solar Bracket Roll Forming Machine is engineered to manufacture solar mounting brackets, solar support channels, and photovoltaic structural components used for supporting one to four solar panels. The finished brackets provide excellent load-bearing performance, corrosion resistance, and installation flexibility, making them suitable for various solar energy applications worldwide.
Why Adjustable Solar Mounting Brackets Are Important
A solar panel mounting system serves as the foundation of every photovoltaic installation. While solar panels generate electricity, the mounting structure ensures stability, proper alignment, and long-term operational safety.
Modern solar projects often require adjustable solar mounting brackets because they allow installers to optimize panel angles according to geographic location and sunlight conditions. As a result, solar systems can achieve higher energy generation efficiency while maintaining structural reliability under wind, rain, and snow loads.
Furthermore, solar mounting brackets simplify installation and maintenance, reducing labor costs and shortening project completion times.
Solar Panel Mounting Bracket Roll Forming Machine Overview

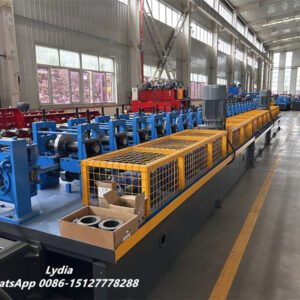

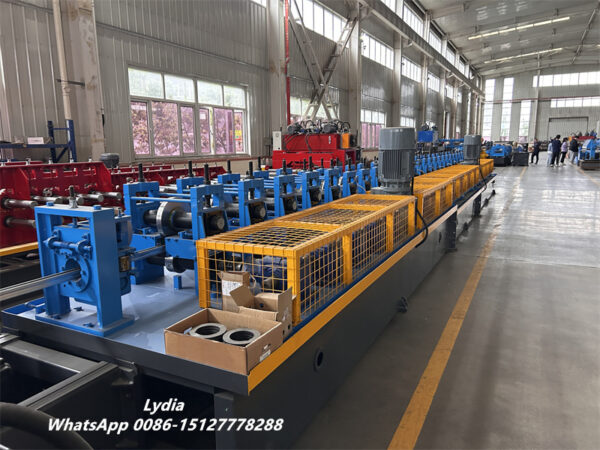

The Solar Panel Mounting Bracket Roll Forming Machine is designed for continuous production of PV mounting brackets, solar support rails, and photovoltaic structural profiles. By combining decoiling, leveling, punching, roll forming, and cutting into one automated production line, the system delivers high productivity and excellent dimensional accuracy.
The machine adopts a heavy-duty frame structure and precision-machined rollers to ensure stable operation even during long production shifts. Meanwhile, the integrated tracking punching system enables accurate hole pattern production without reducing line speed.
In addition, the flying saw cutting system provides clean cutting edges while minimizing profile deformation, helping manufacturers maintain high-quality finished products.
Main Technical Specifications of the Solar Bracket Roll Forming Machine
| Item | Specification |
|---|---|
| Product | Solar Panel Mounting Brackets |
| Material Thickness | According to profile design |
| Production Speed | Up to 15 m/min |
| Main Motor Power | 5.5 KW × 2 |
| Roller Stations | 28 Stations |
| Roller Material | Cr12MoV, Quenched Treatment |
| Roller Diameter | 60 mm |
| Transmission System | Gearbox Drive |
| Frame Structure | 40 mm Thickness Molding Frame |
| Punching Type | Tracking Punching |
| Punching Power | 5.5 KW |
| Punching Mold Material | Cr12 |
| Punching Capacity | 10 Holes Per Cycle |
| Power Supply Options | 220V / 380V / 440V |
| Certifications | CE, ISO |
| Machine Customization | Available |
Advanced Production Line for Solar Mounting Bracket Manufacturing

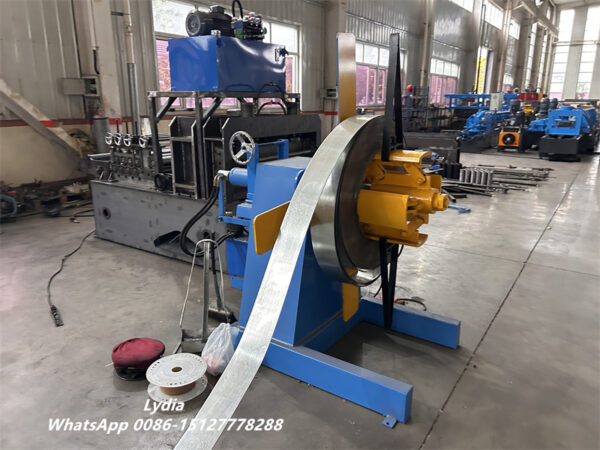

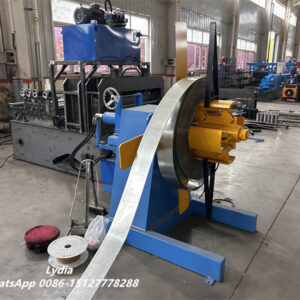

The production line starts with a 3-ton hydraulic decoiler, which automatically expands and tensions the steel coil through hydraulic power. This ensures stable material feeding throughout the manufacturing process.
The coil handling system supports:
- Loading capacity: 3 tons
- Coil inner diameter: 450–550 mm
- Active hydraulic expansion
- Stable feeding performance

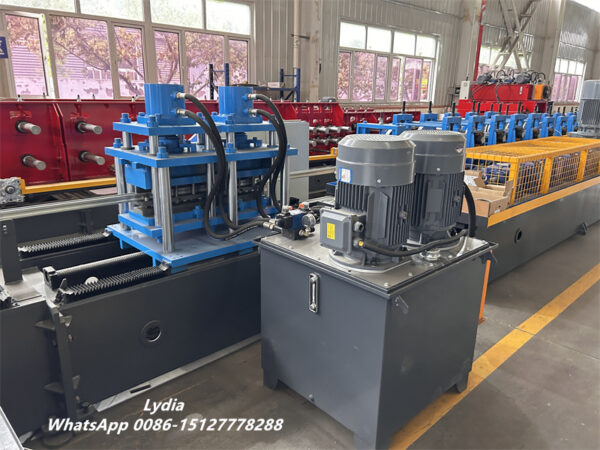

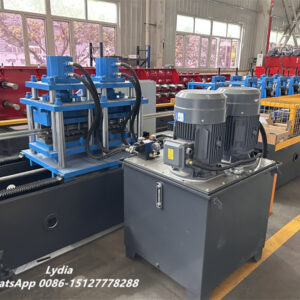

After decoiling, the material enters the leveling and punching section. The tracking punching technology synchronizes punching operations with line movement, significantly improving production efficiency while maintaining hole position accuracy.

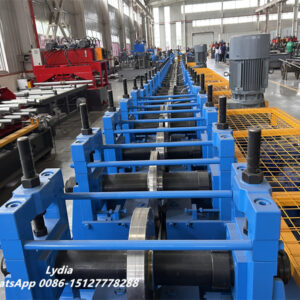

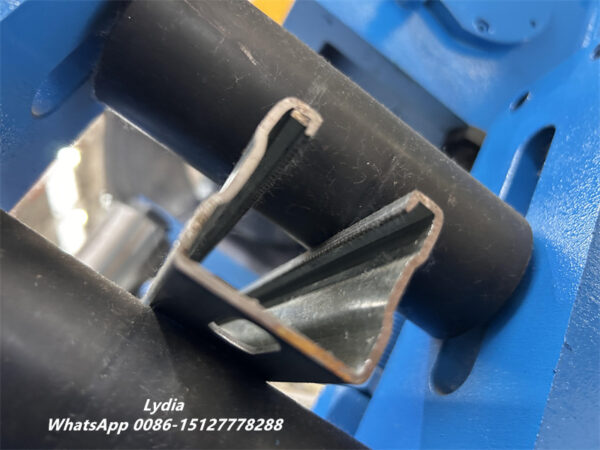

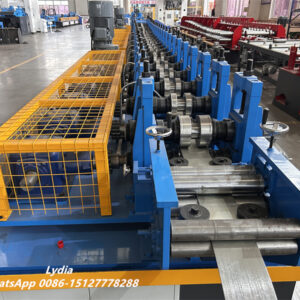

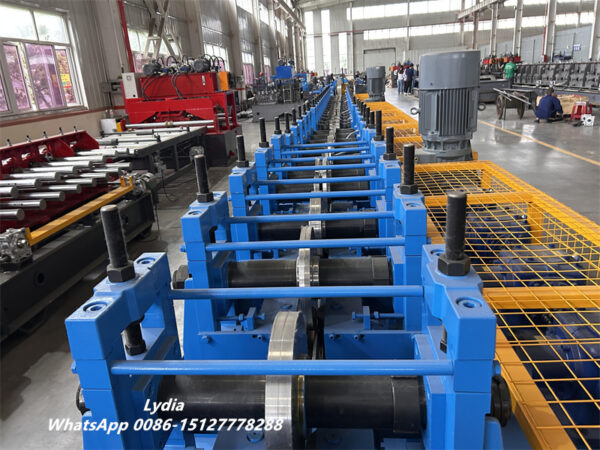

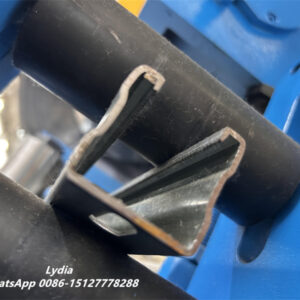

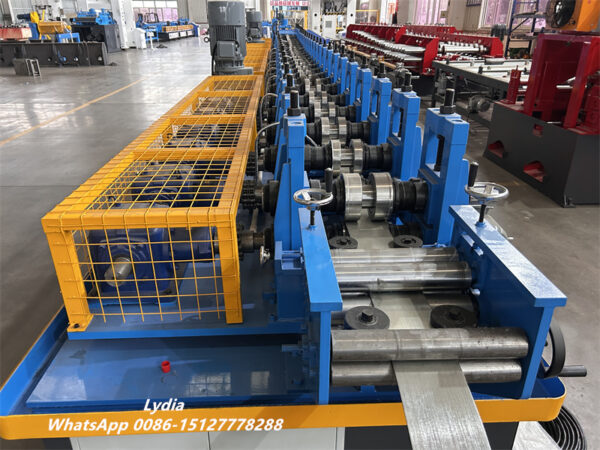

Subsequently, the material passes through 28 precision roll forming stations where it is gradually shaped into the required solar mounting profile.

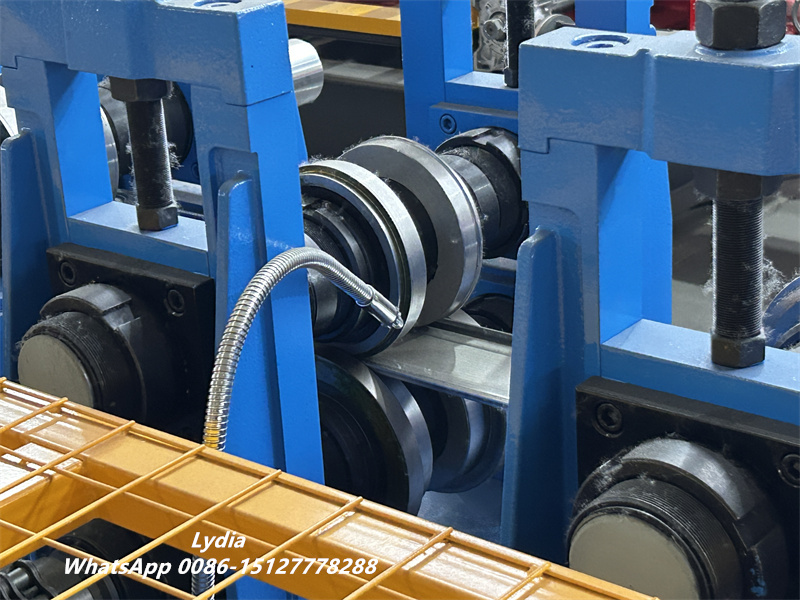

To further enhance equipment durability, the roll forming section includes an automatic lubrication spray system. This feature reduces friction between rollers and material surfaces, lowers wear rates, and extends roller service life.
Finally, the flying saw cutting system performs high-speed profile cutting. Compared with conventional stop-cutting systems, flying saw technology offers smoother cutting surfaces, faster production speeds, and reduced deformation of finished products.
Applications and Advantages of Solar Panel Mounting Brackets

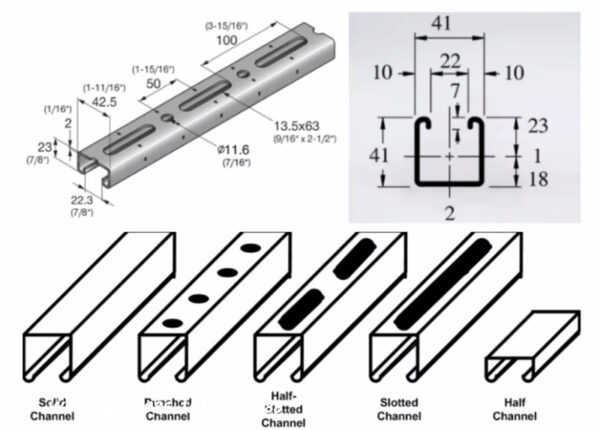

The profiles produced by this solar bracket roll forming machine are widely used in photovoltaic mounting systems due to their excellent structural properties.
Manufacturers can produce solar mounting brackets that offer:
- High load-bearing capacity
- Excellent corrosion resistance
- Adjustable installation angles
- Fast assembly and maintenance
- Long service life
- Compatibility with residential and commercial solar projects
Moreover, these solar support structures can accommodate multiple panel configurations, allowing installers to create flexible solar array layouts according to project requirements.

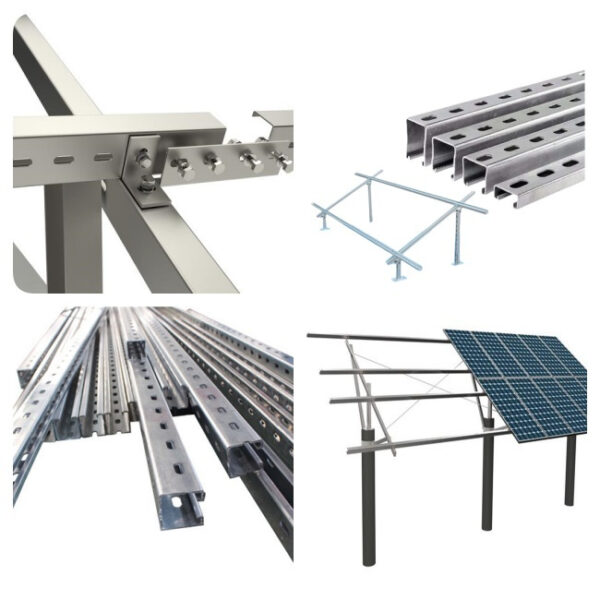

Because of these advantages, the finished products are widely applied in:
- Rooftop solar mounting systems
- Ground-mounted solar farms
- Solar carport structures
- Agricultural photovoltaic projects
- Commercial solar installations
- Industrial solar power stations
As global investment in renewable energy continues to rise, demand for high-quality solar mounting brackets and solar racking systems is expected to grow steadily.
Professional Manufacturer of Solar Bracket Roll Forming Machines
Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in the design, development, and manufacturing of cold roll forming machines. With nearly two decades of engineering experience, the company has established a strong reputation in the global roll forming industry.
Founded by experienced engineer Mr. Cary Xu, who has focused on roll forming technology since 2006, Zhongtuo continuously invests in research and innovation. The company has obtained more than 20 technical patents and maintains cooperation with Yanshan University to advance roll forming solutions.
Today, Zhongtuo machines operate in more than 170 countries across Asia, Africa, Europe, South America, and Australia. A significant percentage of customers return for repeat purchases, reflecting confidence in machine quality, technical support, and after-sales service.
If you are looking for a reliable solution to manufacture solar panel mounting brackets, PV support channels, solar racking profiles, or solar structural components, the Solar Panel Mounting Bracket Roll Forming Machine offers high efficiency, precision production, and long-term profitability for your business.
