Zhongtuo Solar PV Mounting Bracket Roll Forming Machine Solar Strut Channel Machine

As solar energy projects continue to expand worldwide, manufacturers need faster, more reliable methods to produce structural components for photovoltaic systems. Our Solar PV Mounting Bracket Roll Forming Machine provides an efficient solution for manufacturing C-shaped, U-shaped, and customized support profiles used in solar mounting structures.

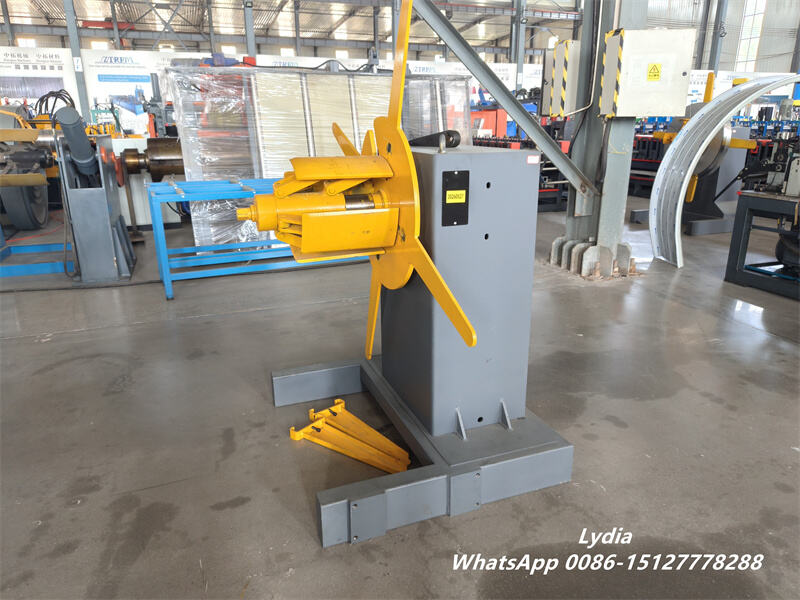

The machine continuously forms galvanized steel or other suitable metal coils into precise solar mounting channels. An integrated punching and cutting system can also automatically complete hole and length cutting. As a result, manufacturers can reduce manual operations, improve production consistency, and respond quickly to different solar project requirements.

Efficient Production for Solar Mounting Profiles

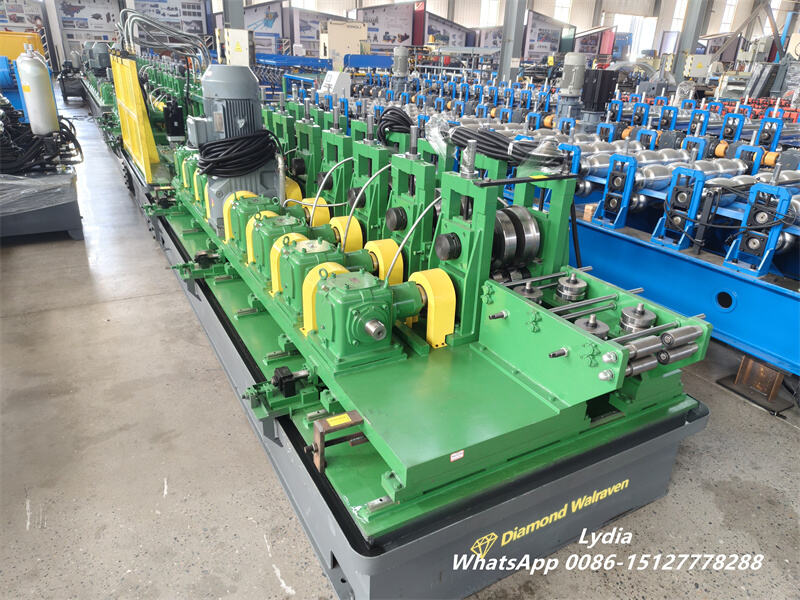

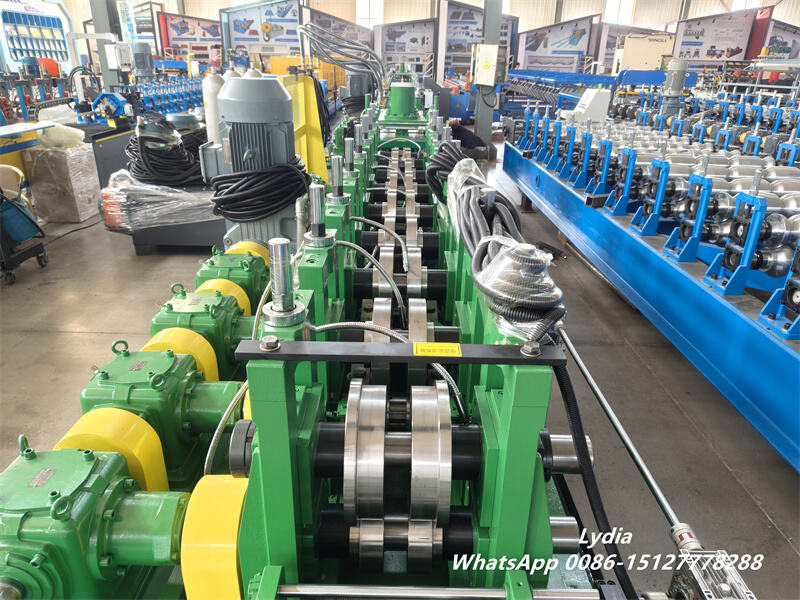

Unlike conventional fabrication methods, roll forming processes metal continuously through multiple forming stations. Each roller gradually shapes the strip while maintaining stable dimensions and surface quality. Therefore, a solar mounting strut channel roll forming machine can achieve continuous production with consistent output.

The machine can produce profiles in different widths, heights, and configurations according to customer requirements. Manufacturers can also configure punching patterns and cutting lengths for specific photovoltaic mounting systems.

For projects requiring frequent profile changes, an automatic size-adjustment system can further improve flexibility. Operators can adjust production parameters through the PLC touch screen, while optional automatic width adjustment reduces downtime between different profile specifications.

Punching, Forming and Cutting Machine

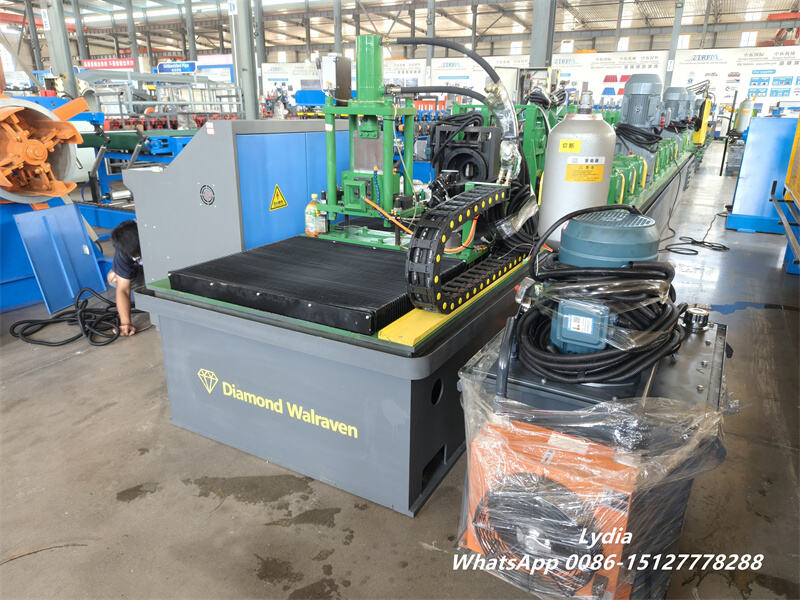

Solar mounting brackets usually require accurately positioned holes for bolts, fasteners, grounding components, and connection accessories. To simplify production, our PV bracket roll forming machine can integrate a punching system with the forming line.

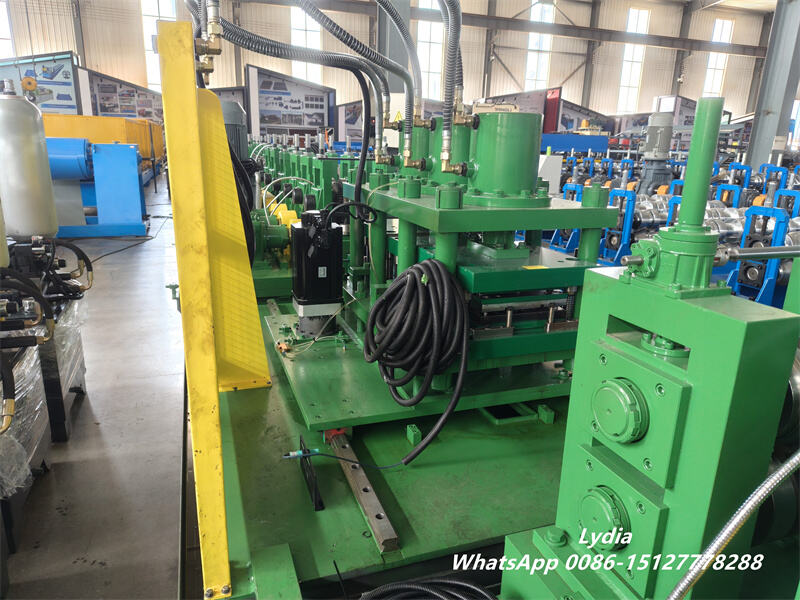

The dedicated punching unit creates repeatable hole patterns according to the customer’s drawings. After punching and forming, the hydraulic cutting system cuts the finished profile to the programmed length. Consequently, the complete process can run continuously from coil feeding to finished solar mounting channels.

This integrated production method reduces secondary processing and helps manufacturers improve overall productivity. Depending on the application, the line can also be equipped with pre-punching, post-punching, servo feeding, hydraulic cutting, and automatic length control.

Key Machine Specifications

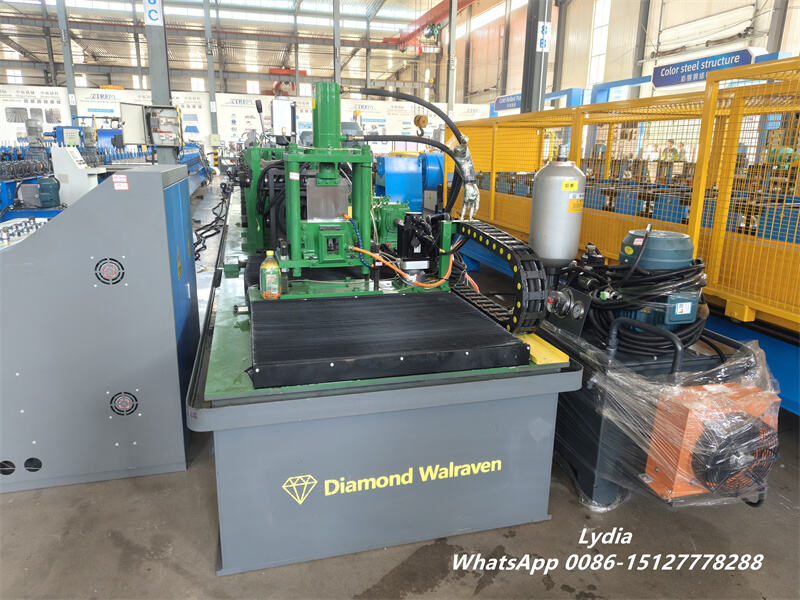

The configuration of a solar strut channel making machine depends on the required profile, material thickness, punching pattern, and production capacity. The following table shows a typical configuration:

The final configuration can be customized according to your product drawings and production requirements. Our engineers can evaluate the required profile dimensions, hole positions, coil thickness, and production speed before determining the forming stations and tooling.

Applications of Solar Mounting Strut Channels

The finished profiles produced by the solar mounting strut channel roll forming machine can serve a wide range of photovoltaic applications.

For rooftop installations, the machine produces structural channels for residential, commercial, and industrial solar systems. These profiles provide a reliable framework for securing photovoltaic panels while supporting different installation configurations.

For large ground-mounted solar farms, manufacturers can use the solar mounting bracket roll forming machine to produce stronger structural components designed for outdoor applications. Proper profile dimensions and material selection help the finished brackets withstand wind loads and long-term environmental exposure.

The equipment can also manufacture profiles for solar carports, agricultural PV systems, floating solar projects, and customized photovoltaic structures. This flexibility allows manufacturers to expand their product range without investing in completely different production equipment.

Why Choose Our Solar Mounting Channel Machine?

Investing in a dedicated solar mounting strut channel machine gives manufacturers greater control over production while reducing dependence on secondary fabrication. Continuous roll forming improves production efficiency, while automated punching and cutting reduce repetitive manual work.

Robust forming rollers and a heavy-duty frame help maintain profile accuracy during extended production runs. Meanwhile, the PLC control system allows operators to manage forming speed, cutting length, punching sequences, and other parameters through an intuitive interface.

More importantly, we design each solar PV mounting bracket roll forming machine according to the customer’s actual product requirements. Whether you need a standard Unistrut-style channel, C-channel, U-channel, or customized photovoltaic mounting profile, the forming, punching, and cutting configuration can be developed around your drawings.

If you plan to manufacture solar PV mounting brackets, solar strut channels, Unistrut channels, or photovoltaic mounting profiles, send us your profile drawings and production requirements. Our engineers can recommend a suitable solar mounting strut channel roll forming machine and provide a customized solution for your project.
