Zhongtuo High Speed 25m/min Solar Unistrut Channel Forming Machine Solar Strut Channel

As global demand for renewable energy continues to rise, manufacturers are looking for faster and more efficient ways to produce durable photovoltaic mounting components. The Solar Unistrut Channel Roll Forming Machine is specifically engineered to manufacture high-precision C channels, slotted strut channels, and solar mounting profiles used in modern photovoltaic support systems.

This fully automatic production line combines advanced forming technology, intelligent control, and high-speed operation to deliver stable performance for large-scale solar infrastructure projects. From utility-scale solar farms to rooftop photovoltaic systems, the machine helps manufacturers produce strong and consistent structural profiles while reducing labor costs and improving production efficiency.

Unlike traditional fabrication methods that require welding, drilling, and extensive manual assembly, Unistrut channels offer a faster and more flexible installation solution. Contractors can easily connect structural components using standard clamps and bolts, which greatly simplifies on-site construction and future expansion.

Applications of Solar Strut Channels in Energy Projects

Solar strut channels play a critical role in photovoltaic systems and energy support structures because they provide strong structural stability while remaining lightweight and easy to install.

In solar panel mounting systems, these channels support photovoltaic modules and maintain proper panel alignment under changing weather conditions. Their high load-bearing strength allows the structures to resist wind pressure, vibration, and snow loads while ensuring long-term operational safety.

Additionally, the channels are widely used in wind power support systems, cable management structures, electrical enclosure mounting, and lightweight industrial framing applications. Since the profiles can be quickly assembled and modified, they are highly suitable for modern renewable energy projects that require flexibility and rapid installation.

Compared with conventional steel fabrication, Unistrut support systems significantly reduce welding work, shorten installation time, and lower overall project costs.

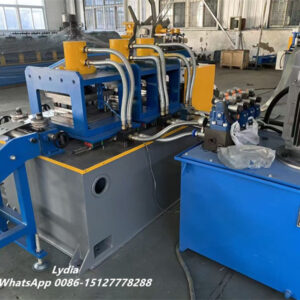

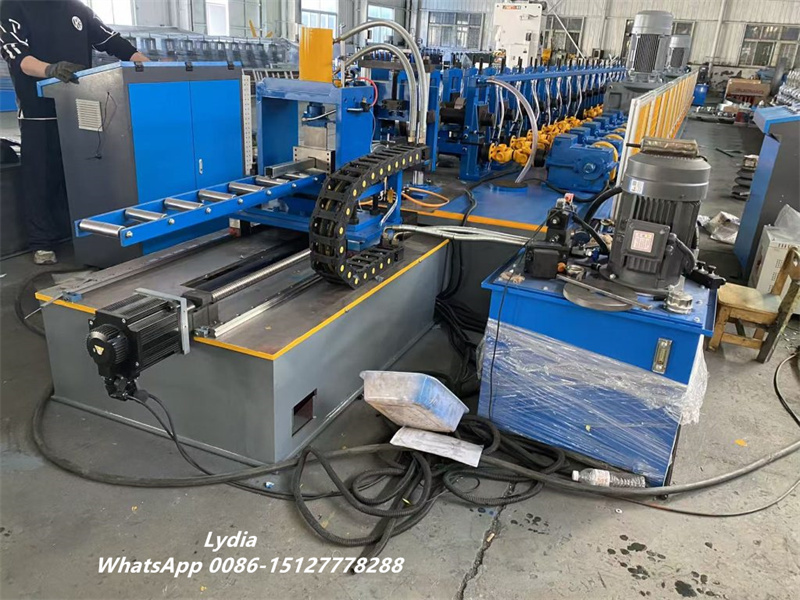

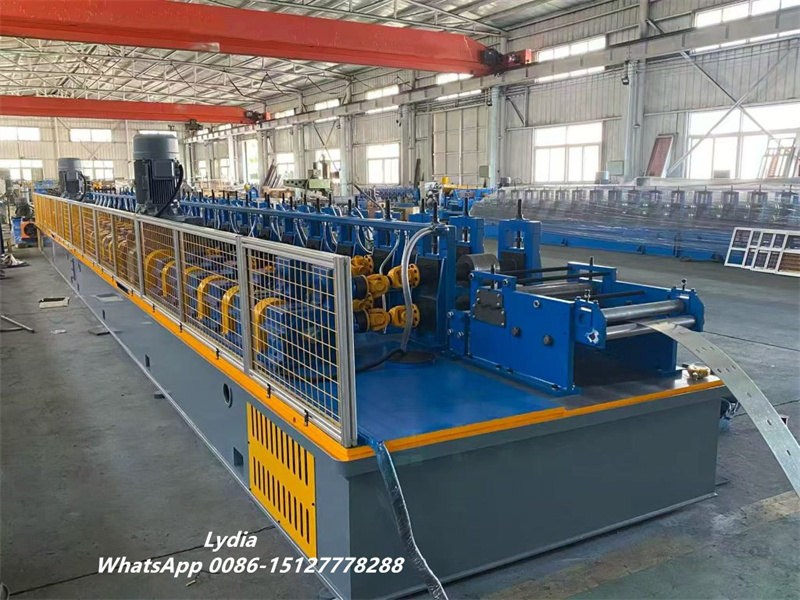

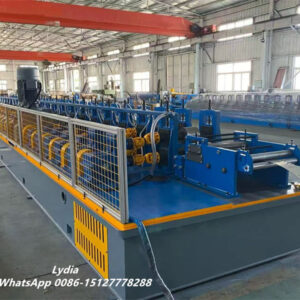

High-Speed Automatic Solar Channel Roll Forming Line

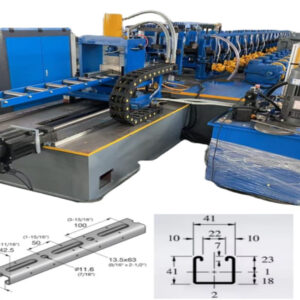

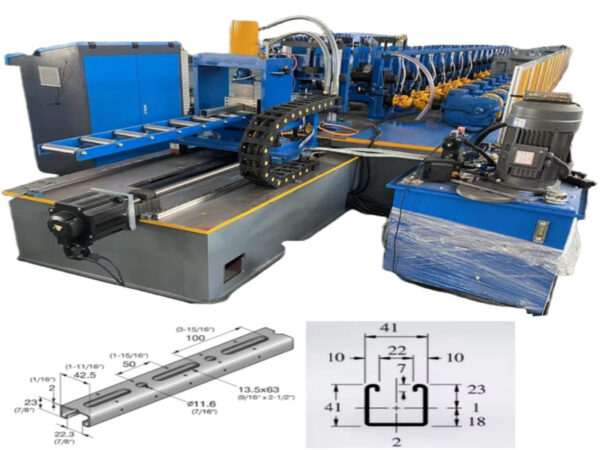

To meet the requirements of mass production, the Solar Unistrut Channel Roll Forming Machine integrates several high-performance components into one continuous automated line.

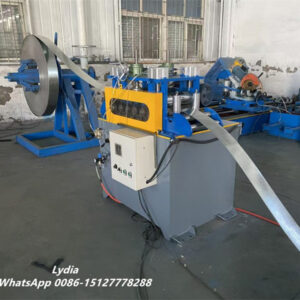

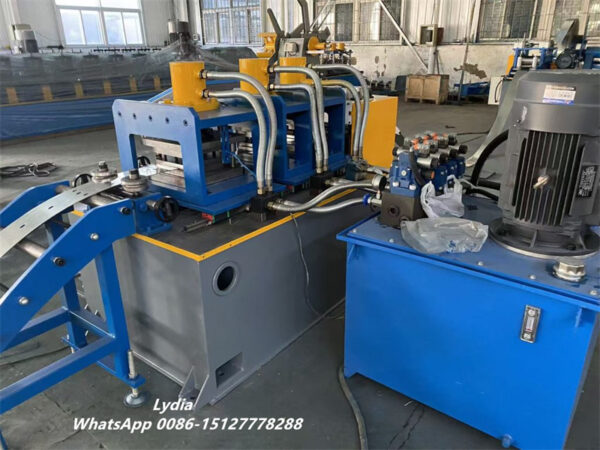

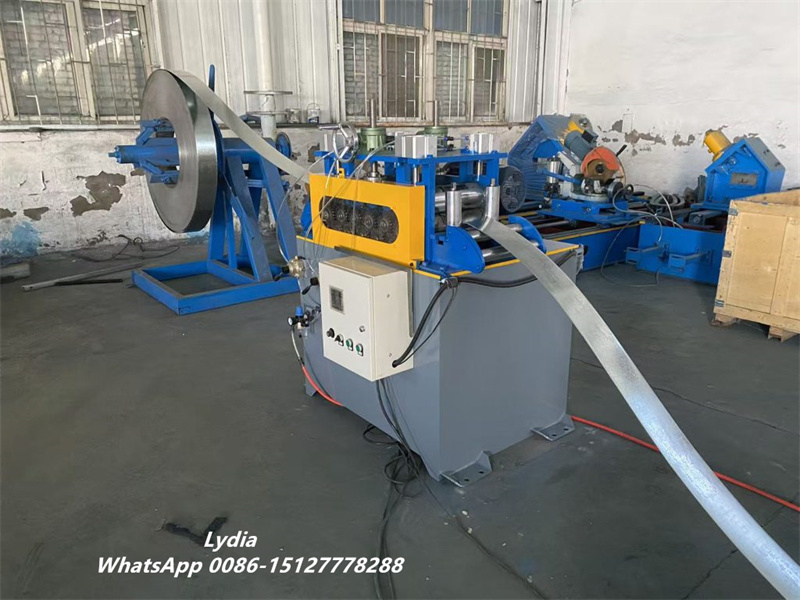

The hydraulic decoiler ensures smooth material feeding and stable coil unwinding. Next, the servo feeder accurately positions the strip steel before it enters the punching system. Depending on production requirements, the machine can use either an integrated press machine or an independent punching unit to create precise hole patterns for solar mounting applications.

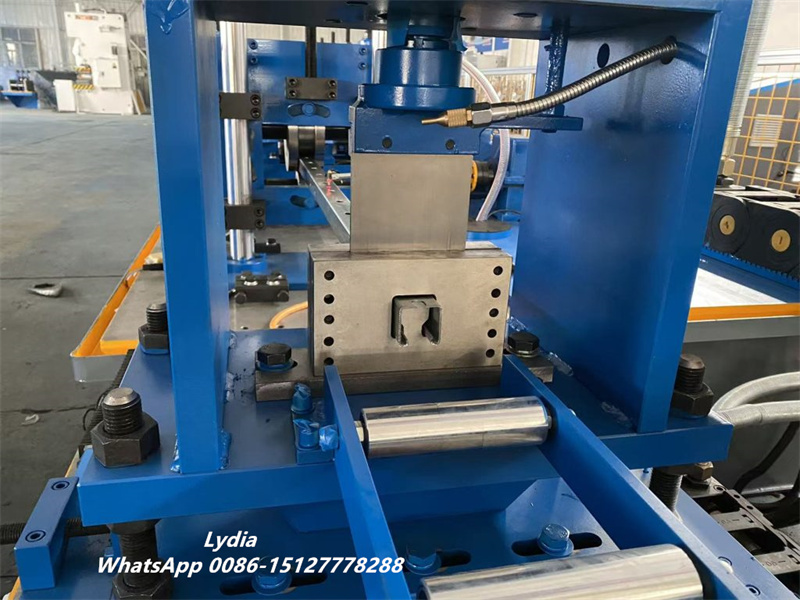

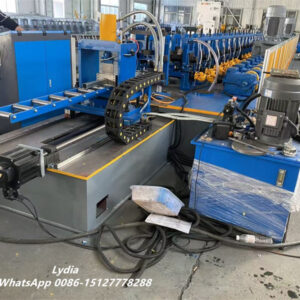

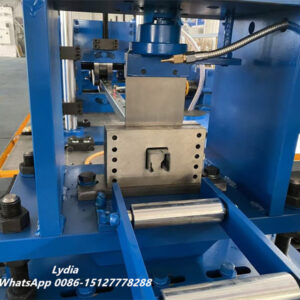

After punching, the material passes through the roll forming machine section where multiple roller stations gradually shape the profile with high dimensional accuracy. Finally, the servo tracking cutter performs precise cutting without stopping the line, maintaining both speed and clean cutting edges.

The entire system operates through a PLC control system with multilingual support, allowing operators to easily set production length, quantity, and batch parameters.

One of the biggest advantages of this machine is its high production speed. The line can reach up to 25 meters per minute, making it ideal for large-volume solar bracket manufacturing projects.

At the same time, the machine maintains excellent forming precision and profile consistency. The roller tooling uses high-quality 45# steel rollers with hard chrome coating, which improves wear resistance and extends service life. Moreover, the gearbox transmission system ensures stable operation even during long production cycles.

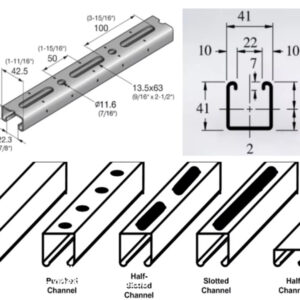

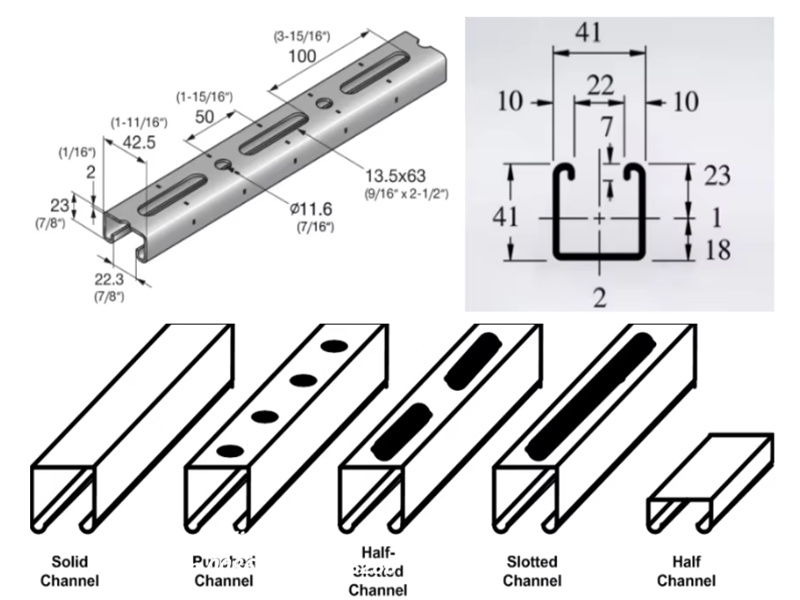

Because the machine supports different profile sizes and thickness ranges, manufacturers can quickly adapt to changing market demands. Common channel sizes such as 41×41 mm Unistrut channel and 41×21 mm strut channel can be produced efficiently, while material thickness typically ranges from 1.5 mm to 3.0 mm.

Technical Specifications of the Solar Strut Channel Machine

The machine is designed for durability, continuous operation, and easy maintenance. Its robust welded steel frame and automated control system ensure long-term production reliability.

Durable Solar Mounting Machine for Modern Energy Infrastructure

As photovoltaic technology continues to expand worldwide, reliable solar mounting systems have become increasingly important for maximizing solar power generation efficiency. High-quality Unistrut channels not only provide structural stability but also improve installation flexibility and long-term maintenance convenience.

Our Solar Unistrut Channel Roll Forming Machine helps manufacturers produce premium solar mounting profiles with outstanding efficiency, durability, and accuracy. Whether you manufacture photovoltaic brackets, cable support systems, or industrial framing channels, this machine provides a dependable solution for modern renewable energy production.

By combining automated production, intelligent control, and high-speed forming technology, the machine enables companies to increase productivity while maintaining excellent product quality in the highly competitive solar energy market.
