Zhongtuo Sound Barrier Panel Roll Forming Machine With Big Punching Device Highway & Railway Noise Barrier Panel Production Line

The Highway Sound Barrier Walls Panel Machine (Acoustic Noise Barrier Wall Profile Forming Line) is a specialized roll-forming system developed for manufacturing acoustic wall panels used in highway and railway soundproofing projects. It delivers high performance and flexible production capabilities, enabling manufacturers to produce durable, visually appealing panels with precise noise-reduction functionality. Thanks to its advanced automation, customizable profile designs, and robust structural build, this production line effectively meets both technical performance standards and modern architectural requirements.

In modern infrastructure projects, controlling noise pollution has become increasingly important. Our Sound Barrier Panel Roll Forming Machine is engineered to deliver consistent, high-quality acoustic panels for highways, railways, and industrial zones. By combining precision forming, intelligent control, and flexible configuration, this production line helps manufacturers achieve both productivity and superior panel performance.

Advanced Design for Stable and Efficient Production

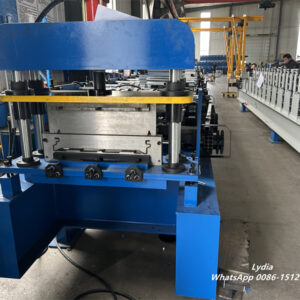

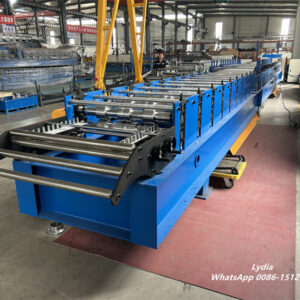

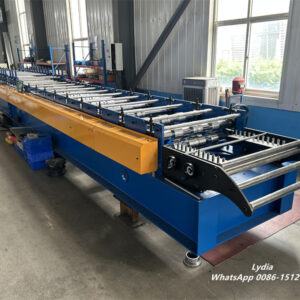

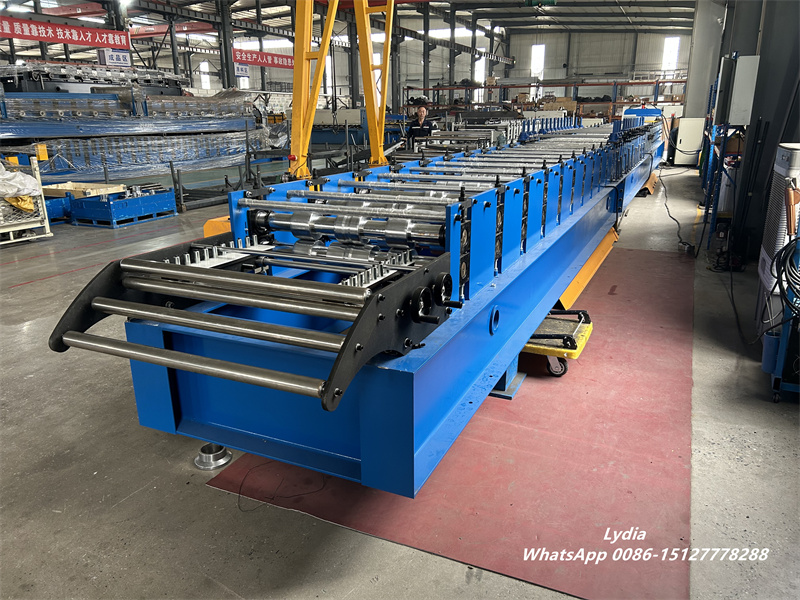

We design this machine with a fully integrated system that includes feeding, forming, cutting, and stacking. As a result, operators can run the entire process smoothly with minimal manual intervention. The PLC control system ensures accurate coordination between each unit, while the hydraulic system delivers stable cutting performance.

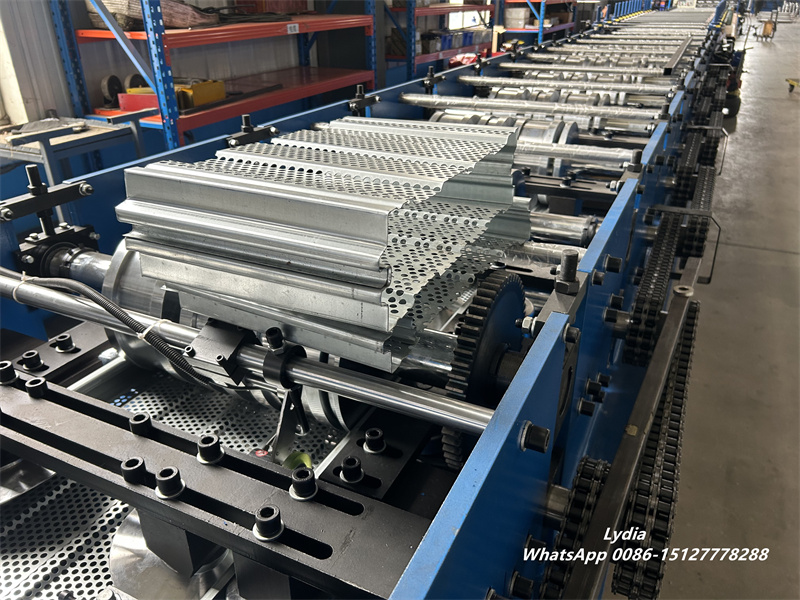

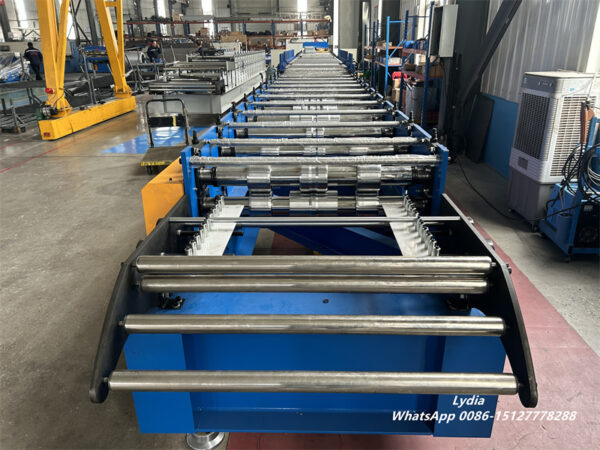

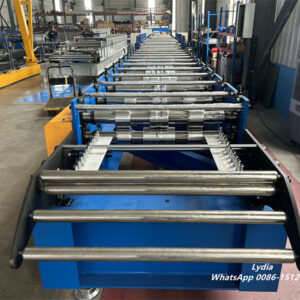

Moreover, the roll forming section adopts high-strength rollers made from 45# steel with chrome coating and heat treatment. This not only improves durability but also guarantees a smooth, scratch-free panel surface—an essential factor for acoustic applications.

Flexible Production for Multiple Panel Types

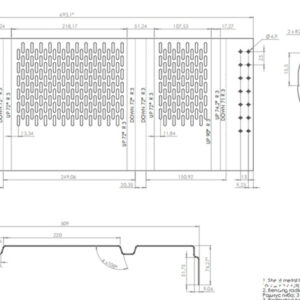

This production line supports different sound barrier structures, allowing you to respond to diverse market demands. Specifically, it can produce:

• 1-rib acoustic panels
• 2-rib acoustic panels
• C channel support components (left & right)

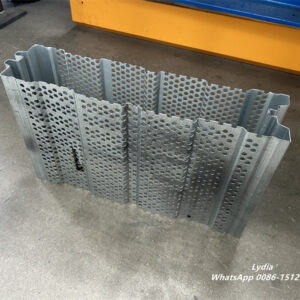

In addition, you can integrate optional louver punching or perforation systems. This flexibility enables manufacturers to produce both perforated panels and louver-type sound barriers, improving sound absorption performance.

Complete Production Workflow

The machine operates through a well-structured workflow that maximizes efficiency:

1. Decoiling and feeding raw material
2. Roll forming into required panel profiles

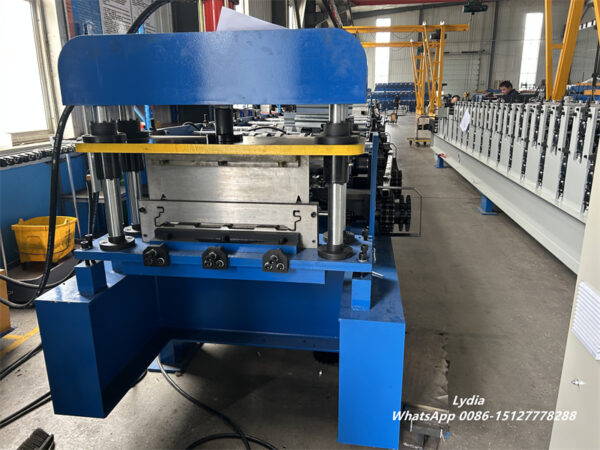

3. Hydraulic cutting for precise length control
4. Punching (optional for perforated or louver panels)
5. Manual or automatic assembly
6. Final clamping and shaping

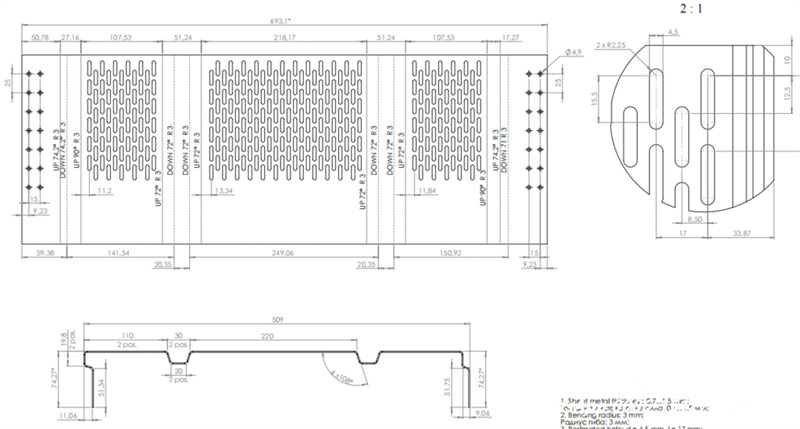

For perforated sound barrier panels, the system also integrates a 160T hydraulic press with high-precision dies, ensuring uniform hole patterns and consistent product quality.

Key Technical Specifications

To ensure long-term reliability, we equip the machine with premium components. The roller shafts undergo quenching and tempering treatment, which enhances strength and wear resistance. At the same time, the machine frame is welded and stress-relieved, providing excellent stability during high-speed operation.

Additionally, we use well-known brands for key elements such as servo motors, bearings, and hydraulic systems. This guarantees smooth operation, precise feeding, and reduced maintenance costs over time.

Ideal Solution for Highway Noise Barrier Manufacturing

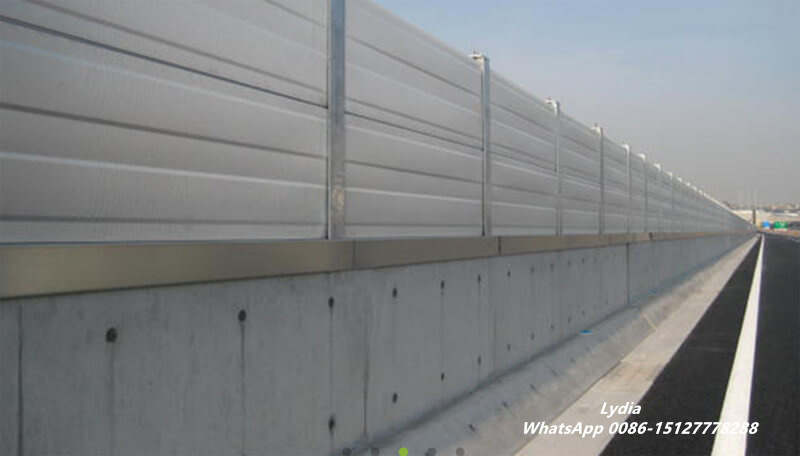

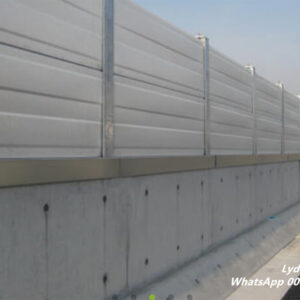

This sound barrier roll forming machine is widely used in highway and railway noise reduction projects. It effectively produces panels that reduce wind noise, engine noise, and tire noise, thereby improving environmental conditions in urban and suburban areas.

Whether you are expanding your production capacity or entering the acoustic panel market, this machine offers a reliable and cost-effective solution. With its high automation level, flexible configuration, and robust design, it helps you stay competitive in a demanding industry.
