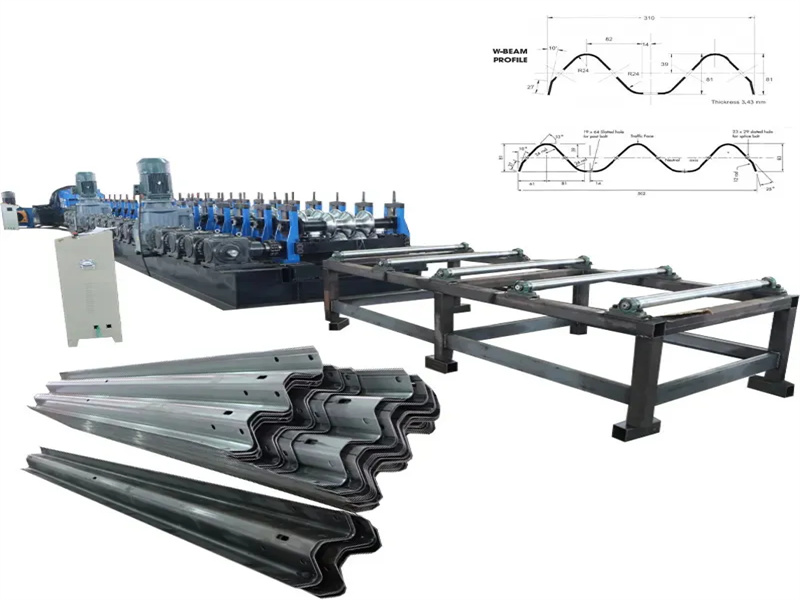

Zhongtuo1.0mm-5.0mm Highway Guardrail Roll Forming Machine W Beam & Thrie Beam Guardrail Production Line

As road infrastructure projects continue to expand worldwide, the demand for durable and high-precision highway guardrails is increasing. The Highway Guardrail Roll Forming Machine is specifically engineered to manufacture W-beam and Thrie-beam guardrail panels used in highways, bridges, expressways, and municipal road safety systems.

This production line transforms galvanized steel coils, hot rolled steel, or high-strength steel strips into finished guardrail profiles through continuous roll forming technology. As a result, manufacturers can achieve high production efficiency, consistent product quality, and reduced labor costs while meeting strict transportation safety standards.

Production Flow

Hydraulic Decoiler → Feeding Guide → Leveling Device → Hydraulic Punching Unit → Roll Forming Machine → Hydraulic Cutting System → Finished Product Run-Out Table

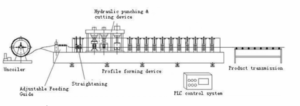

Equipment Layout Diagram

Production Line Components:

1. Uncoiler

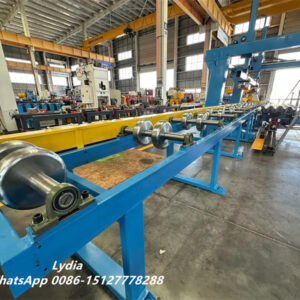

2. Adjustable Feeding Guide
3. Straightening Device

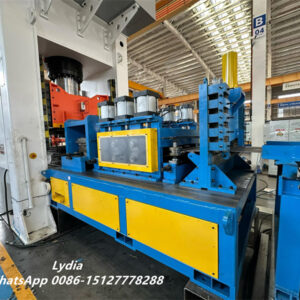

4. Hydraulic Punching & Cutting Device

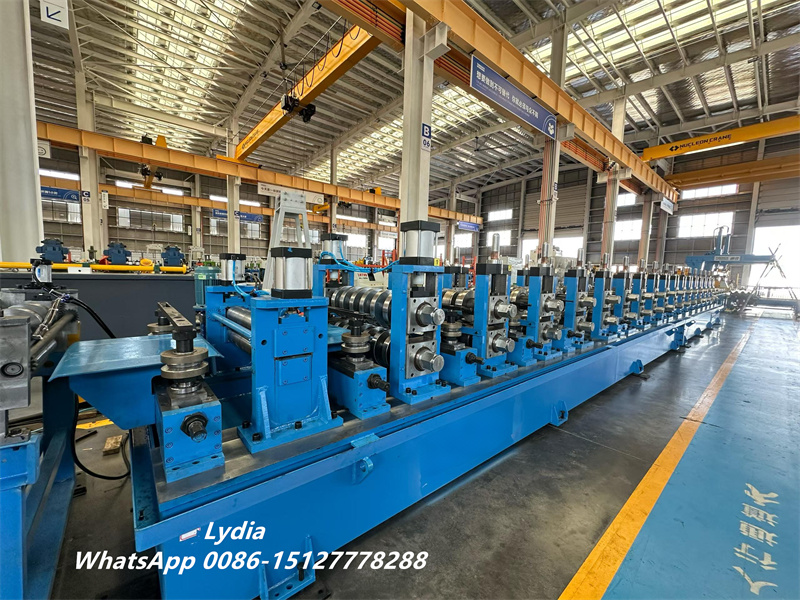

5. Profile Forming Device
6. PLC Control System

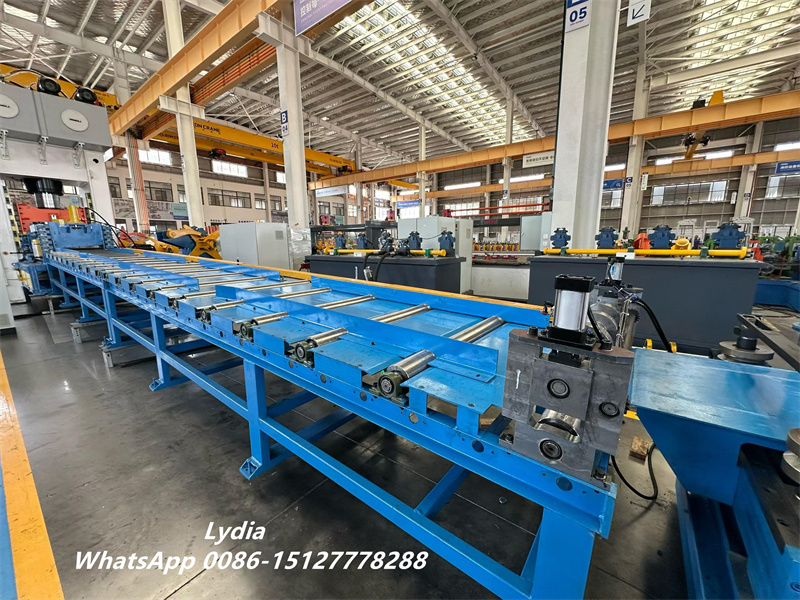

7. Product Transmission Table

The layout shown above demonstrates how each station works together to achieve continuous and automated production. Furthermore, the integrated control system synchronizes every operation to ensure accurate punching positions and stable profile dimensions.

Fully Automated Production Process

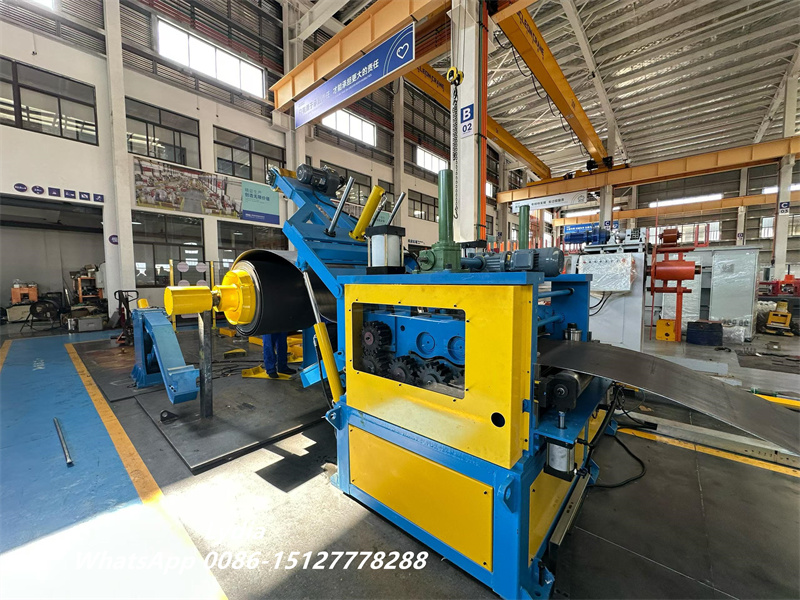

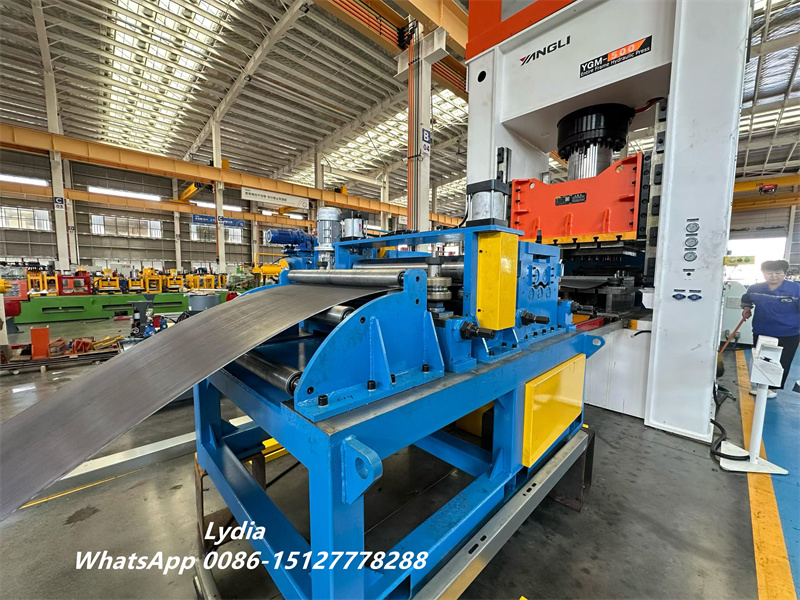

The guardrail production line operates through a continuous and highly automated workflow. First, the steel coil is loaded onto the hydraulic decoiler. Afterward, the material passes through the leveling section, where surface flatness and feeding accuracy are improved.

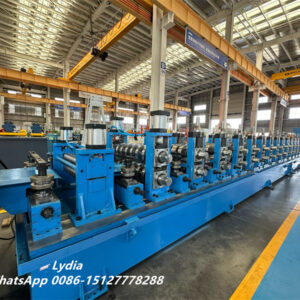

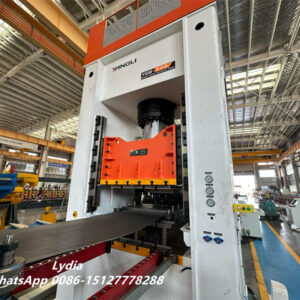

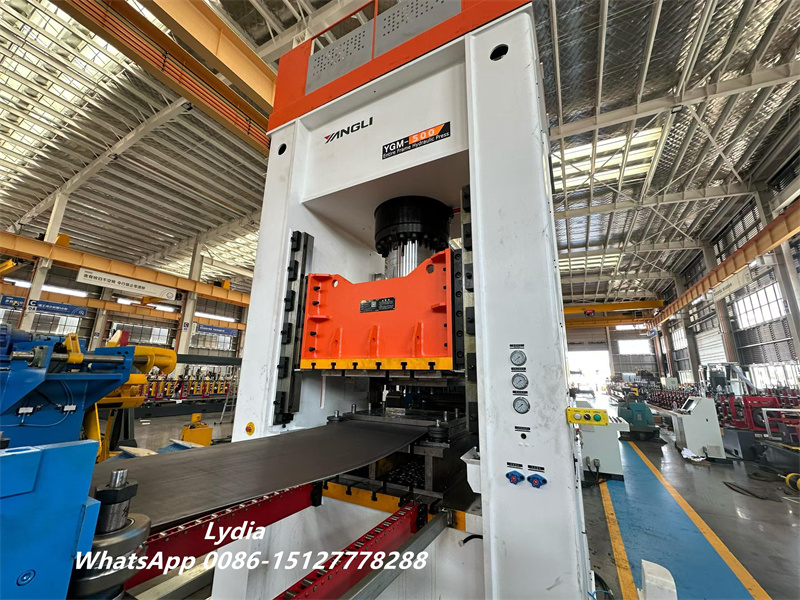

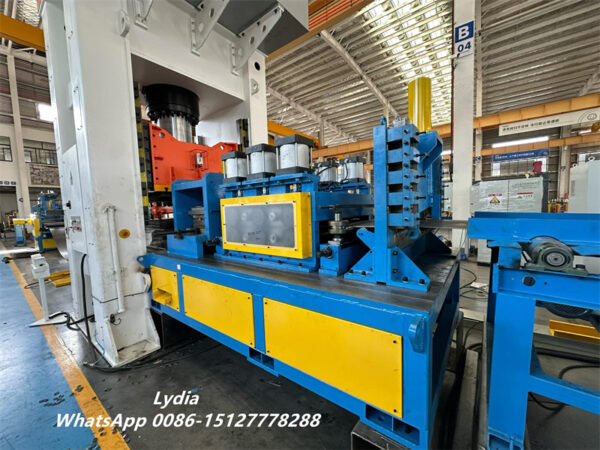

Next, the punching unit creates mounting holes according to the required guardrail design. Subsequently, the strip enters the roll forming section, where multiple forming stations gradually shape the steel into the final guardrail profile.

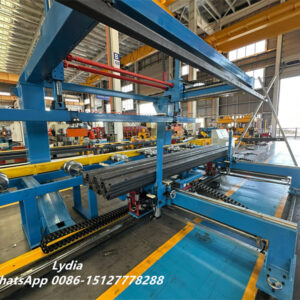

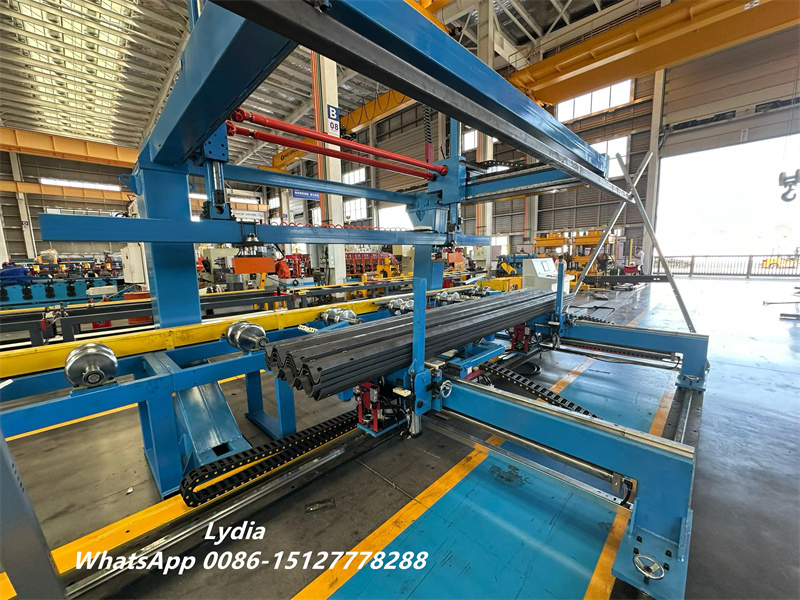

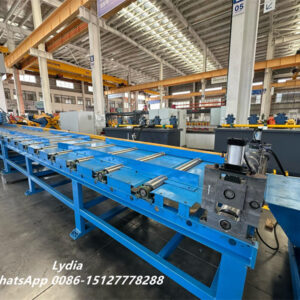

Finally, the hydraulic cutting system cuts the finished guardrail to preset lengths, and the automatic stacking unit collects the products for packaging and shipment. Therefore, manufacturers can maintain stable production while minimizing manual intervention.

Advantages of the Highway Guardrail Roll Forming Machine

Compared with traditional fabrication methods, this machine offers several significant advantages.

Firstly, the continuous roll forming process greatly increases production efficiency and reduces production downtime. Furthermore, precision-machined rollers ensure that every guardrail panel maintains consistent dimensions and excellent profile accuracy.

In addition, the PLC control system allows operators to adjust production parameters quickly through a user-friendly touchscreen interface. Consequently, production becomes more flexible when switching between different guardrail specifications.

Moreover, the hydraulic cutting system delivers clean cutting edges without damaging the profile shape. This improves the overall appearance and installation performance of the finished guardrails.

Because of its robust frame structure and heavy-duty transmission system, the machine can operate continuously under demanding industrial conditions for long periods.

Main Technical Specifications

The machine integrates decoiling, leveling, punching, roll forming, hydraulic cutting, and automatic stacking into a fully automated production process.

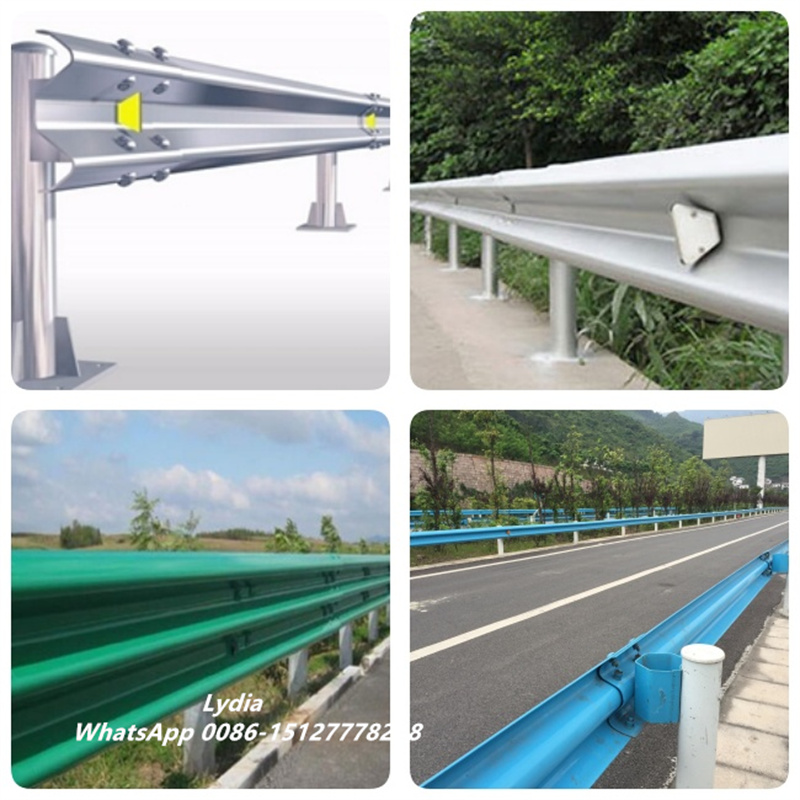

Applications of Highway Guardrail Products

Finished guardrail panels produced by this machine are widely used in various transportation and infrastructure projects.

Typical applications include:

• Expressway safety barriers
• National highway protection systems
• Urban road guardrails
• Bridge safety barriers
• Mountain road protection systems
• Industrial zone traffic protection
• Airport perimeter safety barriers
• Infrastructure development projects

As governments continue investing in transportation networks, guardrail manufacturers can benefit from the growing demand for reliable road safety products.

Why Choose a Professional Guardrail Roll Forming Line?

Selecting a high-quality guardrail roll forming machine can significantly improve production efficiency and product competitiveness. A well-designed production line not only reduces material waste but also lowers labor requirements and maintenance costs.

Furthermore, modern roll forming technology enables manufacturers to produce large quantities of highway guardrails with consistent quality and fast delivery times. Depending on profile specifications and operating schedules, a complete production line can produce several thousand meters of guardrail panels per day.

For companies involved in highway construction, infrastructure development, and road safety projects, investing in an advanced Highway Guardrail Roll Forming Machine provides a practical and long-term solution for meeting market demand while maintaining excellent product quality.
