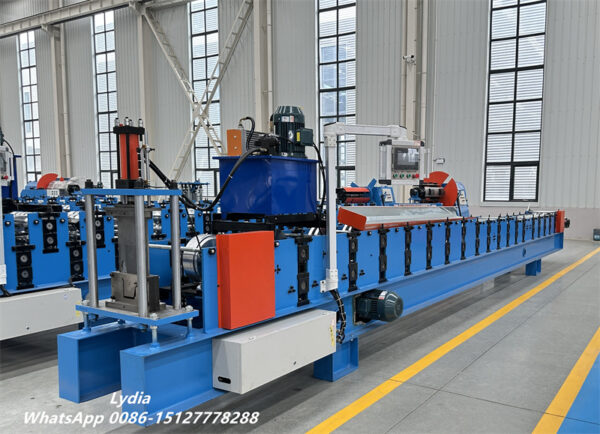

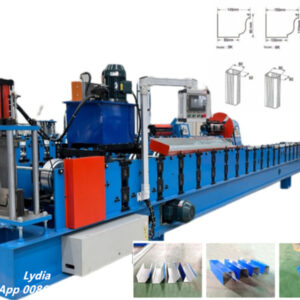

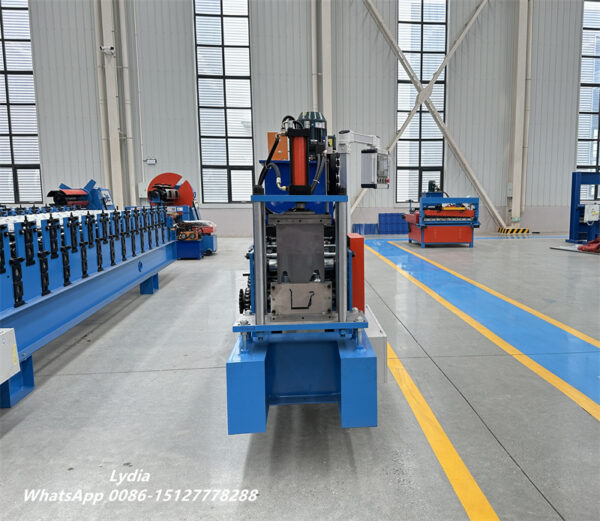

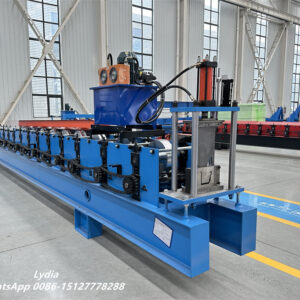

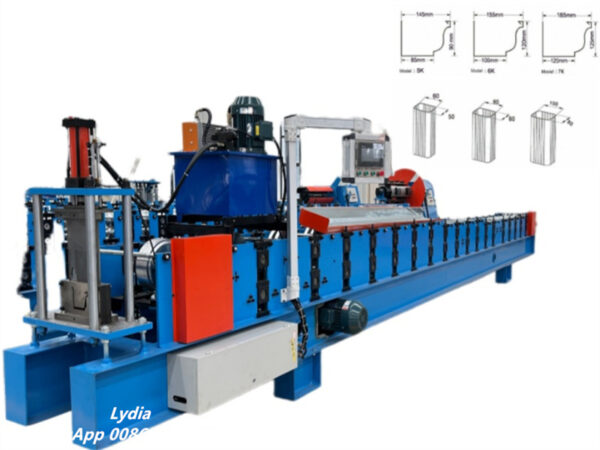

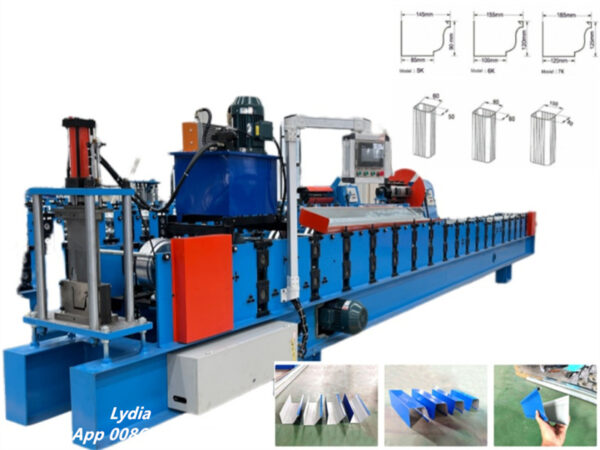

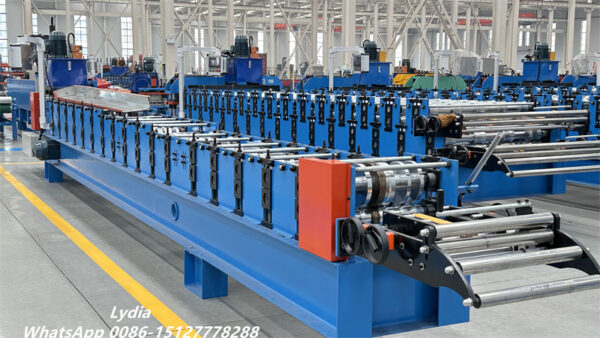

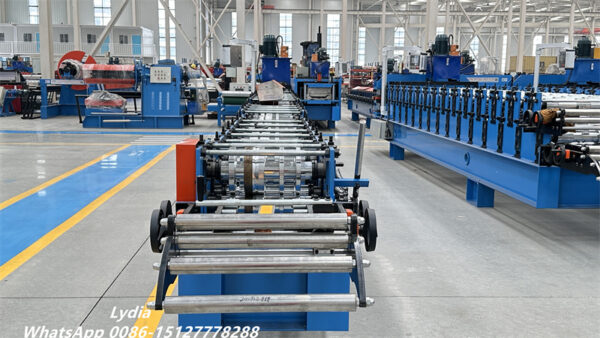

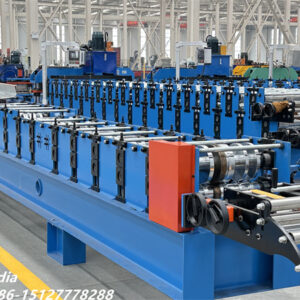

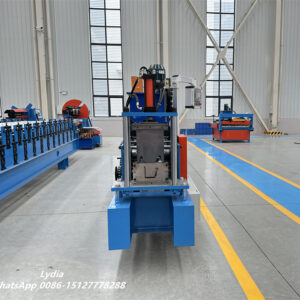

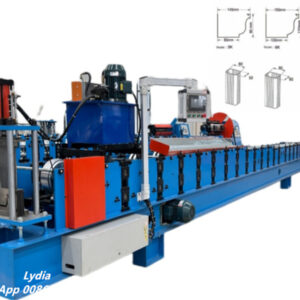

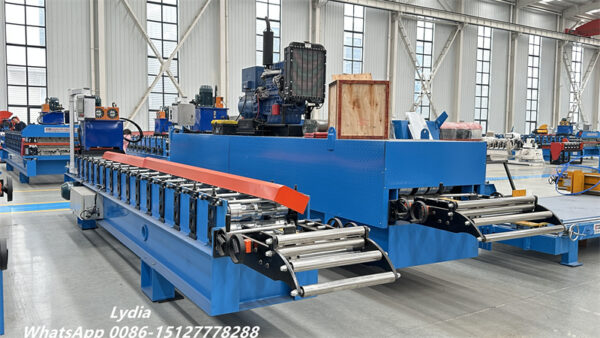

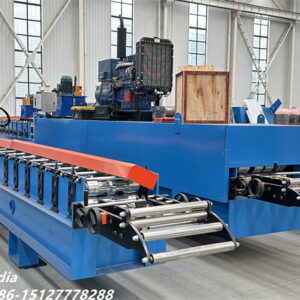

Modern construction projects require reliable drainage systems to protect buildings from water damage. Our Steel K-Style Gutter Roll Forming Machine is specifically designed to manufacture high-quality K-style gutters, one of the most widely used rainwater collection systems in residential and commercial buildings. By combining advanced roll forming technology with precise PLC control, this machine delivers consistent gutter profiles, high production efficiency, and excellent product quality.
Why K-Style Gutters Remain the Preferred Choice

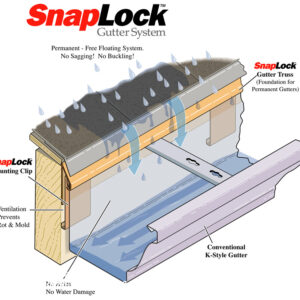

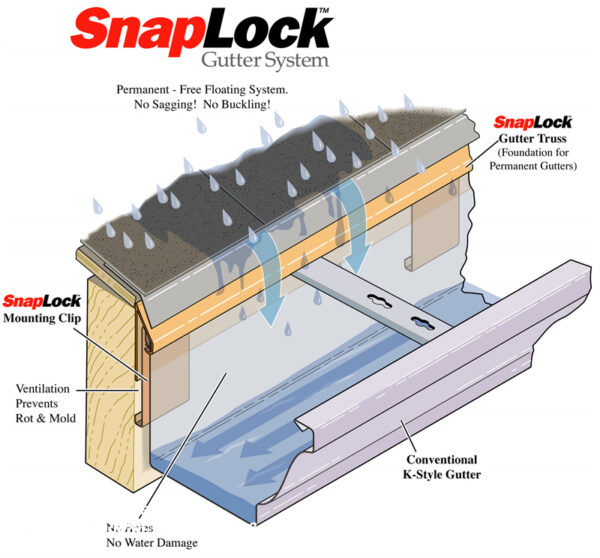

K-style gutters have become the industry standard because they offer both functionality and visual appeal. Their decorative profile resembles crown molding, allowing them to blend seamlessly with modern architecture while providing superior water-carrying capacity.

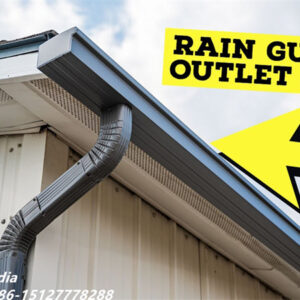

Furthermore, K-style gutters efficiently channel rainwater into downspouts, helping to protect foundations, walls, landscaping, and roofing systems from excessive moisture. As a result, contractors and building owners continue to choose metal K-style gutter systems for long-term performance.
Key Advantages of the K-Style Gutter Forming Machine

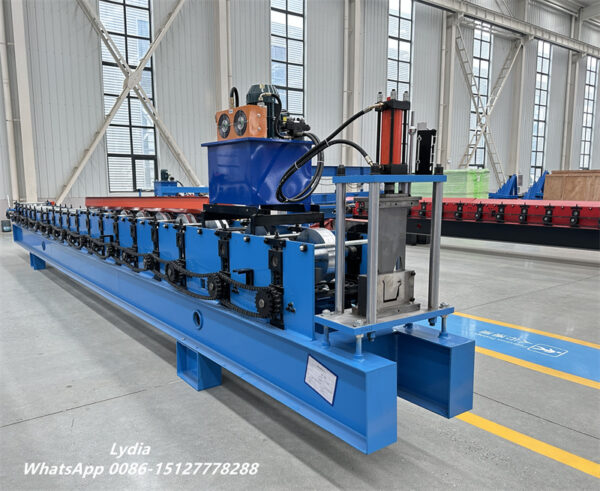

One of the major benefits of this equipment is its ability to maintain precise dimensions throughout production. The PLC control system continuously monitors operating parameters, ensuring that every gutter section meets design requirements.
Meanwhile, the hardened rollers and precision tooling provide excellent forming accuracy and long service life. This not only improves productivity but also reduces maintenance costs over time.
Additionally, the machine offers:

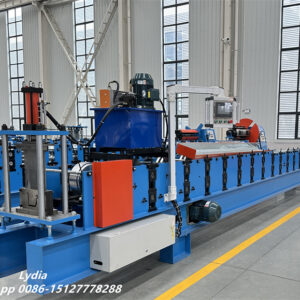

- High-speed automated production
- Consistent profile dimensions
- Smooth cutting without deformation
- Reduced material waste
- Easy operation and parameter adjustment
- Stable performance for continuous production
Consequently, manufacturers can increase output while maintaining excellent product quality.
Advanced Roll Forming Technology for Continuous Production

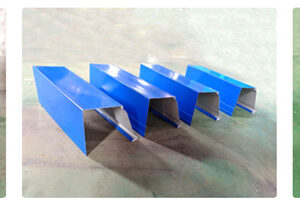

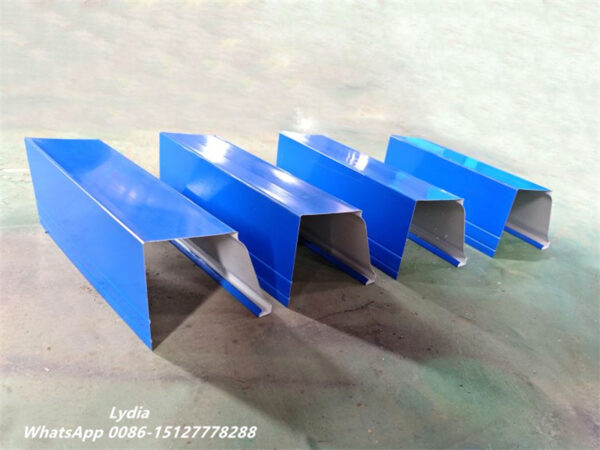

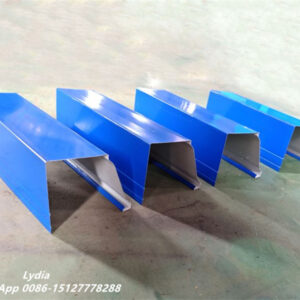

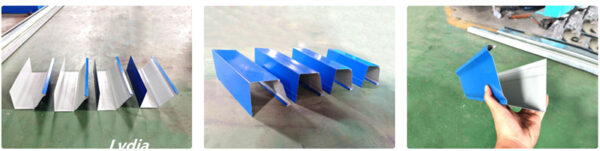

Unlike traditional fabrication methods, our K-style gutter roll forming machine produces continuous gutter sections directly from steel coils. This process significantly reduces the number of joints and seams, minimizing the risk of leakage after installation.
In addition, the automated production line ensures stable forming quality throughout the entire manufacturing process. The machine can process various materials, including:
- Pre-painted steel coils (PPGI)
- Galvanized steel coils
- Galvalume steel
- Stainless steel
- Aluminum coils
- Copper coils
Because of this flexibility, manufacturers can easily meet different project requirements and market demands.
Technical Specifications
| Item | Specification |
|---|---|
| Material Thickness | 0.3 – 0.8 mm |
| Material Type | PPGI, GI, Galvalume, Aluminum, Stainless Steel |
| Yield Strength | 235 MPa, Q345 MPa, Q550 MPa |
| Forming Speed | 15 – 20 m/min |
| Main Motor Power | 5.5 kW |
| Hydraulic Motor Power | 4 kW |
| Roller Material | Heat-treated steel with hard chrome coating |

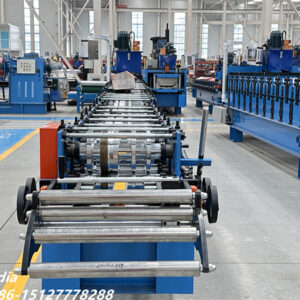

| Cutting System | Hydraulic Cutting |
| Length Measurement | Encoder Control |
| PLC System | Panasonic or Delta PLC |
| Drive System | Gear Reducer + Chain Drive |

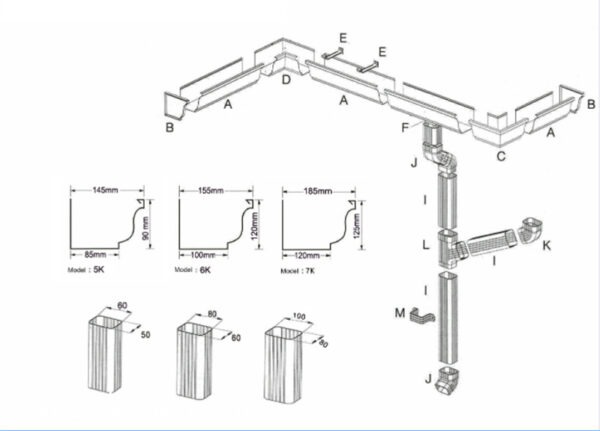

Compatible with Multiple Downspout Systems

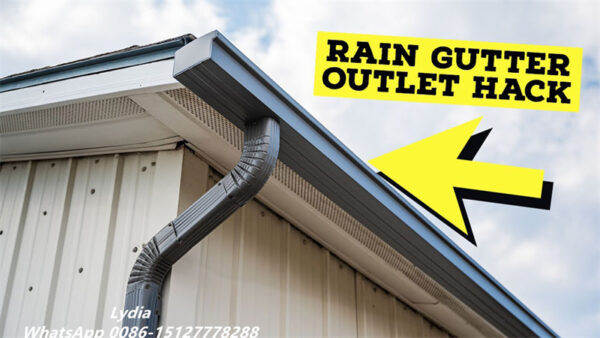

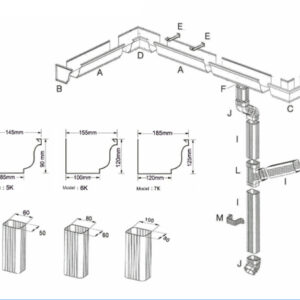

A complete rainwater drainage system requires both gutters and downspouts. Therefore, this machine can be integrated with our downspout roll forming machine to create a complete production solution.
We offer various downspout profiles, including:
- Rectangular downspouts
- Square downspouts
- Round downspouts
- Customized drainage profiles
Most importantly, precise roll forming technology ensures secure seam locking and proper profile engagement. This helps prevent water leakage and improves the overall reliability of the drainage system.
Proven Performance in Global Markets
Our K-style gutter roll forming machines have been successfully exported to countries with heavy rainfall and demanding weather conditions. Customers in Australia, the United States, the Philippines, Sri Lanka, Indonesia, Colombia, and many other regions rely on our equipment for efficient gutter production.
With more than 15 years of manufacturing and export experience, we provide not only reliable machinery but also comprehensive technical support, installation guidance, operator training, and after-sales service.
Whether you are launching a new gutter manufacturing business or expanding an existing production line, our K-Style Gutter Roll Forming Machine offers a dependable solution for producing high-quality rainwater management products with maximum efficiency and profitability.
